Isuzu WW
▶
TRUCKS
▶
FTR
▶
11647 - FTR THAILAND EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-31 - THERMOSTAT AND HOUSING
▶
0-31 — THERMOSTAT AND HOUSING
(#150208) — 35 parça
Tümü
A - 4HK1-TCS ENG
B - 6HK1-TCN ENG
◀

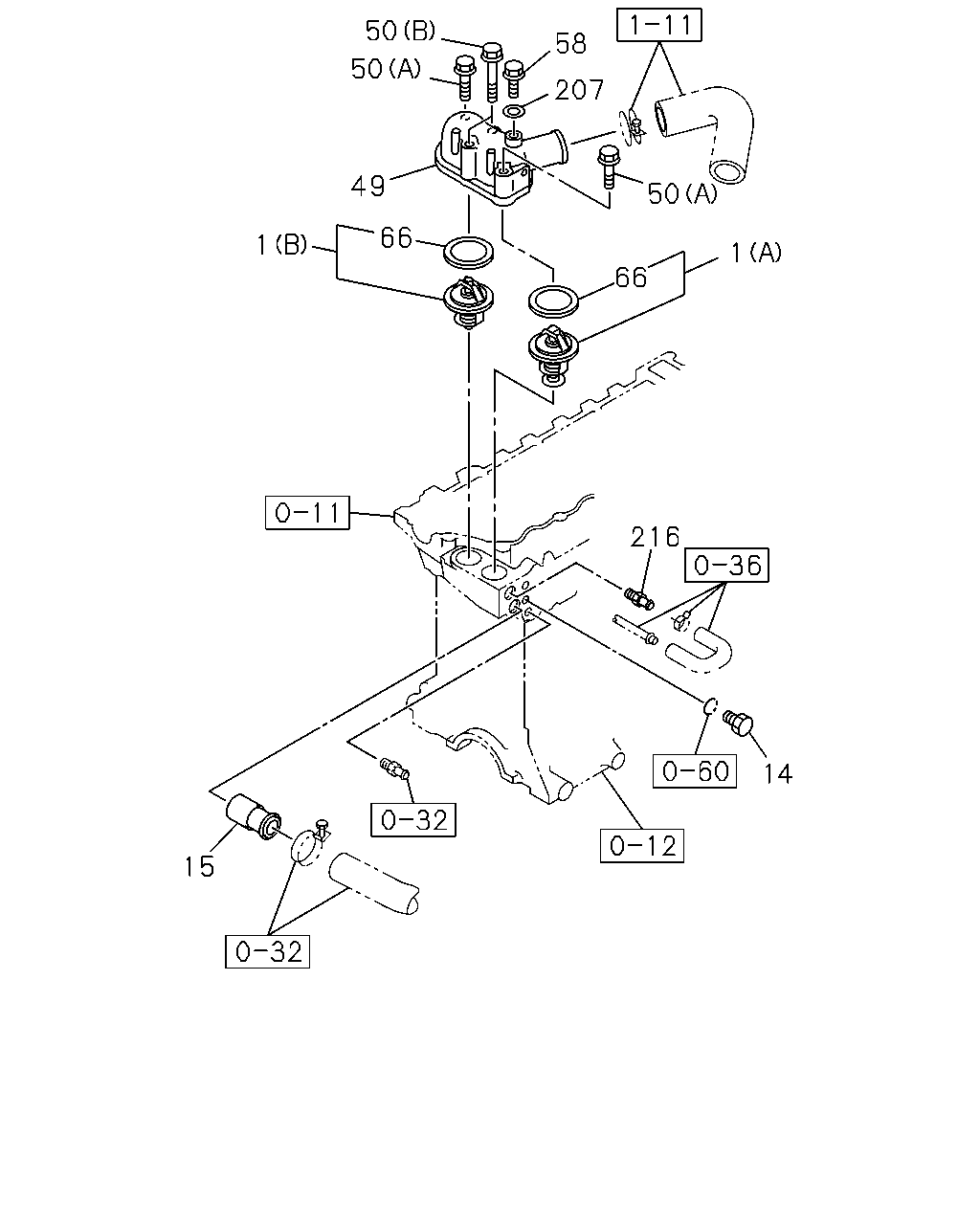

[031A] 4HK1 (15 parça)

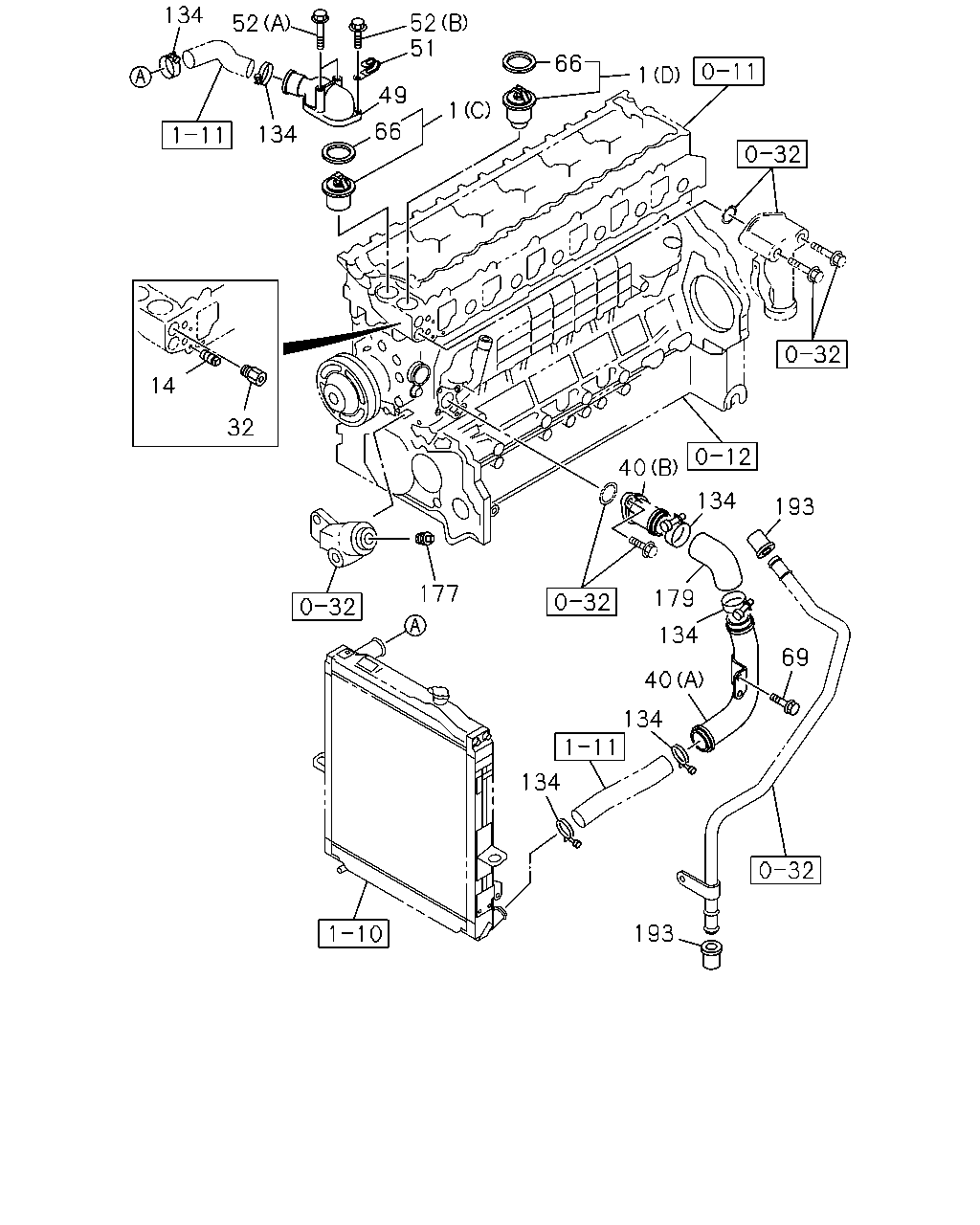

[031A] 6HK1 (20 parça)
▶
50
50
49
1
66
66
50
1
207
58
216
14
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
THERMOSTAT
(B) 85 CELSIUS THA
8-97300-787-2
01
1
1410-
●
1
THERMOSTAT
(A) 82 CELSIUS THA
8-97300-790-2
01
1
1410-
●
1
THERMOSTAT
(C) 82 CELSIUS THA
8-97602-048-2
01
1
1410-
●
1
THERMOSTAT
(D) 82 CELSIUS THA
8-97602-393-1
01
1
1410-
●
14
PLUG; SW
M16X8 PLUG THA
9-09661-005-0
01
1
1410-
●
14
PLUG; SW
PT3/8 THA
8-94397-338-0
01
1
1410-
●
15
PIPE; BYPASS
THA
8-94342-574-0
01
1
1410-
●
49
PIPE; WATER OUTLET
THA
8-97329-914-0
01
1
1410-
●
49
PIPE; WATER OUTLET
THA
8-97602-047-0
01
1
1410-
●
50
BOLT; OUTLET PIPE
(A) M8X25 FLANGE THA
0-28650-825-0
02
1
1410-
●
50
BOLT; OUTLET PIPE
(B) M8X65 FLANGE THA
1-09044-072-1
02
1
1410-
●
58
PLUG; WATER OUTLET PIPE
M8X16 THA
8-97021-211-1
01
1
1410-
●
66
GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA
8-97300-793-0
02
1
1410-
●
●
207
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=8.2 OD=13.2 THA
1-09630-082-0
01
1
1410-
●
216
PIPE ASM; WATER,TURBOCHARGER RETURN
THA
8-97358-699-0
01
1
1410-
●
134
52
52
51
49
134
66
1
66
1
14
32
177
134
134
40
134
179
40
134
193
69
193
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
THERMOSTAT
(B) 85 CELSIUS THA
8-97300-787-2
01
1
1410-
●
1
THERMOSTAT
(A) 82 CELSIUS THA
8-97300-790-2
01
1
1410-
●
1
THERMOSTAT
(C) 82 CELSIUS THA
8-97602-048-2
01
1
1410-
●
1
THERMOSTAT
(D) 82 CELSIUS THA
8-97602-393-1
01
1
1410-
●
14
PLUG; SW
M16X8 PLUG THA
9-09661-005-0
01
1
1410-
●
14
PLUG; SW
PT3/8 THA
8-94397-338-0
01
1
1410-
●
32
CONNECTOR; HTR
THA
8-98177-501-0
01
1
1410-
●
40
DUCT; WATER,SUCTION
(A) THA
8-94394-404-1
01
1
1410-
●
40
DUCT; WATER,SUCTION
(B) THA
8-94391-091-1
01
1
1410-
●
49
PIPE; WATER OUTLET
THA
8-97329-914-0
01
1
1410-
●
49
PIPE; WATER OUTLET
THA
8-97602-047-0
01
1
1410-
●
51
CLIP; JOINT,THERMOSTAT
ID=18 L=44 THA
8-97367-985-1
01
1
1410-
●
52
BOLT; JOINT,THERMOSTAT
(A) M8X80 FLANGE THA
0-28050-880-0
02
1
1410-
●
52
BOLT; JOINT,THERMOSTAT
(B) M8X25 FLANGE THA
0-28650-825-0
02
1
1410-
●
66
GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA
8-97300-793-0
02
1
1410-
●
●
69
BOLT; DUCT,WATER OUTLET
M8X20 FLANGE THA
0-28650-820-0
02
1
1410-
●
134
CLIP; RUBBER HOSE
ID=63 THA
1-09704-067-0
06
1
1410-
●
177
PLUG; PIPE,WATER DUCT
PT1/2 THA
9-09204-521-0
01
1
1410-
●
179
HOSE; RUBBER,WATER DUCT
THA
8-94390-400-3
01
1
1410-
●
193
CAP; RUBBER
THA
8-94107-678-0
02
1
1410-
●
