Isuzu WW
▶
TRUCKS
▶
FTR
▶
11647 - FTR THAILAND EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶
0-28 — VENTILATION SYSTEM
(#150206) — 32 parça
Tümü
A - 4HK1-TCS ENG
B - 6HK1-TCN ENG
◀

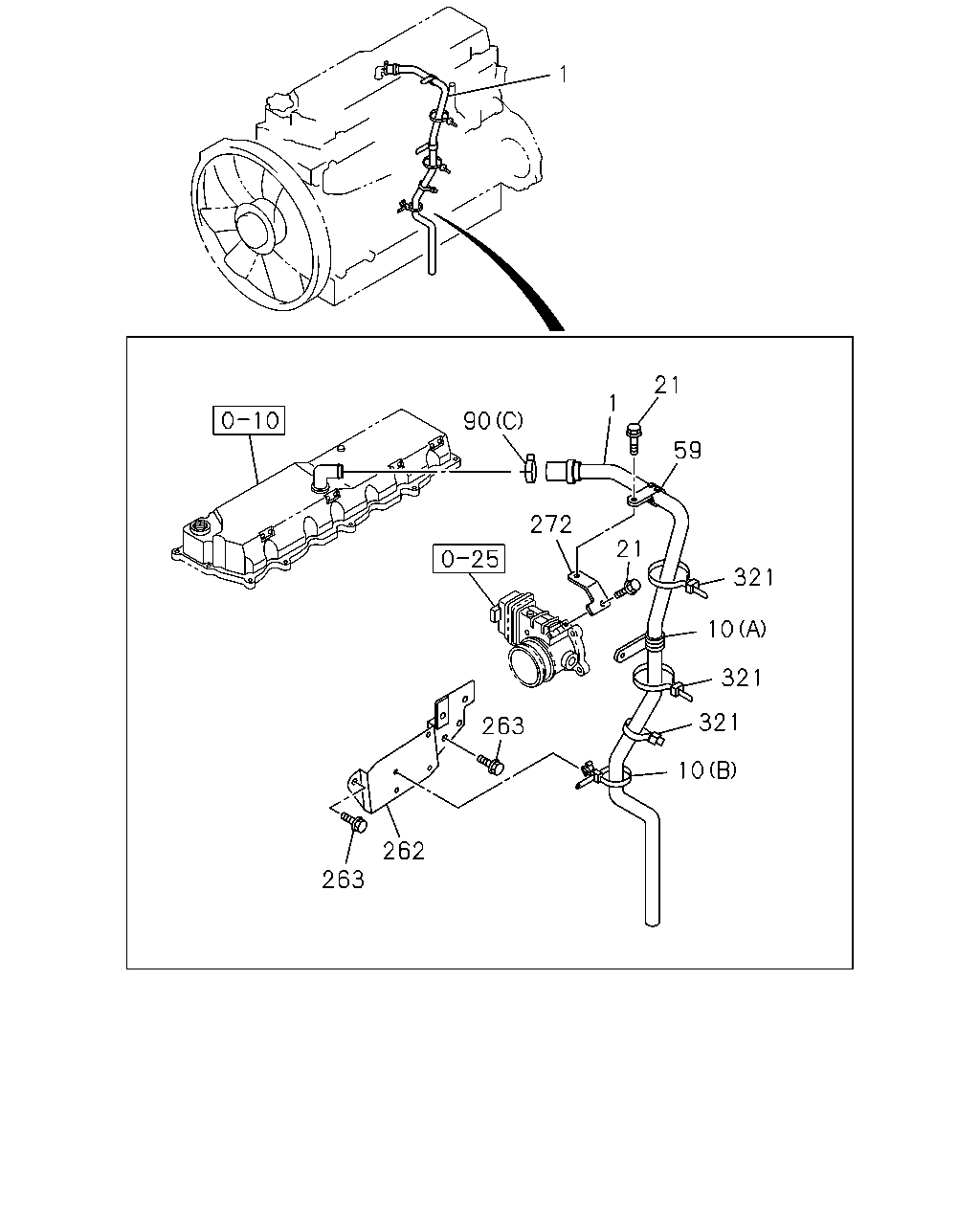

[028A] 4HK1 (17 parça)

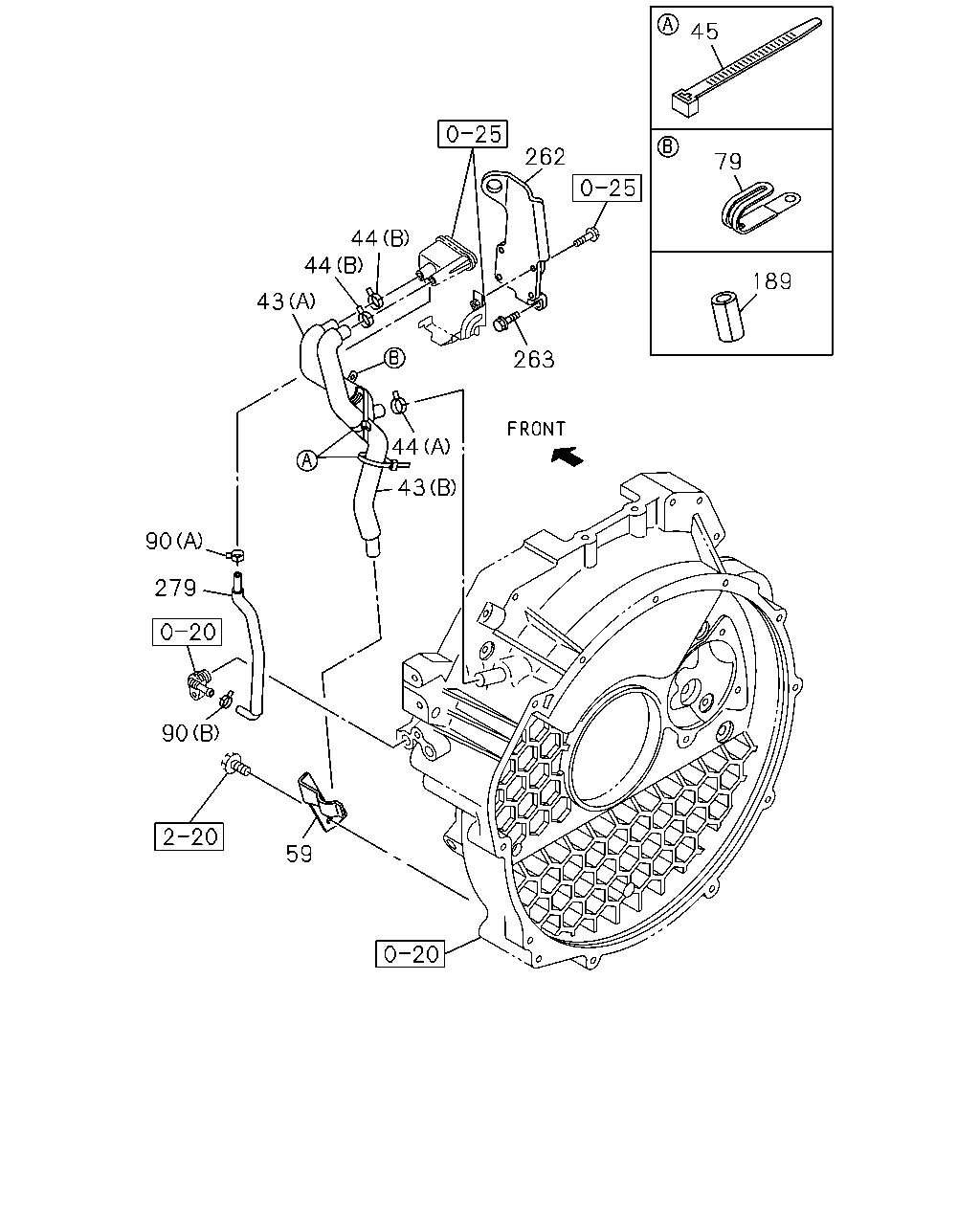

[028A] 6HK1 (15 parça)
▶
262
44
44
43
263
44
43
90
279
90
59
45
79
189
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
43
HOSE; PCV
(A) THA
8-98215-656-1
01
1
1410-
●
43
HOSE; PCV
(B) THA
8-98249-510-0
01
1
1410-
●
44
CLIP; HOSE,PCV
(A) ID=21 THA
8-94242-034-0
01
1
1410-
●
44
CLIP; HOSE,PCV
(B) ID=22.7 THA
8-94466-382-0
02
1
1410-
●
45
CLIP; PCV HOSE
L=202 THA
8-98143-872-0
02
1
1410-
●
59
CLIP; HOSE
THA
8-98249-517-0
01
1
1410-
●
59
CLIP; HOSE
ID=35 L=33 THA
1-09700-945-0
01
1
1410-
●
79
CLIP; PCV HOSE
L=36 THA
8-94224-891-1
01
1
1410-
●
90
CLIP; RUBBER HOSE
(A) ID=11 THA
8-94238-570-0
01
1
1410-
●
90
CLIP; RUBBER HOSE
(B) ID=11.5 THA
8-97138-011-0
01
1
1410-
●
90
CLIP; RUBBER HOSE
(C) ID=33.6 THA
8-94362-518-0
01
1
1410-
●
189
SLEEVE; RUBBER
ID=10 OD=14 L=30 THA
9-09956-682-0
01
1
1410-
●
262
BRACKET; OIL SEPARETOR
THA
8-98036-498-0
01
1
1410-
●
262
BRACKET; OIL SEPARETOR
THA
8-97610-919-1
01
1
1410-
●
263
BOLT; BRKT,OIL SEPARETOR
M12X30 FLANGE THA
0-28151-230-0
03
1
1410-
●
263
BOLT; BRKT,OIL SEPARETOR
M10X25 FLANGE THA
0-28751-025-0
02
1
1410-
●
279
HOSE; RUBBER,OIL DRAIN
THA
8-98215-655-0
01
1
1410-
●
1
21
1
59
321
10
321
321
10
90
272
21
263
262
263
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BREATHER; AIR
THA
8-98211-104-0
01
1
1410-
●
10
CLIP; AIR BREATHER
(A) ID=32 L=75 THA
1-09700-704-1
01
1
1410-
●
10
CLIP; AIR BREATHER
(B) L=213.5 THA
8-98000-506-1
01
1
1410-
●
21
BOLT; CLIP
M6X12 FLANGE THA
0-28050-612-0
02
1
1410-
●
59
CLIP; HOSE
THA
8-98249-517-0
01
1
1410-
●
59
CLIP; HOSE
ID=35 L=33 THA
1-09700-945-0
01
1
1410-
●
90
CLIP; RUBBER HOSE
(A) ID=11 THA
8-94238-570-0
01
1
1410-
●
90
CLIP; RUBBER HOSE
(B) ID=11.5 THA
8-97138-011-0
01
1
1410-
●
90
CLIP; RUBBER HOSE
(C) ID=33.6 THA
8-94362-518-0
01
1
1410-
●
262
BRACKET; OIL SEPARETOR
THA
8-98036-498-0
01
1
1410-
●
262
BRACKET; OIL SEPARETOR
THA
8-97610-919-1
01
1
1410-
●
263
BOLT; BRKT,OIL SEPARETOR
M12X30 FLANGE THA
0-28151-230-0
03
1
1410-
●
263
BOLT; BRKT,OIL SEPARETOR
M10X25 FLANGE THA
0-28751-025-0
02
1
1410-
●
272
BRACKET; PIPE
THA
8-97607-397-0
01
1
1410-
●
321
CLIP; HOSE,SEPARATOR
L=300 THA
1-09707-001-1
03
1
1410-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
