0-14 — CAMSHAFT AND VALVE (#150200) — 145 parça

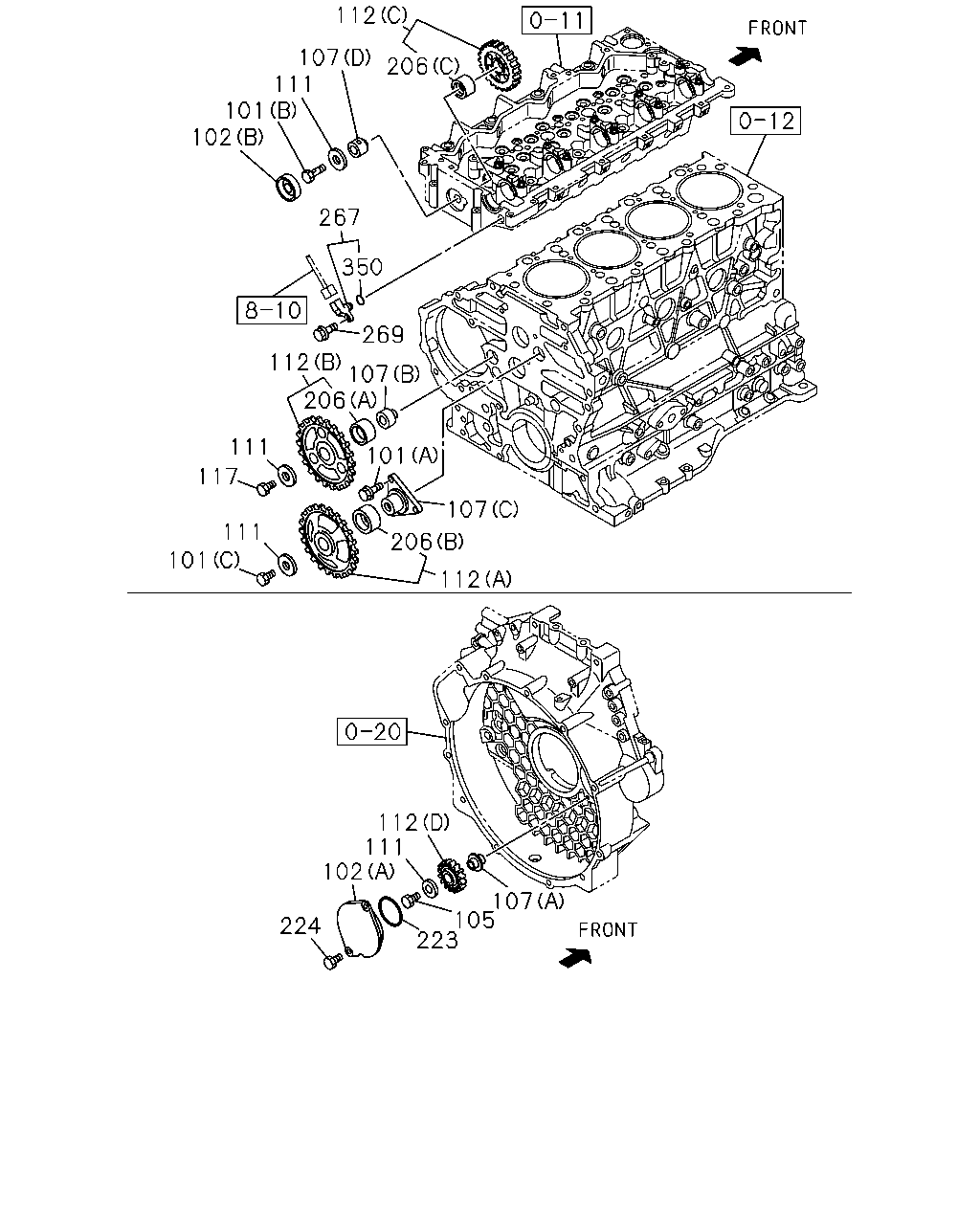

112 107 111 206 101 102 267 350 269 112 107 206 101 111 117 111 101 107 206 112 112 111 102 224 107 105 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
101	BOLT; THRUST COLLAR (C) M14X25 THA	0-23951-425-0	01	1	1410-	●
101	BOLT; THRUST COLLAR (B) M14X36.5 THA	8-94372-221-1	01	1	1410-	●
101	BOLT; THRUST COLLAR (A) M8X16 FLANGE THA	0-28060-816-0	03	1	1410-	●	●
101	BOLT; THRUST COLLAR (E) M14X60 THA	0-16956-460-0	01	1	1410-		●
101	BOLT; THRUST COLLAR (D) M14X30 THA	0-23951-430-0	01	1	1410-		●
102	COVER; IDLE GEAR (A) THA	8-94334-681-1	01	1	1410-	●
102	COVER; IDLE GEAR (B) OD=51 THA	8-97096-826-0	01	1	1410-	●
105	BOLT; IDLE GEAR SHAFT M14X60 THA	0-16956-460-0	01	1	1410-	●
105	BOLT; IDLE GEAR SHAFT M14X65 THA	8-97066-798-0	01	1	1410-		●
107	SHAFT; IDLE GEAR (D) THA	8-97186-398-1	01	1	1410-	●
107	SHAFT; IDLE GEAR (A) THA	8-94334-682-1	01	1	1410-	●	●
107	SHAFT; IDLE GEAR (C) THA	8-97350-021-0	01	1	1410-	●	●
107	SHAFT; IDLE GEAR (B) THA	8-98060-780-0	01	1	1410-	●	●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46 THA	8-97209-728-2	04	1	1410-	●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46 THA	8-97209-728-2	03	1	1410-		●
112	GEAR; IDLE (D) Z=34 THA	8-97120-005-1	01	1	1410-	●
112	GEAR; IDLE (C) Z=41 THA	8-97606-929-0	01	1	1410-	●
112	GEAR; IDLE (A) Z=61 THA	8-97606-767-0	01	1	1410-	●	●
112	GEAR; IDLE (B) Z=72-60-30 THA	8-98254-970-0	01	1	1410-	●	●
112	GEAR; IDLE (E) Z=34 THA	8-97606-771-0	01	1	1410-		●
117	BOLT; FLANGE M14X65 FLANGE THA	8-97113-167-0	01	1	1410-	●
206	BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT. THA	8-97606-768-0	01	1	1410-	●
206	BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT. THA	8-97606-770-0	01	1	1410-	●
206	BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT. THA	8-98255-899-0	01	1	1410-	●
223	GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6 THA	1-09623-423-0	01	1	1410-	●
224	BOLT; COVER M8X16 FLANGE THA	0-28050-816-0	02	1	1410-	●
267	SENSOR; CAM ANGLE THA	8-98019-024-0	01	1	1410-	●
269	BOLT; SENSOR M6X12 FLANGE THA	0-28050-612-0	01	1	1410-	●
350	GASKET; SENSOR,CAM ANGLE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=18.8 THA	8-97369-404-0	01	1	1410-	●

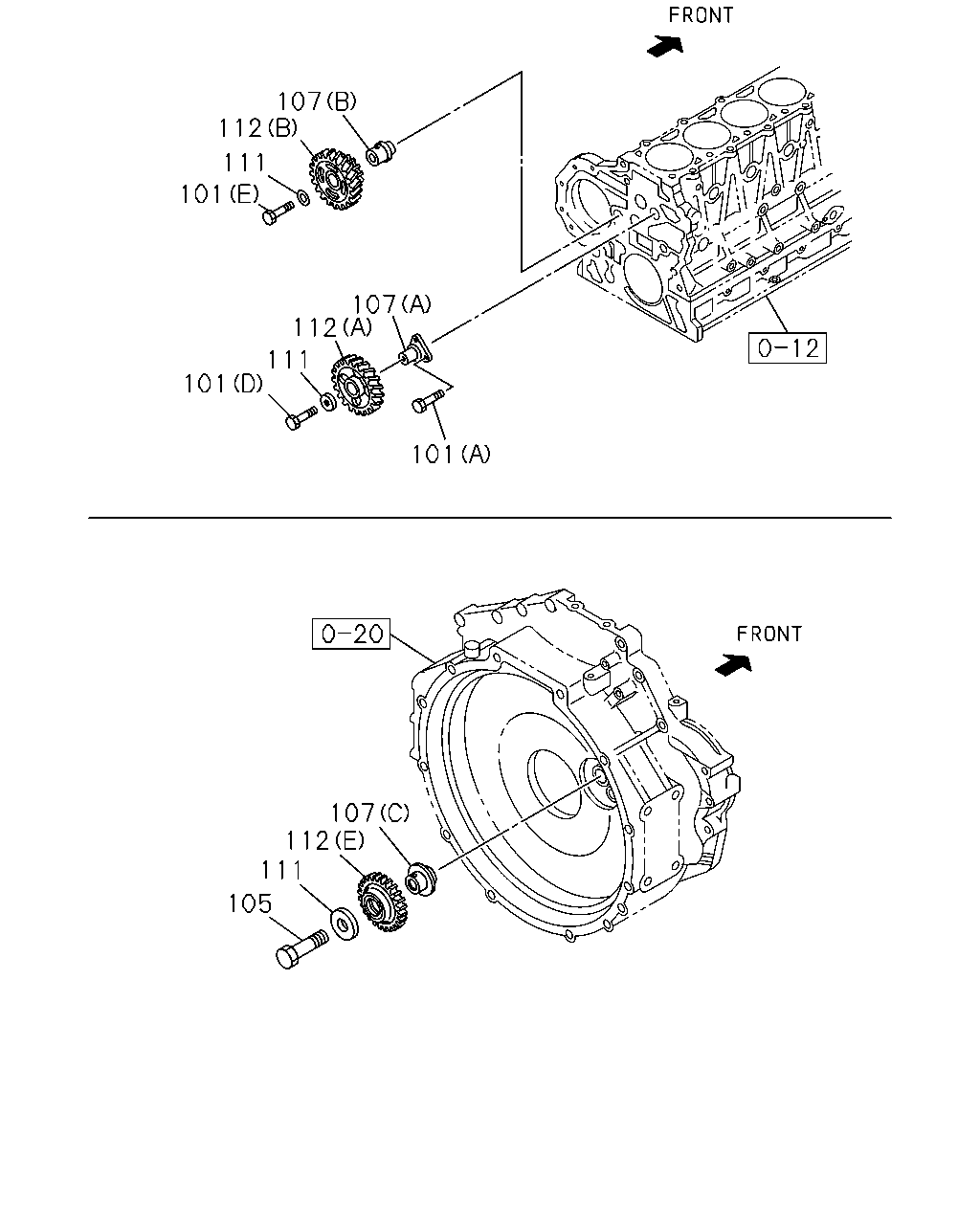

107 112 111 101 107 112 111 101 101 107 112 111 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
101	BOLT; THRUST COLLAR (C) M14X25 THA	0-23951-425-0	01	1	1410-	●
101	BOLT; THRUST COLLAR (B) M14X36.5 THA	8-94372-221-1	01	1	1410-	●
101	BOLT; THRUST COLLAR (A) M8X16 FLANGE THA	0-28060-816-0	03	1	1410-	●	●
101	BOLT; THRUST COLLAR (E) M14X60 THA	0-16956-460-0	01	1	1410-		●
101	BOLT; THRUST COLLAR (D) M14X30 THA	0-23951-430-0	01	1	1410-		●
105	BOLT; IDLE GEAR SHAFT M14X60 THA	0-16956-460-0	01	1	1410-	●
105	BOLT; IDLE GEAR SHAFT M14X65 THA	8-97066-798-0	01	1	1410-		●
107	SHAFT; IDLE GEAR (D) THA	8-97186-398-1	01	1	1410-	●
107	SHAFT; IDLE GEAR (A) THA	8-94334-682-1	01	1	1410-	●	●
107	SHAFT; IDLE GEAR (C) THA	8-97350-021-0	01	1	1410-	●	●
107	SHAFT; IDLE GEAR (B) THA	8-98060-780-0	01	1	1410-	●	●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46 THA	8-97209-728-2	04	1	1410-	●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46 THA	8-97209-728-2	03	1	1410-		●
112	GEAR; IDLE (D) Z=34 THA	8-97120-005-1	01	1	1410-	●
112	GEAR; IDLE (C) Z=41 THA	8-97606-929-0	01	1	1410-	●
112	GEAR; IDLE (A) Z=61 THA	8-97606-767-0	01	1	1410-	●	●
112	GEAR; IDLE (B) Z=72-60-30 THA	8-98254-970-0	01	1	1410-	●	●
112	GEAR; IDLE (E) Z=34 THA	8-97606-771-0	01	1	1410-		●

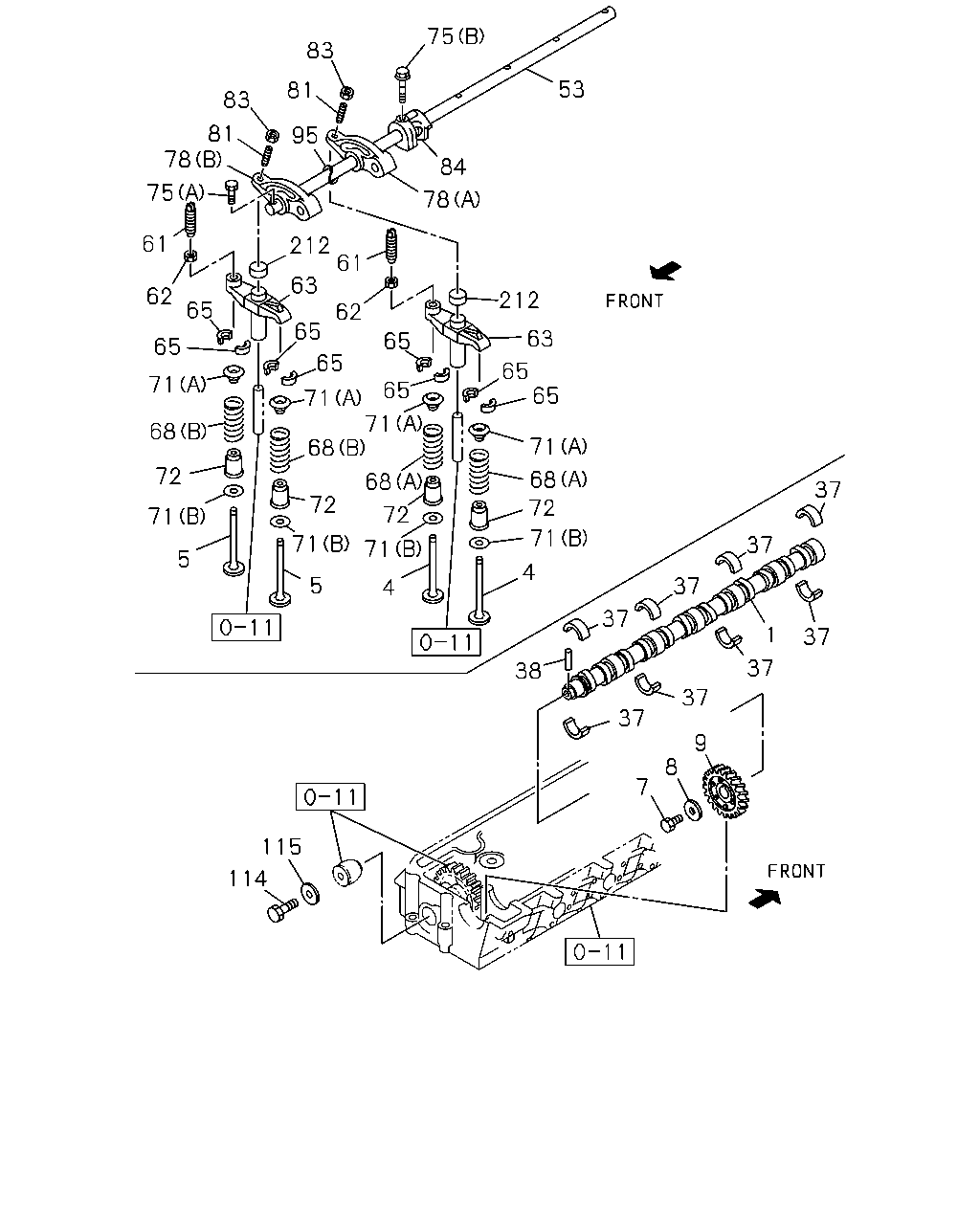

75 53 83 81 83 81 78 75 84 95 78 212 61 62 65 65 63 61 62 65 71 68 72 71 5 65 65 212 63 65 65 71 71 65 71 68 72 71 4 4 71 72 68 68 72 71 5 37 37 37 37 38 37 1 37 37 37 9 8 7 115 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAMSHAFT THA	8-97262-166-0	01	1	1410-	●
1	CAMSHAFT THA	8-98227-261-1	01	1	1410-		●
4	VALVE; INL THA	8-94395-882-2	08	1	1410-	●
4	VALVE; INL THA	8-94395-882-2	12	1	1410-		●
5	VALVE; EXH THA	8-97209-876-3	08	1	1410-	●
5	VALVE; EXH THA	8-97209-876-3	12	1	1410-		●
7	BOLT; CM/SHF GEAR M14X40 THA	8-94396-439-0	01	1	1410-	●	●
8	WASHER; CM/SHF GEAR ID=14.5 THA	9-09851-850-3	01	1	1410-		●
9	GEAR; CM/SHF Z=35 THA	8-98018-935-3	01	1	1410-	●
9	GEAR; CM/SHF Z=35 THA	8-98018-934-3	01	1	1410-		●
37	METAL; CM/SHF B=16 THA	8-97386-189-0	10	1	1410-	●
37	METAL; CM/SHF UPPER B=16 THA	8-97386-189-0	04	1	1410-		●
37	METAL; CM/SHF LOWER B=26 THA	8-97602-699-0	04	1	1410-		●
38	PIN; CAM BRG SET THA	8-94399-487-0	01	1	1410-		●
53	SHAFT; ROCKER ARM THA	8-97389-921-0	01	1	1410-	●
53	SHAFT; ROCKER ARM THA	8-97389-918-0	01	1	1410-		●
61	SCREW; ADJ,BRIDGE M8X21 THA	8-94394-803-0	08	1	1410-	●
61	SCREW; ADJ,BRIDGE M8X21 THA	8-94394-803-0	12	1	1410-		●
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE THA	9-09844-574-0	08	1	1410-	●
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE THA	9-09844-574-0	12	1	1410-		●
63	BRIDGE THA	8-94392-002-3	08	1	1410-	●
63	BRIDGE THA	8-94392-002-3	12	1	1410-		●
65	COLLAR; SPLIT THA	5-12565-004-0	32	1	1410-	●
65	COLLAR; SPLIT THA	5-12565-004-0	48	1	1410-		●
68	SPRING; VLV (B) EXHAUST MARK RED THA	8-97210-682-0	08	1	1410-	●
68	SPRING; VLV (A) INLET MARK BLUE THA	8-97352-888-0	08	1	1410-	●
68	SPRING; VLV (B) EXHAUST MARK RED THA	8-97210-682-0	12	1	1410-		●
68	SPRING; VLV (A) INLET MARK BLUE THA	8-97352-888-0	12	1	1410-		●
71	SEAT; SPR (A) UPPER OD=32.8 T=12.75 THA	8-94390-783-2	16	1	1410-	●
71	SEAT; SPR (B) LOWER ID=14.3 T=1.0 THA	8-94391-468-0	16	1	1410-	●
71	SEAT; SPR (A) UPPER OD=32.8 T=12.75 THA	8-94390-783-2	24	1	1410-		●
71	SEAT; SPR (B) LOWER ID=14.3 T=1.0 THA	8-94391-468-0	24	1	1410-		●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA	8-97376-720-0	16	1	1410-	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA	8-97376-720-0	24	1	1410-		●
75	BOLT; BRKT (A) M8X40 FLANGE THA	0-28050-840-0	02	1	1410-		●
75	BOLT; BRKT (B) M10X62 FLANGE THA	8-94393-131-0	05	1	1410-		●
78	ARM; ROCKER (A) INLET THA	8-97306-421-3	04	1	1410-	●
78	ARM; ROCKER (B) EXHAUST THA	8-97306-424-3	04	1	1410-	●
78	ARM; ROCKER (A) INLET THA	8-97306-421-3	06	1	1410-		●
78	ARM; ROCKER (B) EXHAUST THA	8-97306-424-3	06	1	1410-		●
81	SCREW; ADJ,ROCKER ARM M10 L=32 THA	8-94395-024-0	08	1	1410-	●
81	SCREW; ADJ,ROCKER ARM M10 L=32 THA	8-94395-024-0	12	1	1410-		●
83	NUT; ADJ SCREW,LK M10 THA	0-91111-510-0	08	1	1410-	●
83	NUT; ADJ SCREW,LK M10 THA	0-91111-510-0	12	1	1410-		●
84	BRACKET; ROCKER SHAFT,INTER THA	8-94395-836-2	05	1	1410-		●
95	SPRING; ROCKER SHAFT THA	8-94392-999-0	04	1	1410-	●
95	SPRING; ROCKER SHAFT THA	8-94392-999-0	06	1	1410-		●
114	BOLT; IDLE GEAR M14X36.5 THA	8-94372-221-1	01	1	1410-		●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46 THA	8-97209-728-2	01	1	1410-		●
212	CAP; ADJ SCREW THA	8-94396-015-2	12	1	1410-		●

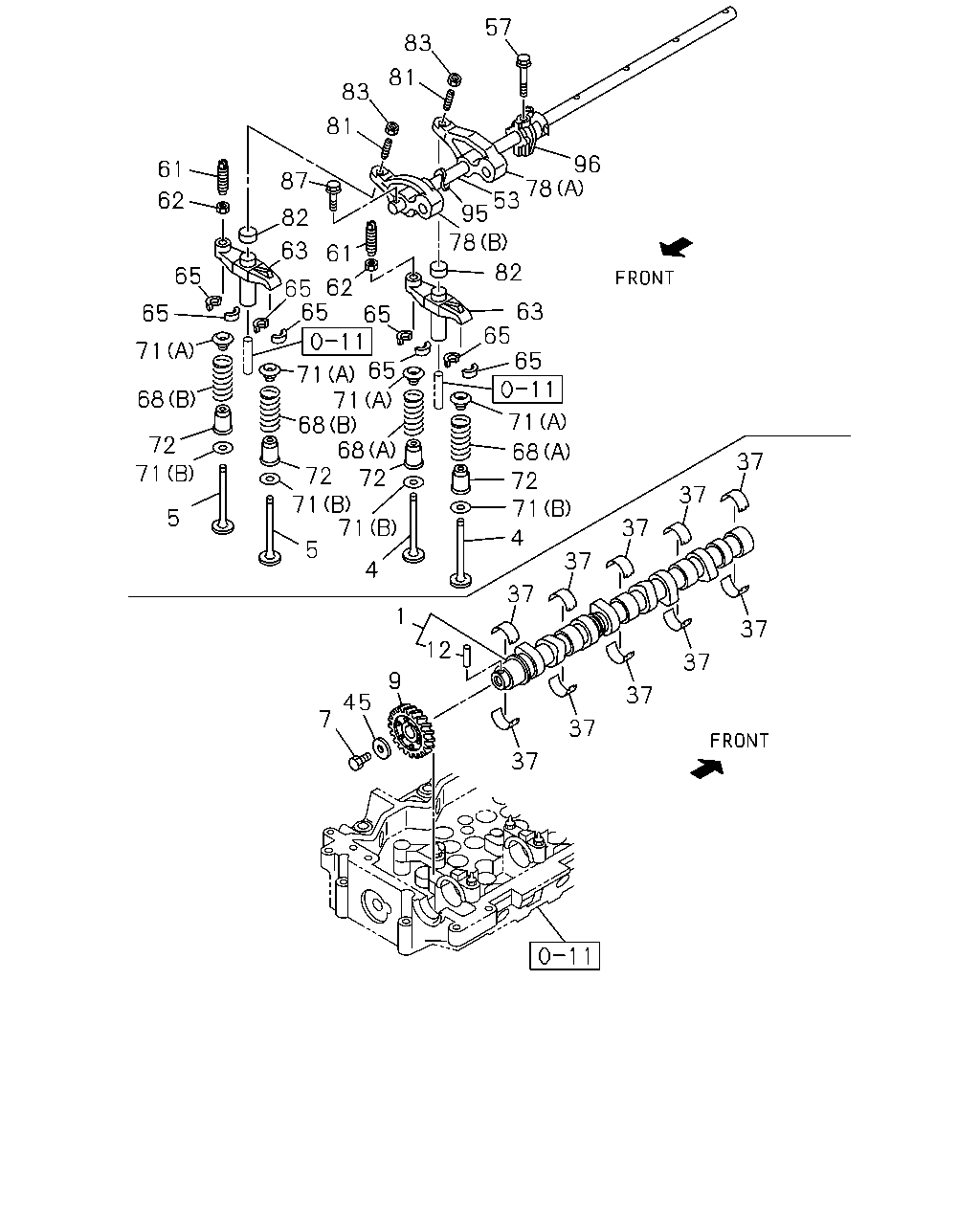

57 83 81 83 81 87 72 63 61 62 65 65 61 62 65 65 71 68 72 71 5 71 68 72 71 5 65 65 68 72 71 4 96 78 53 95 78 82 63 65 65 71 68 72 71 4 37 37 37 37 37 37 37 37 37 37 12 1 9 45 7 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAMSHAFT THA	8-97262-166-0	01	1	1410-	●
1	CAMSHAFT THA	8-98227-261-1	01	1	1410-		●
4	VALVE; INL THA	8-94395-882-2	08	1	1410-	●
4	VALVE; INL THA	8-94395-882-2	12	1	1410-		●
5	VALVE; EXH THA	8-97209-876-3	08	1	1410-	●
5	VALVE; EXH THA	8-97209-876-3	12	1	1410-		●
7	BOLT; CM/SHF GEAR M14X40 THA	8-94396-439-0	01	1	1410-	●	●
9	GEAR; CM/SHF Z=35 THA	8-98018-935-3	01	1	1410-	●
9	GEAR; CM/SHF Z=35 THA	8-98018-934-3	01	1	1410-		●
12	KEY; CAM GEAR SET THA	8-94399-487-0	02	1	1410-	●
37	METAL; CM/SHF B=16 THA	8-97386-189-0	10	1	1410-	●
37	METAL; CM/SHF UPPER B=16 THA	8-97386-189-0	04	1	1410-		●
37	METAL; CM/SHF LOWER B=26 THA	8-97602-699-0	04	1	1410-		●
45	WASHER; GEAR CAM ID=14.5 THA	9-09851-850-3	01	1	1410-	●
53	SHAFT; ROCKER ARM THA	8-97389-921-0	01	1	1410-	●
53	SHAFT; ROCKER ARM THA	8-97389-918-0	01	1	1410-		●
57	BOLT; ROCKER ARM BRKT M10X62 FLANGE THA	8-94393-131-0	03	1	1410-	●
61	SCREW; ADJ,BRIDGE M8X21 THA	8-94394-803-0	08	1	1410-	●
61	SCREW; ADJ,BRIDGE M8X21 THA	8-94394-803-0	12	1	1410-		●
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE THA	9-09844-574-0	08	1	1410-	●
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE THA	9-09844-574-0	12	1	1410-		●
63	BRIDGE THA	8-94392-002-3	08	1	1410-	●
63	BRIDGE THA	8-94392-002-3	12	1	1410-		●
65	COLLAR; SPLIT THA	5-12565-004-0	32	1	1410-	●
65	COLLAR; SPLIT THA	5-12565-004-0	48	1	1410-		●
68	SPRING; VLV (B) EXHAUST MARK RED THA	8-97210-682-0	08	1	1410-	●
68	SPRING; VLV (A) INLET MARK BLUE THA	8-97352-888-0	08	1	1410-	●
68	SPRING; VLV (B) EXHAUST MARK RED THA	8-97210-682-0	12	1	1410-		●
68	SPRING; VLV (A) INLET MARK BLUE THA	8-97352-888-0	12	1	1410-		●
71	SEAT; SPR (A) UPPER OD=32.8 T=12.75 THA	8-94390-783-2	16	1	1410-	●
71	SEAT; SPR (B) LOWER ID=14.3 T=1.0 THA	8-94391-468-0	16	1	1410-	●
71	SEAT; SPR (A) UPPER OD=32.8 T=12.75 THA	8-94390-783-2	24	1	1410-		●
71	SEAT; SPR (B) LOWER ID=14.3 T=1.0 THA	8-94391-468-0	24	1	1410-		●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA	8-97376-720-0	16	1	1410-	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA	8-97376-720-0	24	1	1410-		●
78	ARM; ROCKER (A) INLET THA	8-97306-421-3	04	1	1410-	●
78	ARM; ROCKER (B) EXHAUST THA	8-97306-424-3	04	1	1410-	●
78	ARM; ROCKER (A) INLET THA	8-97306-421-3	06	1	1410-		●
78	ARM; ROCKER (B) EXHAUST THA	8-97306-424-3	06	1	1410-		●
81	SCREW; ADJ,ROCKER ARM M10 L=32 THA	8-94395-024-0	08	1	1410-	●
81	SCREW; ADJ,ROCKER ARM M10 L=32 THA	8-94395-024-0	12	1	1410-		●
82	CAP; ROCKER SHAFT THA	8-94396-015-2	08	1	1410-	●
83	NUT; ADJ SCREW,LK M10 THA	0-91111-510-0	08	1	1410-	●
83	NUT; ADJ SCREW,LK M10 THA	0-91111-510-0	12	1	1410-		●
87	BOLT; ROCKER SHAFT M8X40 FLANGE THA	0-28050-840-0	02	1	1410-	●
95	SPRING; ROCKER SHAFT THA	8-94392-999-0	04	1	1410-	●
95	SPRING; ROCKER SHAFT THA	8-94392-999-0	06	1	1410-		●
96	BRACKET; ROCKER ARM SHAFT THA	8-97334-414-0	03	1	1410-	●
