◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11140 - FSR-RHD(EU)SPACE EU4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#15020) — 12 parça

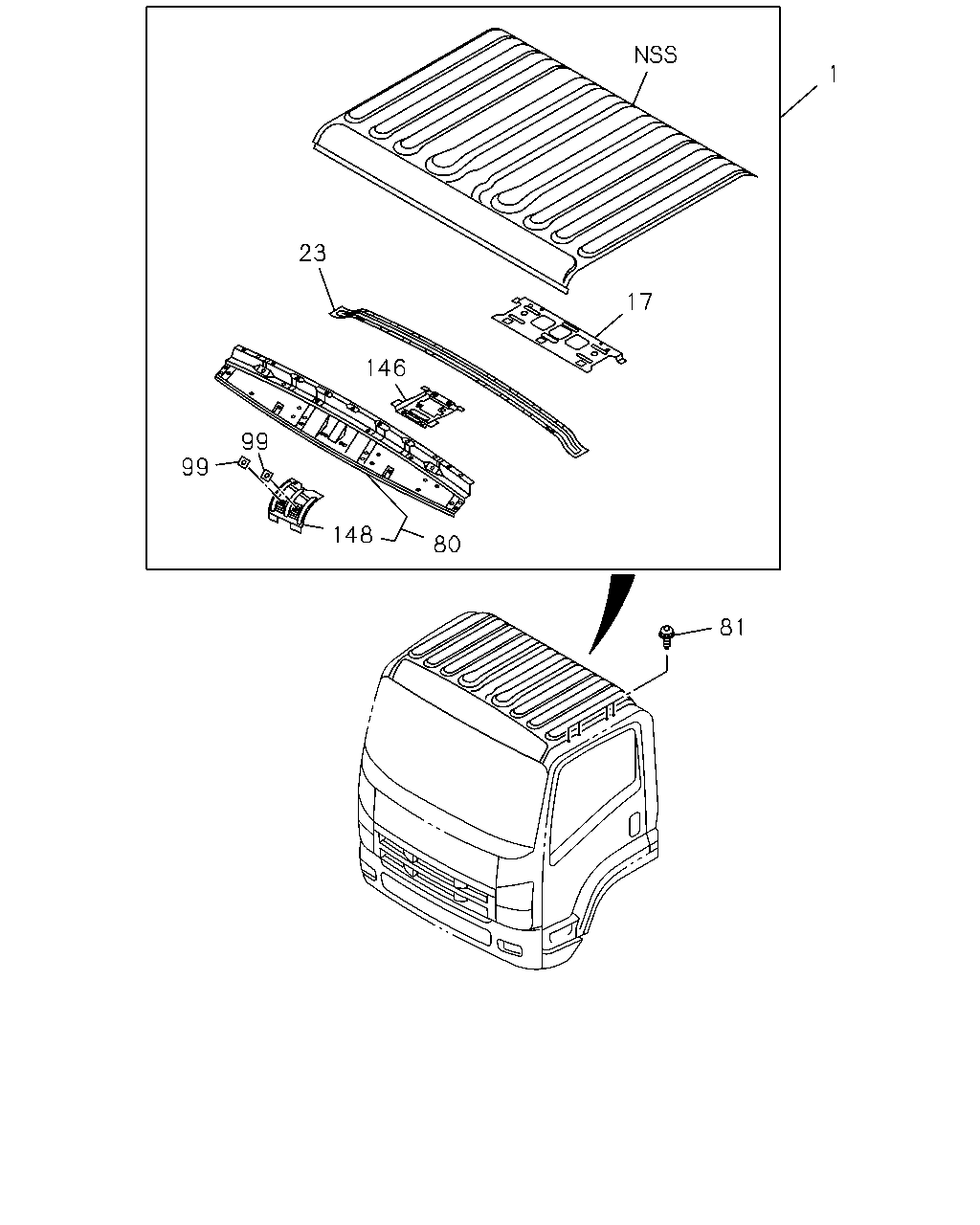

çizim 94780
1 23 17 146 99 99 148 80 81
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; ROOF
EXC. FLUORESCENT LAMP<6UC> 		8-98158-310-1 01 1 1002- ● ●
1 PANEL; ROOF 8-97584-167-5 01 1 0803-1001 ● ●
1 PANEL; ROOF
FLUORESCENT LAMP<6UC> 		8-97584-167-6 01 1 1002- ● ●
17 REINFORCEMENT; ROOF PNL CENTER 8-97584-203-5 01 1 0803-1001 ● ●
17 REINFORCEMENT; ROOF PNL CENTER
FLUORESCENT LAMP<6UC> 		8-97584-203-5 01 1 1002- ● ●
23 REINFORCEMENT; ROOF PANEL,FRT 8-98019-310-0 01 1 0803- ● ●
80 PANEL; HEADER,ROOF 8-97584-191-4 01 1 0803- ● ●
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98028-744-0 08 1 0803-0910 ● ●
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98141-874-0 08 1 0911- ● ●
99 SEAL; BODY,METAL
30X30 ID=20 T=0.7 		1-61281-380-2 02 1 0803- ● ●
146 REINFORCEMENT; ROOM LAMP 8-98075-827-0 01 1 0803- ● ●
148 REINFORCEMENT; MIRROR 8-97411-015-1 01 1 0803- ● ●
