0-12 — CYLINDER BLOCK (#150198) — 110 parça

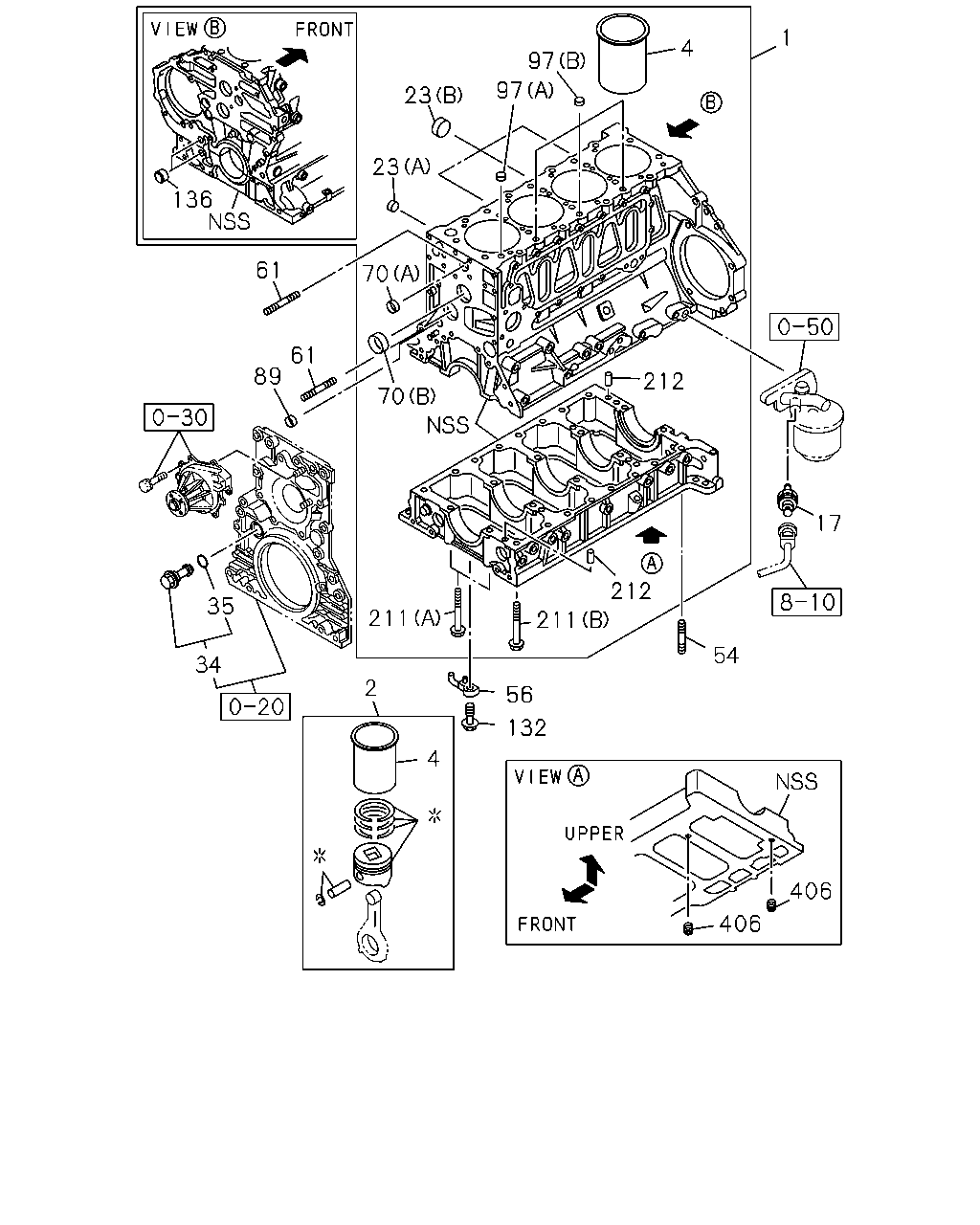

1 4 97 97 23 23 70 70 61 89 61 136 35 34 2 4 211 211 56 132 54 212 406 406 17 212

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL THA	8-98204-528-0	01	1	1410-	●
1	BLOCK ASM; CYL THA	8-98206-966-0	01	1	1410-		●
2	LINER SET; ENG CYL GRADE=1X THA	1-87814-728-0	04	1	1410-	●
2	LINER SET; ENG CYL GRADE=3X THA	1-87814-729-0	04	1	1410-	●
2	LINER SET; ENG CYL GRADE=1X THA	1-87813-119-6	06	1	1410-		●
2	LINER SET; ENG CYL GRADE=3X THA	1-87813-120-6	06	1	1410-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON THA	8-94391-602-1	04	1	1410-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON THA	8-94391-603-1	04	1	1410-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON THA	8-98014-046-1	06	1	1410-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON THA	8-98014-047-1	06	1	1410-		●
17	SWITCH; OIL PRESSURE THA	8-97176-230-0	01	1	1410-	●
23	CUP; SEALING,C/BL FRT & RR (A) OD=25 THA	1-09600-016-0	01	1	1410-	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45 THA	8-97036-550-1	03	1	1410-	●
34	VALVE; OIL RELIEF THA	8-97328-859-0	01	1	1410-	●
34	VALVE; OIL RELIEF THA	8-94393-077-1	01	1	1410-		●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=23.3 THA	8-94173-412-0	01	1	1410-	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 THA	5-09623-035-0	01	1	1410-		●
54	STUD; OIL PAN TO BLOCK M8X20 L=38 THA	8-97021-431-0	03	1	1410-	●
56	JET; OIL,PISTON COOLING THA	8-98173-342-0	04	1	1410-	●
56	JET; OIL,PISTON COOLING THA	8-98173-342-0	06	1	1410-		●
61	PIN; STRAIGHT L=22 THA	8-94483-674-0	04	1	1410-	●
70	CUP; SEALING,FRT & RR (A) OD=25 THA	1-09600-016-0	01	1	1410-	●
70	CUP; SEALING,FRT & RR (B) OD=40 THA	8-97096-824-0	04	1	1410-	●
89	CUP; SEALING,OIL GALLERY OD=20 THA	9-11129-128-0	03	1	1410-	●	●
97	CUP; SEALING (A) OD=16 THA	5-11129-006-0	01	1	1410-	●
97	CUP; SEALING (C) OD=12 THA	8-97036-335-1	01	1	1410-	●
97	CUP; SEALING (B) OD=22 THA	8-97209-609-0	03	1	1410-	●
132	VALVE; CHECK,OIL M10X18.5 THA	8-97329-618-0	04	1	1410-	●
132	VALVE; CHECK,OIL M12X18.5 THA	8-94394-419-1	06	1	1410-		●
136	BUSHING; DRIVE SHAFT,OIL PUMP THA	8-98091-566-0	02	1	1410-	●
136	BUSHING; DRIVE SHAFT,OIL PUMP THA	8-98091-566-0	02	1	1410-	●	●
211	BOLT; CRANKCASE (B) M10X82 THA	8-94399-553-2	17	1	1410-	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE THA	8-97077-638-0	10	1	1410-	●
211	BOLT; CRANKCASE (B) M10X82 THA	8-94399-553-2	25	1	1410-		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE THA	8-97077-638-0	14	1	1410-		●
212	PIN; CRANKCASE OD=10 L=20 THA	8-97135-423-0	02	1	1410-	●	●
406	PLUG; CRANK CASE PT3/8 THA	5-09605-005-0	02	1	1410-	●

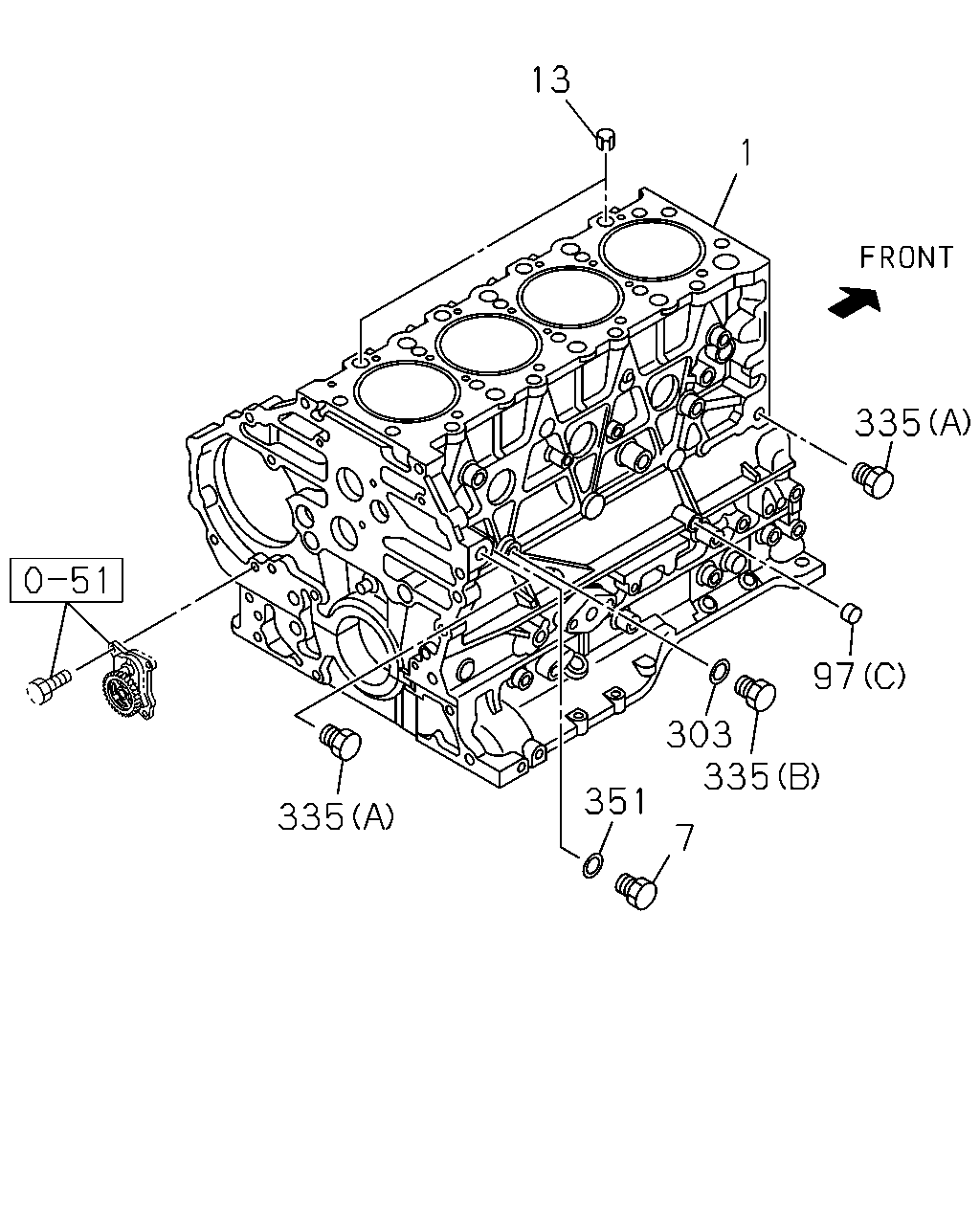

13 1 335 97 335 303 351 7 335

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL THA	8-98204-528-0	01	1	1410-	●
1	BLOCK ASM; CYL THA	8-98206-966-0	01	1	1410-		●
7	PLUG; WATER DRAIN M10X10 THA	8-97352-537-0	01	1	1410-	●
13	DOWEL; C/BL TO HD OD=18.15 THA	8-94399-688-1	02	1	1410-	●
97	CUP; SEALING (A) OD=16 THA	5-11129-006-0	01	1	1410-	●
97	CUP; SEALING (C) OD=12 THA	8-97036-335-1	01	1	1410-	●
97	CUP; SEALING (B) OD=22 THA	8-97209-609-0	03	1	1410-	●
303	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 THA	8-98251-345-0	01	1	1410-	●
335	PLUG; C/BL,SIDE (B) M14X18 THA	8-98038-403-0	01	1	1410-	●
335	PLUG; C/BL,SIDE (A) M14X16.5 THA	8-97329-617-0	02	1	1410-	●	●
335	PLUG; C/BL,SIDE (C) M12X10 THA	5-13265-001-0	01	1	1410-		●
335	PLUG; C/BL,SIDE (D) M8X10 THA	8-98003-416-0	01	1	1410-		●
335	PLUG; C/BL,SIDE (E) M14 THA	8-94399-225-0	01	1	1410-		●
351	GASKET; COCK,WATER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 THA	1-09630-083-0	01	1	1410-	●

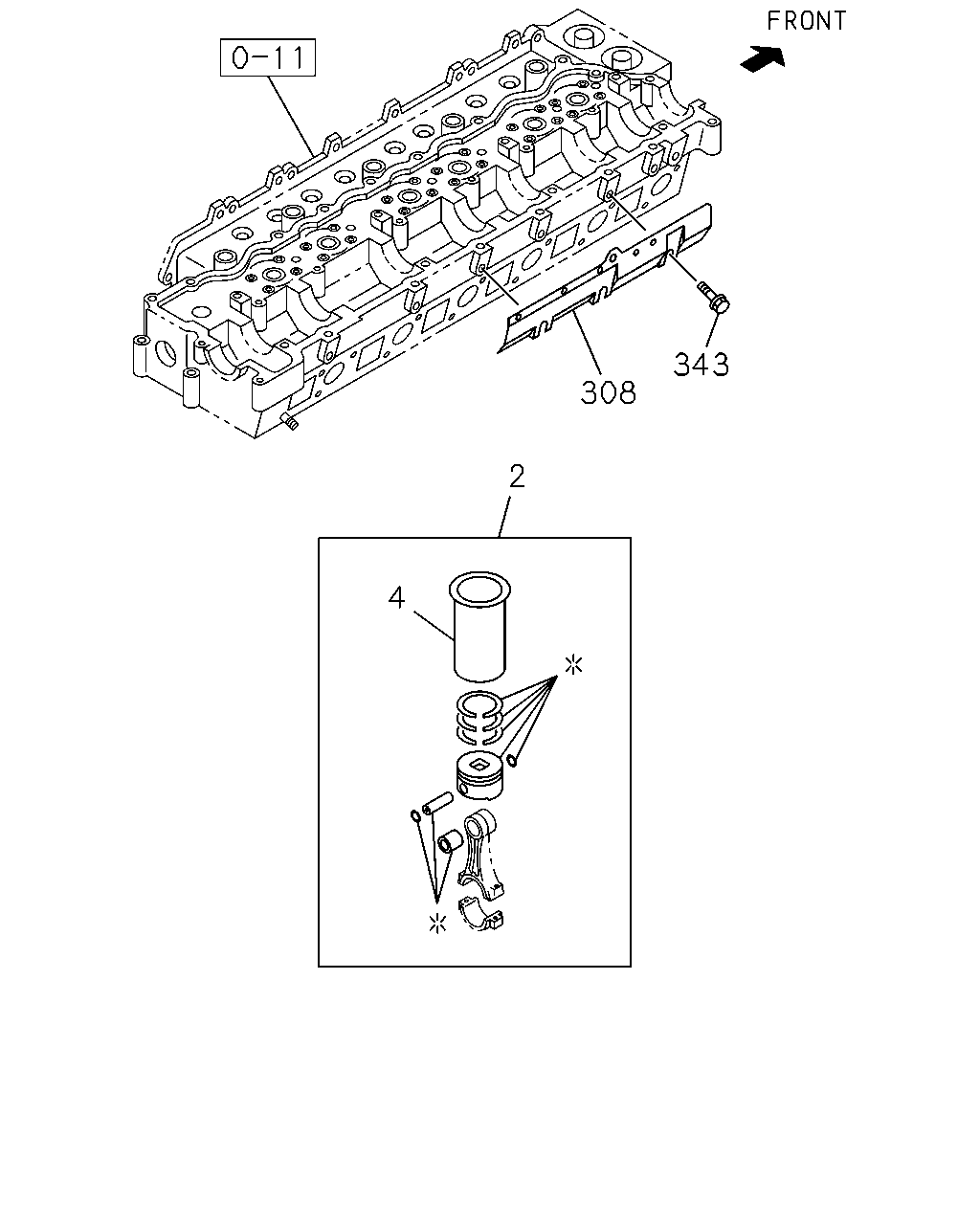

308 343 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	LINER SET; ENG CYL GRADE=1X THA	1-87814-728-0	04	1	1410-	●
2	LINER SET; ENG CYL GRADE=3X THA	1-87814-729-0	04	1	1410-	●
2	LINER SET; ENG CYL GRADE=1X THA	1-87813-119-6	06	1	1410-		●
2	LINER SET; ENG CYL GRADE=3X THA	1-87813-120-6	06	1	1410-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON THA	8-94391-602-1	04	1	1410-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON THA	8-94391-603-1	04	1	1410-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON THA	8-98014-046-1	06	1	1410-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON THA	8-98014-047-1	06	1	1410-		●
308	PROTECTOR; HEAT,HD COVER THA	8-94390-997-0	01	1	1410-		●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE THA	0-28050-812-0	03	1	1410-		●

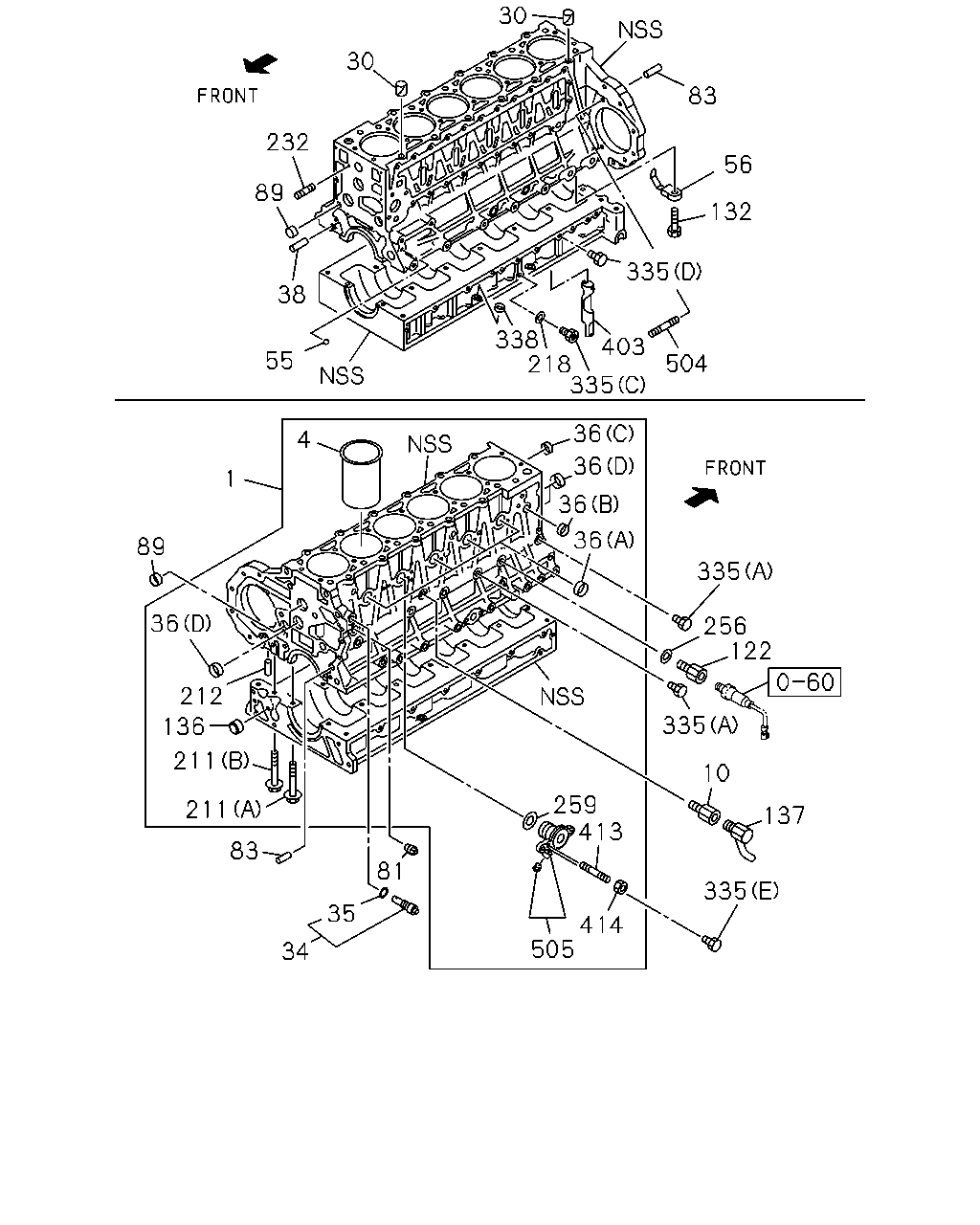

30 30 83 56 132 335 504 403 335 218 338 36 36 36 36 335 256 122 335 10 137 335 413 259 414 505 81 35 34 83 211 211 136 212 36 89 1 4 55 38 89 232

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL THA	8-98204-528-0	01	1	1410-	●
1	BLOCK ASM; CYL THA	8-98206-966-0	01	1	1410-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON THA	8-94391-602-1	04	1	1410-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON THA	8-94391-603-1	04	1	1410-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON THA	8-98014-046-1	06	1	1410-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON THA	8-98014-047-1	06	1	1410-		●
10	CONNECTOR; WATER DRAIN THA	8-94396-378-0	01	1	1410-		●
30	PIN; CYL HD GASKET SETTING OD=18.15 THA	8-94399-688-1	02	1	1410-		●
34	VALVE; OIL RELIEF THA	8-97328-859-0	01	1	1410-	●
34	VALVE; OIL RELIEF THA	8-94393-077-1	01	1	1410-		●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=23.3 THA	8-94173-412-0	01	1	1410-	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 THA	5-09623-035-0	01	1	1410-		●
36	CUP; SEALING,WATER JACKET (A) OD=45 THA	1-09600-005-2	04	1	1410-		●
36	CUP; SEALING,WATER JACKET (B) OD=25 THA	1-09600-016-0	01	1	1410-		●
36	CUP; SEALING,WATER JACKET (C) OD=25 THA	8-94399-005-0	01	1	1410-		●
36	CUP; SEALING,WATER JACKET (D) OD=40 THA	8-97096-824-0	04	1	1410-		●
38	PIN; TIMING GEAR CASE L=22 THA	8-94483-674-0	02	1	1410-		●
55	PLUG; OIL GALLERY 3/8" BALL THA	9-00097-011-0	01	1	1410-		●
56	JET; OIL,PISTON COOLING THA	8-98173-342-0	04	1	1410-	●
56	JET; OIL,PISTON COOLING THA	8-98173-342-0	06	1	1410-		●
81	PLUG; WATER JACKET PT3/8 THA	8-94397-338-0	01	1	1410-		●
83	PIN; FLYWHEEL HSG L=22 THA	8-94483-674-0	02	1	1410-		●
89	CUP; SEALING,OIL GALLERY OD=20 THA	9-11129-128-0	03	1	1410-	●	●
122	ADAPTER; OIL PRESSURE SWITCH THA	8-97603-667-0	01	1	1410-		●
132	VALVE; CHECK,OIL M10X18.5 THA	8-97329-618-0	04	1	1410-	●
132	VALVE; CHECK,OIL M12X18.5 THA	8-94394-419-1	06	1	1410-		●
136	BUSHING; DRIVE SHAFT,OIL PUMP THA	8-98091-566-0	02	1	1410-	●
136	BUSHING; DRIVE SHAFT,OIL PUMP THA	8-98091-566-0	02	1	1410-	●	●
137	COCK; DRAIN,WATER THA	8-94393-716-1	01	1	1410-		●
211	BOLT; CRANKCASE (B) M10X82 THA	8-94399-553-2	17	1	1410-	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE THA	8-97077-638-0	10	1	1410-	●
211	BOLT; CRANKCASE (B) M10X82 THA	8-94399-553-2	25	1	1410-		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE THA	8-97077-638-0	14	1	1410-		●
212	PIN; CRANKCASE OD=10 L=20 THA	8-97135-423-0	02	1	1410-	●	●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 THA	8-98251-344-0	01	1	1410-		●
232	STUD; WATER PUMP M8X55 L=67 THA	0-41010-855-0	03	1	1410-		●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25 THA	1-09630-141-0	01	1	1410-		●
259	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7 THA	1-09623-184-0	01	1	1410-		●
335	PLUG; C/BL,SIDE (B) M14X18 THA	8-98038-403-0	01	1	1410-	●
335	PLUG; C/BL,SIDE (A) M14X16.5 THA	8-97329-617-0	02	1	1410-	●	●
335	PLUG; C/BL,SIDE (C) M12X10 THA	5-13265-001-0	01	1	1410-		●
335	PLUG; C/BL,SIDE (D) M8X10 THA	8-98003-416-0	01	1	1410-		●
335	PLUG; C/BL,SIDE (E) M14 THA	8-94399-225-0	01	1	1410-		●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6 THA	5-11129-003-0	02	1	1410-		●
403	GUIDE; GALLERY THA	8-94395-351-1	01	1	1410-		●
413	STUD; ADAPTER M8X30 L=41 THA	0-41010-830-0	02	1	1410-		●
414	NUT; ADAPTER M8 FLANGE THA	0-91180-208-0	02	1	1410-		●
504	STUD; INJ PUMP M10X46.5 L=58.5 THA	8-97363-237-0	02	1	1410-		●
505	ADAPTER; WATER FEED THA	8-97611-854-0	01	1	1410-		●
