◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11646 - FRR THAILAND EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-40 - HEATER SYSTEM ▶
8-40 — HEATER SYSTEM (#150182) — 30 parça

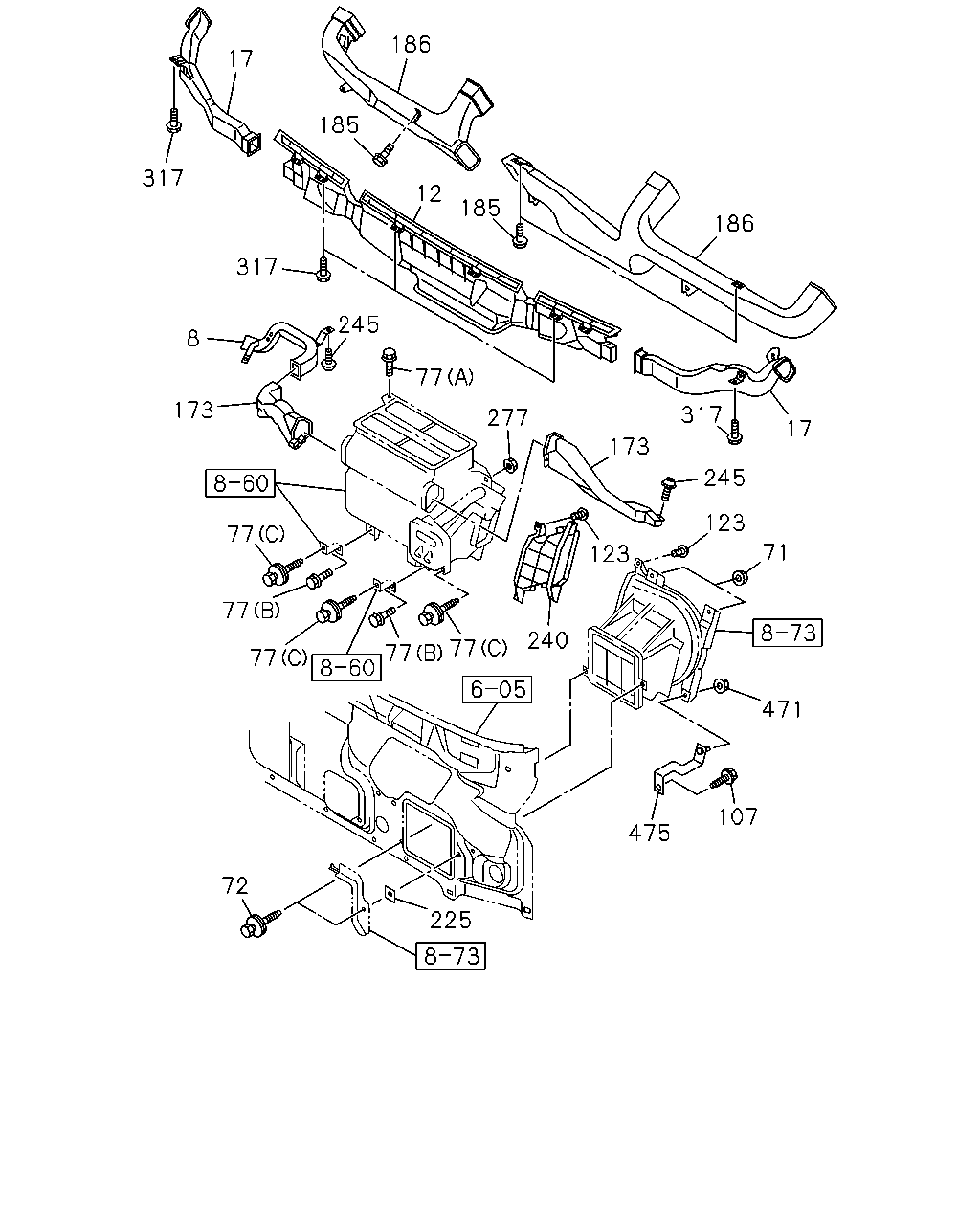

çizim 451665
317 17 317 185 12 186 185 186 8 245 173 77 277 77 77 77 77 77 240 123 173 317 17 245 123 71 471 475 107 225 72
BalonParca AdiParca NoAdetTipApplied Date
8 DUCT; HTR AIR,DRIVER FOOT
THA 		8-97585-499-1 01 1 1410-1410
8 DUCT; HTR AIR,DRIVER FOOT
THA 		8-98290-098-0 01 1 1411-
12 NOZZLE; DEFROSTER
THA 		8-98040-009-3 01 1 1410-
17 NOZZLE; DEFROSTER,SIDE
THA 		8-98040-011-1 01 1 1410-
17 NOZZLE; DEFROSTER,SIDE
THA 		8-98040-016-1 01 1 1410-
71 NUT; BLOWER UNIT TO DASH
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6 FLANGE THA 		0-91180-106-0 02 1 1410-
72 BOLT; BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6X20 W/LK&PL WASHER THA 		8-98081-175-0 02 1 1410-
77 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (C) M6X20 W/LK&PL WASHER THA 		8-98081-175-0 03 1 1410-
77 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) M6X16 FLANGE THA 		0-28650-616-0 01 1 1410-
77 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) M6X20 FLANGE THA 		0-28650-620-0 02 1 1410-
107 BOLT; STAY,HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M8X25 W/LK&PL WASHER THA 		8-98018-439-0 01 1 1410-
123 SCREW; DUCT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M5X16 TAPPING THA 		0-72180-516-0 04 1 1410-
173 DUCT; FOOT,HTR
THA 		8-97585-506-2 01 1 1410-
173 DUCT; FOOT,HTR
THA 		8-98011-459-2 01 1 1410-1410
173 DUCT; FOOT,HTR
THA 		8-98290-096-0 01 1 1411-
185 SCREW; VENT DUCT
M5X16 TAPPING THA 		0-72180-516-0 04 1 1410-
186 DUCT; VENTILATOR
THA 		8-97585-488-4 01 1 1410-
186 DUCT; VENTILATOR
THA 		8-98174-737-0 01 1 1410-
225 SEAL; WATER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA 		8-97856-616-0 01 1 1410-
240 DUCT; AIR,HTR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA 		8-98041-402-1 01 1 1410-
245 CLIP; FOOT DUCT
THA 		8-98056-059-0 03 1 1410-
277 NUT; HTR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6 FLANGE THA 		0-91180-106-0 01 1 1410-
317 SCREW; DEFROSTER NOZZLE
M5X16 TAPPING THA 		0-72180-516-0 08 1 1410-
471 NUT; BLOWER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6 FLANGE THA 		0-91180-106-0 01 1 1410-
475 BRACKET; BLOWER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA 		8-98043-500-1 01 1 1410-
çizim 451963
223 50 476 206 407
BalonParca AdiParca NoAdetTipApplied Date
50 VALVE ASM; HTR
THA 		8-97925-112-0 01 1 1410-
206 GROMMET; A/C PIPE TO BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA 		8-98019-649-0 01 1 1410-
223 GROMMET; SCREW
D=7.9X7.9 L=20 M5 THA 		8-94441-539-0 01 1 1410-
407 JOINT; HOSE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA 		8-98041-758-0 01 1 1410-
476 SCREW; VALVE
M5X16 HEX SOCKET THA 		8-98062-675-0 01 1 1410-
