◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11646 - FRR THAILAND EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#150177) — 146 parça
çizim 448694
16 16 16 16 483 171
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(H) ID=24 L=24 THA 		1-09701-001-1 02 1 1410-
16 CLIP; HARNESS
(F) ID=31.5 H=23 L=25 THA 		1-09701-017-0 01 1 1410-
16 CLIP; HARNESS
(D) L=350 THA 		1-09707-183-0 02 1 1410-
16 CLIP; HARNESS
(J) OD=9 H=6 THA 		1-09709-178-0 01 1 1410-
16 CLIP; HARNESS
(G) ID=10 & 10 THA 		1-09709-277-1 04 1 1410-
16 CLIP; HARNESS
(I) ID=10 & 12 THA 		1-09709-278-1 01 1 1410-
16 CLIP; HARNESS
(A) ID=10 & 16 THA 		8-94413-325-0 01 1 1410-
16 CLIP; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (K) ID=5-12 L=18 THA 		1-09709-287-0 02 1 1410-
16 CLIP; HARNESS
(B) L=155 THA 		8-97173-307-0 18 1 1410-
16 CLIP; HARNESS
(E) L=40.6 THA 		8-97229-357-0 02 1 1410-
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 1410-
171 CLIP; STARTER HARNESS
(B) OD=8 H=3.8 THA 		1-09709-309-0 01 1 1410-
171 CLIP; STARTER HARNESS
(A) THA 		8-97101-436-0 01 1 1410-
483 CLIP; ENG HARNESS
(D) ID=18 H=23 L=28 THA 		1-09700-860-0 01 1 1410-
483 CLIP; ENG HARNESS
(E) ID=21 L=30 H=40 THA 		1-09700-991-1 01 1 1410-
483 CLIP; ENG HARNESS
(G) ID=24 L=24 THA 		1-09701-001-1 01 1 1410-
483 CLIP; ENG HARNESS
(F) THA 		1-09987-281-0 01 1 1410-
483 CLIP; ENG HARNESS
(A) ID=12 B=13 ID=6.5 THA 		5-09700-348-0 01 1 1410-
483 CLIP; ENG HARNESS
(B) ID=21 L=47.5 THA 		8-94178-108-0 01 1 1410-
483 CLIP; ENG HARNESS
(C) L=36 THA 		8-94224-891-1 01 1 1410-

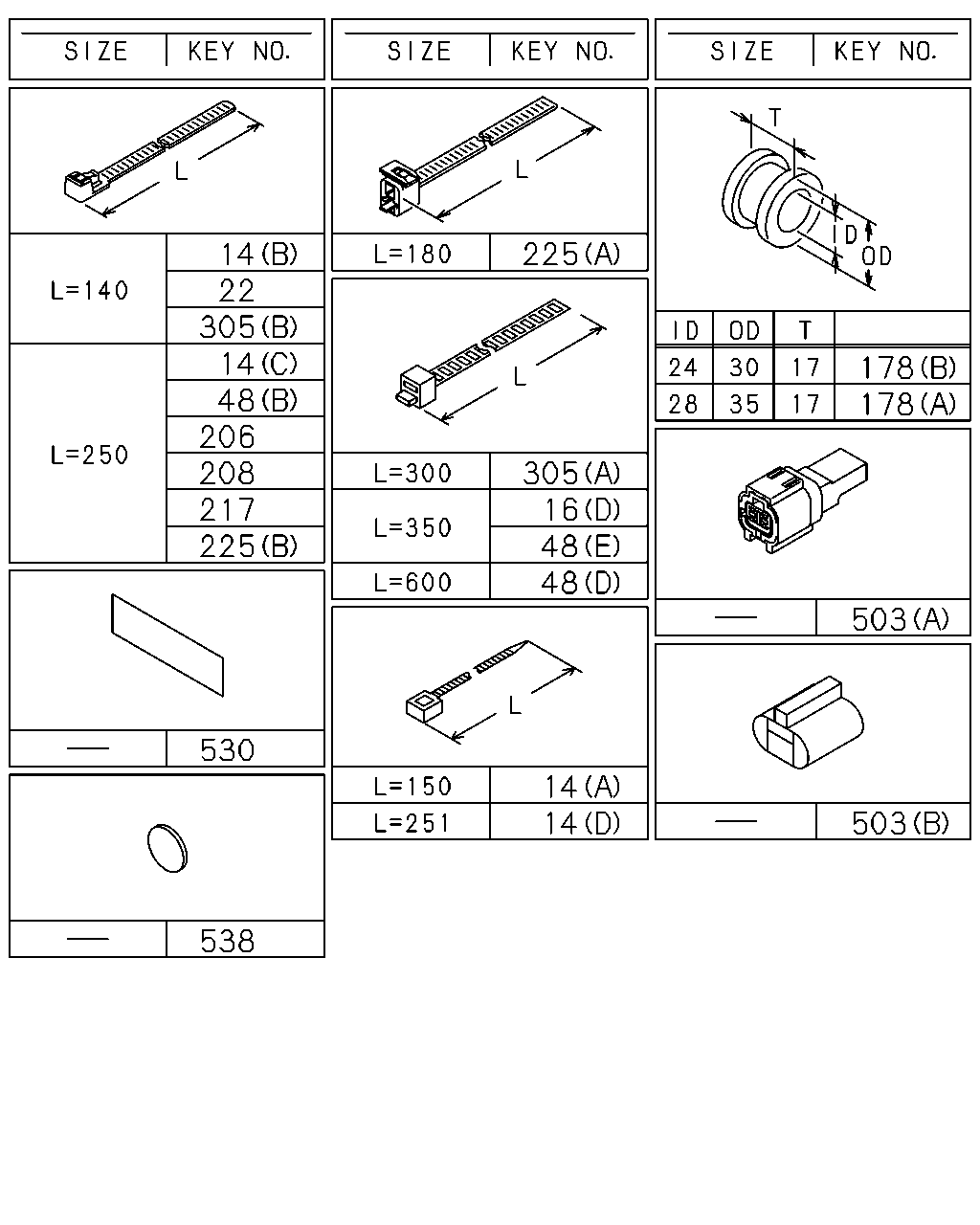

çizim 451719
14 22 305 14 48 206 208 217 225 530 538 225 305 16 48 48 14 14 178 178 503 503
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(D) L=251 THA 		8-97619-917-0 01 1 1410-
14 CLIP; BAND,HARNESS
(B) L=140 THA 		5-09707-031-1 02 1 1410-
14 CLIP; BAND,HARNESS
(B) L=140 THA 		5-09707-031-1 02 1 1410-
14 CLIP; BAND,HARNESS
(C) L=250 THA 		5-09707-030-1 01 1 1410-
14 CLIP; BAND,HARNESS
(A) L=150 THA 		8-97355-273-0 01 1 1410-
16 CLIP; HARNESS
(H) ID=24 L=24 THA 		1-09701-001-1 02 1 1410-
16 CLIP; HARNESS
(F) ID=31.5 H=23 L=25 THA 		1-09701-017-0 01 1 1410-
16 CLIP; HARNESS
(D) L=350 THA 		1-09707-183-0 02 1 1410-
16 CLIP; HARNESS
(J) OD=9 H=6 THA 		1-09709-178-0 01 1 1410-
16 CLIP; HARNESS
(G) ID=10 & 10 THA 		1-09709-277-1 04 1 1410-
16 CLIP; HARNESS
(I) ID=10 & 12 THA 		1-09709-278-1 01 1 1410-
16 CLIP; HARNESS
(A) ID=10 & 16 THA 		8-94413-325-0 01 1 1410-
16 CLIP; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (K) ID=5-12 L=18 THA 		1-09709-287-0 02 1 1410-
16 CLIP; HARNESS
(B) L=155 THA 		8-97173-307-0 18 1 1410-
16 CLIP; HARNESS
(E) L=40.6 THA 		8-97229-357-0 02 1 1410-
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 1410-
22 CLIP; ENG HARNESS
L=140 THA 		5-09707-031-1 02 1 1410-
48 CLIP; FRAME HARNESS
WHEEL BASE 3400MM<34W> (A) ID=14 L=44 THA 		9-09917-427-0 10 1 1410-
48 CLIP; FRAME HARNESS
WHEEL BASE 4300MM<43W> (A) ID=14 L=44 THA 		9-09917-427-0 16 1 1410-
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM<49W> (A) ID=14 L=44 THA 		9-09917-427-0 19 1 1410-
48 CLIP; FRAME HARNESS
(C) ID=5.5X2 L=35 THA 		1-09700-974-0 01 1 1410-
48 CLIP; FRAME HARNESS
(F) ID=32 L=50 THA 		1-09701-055-1 01 1 1410-
48 CLIP; FRAME HARNESS
(D) L=600 THA 		1-09707-107-1 01 1 1410-
48 CLIP; FRAME HARNESS
(E) L=350 THA 		1-09707-183-0 01 1 1410-
48 CLIP; FRAME HARNESS
(G) ID=5-12 L=14.5 THA 		1-09987-221-0 03 1 1410-
48 CLIP; FRAME HARNESS
(B) L=250 THA 		5-09707-030-1 03 1 1410-
48 CLIP; FRAME HARNESS
(A) ID=14 L=44 THA 		9-09917-427-0 02 1 1410-
178 GROMMET; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (A) ID=28 OD=35 T=17 THA 		9-09956-256-2 01 1 1410-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 THA 		9-09956-256-2 01 1 1410-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 THA 		9-09956-256-2 03 1 1410-
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 THA 		9-09956-092-1 01 1 1410-
178 GROMMET; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (B) ID=24 OD=30 T=17 THA 		9-09956-092-1 01 1 1410-
206 CLIP; FUEL TANK HARNESS
L=250 THA 		5-09707-030-1 02 1 1410-
208 CLIP; HARNESS,MAG VLV
L=250 THA 		5-09707-030-1 01 1 1410-
217 CLIP; RR BODY HARNESS
L=250 THA 		5-09707-030-1 02 1 1410-
225 CLIP; AIR TANK HARNESS
(A) L=180 THA 		1-09707-162-1 01 1 1410-
225 CLIP; AIR TANK HARNESS
(B) L=250 THA 		5-09707-030-1 01 1 1410-
305 CLIP; ENG HARNESS
(A) L=300 THA 		1-09707-001-1 01 1 1410-
305 CLIP; ENG HARNESS
(B) L=140 THA 		5-09707-031-1 02 1 1410-
503 CONNECTOR
(B) THA 		1-82690-666-0 01 1 1410-
503 CONNECTOR
(A) THA 		1-82691-191-0 01 1 1410-
530 SEAL; HARNESS
180X40 THA 		1-72498-019-1 06 1 1410-
538 SEAL; HOLE
OD=25 BLACK THA 		1-76798-019-0 01 1 1410-

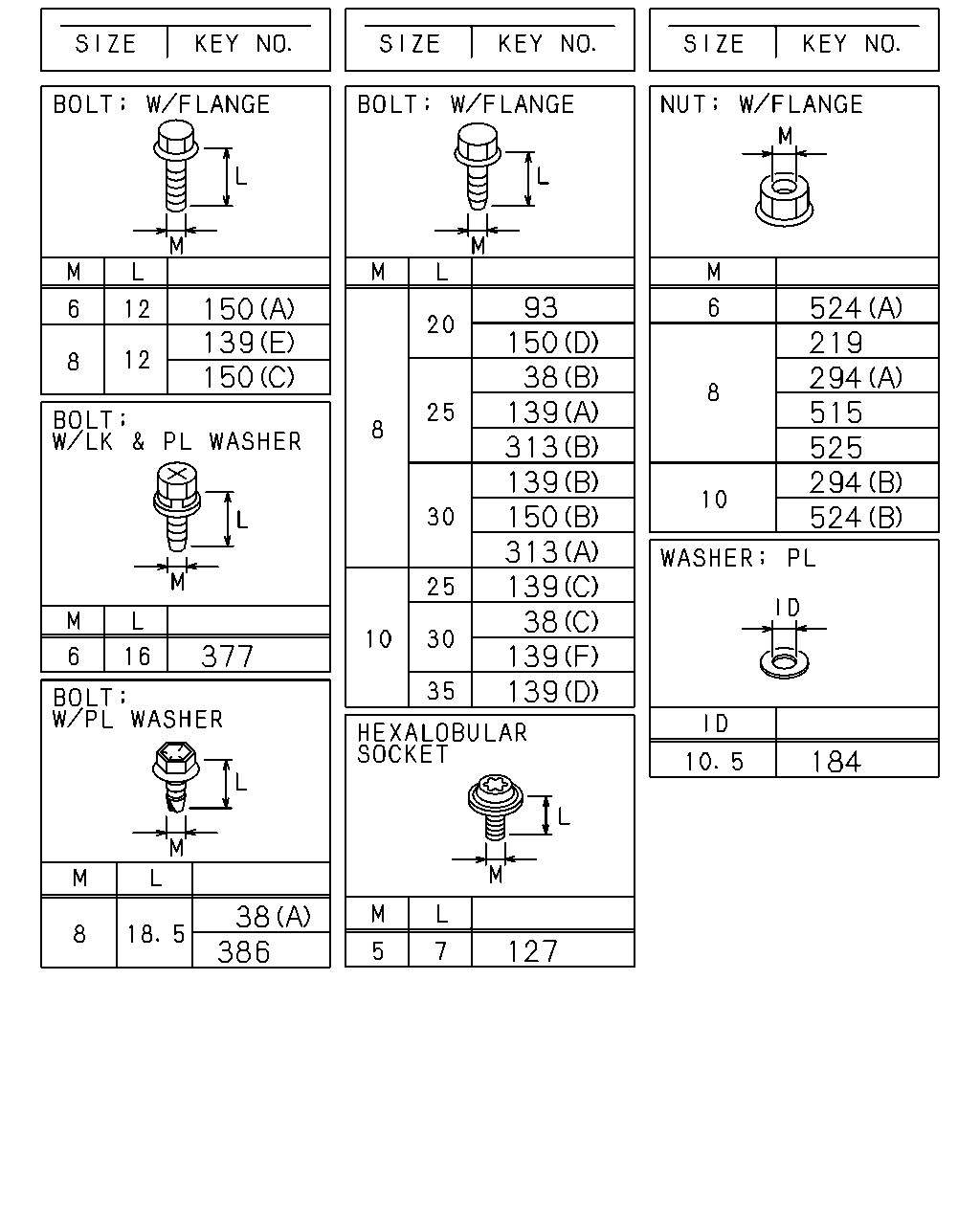

çizim 451783
184 524 294 525 515 294 219 524 127 139 139 38 139 313 150 139 313 139 38 150 93 386 377 38 150 139 150
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(A) M8X18.5 W/PL WASHER THA 		8-98141-255-0 03 1 1410-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE THA 		0-28650-825-0 02 1 1410-
38 BOLT; CLIP,HARNESS
(C) M10X30 FLANGE THA 		0-28651-030-0 01 1 1410-
93 BOLT; ECM HARNESS CLIP
M8X20 FLANGE THA 		0-28650-820-0 02 1 1410-
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET THA 		8-98063-767-0 01 1 1410-
139 BOLT; BRKT
(E) M8X12 FLANGE THA 		0-28050-812-0 01 1 1410-
139 BOLT; BRKT
(A) M8X25 FLANGE THA 		0-28650-825-0 01 1 1410-
139 BOLT; BRKT
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1410-
139 BOLT; BRKT
(B) M8X30 FLANGE THA 		0-28650-830-0 02 1 1410-
139 BOLT; BRKT
(C) M10X25 FLANGE THA 		0-28651-025-0 02 1 1410-
139 BOLT; BRKT
(F) M10X30 FLANGE THA 		0-28651-030-0 01 1 1410-
139 BOLT; BRKT
(D) M10X35 FLANGE THA 		0-28651-035-0 01 1 1410-
150 BOLT; CLIP
(A) M6X12 FLANGE THA 		0-28050-612-0 02 1 1410-
150 BOLT; CLIP
(C) M8X12 FLANGE THA 		0-28050-812-0 01 1 1410-
150 BOLT; CLIP
(D) M8X20 FLANGE THA 		0-28650-820-0 01 1 1410-
150 BOLT; CLIP
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1410-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 THA 		1-09503-265-0 01 1 1410-
219 NUT
M8 FLANGE THA 		0-91180-108-0 02 1 1410-
294 NUT
(B) M10 FLANGE THA 		0-91180-210-0 01 1 1410-
294 NUT
POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE THA 		0-91180-210-0 01 1 1410-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 04 1 1410-
294 NUT
(B) M10 FLANGE THA 		0-91180-210-0 02 1 1410-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1410-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1410-
313 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 1410-
313 BOLT; BRKT
(A) M8X30 FLANGE THA 		0-28650-830-0 01 1 1410-
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER THA 		8-97086-823-0 02 1 1410-
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER THA 		8-98141-255-0 02 1 1410-
515 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 01 1 1410-
524 NUT; HARNESS
(A) M6 FLANGE THA 		0-91180-106-0 04 1 1410-
524 NUT; HARNESS
(B) M10 FLANGE THA 		0-91180-110-0 01 1 1410-
525 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1410-
525 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1410-

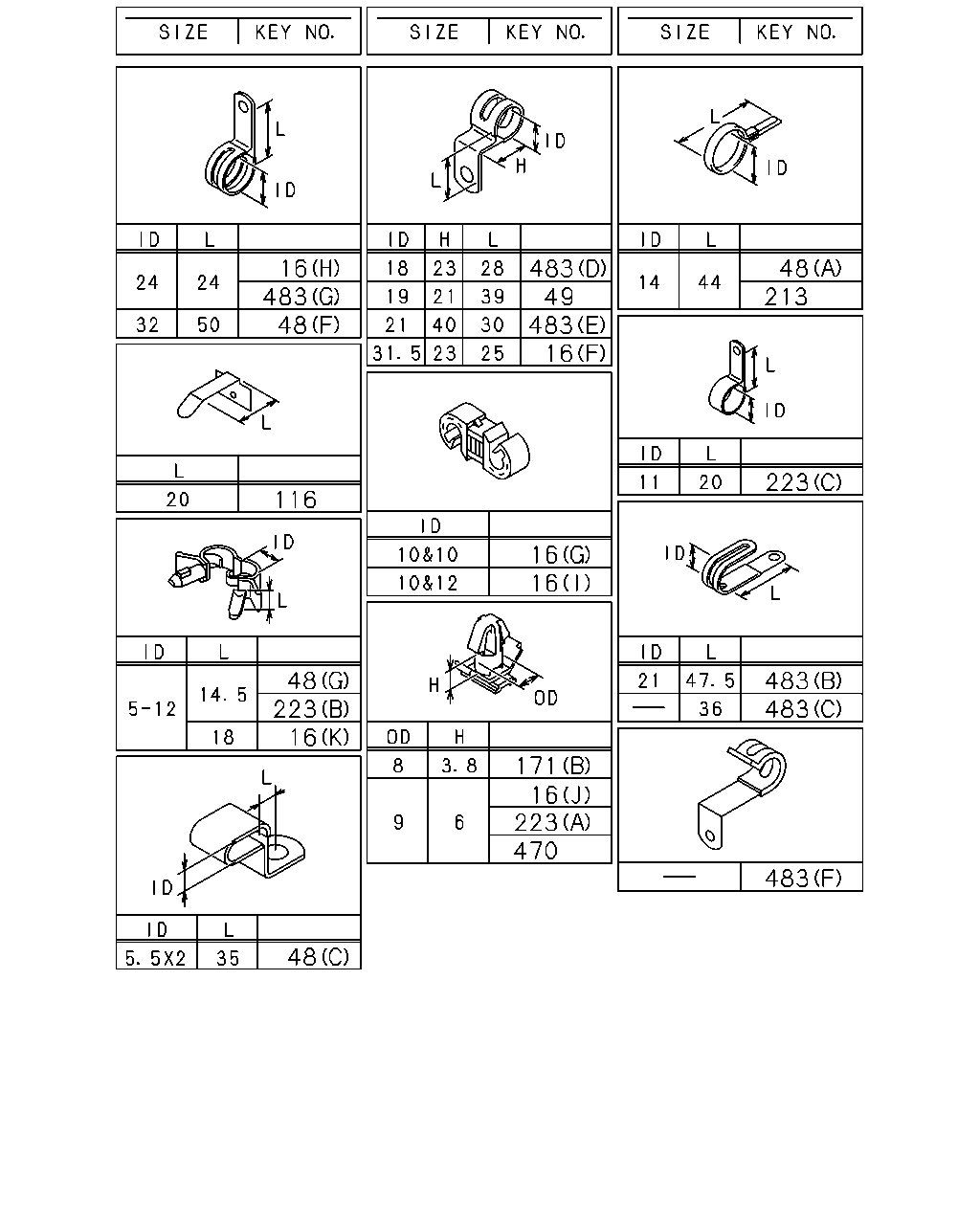

çizim 451850
16 483 48 116 48 223 16 48 483 49 483 16 16 16 171 16 223 470 48 213 223 483 483 483
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(H) ID=24 L=24 THA 		1-09701-001-1 02 1 1410-
16 CLIP; HARNESS
(F) ID=31.5 H=23 L=25 THA 		1-09701-017-0 01 1 1410-
16 CLIP; HARNESS
(D) L=350 THA 		1-09707-183-0 02 1 1410-
16 CLIP; HARNESS
(J) OD=9 H=6 THA 		1-09709-178-0 01 1 1410-
16 CLIP; HARNESS
(G) ID=10 & 10 THA 		1-09709-277-1 04 1 1410-
16 CLIP; HARNESS
(I) ID=10 & 12 THA 		1-09709-278-1 01 1 1410-
16 CLIP; HARNESS
(A) ID=10 & 16 THA 		8-94413-325-0 01 1 1410-
16 CLIP; HARNESS
EXC. POOR QUALITY DIESEL FUEL<KF0> (K) ID=5-12 L=18 THA 		1-09709-287-0 02 1 1410-
16 CLIP; HARNESS
(B) L=155 THA 		8-97173-307-0 18 1 1410-
16 CLIP; HARNESS
(E) L=40.6 THA 		8-97229-357-0 02 1 1410-
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 1410-
48 CLIP; FRAME HARNESS
WHEEL BASE 3400MM<34W> (A) ID=14 L=44 THA 		9-09917-427-0 10 1 1410-
48 CLIP; FRAME HARNESS
WHEEL BASE 4300MM<43W> (A) ID=14 L=44 THA 		9-09917-427-0 16 1 1410-
48 CLIP; FRAME HARNESS
WHEEL BASE 4900MM<49W> (A) ID=14 L=44 THA 		9-09917-427-0 19 1 1410-
48 CLIP; FRAME HARNESS
(C) ID=5.5X2 L=35 THA 		1-09700-974-0 01 1 1410-
48 CLIP; FRAME HARNESS
(F) ID=32 L=50 THA 		1-09701-055-1 01 1 1410-
48 CLIP; FRAME HARNESS
(D) L=600 THA 		1-09707-107-1 01 1 1410-
48 CLIP; FRAME HARNESS
(E) L=350 THA 		1-09707-183-0 01 1 1410-
48 CLIP; FRAME HARNESS
(G) ID=5-12 L=14.5 THA 		1-09987-221-0 03 1 1410-
48 CLIP; FRAME HARNESS
(B) L=250 THA 		5-09707-030-1 03 1 1410-
48 CLIP; FRAME HARNESS
(A) ID=14 L=44 THA 		9-09917-427-0 02 1 1410-
49 CLIP; GEN HARNESS
ID=19 L=39 H=21 THA 		1-09700-972-1 01 1 1410-
116 CLIP; ROOF HARNESS
L=20 THA 		1-09987-246-2 03 1 1410-
171 CLIP; STARTER HARNESS
(B) OD=8 H=3.8 THA 		1-09709-309-0 01 1 1410-
171 CLIP; STARTER HARNESS
(A) THA 		8-97101-436-0 01 1 1410-
213 CLIP; END CROSS HARNESS
ID=14 L=44 THA 		9-09917-427-0 03 1 1410-
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=20 THA 		0-95235-035-0 01 1 1410-
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 THA 		1-09709-178-0 03 1 1410-
223 CLIP; AIR TANK HARNESS
(B) ID=5-12 L=14.5 THA 		1-09987-221-0 04 1 1410-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 THA 		1-09709-178-0 01 1 1410-
483 CLIP; ENG HARNESS
(D) ID=18 H=23 L=28 THA 		1-09700-860-0 01 1 1410-
483 CLIP; ENG HARNESS
(E) ID=21 L=30 H=40 THA 		1-09700-991-1 01 1 1410-
483 CLIP; ENG HARNESS
(G) ID=24 L=24 THA 		1-09701-001-1 01 1 1410-
483 CLIP; ENG HARNESS
(F) THA 		1-09987-281-0 01 1 1410-
483 CLIP; ENG HARNESS
(A) ID=12 B=13 ID=6.5 THA 		5-09700-348-0 01 1 1410-
483 CLIP; ENG HARNESS
(B) ID=21 L=47.5 THA 		8-94178-108-0 01 1 1410-
483 CLIP; ENG HARNESS
(C) L=36 THA 		8-94224-891-1 01 1 1410-

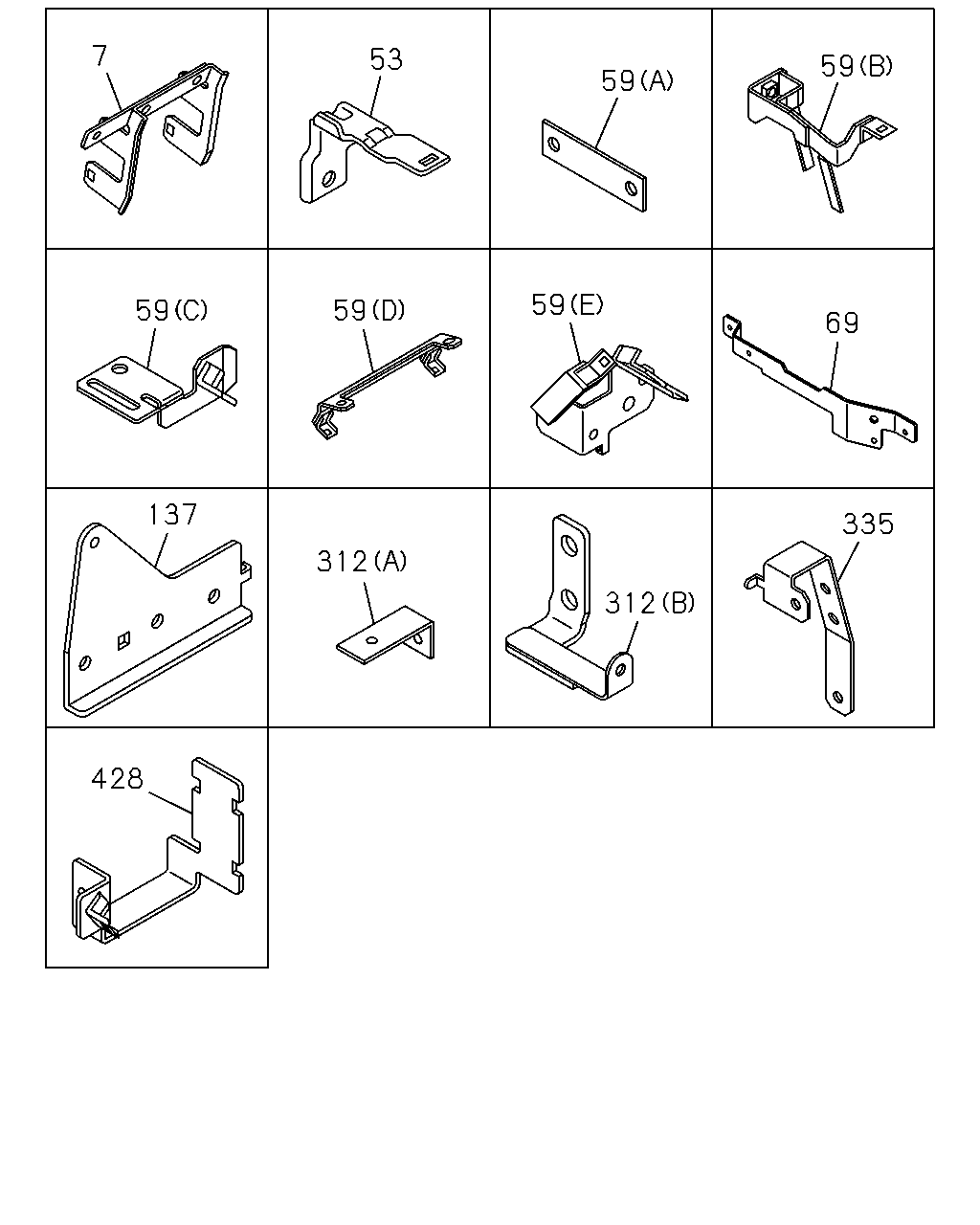

çizim 451916
7 53 59 59 59 59 59 69 137 312 312 335 428
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR
THA 		8-97925-591-0 01 1 1410-
53 BRACKET; HARNESS
THA 		8-98052-458-0 01 1 1410-
59 BRACKET; FRAME HARNESS
(C) THA 		8-97616-305-0 01 1 1410-
59 BRACKET; FRAME HARNESS
(D) THA 		8-97619-533-0 01 1 1410-
59 BRACKET; FRAME HARNESS
(E) THA 		8-97622-828-0 01 1 1410-
59 BRACKET; FRAME HARNESS
(A) L=85 THA 		8-98044-743-0 01 1 1410-
59 BRACKET; FRAME HARNESS
(B) THA 		8-98099-963-0 01 1 1410-
69 BRACKET; CLIP
THA 		8-97614-738-0 01 1 1410-
137 BRACKET; HARNESS CLAMP
THA 		8-97624-016-0 01 1 1410-
312 BRACKET; CLIP HARNESS
(A) L=55 THA 		1-47475-304-0 01 1 1410-
312 BRACKET; CLIP HARNESS
(B) THA 		8-98094-804-0 01 1 1410-
335 BRACKET; CONNECTOR
THA 		8-97619-097-1 01 1 1410-
428 BRACKET
THA 		8-98116-461-0 01 1 1410-
