Isuzu WW
▶
TRUCKS
▶
FRR
▶
11646 - FRR THAILAND EURO3
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-10 - WIRING HARNESS AND FUSE
▶
8-10 — WIRING HARNESS AND FUSE
(#150176) — 91 parça
◀

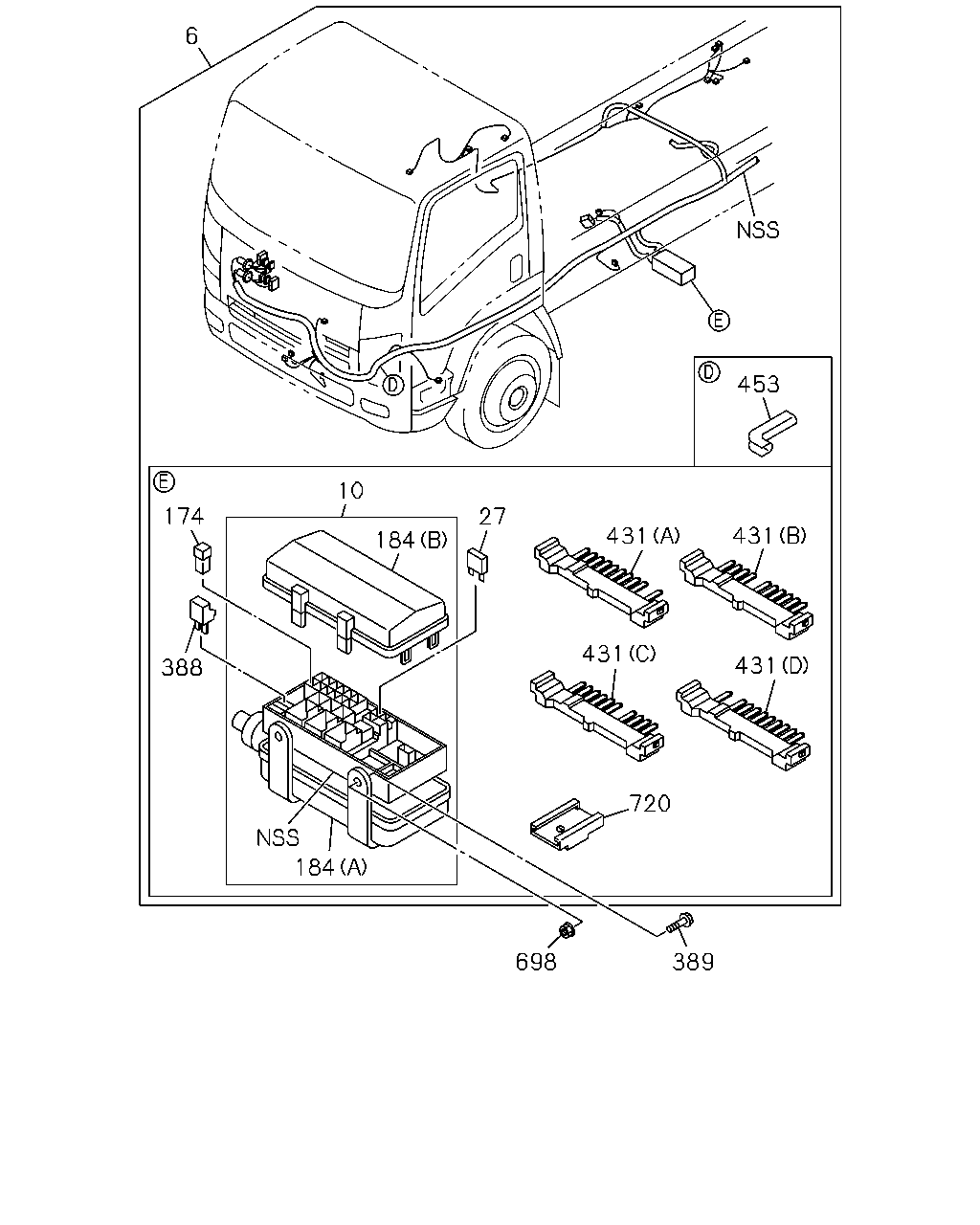

[810A] FRAME HARNESS NO.1 (23 parça)

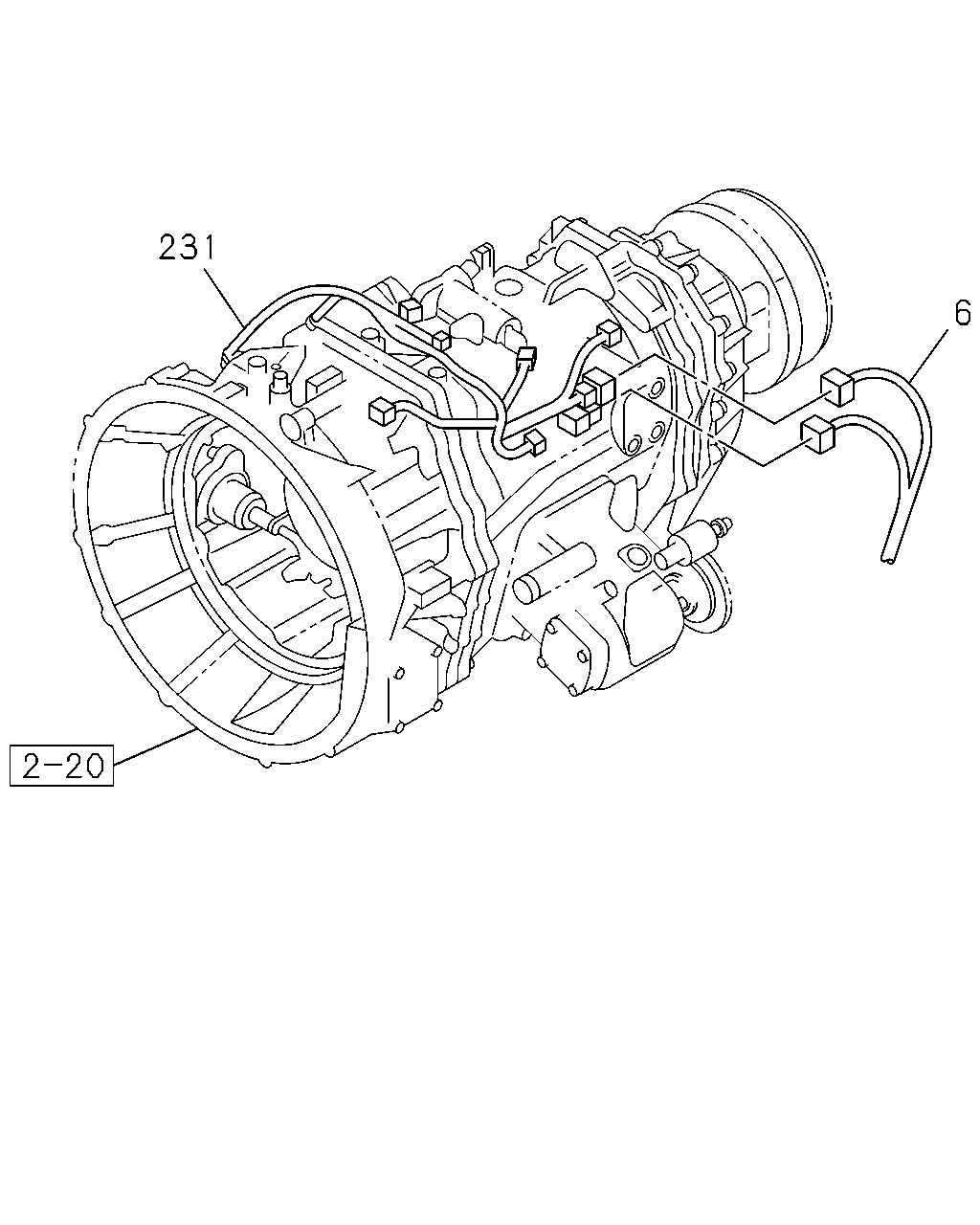

[810A] TRANSMISSION SIDE (5 parça)

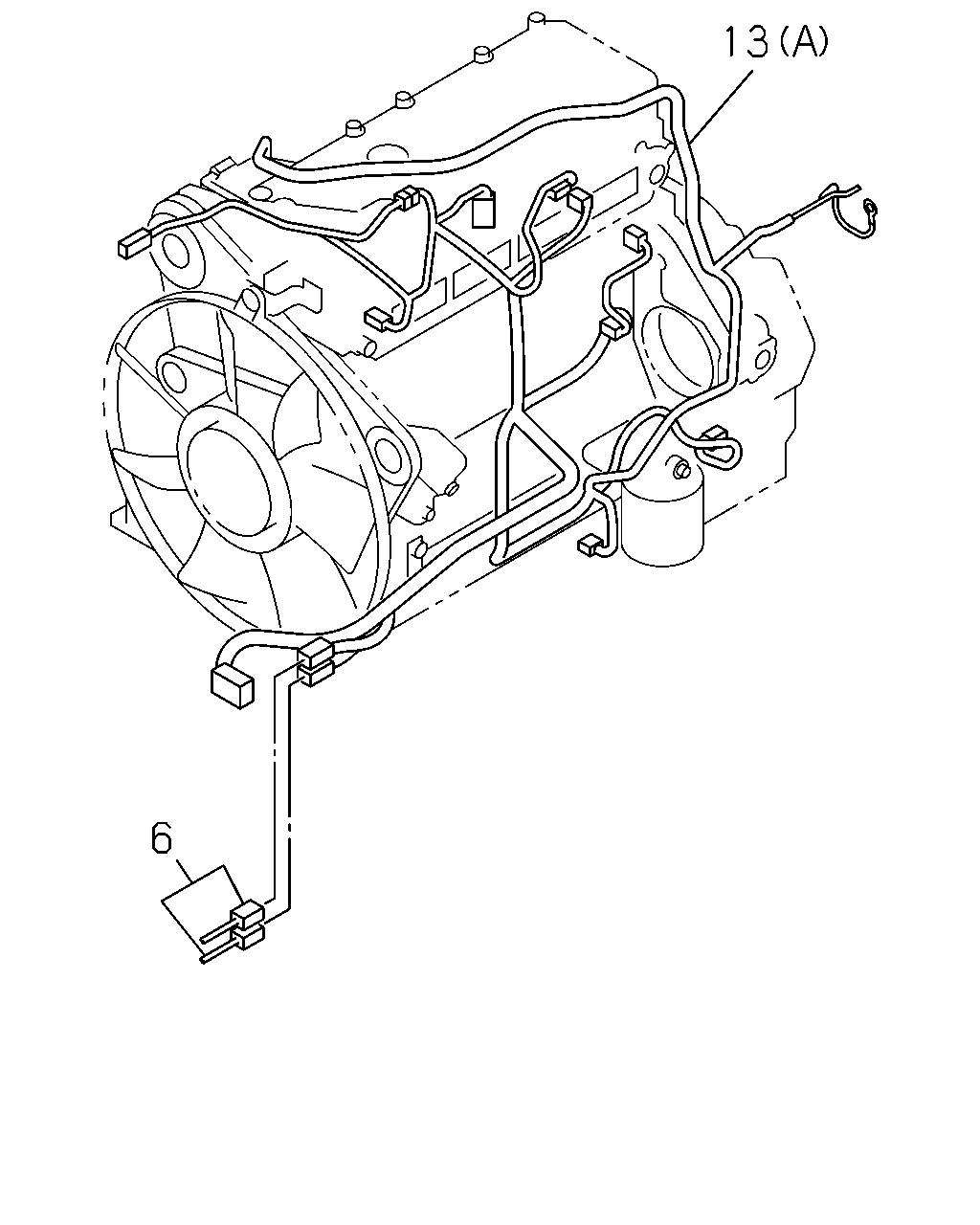

[810A] ENGINE SIDE NO.1 (5 parça)
[810A] OTHER HARNESS NO.2 (6 parça)

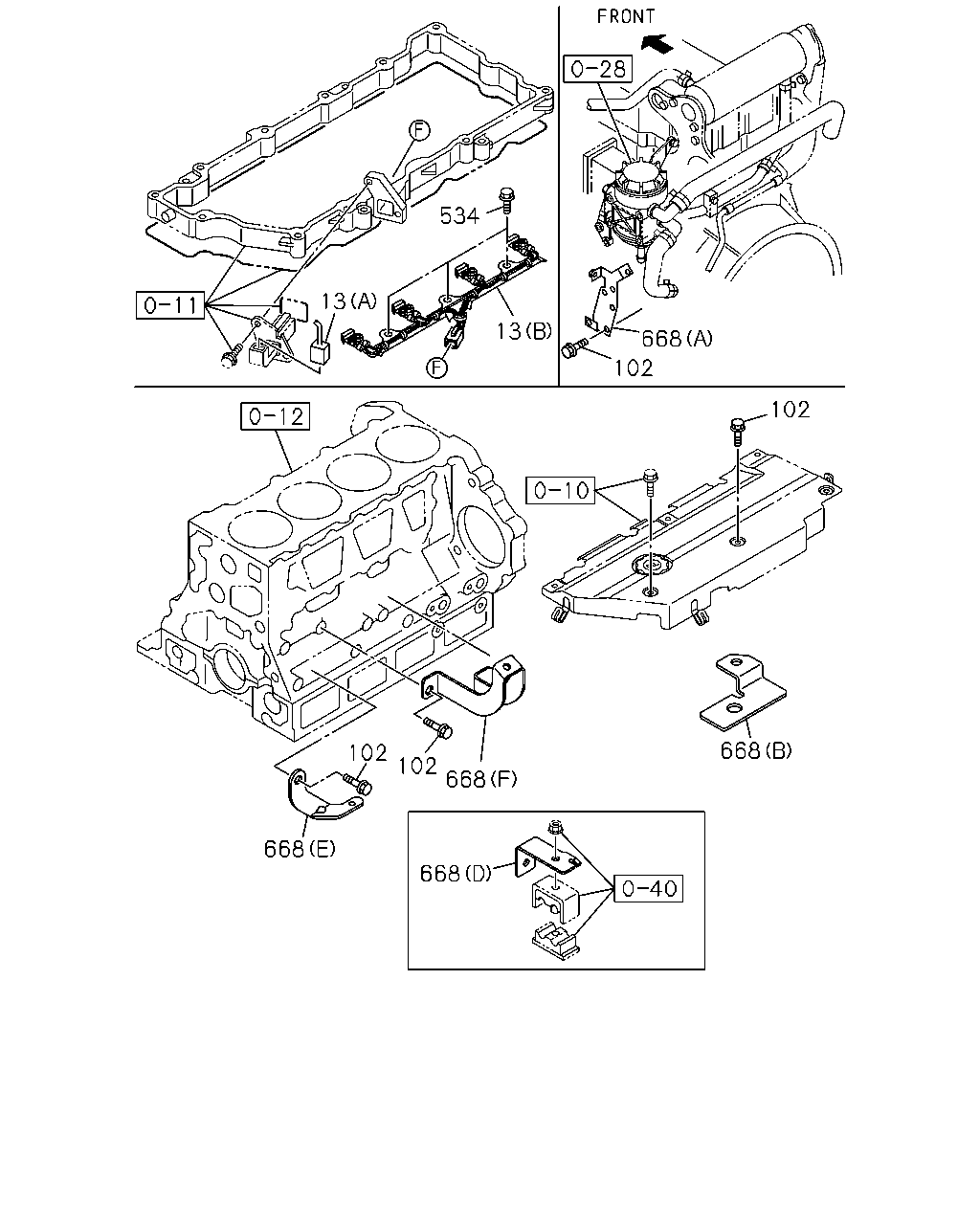

[810A] ENGINE SIDE NO.2 (11 parça)

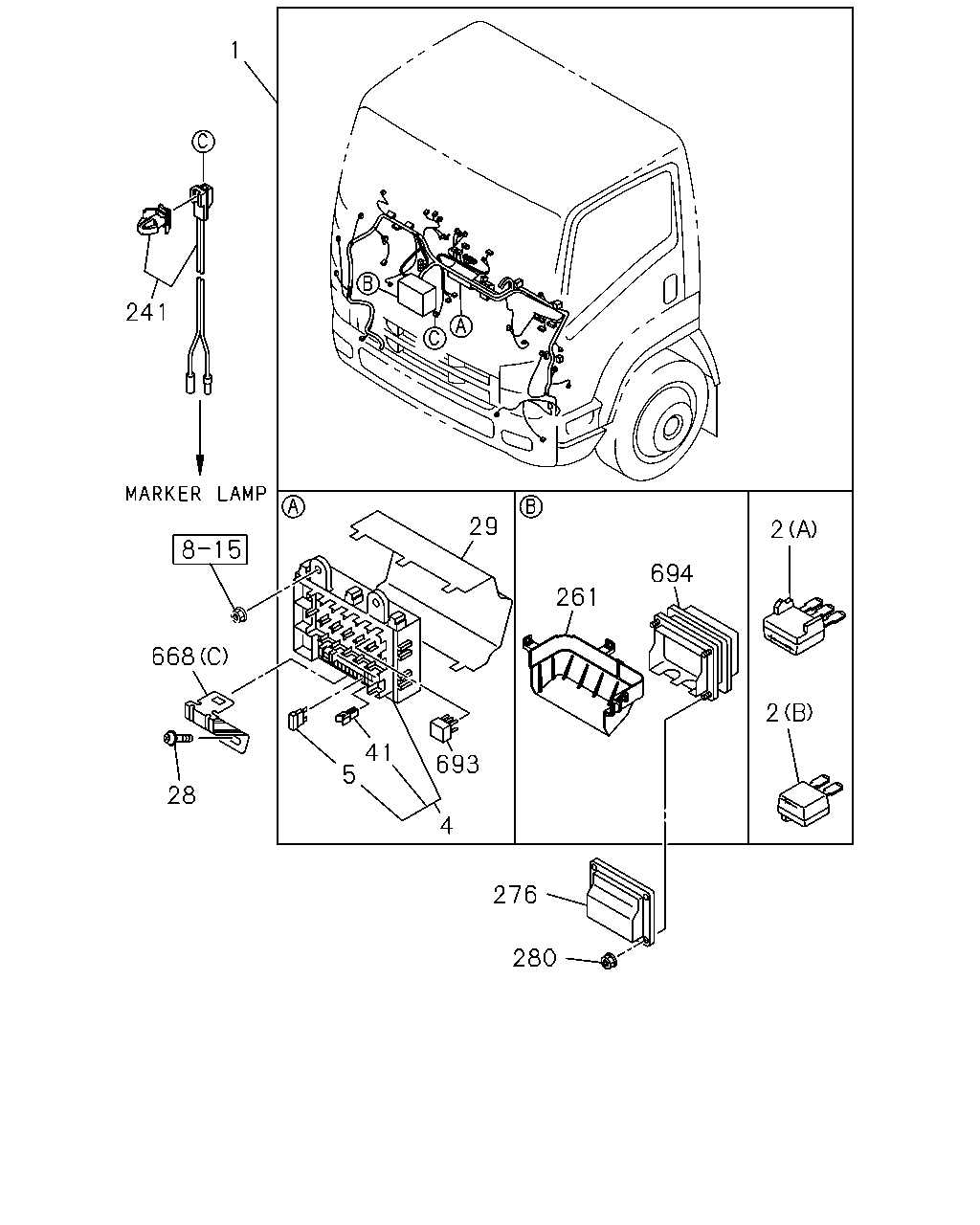

[810A] CAB HARNESS (23 parça)

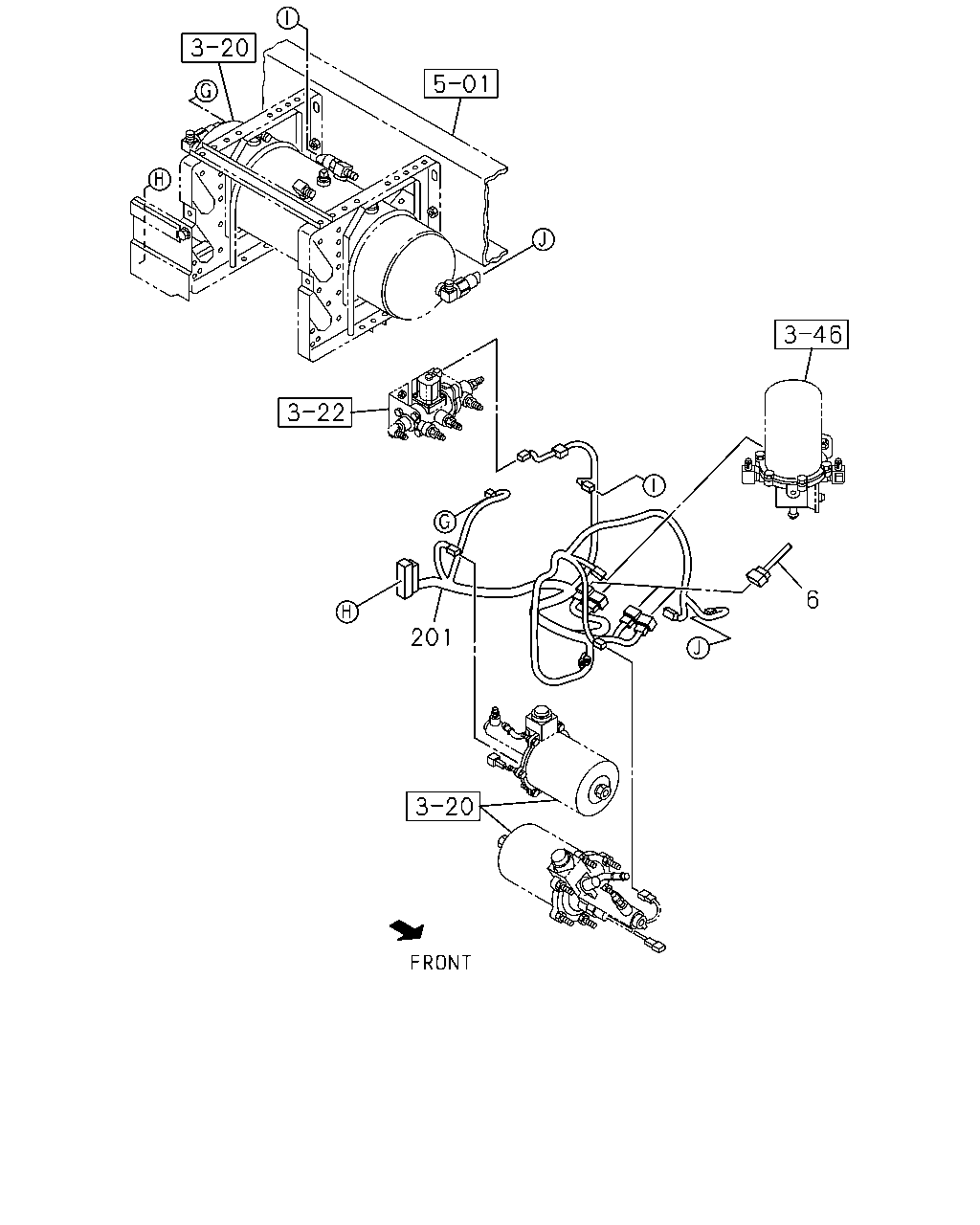

[810A] AIR TANK SIDE (4 parça)
[810A] RELAY;CAB HARNESS (2 parça)
[810A] FRAME HARNESS NO.2 (6 parça)
[810A] OTHER HARNESS NO.1 (6 parça)
▶
6
174
10
27
184
431
431
431
431
720
453
698
389
184
388
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> THA
8-98217-792-0
01
1
1410-
6
HARNESS; FRAME
MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> THA
8-98217-794-0
01
1
1410-
6
HARNESS; FRAME
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> THA
8-98217-796-0
01
1
1410-
10
BOX; FUSE,HARNESS
THA
8-98030-762-0
01
1
1410-
10
BOX; FUSE,HARNESS
THA
8-98030-762-0
01
1
1410-
27
FUSE UNIT
10A RED THA
8-98054-257-0
01
1
1410-
27
FUSE UNIT
15A BLUE THA
8-98054-258-0
02
1
1410-
174
FUSE; SLOW BLOW
60A YELLOW THA
8-97219-407-0
01
1
1410-
174
FUSE; SLOW BLOW
30A PINK THA
8-98079-191-0
01
1
1410-
174
FUSE; SLOW BLOW
40A GREEN THA
8-98079-192-0
01
1
1410-
174
FUSE; SLOW BLOW
50A RED THA
8-98079-193-0
03
1
1410-
174
FUSE; SLOW BLOW
60A YELLOW THA
8-97219-407-0
01
1
1410-
184
COVER; RELAY & FUSE BOX
(A) THA
8-98030-766-0
01
1
1410-
184
COVER; RELAY & FUSE BOX
(B) THA
8-98030-767-1
01
1
1410-
388
DIODE; RELAY BOX
BLACK 2P-1.5A THA
8-94422-639-1
01
1
1410-
389
BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER THA
1-09030-073-0
03
1
1410-
431
CONNECTOR; JOINT
(A) 10P GREEN THA
1-82698-579-0
02
1
1410-
431
CONNECTOR; JOINT
(B) 10P BLUE THA
1-82699-598-0
04
1
1410-
431
CONNECTOR; JOINT
(C) 10P GREEN THA
1-82699-599-0
03
1
1410-
431
CONNECTOR; JOINT
(D) 10P BROWN THA
1-82699-601-0
01
1
1410-
453
PROTECTOR; HARNESS
THA
1-82699-709-0
02
1
1410-
698
NUT; COVER,RELAY BOX
M8 FLANGE THA
0-91180-108-0
02
1
1410-
720
ATTACHMENT; CONNECTOR
THA
1-82699-688-0
03
1
1410-
231
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> THA
8-98217-792-0
01
1
1410-
6
HARNESS; FRAME
MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> THA
8-98217-794-0
01
1
1410-
6
HARNESS; FRAME
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> THA
8-98217-796-0
01
1
1410-
231
HARNESS; TRANS
MZZ6W M/T<RSA> THA
8-97925-477-0
01
1
1410-
231
HARNESS; TRANS
MZW6P M/T<RSZ> THA
8-97925-175-0
01
1
1410-
13
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> THA
8-98217-792-0
01
1
1410-
6
HARNESS; FRAME
MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> THA
8-98217-794-0
01
1
1410-
6
HARNESS; FRAME
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> THA
8-98217-796-0
01
1
1410-
13
HARNESS; ENG
(B) THA
8-98171-638-0
01
1
1410-
13
HARNESS; ENG
(A) THA
8-98274-038-0
01
1
1410-
595
6
691
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-97926-451-0
01
1
1410-
6
HARNESS; FRAME
MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> THA
8-98217-792-0
01
1
1410-
6
HARNESS; FRAME
MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> THA
8-98217-794-0
01
1
1410-
6
HARNESS; FRAME
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> THA
8-98217-796-0
01
1
1410-
595
HARNESS; WARNING,BRK
THA
8-97925-476-0
01
1
1410-
691
HARNESS; IDLE CONT
THA
8-97948-238-0
01
1
1410-
13
534
13
668
102
102
102
102
668
668
668
668
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
HARNESS; ENG
(B) THA
8-98171-638-0
01
1
1410-
13
HARNESS; ENG
(A) THA
8-98274-038-0
01
1
1410-
102
BOLT; BRKT,HARNESS CONNECTOR
M8X16 FLANGE THA
0-28050-816-0
03
1
1410-
102
BOLT; BRKT,HARNESS CONNECTOR
M10X16 FLANGE THA
0-28151-016-0
03
1
1410-
534
BOLT
M10X55 FLANGE THA
8-97365-449-0
03
1
1410-
668
BRACKET; HARNESS
(C) THA
8-98095-653-2
01
1
1410-
668
BRACKET; HARNESS
(D) THA
8-98001-095-0
01
1
1410-
668
BRACKET; HARNESS
(F) THA
8-98011-484-0
01
1
1410-
668
BRACKET; HARNESS
(A) THA
8-98024-765-0
01
1
1410-
668
BRACKET; HARNESS
(B) THA
8-98205-089-0
01
1
1410-
668
BRACKET; HARNESS
(E) THA
8-98273-295-0
01
1
1410-
1
241
29
668
28
41
5
693
4
261
694
2
2
276
280
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-97926-451-0
01
1
1410-
2
DIODE; CABLE HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) BLACK 3P-1.5A THA
8-94416-438-1
01
1
1410-
2
DIODE; CABLE HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) BLACK 2P-1.5A THA
8-94422-639-1
02
1
1410-
4
BOX ASM; FUSE,HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-98065-666-0
01
1
1410-
5
FUSE; FACIA HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 10A RED THA
8-98054-257-0
AR
1
1410-
5
FUSE; FACIA HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 15A BLUE THA
8-98054-258-0
AR
1
1410-
5
FUSE; FACIA HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 20A YELLOW THA
8-98054-259-0
AR
1
1410-
5
FUSE; FACIA HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 25A WHITE THA
8-98062-982-0
01
1
1410-
28
SCREW; FUSE BOX
M5X12 TAPPING W/TORQUES THA
8-98081-722-0
01
1
1410-
29
COVER; FUSE BOX
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-98056-968-0
01
1
1410-
41
PULLER; FUSE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-98054-260-0
01
1
1410-
241
HARNESS; MARKER LAMP
THA
8-97924-671-0
01
1
1410-
261
COVER; CONNECTOR BOX
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-98065-986-1
01
1
1410-
276
COVER; BOX,FRAME HARNESS
THA
8-98034-039-1
01
1
1410-
280
NUT; BOX ASM FIX
M6 FLANGE THA
0-91180-106-0
04
1
1410-
668
BRACKET; HARNESS
(C) THA
8-98095-653-2
01
1
1410-
668
BRACKET; HARNESS
(D) THA
8-98001-095-0
01
1
1410-
668
BRACKET; HARNESS
(F) THA
8-98011-484-0
01
1
1410-
668
BRACKET; HARNESS
(A) THA
8-98024-765-0
01
1
1410-
668
BRACKET; HARNESS
(B) THA
8-98205-089-0
01
1
1410-
668
BRACKET; HARNESS
(E) THA
8-98273-295-0
01
1
1410-
693
RELAY; FUSE BOX
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 24V 10A MATSUSHITA THA
8-97173-035-1
AR
1
1410-
694
BOX ASM; CONNECTOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-98057-771-0
01
1
1410-
201
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> THA
8-98217-792-0
01
1
1410-
6
HARNESS; FRAME
MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> THA
8-98217-794-0
01
1
1410-
6
HARNESS; FRAME
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> THA
8-98217-796-0
01
1
1410-
201
HARNESS; AIR TANK
THA
8-98212-312-0
01
1
1410-
693
693
693
693
4
693
693
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
BOX ASM; FUSE,HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-98065-666-0
01
1
1410-
693
RELAY; FUSE BOX
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 24V 10A MATSUSHITA THA
8-97173-035-1
AR
1
1410-
6
9
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> THA
8-98217-792-0
01
1
1410-
6
HARNESS; FRAME
MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> THA
8-98217-794-0
01
1
1410-
6
HARNESS; FRAME
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> THA
8-98217-796-0
01
1
1410-
9
HARNESS; FRAME,RR
WHEEL BASE 3400MM<34W> THA
8-97923-694-1
01
1
1410-
9
HARNESS; FRAME,RR
WHEEL BASE 4300MM<43W> THA
8-97923-695-3
01
1
1410-
9
HARNESS; FRAME,RR
WHEEL BASE 4900MM<49W> THA
8-97923-696-3
01
1
1410-
18
204
12
18
598
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-97926-451-0
01
1
1410-
12
HARNESS; ROOF
THA
8-97924-298-0
01
1
1410-
18
HARNESS; DOOR
THA
8-98076-304-3
01
1
1410-
18
HARNESS; DOOR
THA
8-98076-305-3
01
1
1410-
204
HARNESS; CABLE,FLOOR
THA
8-98081-204-2
01
1
1410-
598
HARNESS; EXT,PTO
PTO CONTROL<SV6> THA
1-82675-898-0
01
1
1410-
