Isuzu WW
▶
TRUCKS
▶
FRR
▶
11646 - FRR THAILAND EURO3
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-20 - MIRROR AND MIRROR STAY
▶
7-20 — MIRROR AND MIRROR STAY
(#150164) — 85 parça
◀

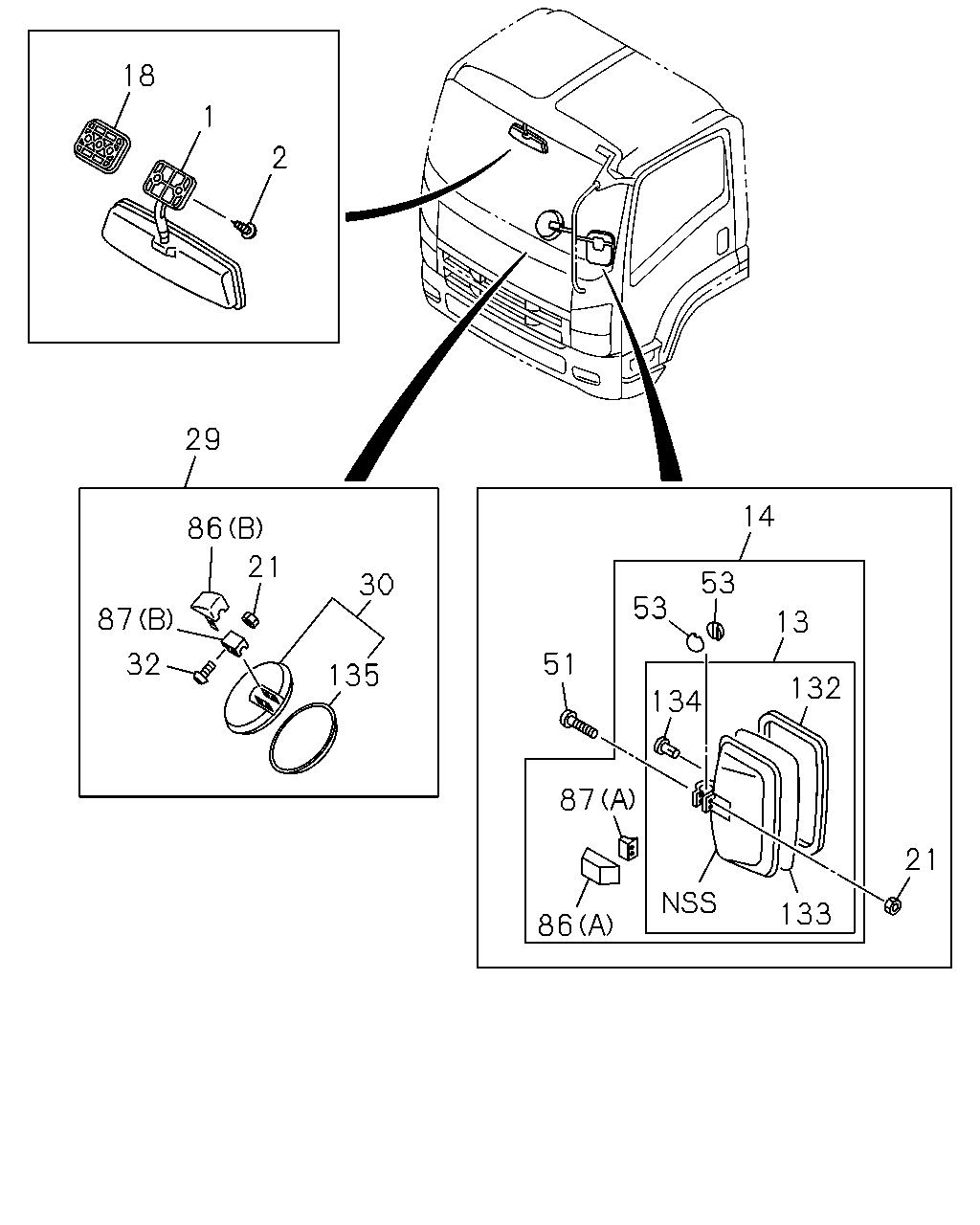

[720A] OUTSIED,UNDER AND ROOM MIRROR (25 parça)

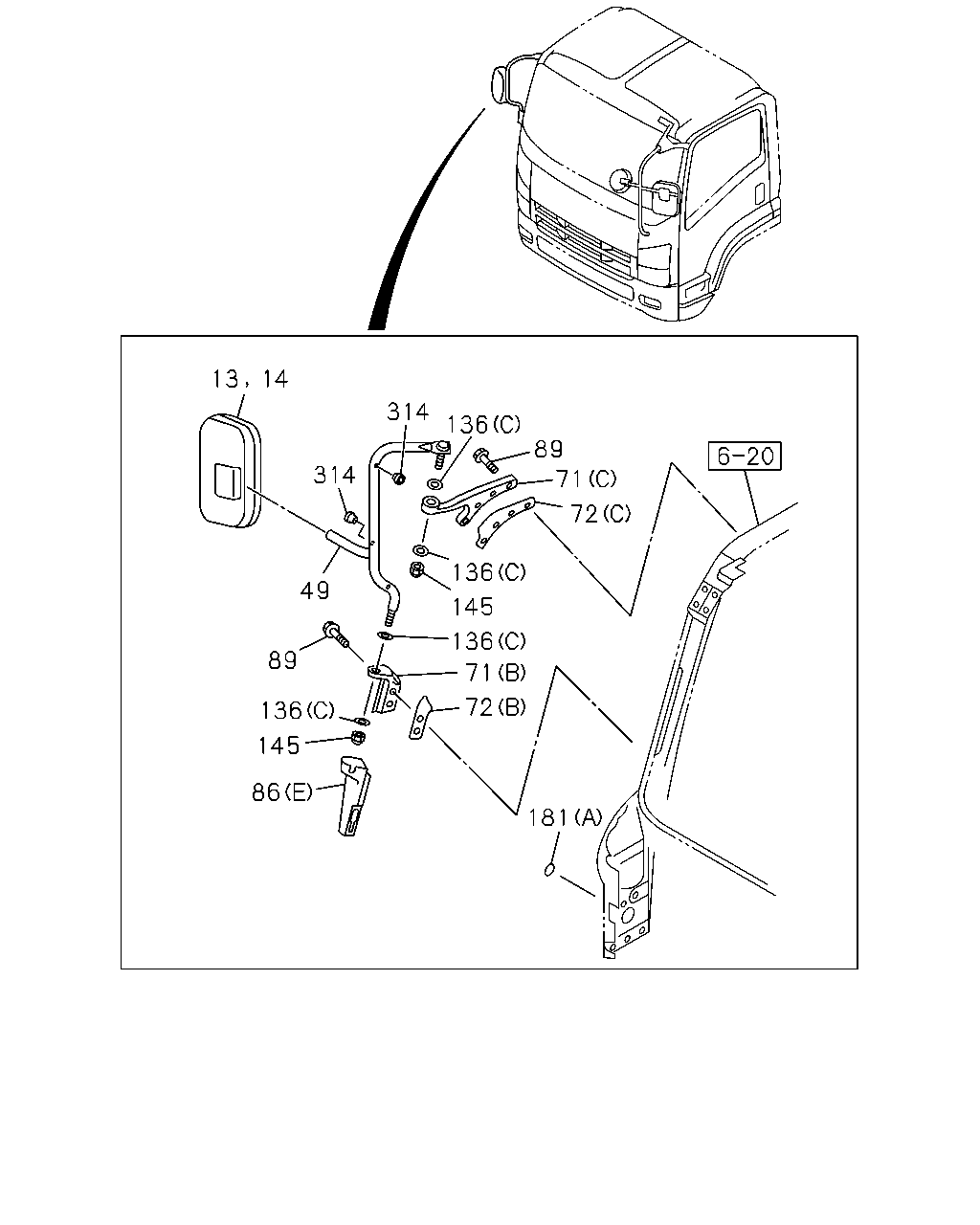

[720A] RH (27 parça)

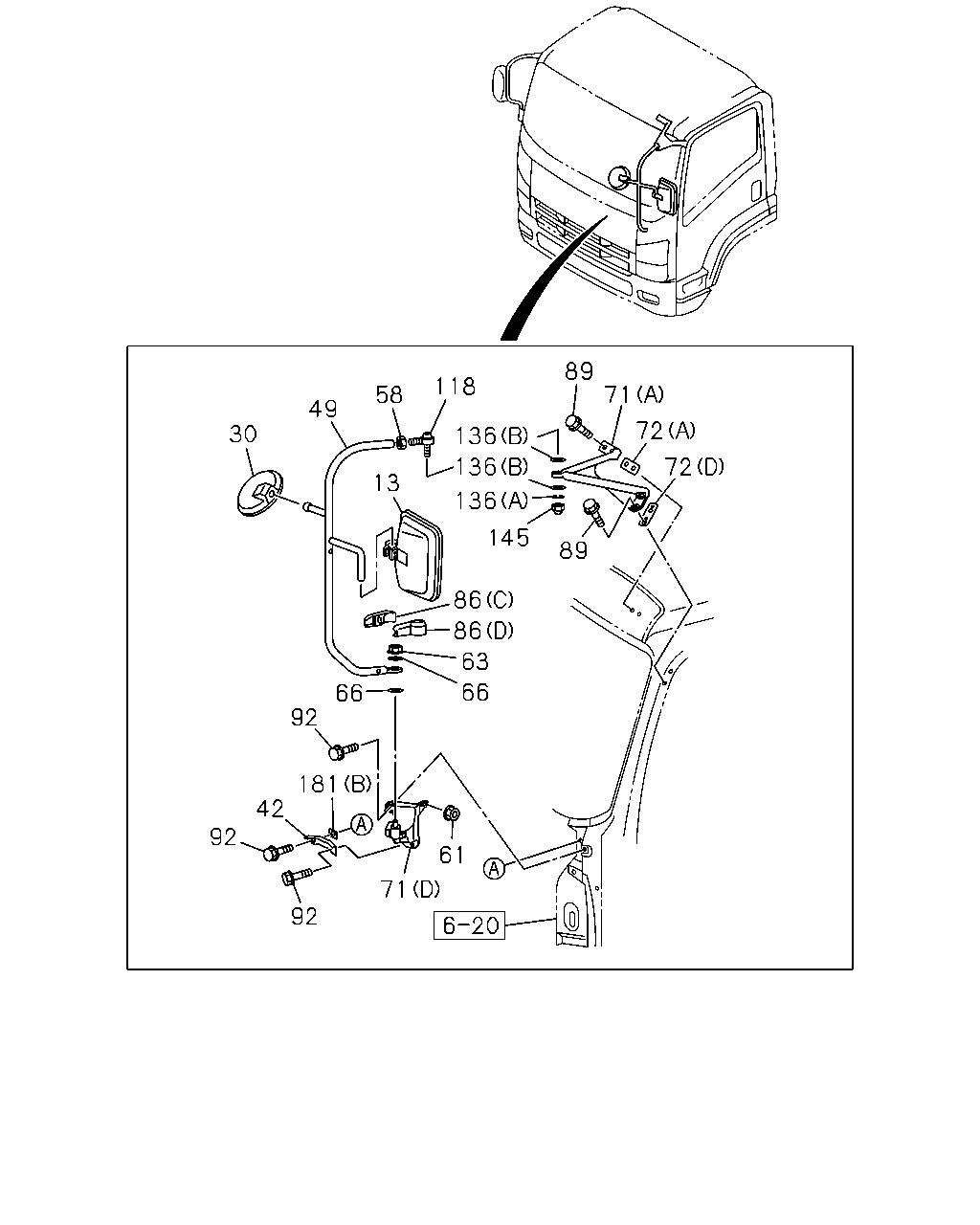

[720A] LH (33 parça)
▶
18
2
1
29
86
30
135
87
32
21
51
14
53
53
53
132
134
87
86
133
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
MIRROR; ROOM
THA
8-97924-058-2
01
1
1410-
2
SCREW; MIRROR TO BODY
M6X26 THA
8-98033-674-0
02
1
1410-
14
MIRROR ASM; OUTSIDE
PIVOT ID=22.2 THA
1-71707-152-1
01
1
1410-
14
MIRROR ASM; OUTSIDE
PIVOT ID=22.2 THA
1-71737-922-1
01
1
1410-
18
CLIP; MIRROR
DARK GRAY THA
8-97408-241-0
01
1
1410-
21
NUT; MIRROR
M5 THA
1-09984-124-0
02
1
1410-
21
NUT; MIRROR
M5 THA
1-09984-124-0
04
1
1410-
29
MIRROR ASM; UNDER
THA
1-71798-422-0
01
1
1410-
30
MIRROR; UNDER
THA
1-71798-591-1
01
1
1410-
32
SCREW; UNDER MIRROR
M5X40 W/PL WASHER THA
1-71737-797-0
02
1
1410-
51
SCREW; MIRROR
THA
1-09981-541-0
04
1
1410-
53
PIVOT; SIDE MIRROR
ID=22.2 THA
1-71736-489-2
04
1
1410-
86
COVER; STAY,OUTSIDE MIRROR
(B) BLACK THA
1-71737-649-1
01
1
1410-
86
COVER; STAY,OUTSIDE MIRROR
(A) BLACK THA
1-71737-760-1
02
1
1410-
86
COVER; STAY,OUTSIDE MIRROR
(E) THA
8-98040-541-1
01
1
1410-
86
COVER; STAY,OUTSIDE MIRROR
(C) THA
8-98040-545-1
01
1
1410-
86
COVER; STAY,OUTSIDE MIRROR
(D) THA
8-98040-546-1
01
1
1410-
87
SPACER
(B) THA
1-71737-646-2
01
1
1410-
87
SPACER
(A) THA
1-71737-704-0
02
1
1410-
132
RING; MIRROR
THA
1-71737-933-0
01
1
1410-
132
RING; MIRROR
THA
1-71737-934-0
01
1
1410-
133
LENS; MIRROR,OUTSIDE
THA
1-71737-926-0
01
1
1410-
133
LENS; MIRROR,OUTSIDE
THA
1-71737-927-0
01
1
1410-
134
CLIP; MIRROR LENS
THA
1-71737-936-0
02
1
1410-
135
LENS; MIRROR,SIDE UNDER
THA
1-71798-838-0
01
1
1410-
13
14
314
89
72
49
136
71
314
136
145
89
136
136
71
72
145
86
181
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
MIRROR ASM; OUTSIDE RR VIEW
THA
1-71737-917-3
01
1
1410-
13
MIRROR ASM; OUTSIDE RR VIEW
THA
1-71737-918-3
01
1
1410-
14
MIRROR ASM; OUTSIDE
PIVOT ID=22.2 THA
1-71707-152-1
01
1
1410-
14
MIRROR ASM; OUTSIDE
PIVOT ID=22.2 THA
1-71737-922-1
01
1
1410-
49
STAY; MIRROR SIDE
THA
8-98170-679-0
01
1
1410-
49
STAY; MIRROR SIDE
THA
8-98170-680-0
01
1
1410-
71
BRACKET; OUTSIDE MIRROR
(C) THA
8-98040-021-0
01
1
1410-
71
BRACKET; OUTSIDE MIRROR
(A) THA
8-98040-022-1
01
1
1410-
71
BRACKET; OUTSIDE MIRROR
(B) THA
8-98040-543-1
01
1
1410-
71
BRACKET; OUTSIDE MIRROR
(D) THA
8-98201-957-0
01
1
1410-
72
SHEET
(C) THA
8-98040-351-0
01
1
1410-
72
SHEET
(B) THA
8-98040-353-1
01
1
1410-
72
SHEET
(D) THA
8-98040-535-0
01
1
1410-
72
SHEET
(A) THA
8-98040-537-1
01
1
1410-
86
COVER; STAY,OUTSIDE MIRROR
(B) BLACK THA
1-71737-649-1
01
1
1410-
86
COVER; STAY,OUTSIDE MIRROR
(A) BLACK THA
1-71737-760-1
02
1
1410-
86
COVER; STAY,OUTSIDE MIRROR
(E) THA
8-98040-541-1
01
1
1410-
86
COVER; STAY,OUTSIDE MIRROR
(C) THA
8-98040-545-1
01
1
1410-
86
COVER; STAY,OUTSIDE MIRROR
(D) THA
8-98040-546-1
01
1
1410-
89
SCREW; BRKT,OUTSIDE MIRROR
M8X26 W/PL WASHER THA
8-98067-249-2
10
1
1410-
136
WASHER; LK,BRKT,MIRROR STAY
(A) ID=10 THA
1-09985-180-0
01
1
1410-
136
WASHER; LK,BRKT,MIRROR STAY
(B) ID=10.5 OD=26 T=2.6 THA
1-09985-184-0
02
1
1410-
136
WASHER; LK,BRKT,MIRROR STAY
(C) ID=10.5 OD=26 T=2.6 THA
1-09985-204-0
04
1
1410-
145
NUT; CAP,SUB STAY
M10 CAP NUT THA
1-09984-134-0
03
1
1410-
181
SEAL; BRKT
(A) OD=25 BLACK THA
1-76798-019-0
01
1
1410-
181
SEAL; BRKT
(B) 25X25 THA
8-94272-533-0
01
1
1410-
314
BUFFER; STOPPER
THA
8-94314-317-0
02
1
1410-
30
49
58
118
89
72
71
136
136
136
145
89
72
86
86
63
66
66
92
181
42
92
92
61
71
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
MIRROR ASM; OUTSIDE RR VIEW
THA
1-71737-917-3
01
1
1410-
13
MIRROR ASM; OUTSIDE RR VIEW
THA
1-71737-918-3
01
1
1410-
30
MIRROR; UNDER
THA
1-71798-591-1
01
1
1410-
42
ATTACHMENT; OUTSIDE MIRROR
THA
8-98070-643-0
01
1
1410-
49
STAY; MIRROR SIDE
THA
8-98170-679-0
01
1
1410-
49
STAY; MIRROR SIDE
THA
8-98170-680-0
01
1
1410-
58
NUT; MIRROR STAY
THA
8-98061-883-0
01
1
1410-
61
NUT; STAY,OUTSIDE MIRROR
M8 FLANGE THA
0-91180-108-0
01
1
1410-
63
NUT; STAY
M14 TOUGH LOCK NUT W/FLANGE THA
8-98174-339-0
01
1
1410-
66
WASHER; PL
LOWER THA
0-91610-614-0
01
1
1410-
66
WASHER; PL
UPPER THA
8-98201-756-0
01
1
1410-
71
BRACKET; OUTSIDE MIRROR
(C) THA
8-98040-021-0
01
1
1410-
71
BRACKET; OUTSIDE MIRROR
(A) THA
8-98040-022-1
01
1
1410-
71
BRACKET; OUTSIDE MIRROR
(B) THA
8-98040-543-1
01
1
1410-
71
BRACKET; OUTSIDE MIRROR
(D) THA
8-98201-957-0
01
1
1410-
72
SHEET
(C) THA
8-98040-351-0
01
1
1410-
72
SHEET
(B) THA
8-98040-353-1
01
1
1410-
72
SHEET
(D) THA
8-98040-535-0
01
1
1410-
72
SHEET
(A) THA
8-98040-537-1
01
1
1410-
86
COVER; STAY,OUTSIDE MIRROR
(B) BLACK THA
1-71737-649-1
01
1
1410-
86
COVER; STAY,OUTSIDE MIRROR
(A) BLACK THA
1-71737-760-1
02
1
1410-
86
COVER; STAY,OUTSIDE MIRROR
(E) THA
8-98040-541-1
01
1
1410-
86
COVER; STAY,OUTSIDE MIRROR
(C) THA
8-98040-545-1
01
1
1410-
86
COVER; STAY,OUTSIDE MIRROR
(D) THA
8-98040-546-1
01
1
1410-
89
SCREW; BRKT,OUTSIDE MIRROR
M8X26 W/PL WASHER THA
8-98067-249-2
10
1
1410-
92
BOLT; STAY BRKT,MIRROR
M8X16 FLANGE THA
8-97948-261-0
04
1
1410-
118
JOINT ASM; BALL
THA
1-71798-356-2
01
1
1410-
136
WASHER; LK,BRKT,MIRROR STAY
(A) ID=10 THA
1-09985-180-0
01
1
1410-
136
WASHER; LK,BRKT,MIRROR STAY
(B) ID=10.5 OD=26 T=2.6 THA
1-09985-184-0
02
1
1410-
136
WASHER; LK,BRKT,MIRROR STAY
(C) ID=10.5 OD=26 T=2.6 THA
1-09985-204-0
04
1
1410-
145
NUT; CAP,SUB STAY
M10 CAP NUT THA
1-09984-134-0
03
1
1410-
181
SEAL; BRKT
(A) OD=25 BLACK THA
1-76798-019-0
01
1
1410-
181
SEAL; BRKT
(B) 25X25 THA
8-94272-533-0
01
1
1410-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
