◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11646 - FRR THAILAND EURO3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#150153) — 56 parça

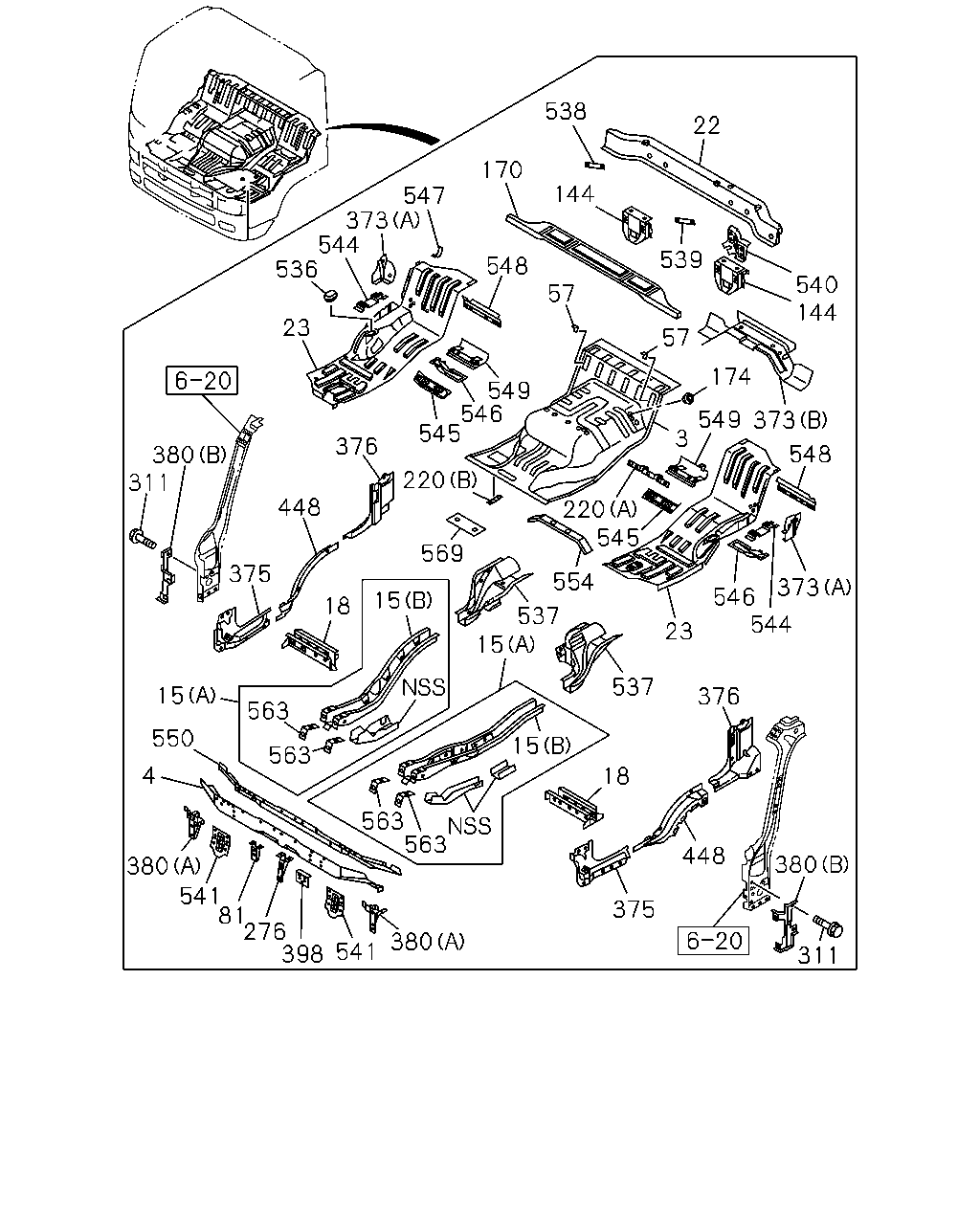

çizim 449052
538 22 170 547 373 544 536 23 380 144 548 549 546 545 376 448 311 375 220 18 57 539 57 540 144 174 549 373 569 220 3 548 15 15 550 563 4 563 545 554 537 15 380 541 81 276 398 563 563 380 541 15 537 23 546 544 373 376 18 448 375 380 311
BalonParca AdiParca NoAdetTipApplied Date
3 HOOD ASM; ENG
THA 		8-98167-035-0 01 1 1410-
4 FRAME; FLOOR,FRT
THA 		8-98073-692-1 01 1 1410-
15 FRAME; UNDER
(A) THA 		8-97584-387-9 01 1 1410-
15 FRAME; UNDER
(B) THA 		8-97584-388-9 01 1 1410-
15 FRAME; UNDER
(A) THA 		8-97584-411-9 01 1 1410-
15 FRAME; UNDER
(B) THA 		8-97584-412-7 01 1 1410-
18 FRAME; FLOOR,CENTER SIDE
THA 		8-97584-397-5 01 1 1410-
18 FRAME; FLOOR,CENTER SIDE
THA 		8-97584-420-4 01 1 1410-
22 FRAME; FLOOR REAR
THA 		8-97584-430-5 01 1 1410-
23 PANEL; FLOOR,SIDE
THA 		8-98073-690-1 01 1 1410-
23 PANEL; FLOOR,SIDE
THA 		8-97584-371-7 01 1 1410-
57 BRACKET; SPARE TIRE
THA 		8-98038-970-1 02 1 1410-
81 BRACKET; HARNESS SUPPORT
THA 		8-98041-333-3 01 1 1410-
144 BRACKET; MTG,RR
THA 		8-97584-432-6 01 1 1410-
144 BRACKET; MTG,RR
THA 		8-97589-666-6 01 1 1410-
170 EXTENSION; RR FLOOR
THA 		8-97589-204-3 01 1 1410-
174 GROMMET; AIR PIPE
OD=35 THA 		8-94122-971-0 01 1 1410-
220 PATCH
(A) THA 		8-97588-840-4 01 1 1410-
220 PATCH
(B) THA 		8-97589-603-3 01 1 1410-
276 BRACKET; RAD GRILLE
THA 		8-97589-596-3 01 1 1410-
311 BOLT; BRKT
M6X16 FLANGE THA 		0-28650-616-0 04 1 1410-
373 REINFORCEMENT; SEAT BELT
(A) THA 		8-97584-367-2 01 1 1410-
373 REINFORCEMENT; SEAT BELT
(A) THA 		8-97584-375-2 01 1 1410-
373 REINFORCEMENT; SEAT BELT
(B) THA 		8-97584-345-9 01 1 1410-
375 CLOSING; PILLAR
THA 		8-98044-897-3 01 1 1410-
375 CLOSING; PILLAR
THA 		8-98044-898-3 01 1 1410-
376 CLOSING; PILLAR,LWR
THA 		8-97589-553-1 01 1 1410-
376 CLOSING; PILLAR,LWR
THA 		8-97589-555-1 01 1 1410-
380 BRACKET; HEAD LAMP
(B) THA 		8-98032-614-1 01 1 1410-
380 BRACKET; HEAD LAMP
(B) THA 		8-98032-615-1 01 1 1410-
380 BRACKET; HEAD LAMP
(A) THA 		8-97924-053-0 01 1 1410-
380 BRACKET; HEAD LAMP
(A) THA 		8-97924-054-0 01 1 1410-
398 BRACKET; PIPE SUPPORT
THA 		8-97948-272-0 01 1 1410-
448 CLOSING; ROCKER
THA 		8-97589-551-2 01 1 1410-
448 CLOSING; ROCKER
THA 		8-97589-552-2 01 1 1410-
536 PLUG; CABLE,PTO
THA 		8-97612-074-1 01 1 1410-
537 SUPPORT ASM; MTG RR
THA 		8-97584-390-4 01 1 1410-
537 SUPPORT ASM; MTG RR
THA 		8-97584-416-4 01 1 1410-
538 REINFORCEMENT ASM; AIR INT DUCT
THA 		8-97610-207-2 01 1 1410-
539 PATCH ASM; SAFTY HOOK
THA 		8-97584-440-2 01 1 1410-
540 BRACKET ASM; CAB LOCK LEVER
THA 		8-97584-438-1 01 1 1410-
541 REINFORCEMENT; MTG,FRT
THA 		8-98067-903-0 02 1 1410-
544 BRACKET; DUMP CONT
THA 		8-97584-363-1 01 1 1410-
544 BRACKET; DUMP CONT
THA 		8-98049-529-0 01 1 1410-
545 BRACKET; SEAT FRT
THA 		8-97584-361-1 01 1 1410-
545 BRACKET; SEAT FRT
THA 		8-97584-373-1 01 1 1410-
546 REINFORCEMENT; FLOOR SIDE
THA 		8-97584-426-0 02 1 1410-
547 BRACKET; JACK HANDLE
THA 		8-97588-843-1 01 1 1410-
548 BRACKET; MUD GUARD
THA 		8-97588-964-1 01 1 1410-
548 BRACKET; MUD GUARD
THA 		8-97588-965-1 01 1 1410-
549 BRACKET; SEAT RR
THA 		8-97588-958-4 01 1 1410-
549 BRACKET; SEAT RR
THA 		8-97589-557-4 01 1 1410-
550 CLOSING ASM; MTG,FRT
THA 		8-97584-458-4 01 1 1410-
554 REINFORCEMENT; FLOOR CENTER
THA 		8-97584-351-2 01 1 1410-
563 REINFORCEMENT; MTG FRT,RR
THA 		8-97589-579-2 04 1 1410-
569 REINFORCEMENT; FRT,ENG HOOD
THA 		8-98108-359-1 01 1 1410-
