Isuzu WW
▶
TRUCKS
▶
FRR
▶
11646 - FRR THAILAND EURO3
▶
5 - Frame, Cab Mounting
▶
5-10 - CAB MOUNTING; FRAME SIDE
▶

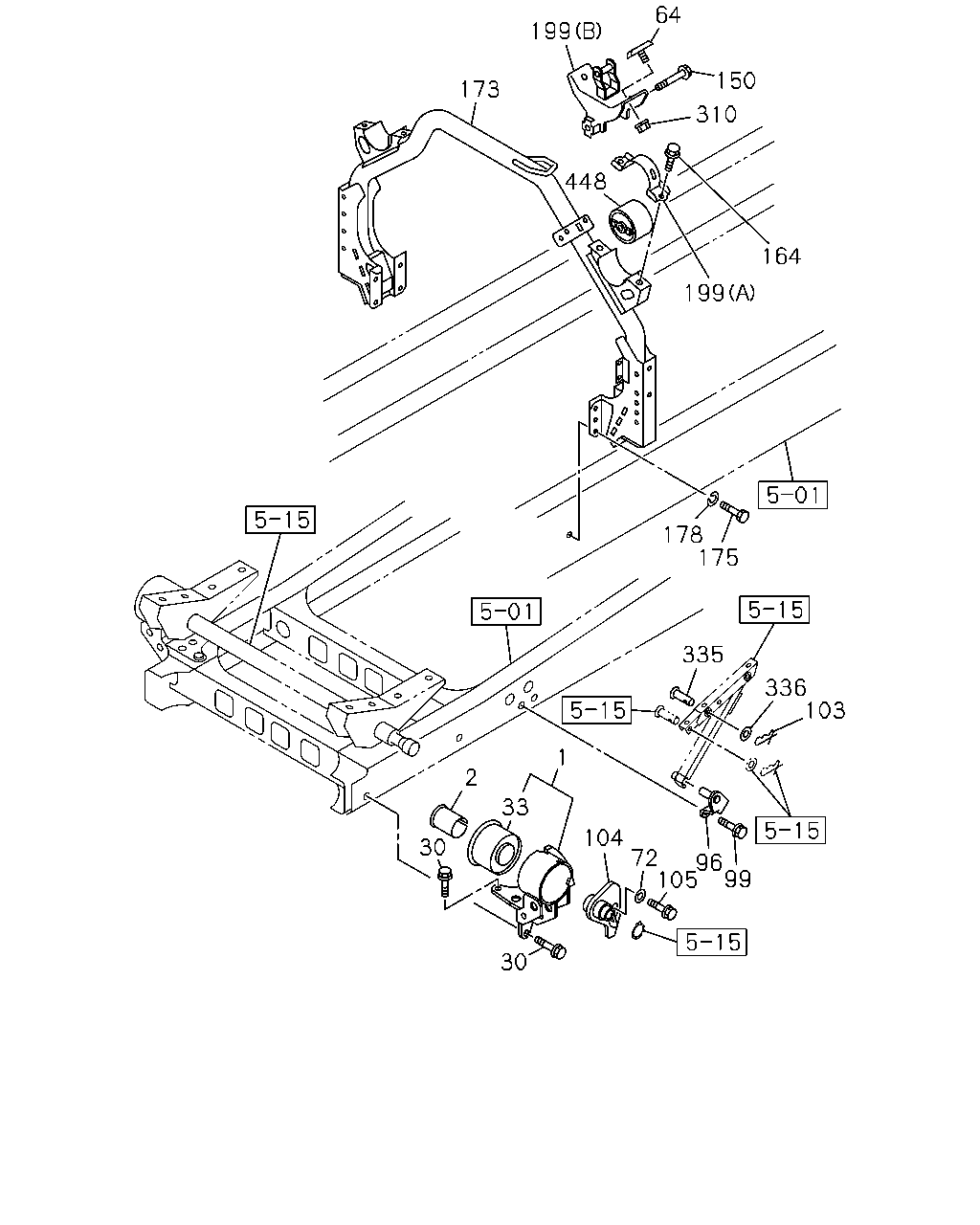

5-10 — CAB MOUNTING; FRAME SIDE
(#150136) — 23 parça
173
199
64
150
310
448
199
164
178
175
335
336
103
2
1
30
33
104
72
105
96
99
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET; CAB MTG
THA
8-98010-750-2
01
1
1410-
1
BRACKET; CAB MTG
THA
8-98056-501-2
01
1
1410-
2
BUSHING; TORSION BAR
THA
8-98010-767-0
02
1
1410-
30
BOLT; CAB FRT FOOT
M14X45 FLANGE THA
0-28861-445-0
10
1
1410-
33
BUSHING; RUBBER,CAB MTG BRKT,FRT
THA
8-98013-933-1
02
1
1410-
64
RUBBER; CUSHION
THA
8-97113-340-0
04
1
1410-
72
WASHER; PL,BRKT TO FRAME
ID=15 OD=36 THA
0-91614-714-0
01
1
1410-
96
BRACKET; CAB STAY
THA
1-62500-628-0
01
1
1410-
99
BOLT; BRKT
M10X30 FLANGE THA
0-28661-030-0
02
1
1410-
103
PIN; SPLIT,CAB STAY
L=32.6 THA
8-98062-280-0
01
1
1410-
104
BRACKET; CAB FRAME,CAB FRT MTG
THA
8-98010-753-3
01
1
1410-
105
BOLT; BRKT TO CAB FRAME
M14X35 FLANGE THA
0-28661-435-0
01
1
1410-
150
BOLT; CAB MTG RR
M14X100 THA
0-10956-400-0
02
1
1410-
164
BOLT; CUSHION RUBBER,CAB MTG
M12X25 FLANGE THA
0-28651-225-0
04
1
1410-
173
MEMBER; CAB MTG RR
THA
8-97948-139-0
01
1
1410-
175
BOLT; MEMBER TO FRAME
M12X35 THA
0-20951-235-0
08
1
1410-
178
WASHER; LK,MEMBER
ID=12.2 THA
0-91510-612-0
08
1
1410-
199
BRACKET; CAB RR MTG
(A) THA
8-98044-556-1
02
1
1410-
199
BRACKET; CAB RR MTG
(B) THA
8-98099-068-0
02
1
1410-
310
NUT; CUSHION
M8 FLANGE THA
0-91180-108-0
04
1
1410-
335
PIN; ADJ,STAY LOCK
OD=10 L=48 THA
1-09744-107-0
01
1
1410-
336
WASHER; PL,STAY LOCK
ID=10.5 T=2.0 THA
1-09985-183-0
01
1
1410-
448
BUSHING; CAB MTG
THA
8-98013-934-1
02
1
1410-
