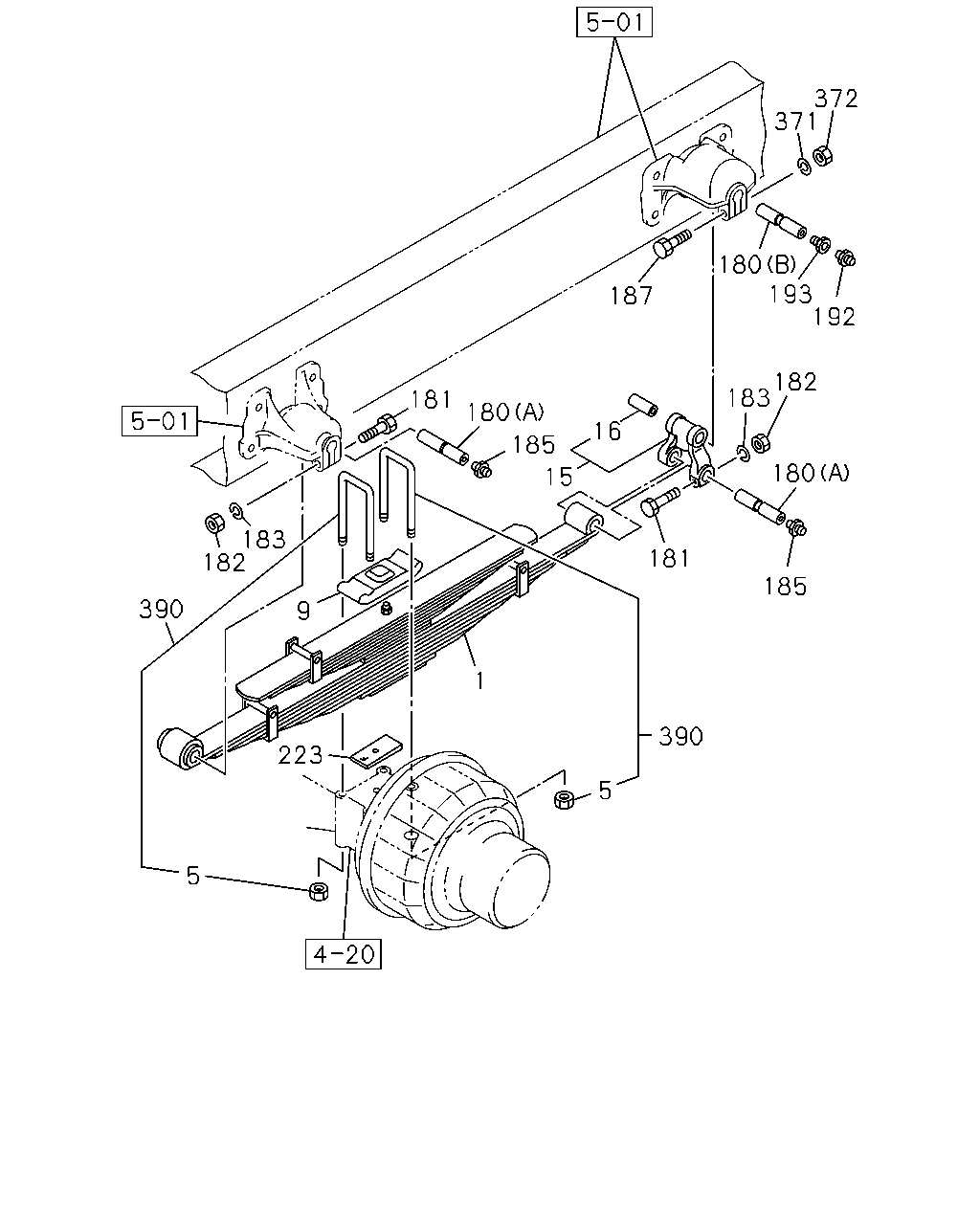

4-60 — REAR SUSPENSION (#150132) — 22 parça

187 180 372 371 193 182 192 183 180 185 181 181 16 180 390 185 183 182 390 9 15 1 5 223 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. THA	8-97924-265-0	02	1	1410-
5	NUT; U-BOLT,RR SPR M18 FLANGE THA	1-09440-039-1	08	1	1410-
9	PAD; U BOLT,RR SPR THA	1-51372-059-0	02	1	1410-
15	SHACKLE; RR SPR THA	1-51362-038-2	02	1	1410-
16	BUSHING; SHACKLE,RR SPR ID=25 THA	8-98082-176-0	02	1	1410-
180	PIN; RR SPR (A) DO=25 L=115 PT1/8 THA	1-51361-016-0	04	1	1410-
180	PIN; RR SPR (B) DO=25 L=115 M12 THA	1-51361-017-0	02	1	1410-
181	BOLT; SPR & SHACKLE M12X70 THA	0-10961-270-0	04	1	1410-
182	NUT; PIN,RR SPR M12 THA	0-91110-512-0	04	1	1410-
183	WASHER; LK,PIN,RR SPR ID=12.2 THA	0-91510-612-0	04	1	1410-
185	NIPPLE; GREASE,PIN,RR SPR PT1/8 STRAIGHT THA	0-90301-410-0	02	1	1410-
185	NIPPLE; GREASE,PIN,RR SPR PT1/8 STRAIGHT THA	0-90301-410-0	02	1	1410-
187	BOLT; SPR & SHACKLE M12X70 THA	0-10961-270-0	02	1	1410-
192	NIPPLE; GREASE,SHACKLE PIN PT1/8 STRAIGHT THA	0-90301-410-0	02	1	1410-
193	ATTACHMENT; GREASE NIPPLE THA	9-43165-001-0	02	1	1410-
223	SPACER; U BOLT,RR SPR MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> THA	1-51377-329-1	02	1	1410-
223	SPACER; U BOLT,RR SPR WHEEL BASE 4900MM<49W> THA	8-98063-307-0	02	1	1410-
223	SPACER; U BOLT,RR SPR MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> THA	8-98063-307-0	02	1	1410-
223	SPACER; U BOLT,RR SPR WHEEL BASE 4300MM<43W> THA	8-98043-891-0	02	1	1410-
371	WASHER; LK,SHACKLE ID=12.2 THA	0-91510-612-0	02	1	1410-
372	NUT; SHACKLE M12 THA	0-91110-512-0	02	1	1410-
390	U-BOLT SET; RR SPRING L=390 THA	1-87870-508-0	04	1	1410-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
