Isuzu WW
▶
TRUCKS
▶
FRR
▶
11646 - FRR THAILAND EURO3
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-50 - FRONT SUSPENSION
▶

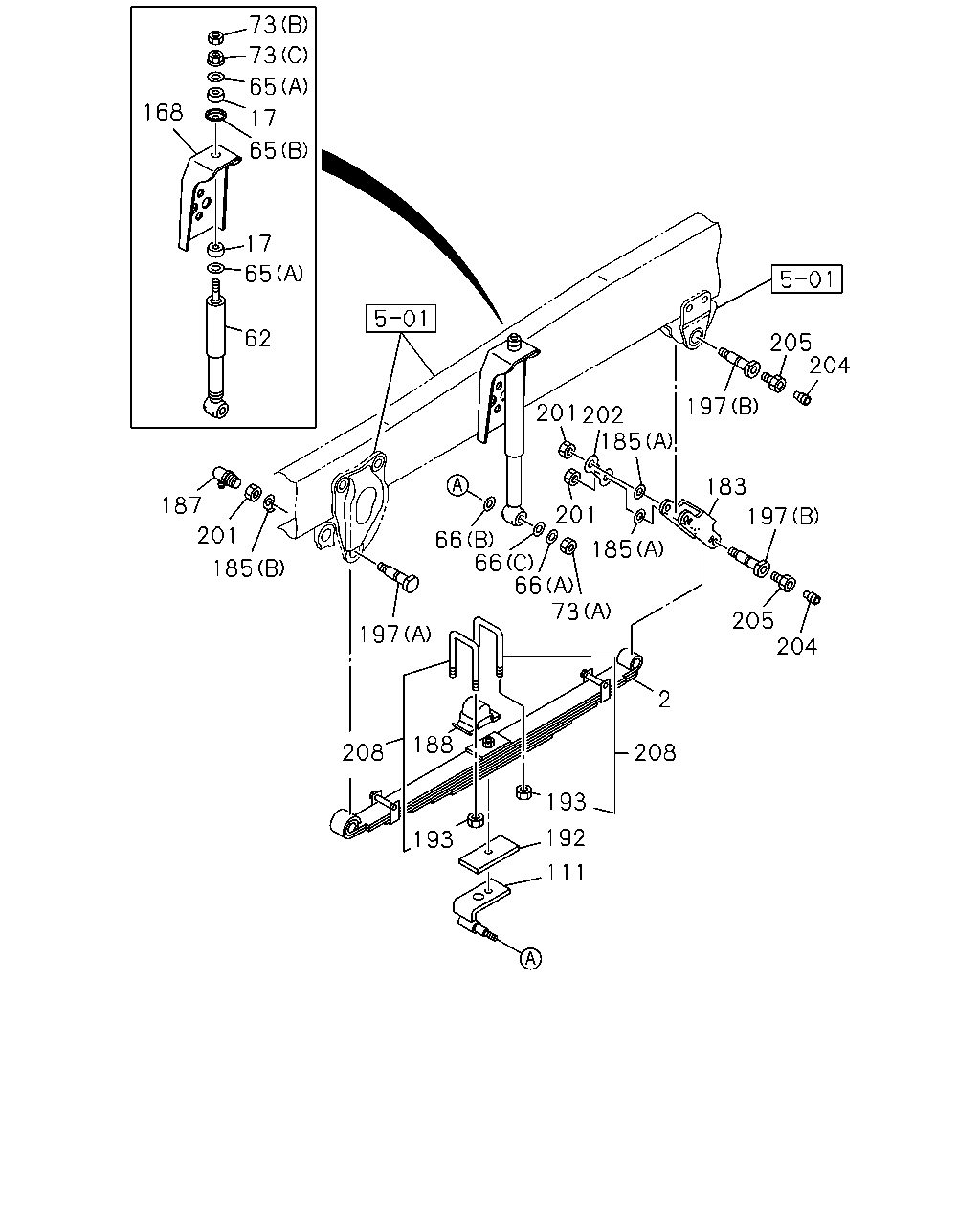

4-50 — FRONT SUSPENSION
(#150130) — 29 parça
111
193
192
208
2
204
205
193
208
73
188
197
66
66
66
185
201
197
183
185
202
201
197
204
205
185
201
187
62
65
17
65
168
17
65
73
73
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF THA
8-98017-554-0
01
1
1410-
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF THA
8-98017-555-0
01
1
1410-
17
BUSHING; RUBBER,S/ABS
THA
1-51631-004-0
04
1
1410-
62
ABSORBER ASM; SHOCK,FRT
THA
8-97924-226-0
02
1
1410-
65
WASHER; S/ABS
(B) THA
1-51631-023-0
02
1
1410-
65
WASHER; S/ABS
(A) ID=10.5 OD=40 T=3.2 THA
8-98010-405-0
04
1
1410-
66
WASHER; LK,S/ABS SETTING
(A) ID=12.2 THA
0-91510-812-0
02
1
1410-
66
WASHER; LK,S/ABS SETTING
(B) ID=17 OD=30 THA
0-91610-516-0
02
1
1410-
66
WASHER; LK,S/ABS SETTING
(C) ID=12.5 THA
1-09503-171-0
02
1
1410-
73
NUT; BRKT,SHOCK
(A) M12 THA
0-91110-512-0
02
1
1410-
73
NUT; BRKT,SHOCK
(B) M10 THA
0-91111-510-0
02
1
1410-
73
NUT; BRKT,SHOCK
(C) M10 FLANGE THA
0-91180-210-0
02
1
1410-
111
SUPPORTER; S/ABS,FRT SUSP
THA
1-51681-586-4
01
1
1410-
111
SUPPORTER; S/ABS,FRT SUSP
THA
1-51681-587-4
01
1
1410-
168
BRACKET; S/ABS,FRT SUSP
THA
8-98060-258-0
02
1
1410-
183
SHACKLE; FRT SUSP
THA
1-51162-037-0
02
1
1410-
185
WASHER; LK,PIN
(A) ID=25.5 THA
8-98010-404-0
04
1
1410-
185
WASHER; LK,PIN
(B) ID=23 THA
8-98010-411-0
02
1
1410-
187
NIPPLE; GREASE,FRT
PT1/8 ELBOW THA
0-90301-610-0
02
1
1410-
188
RUBBER; CLAMP,U-BOLT,FRT SPR
THA
1-51172-112-0
02
1
1410-
192
PIECE; DIST
T=4.5 THA
1-51177-149-0
AR
1
1410-
193
NUT; U BOLT
M16 THA
8-97360-121-0
08
1
1410-
197
PIN; FRT SPR,FRT
(B) THA
8-98060-333-0
04
1
1410-
197
PIN; FRT SPR,FRT
(A) THA
8-98060-335-0
02
1
1410-
201
NUT; PIN LK
M22 THA
0-91111-522-0
06
1
1410-
202
PLATE; LK,SPR PIN
THA
8-98010-648-0
02
1
1410-
204
NIPPLE; GREASE,RR
PT1/8 STRAIGHT THA
0-90301-410-0
04
1
1410-
205
ATTACHMENT; GREASE NIPPLE
THA
9-43165-001-0
04
1
1410-
208
U-BOLT SET; FRT SPRING
L=150 THA
1-87870-466-0
04
1
1410-
