◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11140 - FSR-RHD(EU)SPACE EU4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#15013) — 67 parça

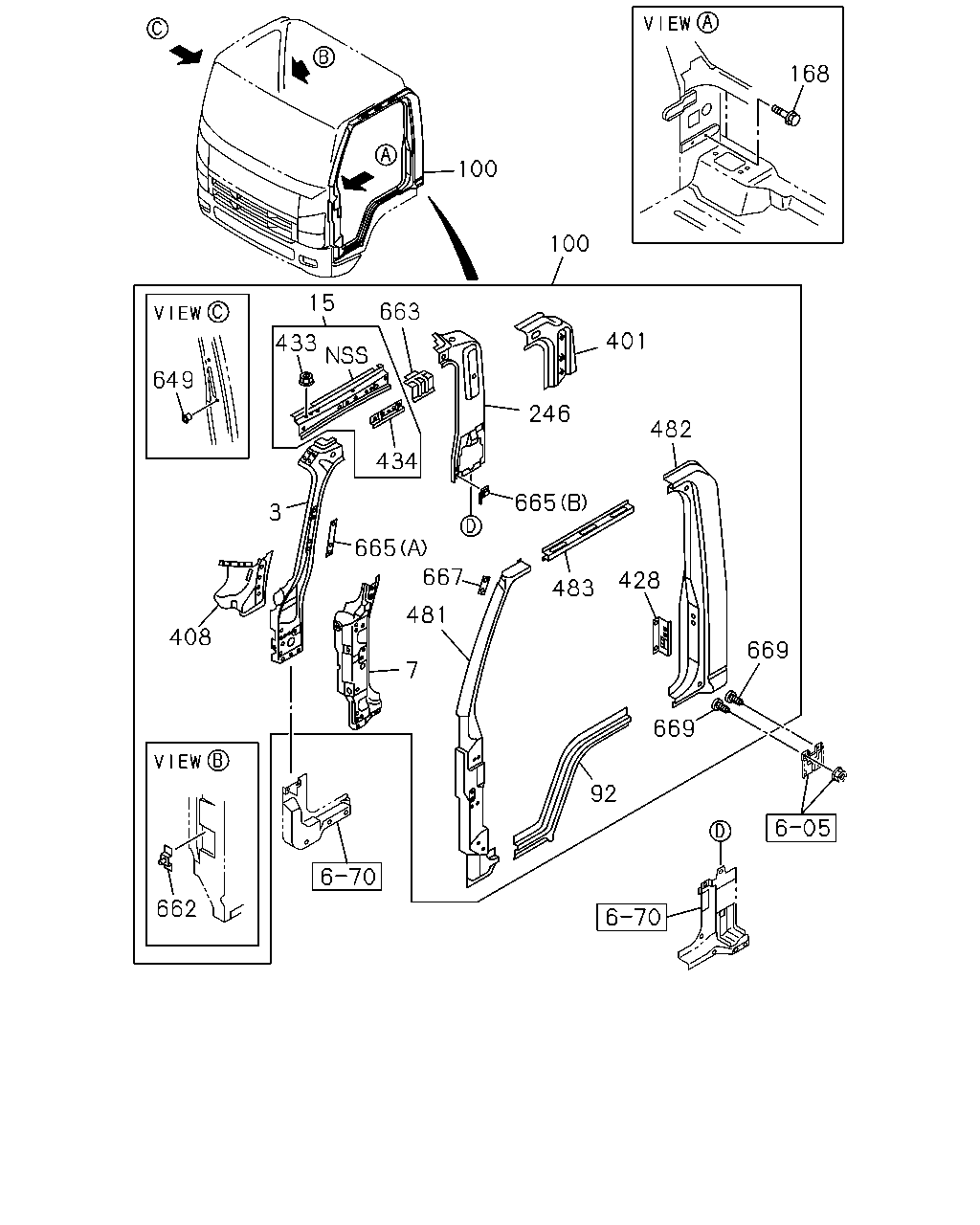

çizim 95844
168 100 100 15 663 401 433 649 246 482 434 665 3 665 667 428 483 481 408 669 7 669 92 662
BalonParca AdiParca NoAdetTipApplied Date A B
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 0803- ● ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 0803- ● ●
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 0803- ● ●
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 0803- ● ●
15 PANEL; CANT RAIL SIDE 8-97585-292-2 01 1 0803- ● ●
15 PANEL; CANT RAIL SIDE 8-97585-293-2 01 1 0803- ● ●
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 0803- ● ●
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 0803- ● ●
100 PANEL ASM; BODY SIDE 8-97586-059-4 01 1 0803- ● ●
100 PANEL ASM; BODY SIDE 8-98088-578-2 01 1 0803- ● ●
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 0803- ● ●
246 PANEL; RR PILLAR,INNER 8-97585-301-3 01 1 0803- ● ●
246 PANEL; RR PILLAR,INNER 8-97586-154-3 01 1 0803- ● ●
401 PATCH; CLOSING,FRT PILLAR 8-97585-303-2 01 1 0803- ● ●
401 PATCH; CLOSING,FRT PILLAR 8-98065-791-0 01 1 0803- ● ●
408 GUSSET; PILLAR 8-97586-193-3 01 1 0803- ● ●
408 GUSSET; PILLAR 8-97586-194-2 01 1 0803- ● ●
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 0803- ● ●
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 0803- ● ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 0803- ● ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 0803- ● ●
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 0803- ● ●
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 0803- ● ●
481 PANEL; SIDE FRT PILLAR 8-98092-915-0 01 1 0803- ● ●
481 PANEL; SIDE FRT PILLAR 8-98093-579-0 01 1 0803- ● ●
482 PANEL; SIDE RR PILLAR 8-98055-467-1 01 1 0803- ● ●
482 PANEL; SIDE RR PILLAR 8-98092-922-0 01 1 0803- ● ●
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 0803- ● ●
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 0803- ● ●
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 0803- ● ●
662 BRACKET; DUCT 8-97584-611-1 01 1 0803- ● ●
663 BRACKET; AIR 8-97585-207-2 01 1 0803- ● ●
663 BRACKET; AIR 8-97585-208-2 01 1 0803- ● ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 0803- ● ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 0803- ● ●
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 0803- ● ●
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 0803- ● ●
667 BRACKET; MIRROR 8-98005-264-0 01 1 0803-0806 ● ●
667 BRACKET; MIRROR 8-98109-948-0 01 1 0807- ● ●
669 STUD; FENDER
M8X18 		8-98013-113-1 02 1 0803- ● ●
669 STUD; FENDER
M8X18 		8-98013-113-1 02 1 0803- ● ●

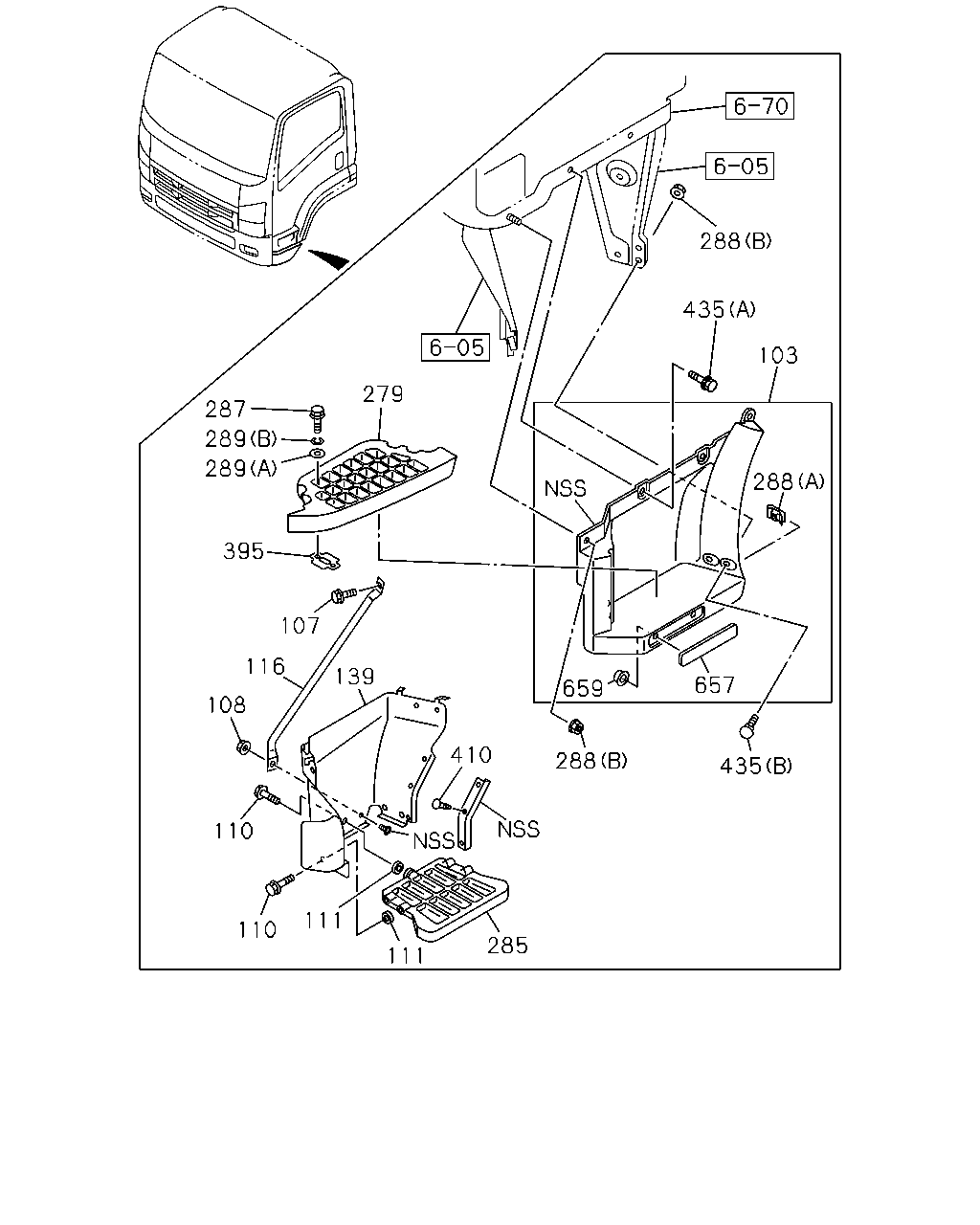

çizim 96176
288 435 103 279 287 289 289 288 395 107 116 139 657 659 108 410 288 435 110 111 110 285 111
BalonParca AdiParca NoAdetTipApplied Date A B
103 PLATE; STEP 8-98037-327-3 01 1 0803- ● ●
103 PLATE; STEP 8-98037-329-3 01 1 0803- ● ●
107 BOLT; SIDE STEP
M8X20 FLANGE 		0-28650-820-0 02 1 0803- ● ●
108 NUT; SIDE STEP
M8 FLANGE 		0-91180-108-0 02 1 0803- ● ●
110 BOLT; 1ST STEP PLATE
M8X16 FLANGE 		0-28050-816-0 10 1 0803- ● ●
111 COVER; 1ST STEP 1-71998-153-0 10 1 0803- ● ●
116 STAY; 1ST STEP,FRT 8-98080-639-0 01 1 0803- ● ●
116 STAY; 1ST STEP,FRT 8-98080-640-0 01 1 0803- ● ●
139 CLOSING; 1ST STEP 8-98080-635-0 01 1 0803- ● ●
139 CLOSING; 1ST STEP 8-98080-636-0 01 1 0803- ● ●
279 BOARD; STEP 1ST 8-98080-627-0 01 1 0803- ● ●
279 BOARD; STEP 1ST 8-98080-628-0 01 1 0803- ● ●
285 PLATE; STEP,1ST STEP 1-71998-312-2 02 1 0803- ● ●
287 BOLT; BOARD STEP 8-98112-671-0 08 1 0803-1006 ● ●
287 BOLT; BOARD STEP 8-98165-009-0 08 1 1007- ● ●
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 10 1 0803- ● ●
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 0803- ● ●
289 WASHER; PL,STEP
(A) 		8-98112-672-1 08 1 0803- ● ●
289 WASHER; PL,STEP
(B) 		8-98112-673-1 08 1 0803- ● ●
395 BRACKET; SIDE STEP 8-98080-646-1 04 1 0803- ● ●
410 CLIP; COVER,STEP PLATE
OD=12 L=14.8 		8-94279-921-0 06 1 0803- ● ●
435 BOLT; RR STEP
(B) M8X16 		8-98049-538-1 08 1 0803-0907 ● ●
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 0908- ● ●
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0803- ● ●
657 REFLECTOR; REFLEX 8-97378-910-0 02 1 0803- ● ●
659 CLIP; SPRING NUT 8-97811-510-0 04 1 0803- ● ●
