◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11646 - FRR THAILAND EURO3 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#150128) — 57 parça

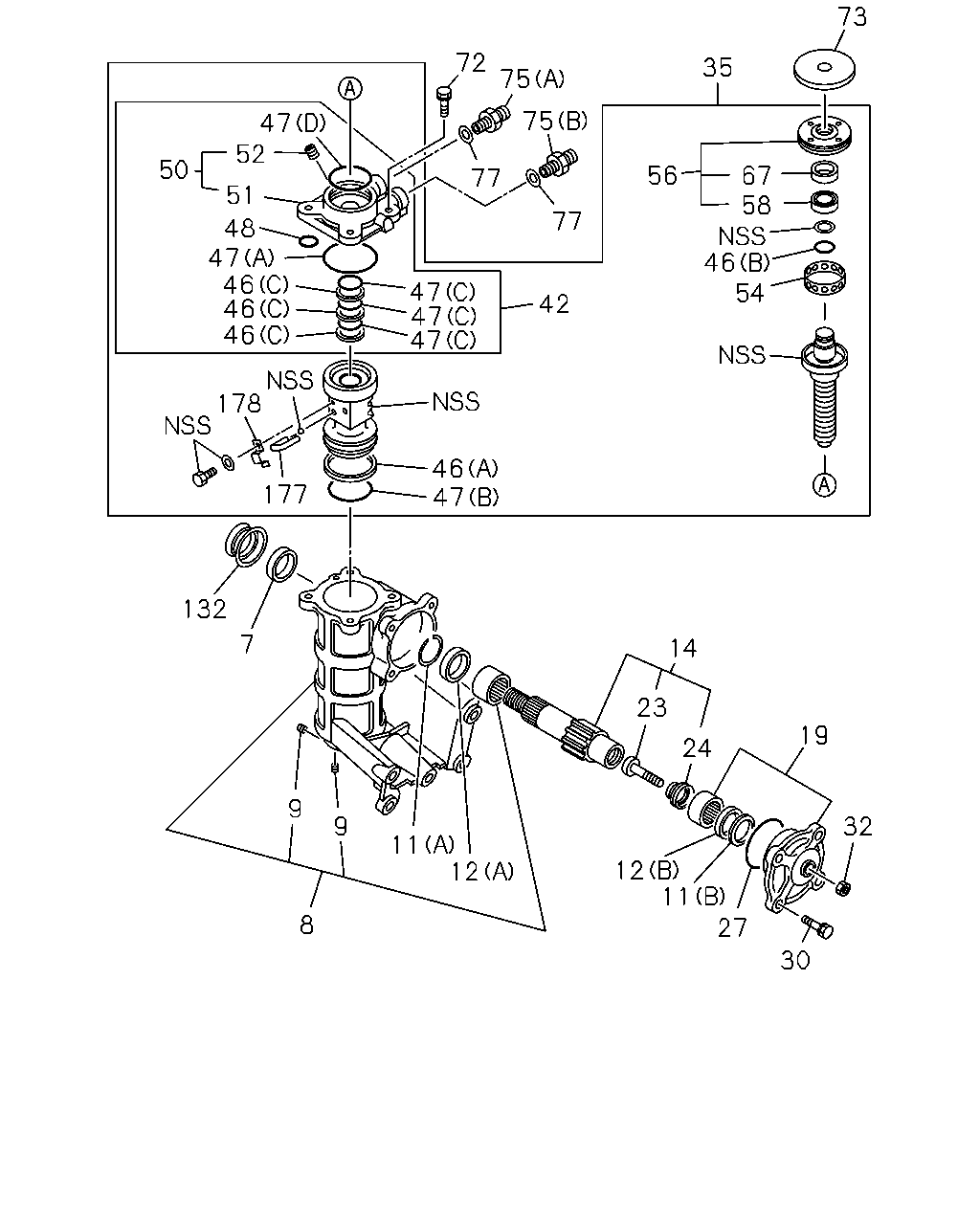

çizim 448683
72 75 75 77 47 52 50 51 48 47 46 46 46 47 47 47 77 42 35 56 73 67 58 46 54 178 177 46 47 132 7 9 9 8 11 12 14 23 24 19 12 11 27 30 32
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
THA ASM PART: A = 1-44000-951-1 		1-44519-157-1 01 1 -
8 BOX ASM; STRG UNIT
THA ASM PART: A = 1-44000-951-1 		1-44240-157-0 01 1 -
9 PLUG; FILLER,STRG UNIT
THA ASM PART: A = 1-44000-951-1 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A), THA ASM PART: A = 1-44000-951-1 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B), THA ASM PART: A = 1-44000-951-1 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A), THA ASM PART: A = 1-44000-951-1 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B), THA ASM PART: A = 1-44000-951-1 		1-44519-162-1 01 1 -
14 SHAFT; SECTOR,STRG UNIT
THA ASM PART: A = 1-44000-951-1 		1-44320-012-0 01 1 -
19 COVER; SIDE STRG UNIT
THA ASM PART: A = 1-44000-951-1 		1-44260-027-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
THA ASM PART: A = 1-44000-951-1 		1-44277-006-0 01 1 -
24 RETAINER; STRG UNIT
THA ASM PART: A = 1-44000-951-1 		1-44279-015-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
THA ASM PART: A = 1-44000-951-1 		1-44519-161-0 01 1 -
30 BOLT; COVER STRG UNIT
THA ASM PART: A = 1-44000-951-1 		1-44569-103-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
M12, THA ASM PART: A = 1-44000-951-1 		9-99110-512-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
THA ASM PART: A = 1-44000-951-1 		8-98095-566-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
THA ASM PART: A = 1-44000-951-1 		1-44560-069-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A), THA ASM PART: A = 1-44000-951-1 		1-44159-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C), THA ASM PART: A = 1-44000-951-1 		1-44519-155-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(B), THA ASM PART: A = 1-44000-951-1 		8-98081-685-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A), THA ASM PART: A = 1-44000-951-1 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B), THA ASM PART: A = 1-44000-951-1 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C), THA ASM PART: A = 1-44000-951-1 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D), THA ASM PART: A = 1-44000-951-1 		1-44519-165-0 01 1 -
48 GASKET; HSG,STRG UNIT
THA ASM PART: A = 1-44000-951-1 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
THA ASM PART: A = 1-44000-951-1 		1-44560-068-0 01 1 -
51 HOUSING; VALVE STRG UNIT
THA ASM PART: A = 1-44000-951-1 		1-44561-017-0 01 1 -
52 PLUG; HSG STRG UNIT
THA ASM PART: A = 1-44000-951-1 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
THA ASM PART: A = 1-44000-951-1 		1-44241-127-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
THA ASM PART: A = 1-44000-951-1 		1-44250-007-0 01 1 -
58 BEARING; HSG STRG UNIT
THA ASM PART: A = 1-44000-951-1 		1-44259-058-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
THA ASM PART: A = 1-44000-951-1 		1-44259-057-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
THA ASM PART: A = 1-44000-951-1 		1-44519-110-0 04 1 -
73 COVER; DUST,STRG UNIT
THA ASM PART: A = 1-44000-951-1 		1-44519-303-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: A = 1-44000-951-1 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: A = 1-44000-951-1 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
THA ASM PART: A = 1-44000-951-1 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
THA ASM PART: A = 1-44000-951-1 		1-44159-119-0 01 1 -
177 TUBE; BALL BRG STRG UNIT
THA ASM PART: A = 1-44000-951-1 		1-44159-060-0 02 1 -
178 CLIP; BALL TUBE STRG UNIT
THA ASM PART: A = 1-44000-951-1 		1-44159-064-0 01 1 -

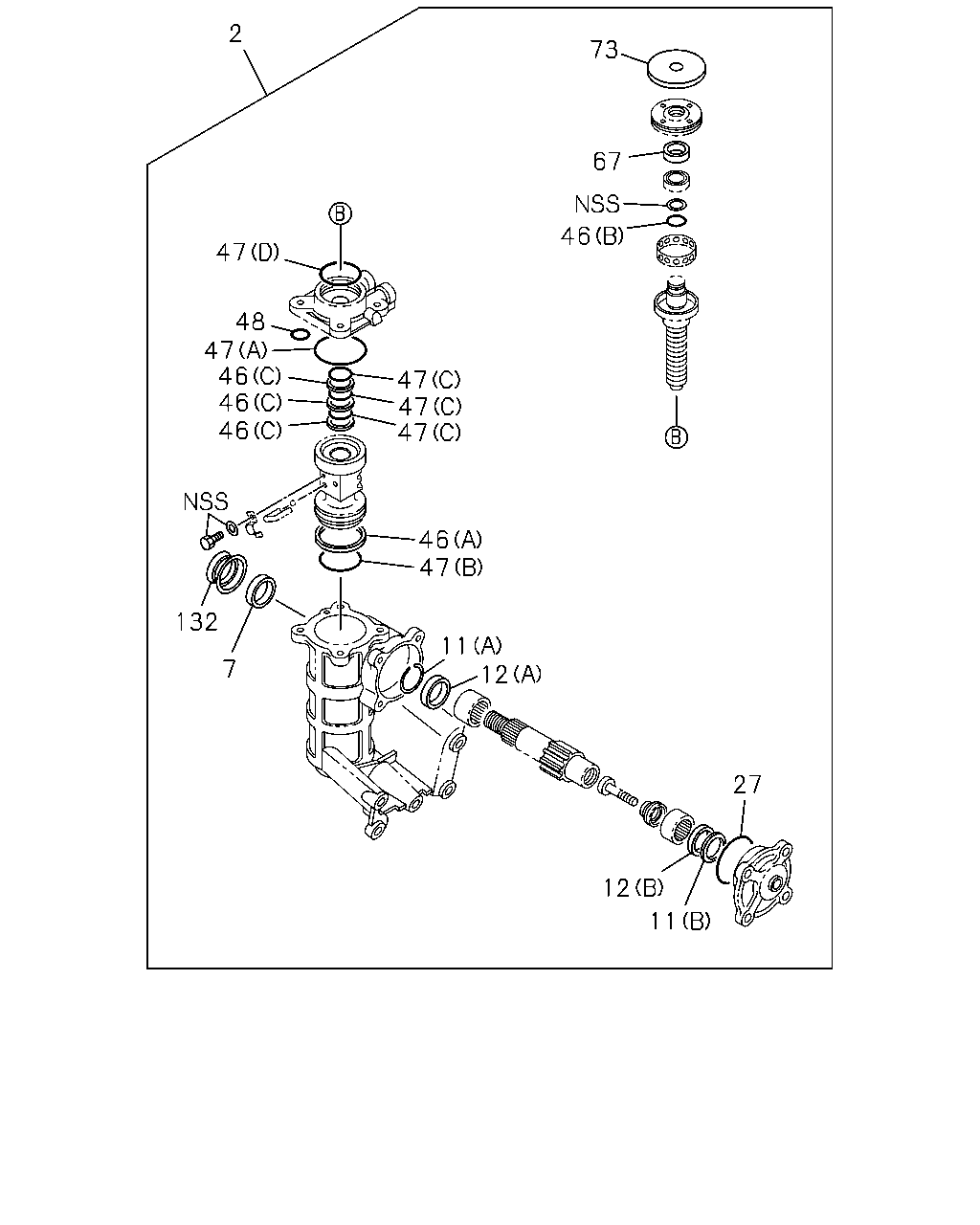

çizim 450728
2 73 67 47 48 47 46 46 46 47 47 47 46 46 47 132 7 27 11 12 11 12
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
THA ASM PART: A = 1-44000-951-1 		1-85574-090-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
THA ASM PART: A = 1-44000-951-1 		1-44519-157-1 01 1 -
11 RING; BACKUP,STRG UNIT
(A), THA ASM PART: A = 1-44000-951-1 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B), THA ASM PART: A = 1-44000-951-1 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A), THA ASM PART: A = 1-44000-951-1 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B), THA ASM PART: A = 1-44000-951-1 		1-44519-162-1 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
THA ASM PART: A = 1-44000-951-1 		1-44519-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A), THA ASM PART: A = 1-44000-951-1 		1-44159-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C), THA ASM PART: A = 1-44000-951-1 		1-44519-155-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(B), THA ASM PART: A = 1-44000-951-1 		8-98081-685-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A), THA ASM PART: A = 1-44000-951-1 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B), THA ASM PART: A = 1-44000-951-1 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C), THA ASM PART: A = 1-44000-951-1 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D), THA ASM PART: A = 1-44000-951-1 		1-44519-165-0 01 1 -
48 GASKET; HSG,STRG UNIT
THA ASM PART: A = 1-44000-951-1 		1-44519-262-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
THA ASM PART: A = 1-44000-951-1 		1-44259-057-0 01 1 -
73 COVER; DUST,STRG UNIT
THA ASM PART: A = 1-44000-951-1 		1-44519-303-0 01 1 -
132 COVER; DUST,STRG UNIT
THA ASM PART: A = 1-44000-951-1 		1-44159-119-0 01 1 -
