4-25 — REAR FINAL DRIVE (#150122) — 77 parça

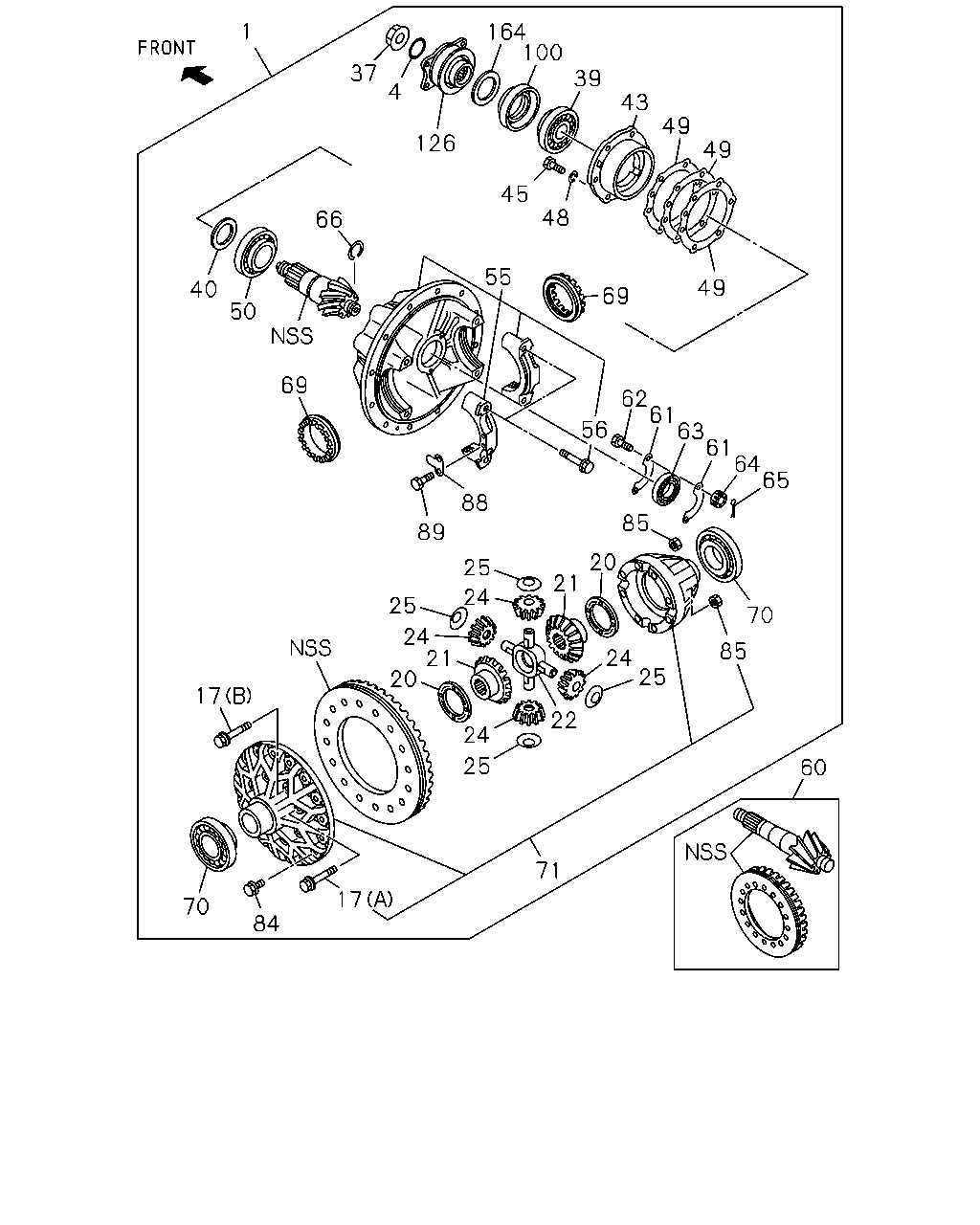

çizim 450619
164 100 39 43 49 49 37 4 126 45 48 49 1 66 55 69 40 50 69 89 88 56 62 61 63 61 64 65 20 21 24 25 24 25 21 20 85 25 24 22 24 25 85 70 17 70 84 17 71 60
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 DRIVE ASM; FINAL,RR
39/7 THA 		1-41003-255-0 01 1 1410- ●
1 DRIVE ASM; FINAL,RR
39/8 THA 		1-41003-253-0 01 1 1410- ●
1 DRIVE ASM; FINAL,RR
41/8 THA 		1-41003-254-0 01 1 1410- ●
1 DRIVE ASM; FINAL,RR
41/9 THA 		1-41003-343-0 01 1 1410- ●
4 GASKET; FLANGE,FINAL PINION
ID=37.5 T=4 THA 		1-09623-582-0 01 1 1410- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M14X121 FLANGE THA 		1-09044-006-0 04 1 1410- ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M14X95 FLANGE THA 		1-09044-007-0 04 1 1410- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.80 THA 		1-41562-061-0 AR 1 1410- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.00 THA 		1-41562-062-0 AR 1 1410- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.20 THA 		1-41562-063-0 AR 1 1410- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.40 THA 		1-41562-064-0 AR 1 1410- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.90 THA 		1-41562-080-0 AR 1 1410- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.10 THA 		1-41562-081-0 AR 1 1410- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.30 THA 		1-41562-082-0 AR 1 1410- ● ● ● ●
21 GEAR; SIDE,DIFF
Z=16 THA 		1-41561-149-0 02 1 1410- ● ● ● ●
22 SPIDER; DIFF PINION
THA 		1-41521-050-2 01 1 1410- ● ● ● ●
24 GEAR; PINION,DIFF
Z=10 THA 		1-41551-049-0 04 1 1410- ● ● ● ●
25 WASHER; THRUST,PINION
ID=29 OD=60 THA 		1-41562-119-0 04 1 1410- ● ● ● ●
37 NUT; DRIVING PINION
M36 FLANGE THA 		1-09449-083-0 01 1 1410- ● ● ● ●
39 BEARING; FINAL PINION
KOYO THA 		5-09812-062-1 01 1 1410- ● ● ● ●
39 BEARING; FINAL PINION
NSK THA 		5-09812-063-0 01 1 1410- ● ● ● ●
40 SHIM; FINAL PINION
T=1.60 THA 		1-41229-179-0 AR 1 1410- ● ● ● ●
40 SHIM; FINAL PINION
T=1.61 THA 		1-41229-180-0 AR 1 1410- ● ● ● ●
40 SHIM; FINAL PINION
T=1.62 THA 		1-41229-181-0 AR 1 1410- ● ● ● ●
40 SHIM; FINAL PINION
T=1.63 THA 		1-41229-182-0 AR 1 1410- ● ● ● ●
40 SHIM; FINAL PINION
T=1.64 THA 		1-41229-183-0 AR 1 1410- ● ● ● ●
40 SHIM; FINAL PINION
T=1.65 THA 		1-41229-184-0 AR 1 1410- ● ● ● ●
40 SHIM; FINAL PINION
T=1.66 THA 		1-41229-185-0 AR 1 1410- ● ● ● ●
40 SHIM; FINAL PINION
T=1.67 THA 		1-41229-186-0 AR 1 1410- ● ● ● ●
40 SHIM; FINAL PINION
T=1.68 THA 		1-41229-187-0 AR 1 1410- ● ● ● ●
40 SHIM; FINAL PINION
T=1.69 THA 		1-41229-188-0 AR 1 1410- ● ● ● ●
40 SHIM; FINAL PINION
T=1.70 THA 		1-41229-189-0 AR 1 1410- ● ● ● ●
43 CAGE; FINAL PINION
THA 		1-41151-027-0 01 1 1410- ● ● ● ●
45 BOLT; FINAL PINION CAGE
M12X40 THA 		9-02361-240-0 06 1 1410- ● ● ● ●
48 WASHER; LK,FINAL PINION
ID=12.2 THA 		0-91510-812-0 06 1 1410- ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.50 THA 		1-41154-021-1 AR 1 1410- ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.30 THA 		1-41154-051-1 AR 1 1410- ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.40 THA 		1-41154-052-1 AR 1 1410- ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=1.00 THA 		1-41154-053-1 AR 1 1410- ● ● ● ●
50 BEARING; FINAL PINION
NSK THA 		1-09812-041-2 01 1 1410- ● ● ● ●
50 BEARING; FINAL PINION
KOYO THA 		1-09812-042-1 01 1 1410- ● ● ● ●
55 CARRIER; DIFF
THA 		1-41110-129-0 01 1 1410- ● ● ● ●
56 BOLT; BRG CAP
M16X100 FLANGE THA 		1-09070-047-0 04 1 1410- ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
39/7 THA 		1-41210-391-2 01 1 1410- ●
60 GEAR SET; FINAL DRIVE,RR
39/8 THA 		1-41210-454-0 01 1 1410- ●
60 GEAR SET; FINAL DRIVE,RR
41/8 THA 		1-41210-453-0 01 1 1410- ●
60 GEAR SET; FINAL DRIVE,RR
41/9 THA 		1-41210-729-0 01 1 1410- ●
61 RETAINER; PILOT BRG,PINION
T=2.3 THA 		1-41227-006-0 02 1 1410- ● ● ● ●
62 BOLT; RET
M8X35 W/PIN HOLE THA 		1-09042-046-0 02 1 1410- ● ● ● ●
63 BEARING; PINION PILOT
NSK THA 		1-09810-073-2 01 1 1410- ● ● ● ●
63 BEARING; PINION PILOT
KOYO THA 		1-09810-074-1 01 1 1410- ● ● ● ●
64 NUT; RET
M8 SLOTTED THA 		0-91117-508-0 02 1 1410- ● ● ● ●
65 PIN; SPLIT,RET
THA 		0-81122-012-0 02 1 1410- ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=34.2 THA 		1-09588-214-0 01 1 1410- ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M128 H=22 THA 		1-41121-013-0 01 1 1410- ● ● ● ●
69 NUT; ADJ,DIFF CAGE
M128 H=30 THA 		1-41121-015-0 01 1 1410- ● ● ● ●
70 BEARING; DIFF CAGE
NSK ID=70 OD=125 T=33.3 THA 		1-09812-056-1 01 1 1410- ● ● ● ●
70 BEARING; DIFF CAGE
NSK ID=70 OD=125 T=26.3 THA 		1-09812-058-1 01 1 1410- ● ● ● ●
70 BEARING; DIFF CAGE
KOYO ID=70 OD=125 T=33.3 THA 		1-09812-062-2 01 1 1410- ● ● ● ●
70 BEARING; DIFF CAGE
KOYO ID=70 OD=125 T=26.3 THA 		1-09812-249-0 01 1 1410- ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE
THA 		1-41510-343-0 01 1 1410- ● ● ● ●
84 BOLT; FINAL DRIVE GEAR
M16X34.5 FLANGE THA 		9-09802-575-1 16 1 1410- ● ● ● ●
85 NUT; DIFF CAGE SETTING
M14 THA 		1-09400-077-1 08 1 1410- ● ● ● ●
88 PLATE; LK,ADJ NUT
T=2.3 THA 		9-41124-015-0 02 1 1410- ● ● ● ●
89 BOLT; LK PLATE
M8X12 FLANGE THA 		8-94479-696-1 04 1 1410- ● ● ● ●
100 SEAL; OIL,FINAL PINION
NOK THA 		1-09625-484-1 01 1 1410- ● ● ● ●
100 SEAL; OIL,FINAL PINION
TKK THA 		1-09625-637-0 01 1 1410- ● ● ● ●
126 COUPLING; DRIVING PINION
THA 		1-37245-414-0 01 1 1410- ● ● ● ●
164 COLLAR; DIST,PINION
T=10.7 THA 		1-36355-031-0 01 1 1410- ● ● ● ●
164 COLLAR; DIST,PINION
T=10.90 THA 		1-36355-033-0 01 1 1410- ● ● ● ●
164 COLLAR; DIST,PINION
T=11.10 THA 		1-36355-035-0 01 1 1410- ● ● ● ●
164 COLLAR; DIST,PINION
T=11.30 THA 		1-36355-037-0 01 1 1410- ● ● ● ●
164 COLLAR; DIST,PINION
T=11.50 THA 		1-36355-039-0 01 1 1410- ● ● ● ●
164 COLLAR; DIST,PINION
T=11.70 THA 		1-36355-041-0 01 1 1410- ● ● ● ●
164 COLLAR; DIST,PINION
T=11.9 THA 		1-36355-043-0 01 1 1410- ● ● ● ●
164 COLLAR; DIST,PINION
T=12.10 THA 		1-36355-045-0 01 1 1410- ● ● ● ●
164 COLLAR; DIST,PINION
T=12.30 THA 		1-36355-047-0 01 1 1410- ● ● ● ●
