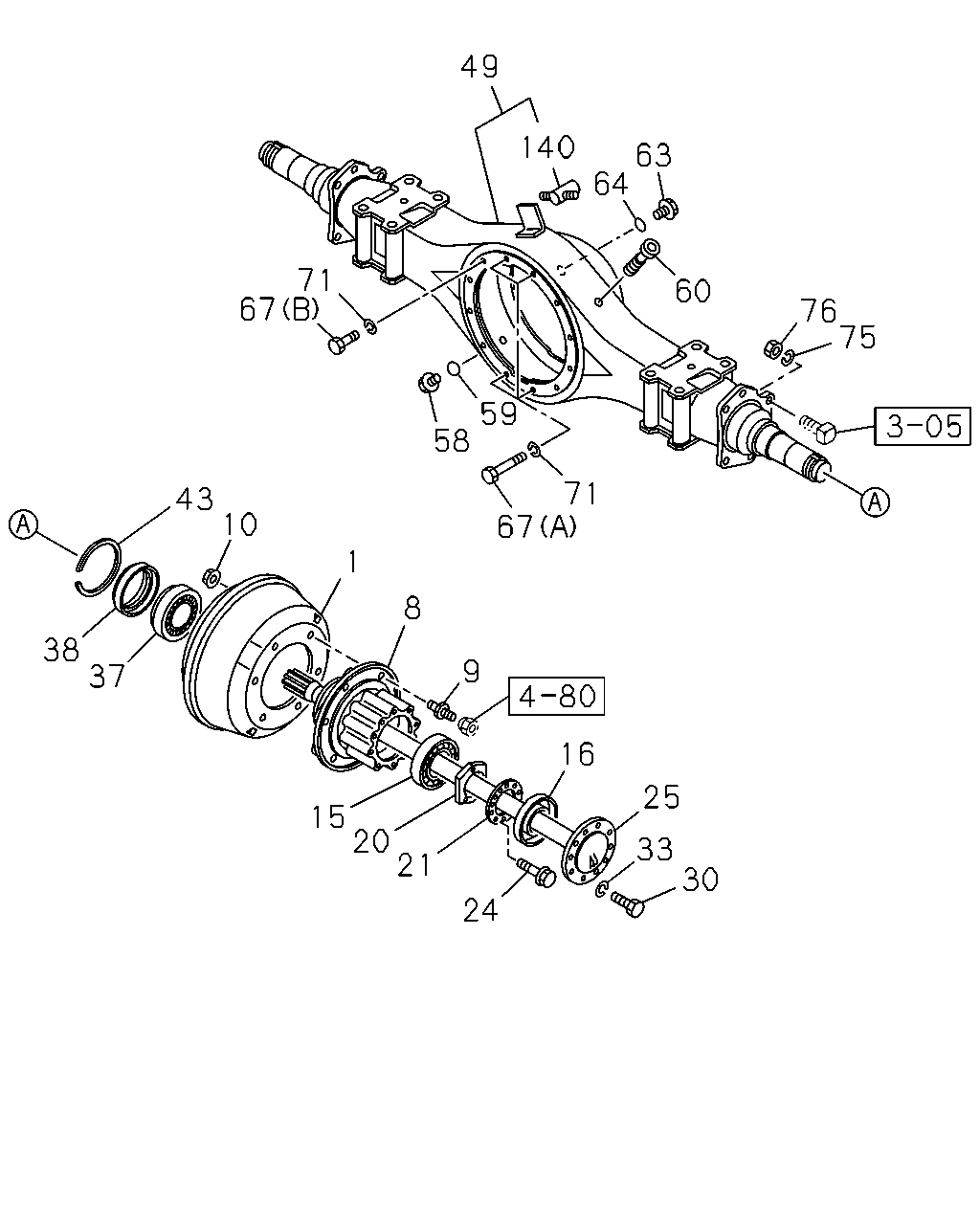

1 |
DRUM; BRK,RR
THA
|
1-42315-361-0 |
02 |
1 |
1410-1410 |
| |
1 |
DRUM; BRK,RR
THA
|
8-98293-361-0 |
02 |
1 |
1411- |
| |
8 |
HUB; RR AXLE
THA
|
8-97520-617-0 |
02 |
1 |
1410- |
| |
9 |
PIN; WHEEL,RR AXLE
M20X34.5,M22X43.5 RH THREAD
THA
|
1-42331-106-2 |
06 |
1 |
1410- |
| |
9 |
PIN; WHEEL,RR AXLE
M20X34.5 LH THREAD,M22X43.5 RH THREAD
THA
|
1-42332-106-2 |
06 |
1 |
1410- |
| |
10 |
NUT; WHEEL PIN,RR AXLE
M22 FLANGE
THA
|
1-09440-065-0 |
12 |
1 |
1410- |
| |
15 |
BEARING; HUB OUTER,RR AXLE
KOYO
THA
|
8-98156-814-0 |
02 |
1 |
1410- |
| |
15 |
BEARING; HUB OUTER,RR AXLE
NSK
THA
|
9-00093-159-0 |
02 |
1 |
1410- |
| |
16 |
SEAL; OIL,RR HUB,OUTER
TKK
THA
|
1-09625-331-1 |
02 |
1 |
1410- |
| |
20 |
NUT; BRG,RR HUB
M64
THA
|
9-09843-721-2 |
02 |
1 |
1410- |
| |
21 |
WASHER; LK,BRG NUT
ID=64
THA
|
9-09854-122-0 |
02 |
1 |
1410- |
| |
24 |
BOLT; LK WASHER
M6X16 FLANGE
THA
|
0-28650-616-0 |
06 |
1 |
1410- |
| |
25 |
SHAFT; AXLE,RR
L=925
THA
|
8-97380-682-0 |
02 |
1 |
1410- |
| |
30 |
BOLT; HUB TO AXLE SHAFT
M12X45
THA
|
9-09804-239-1 |
20 |
1 |
1410- |
| |
33 |
WASHER; AXLE SHAFT
ID=12.2
THA
|
0-91510-812-0 |
20 |
1 |
1410- |
| |
37 |
BEARING; HUB INNER,RR AXLE
NSK
THA
|
1-09812-153-0 |
02 |
1 |
1410- |
| |
37 |
BEARING; HUB INNER,RR AXLE
KOYO
THA
|
1-09812-154-0 |
02 |
1 |
1410- |
| |
38 |
SEAL; OIL,RR HUB,INNER
TKK
THA
|
1-09625-569-0 |
02 |
1 |
1410- |
| |
43 |
RING; SNAP,HUB SEAL,RR AXLE
THA
|
9-09950-201-0 |
02 |
1 |
1410- |
| |
49 |
CASE; RR AXLE
THA
|
8-98173-586-0 |
01 |
1 |
1410- |
| |
58 |
PLUG; DRAIN,AXLE CASE
M24X17 FLANGE
THA
|
1-09604-023-0 |
01 |
1 |
1410- |
| |
59 |
GASKET; DRAIN PLUG
ID=26.8
THA
|
9-09920-605-0 |
01 |
1 |
1410- |
| |
60 |
BREATHER; RR AXLE CASE
THA
|
1-09893-003-0 |
01 |
1 |
1410- |
| |
63 |
PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE
THA
|
1-09604-022-0 |
01 |
1 |
1410- |
| |
64 |
GASKET; OIL FILLER,AXLE CASE
ID=26.8
THA
|
9-09920-605-0 |
01 |
1 |
1410- |
| |
67 |
BOLT; FINAL DRIVE SETTING
(B)
M12X35
THA
|
0-20951-235-0 |
08 |
1 |
1410- |
| |
67 |
BOLT; FINAL DRIVE SETTING
(A)
M12X55
THA
|
9-91066-255-0 |
04 |
1 |
1410- |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
ID=12.2
THA
|
0-91510-812-0 |
12 |
1 |
1410- |
| |
75 |
WASHER; LK,RR BRK ASM SETTING
ID=14.2
THA
|
0-91510-814-0 |
12 |
1 |
1410- |
| |
76 |
NUT; RR BRK ASM SETTING
M14
THA
|
0-91110-514-0 |
12 |
1 |
1410- |
| |
140 |
CONNECTOR; AXLE CASE
THA
|
1-09656-239-3 |
01 |
1 |
1410- |
