Isuzu WW
▶
TRUCKS
▶
FRR
▶
11646 - FRR THAILAND EURO3
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-11 - FRONT HUB AND DRUM OR ROTOR
▶

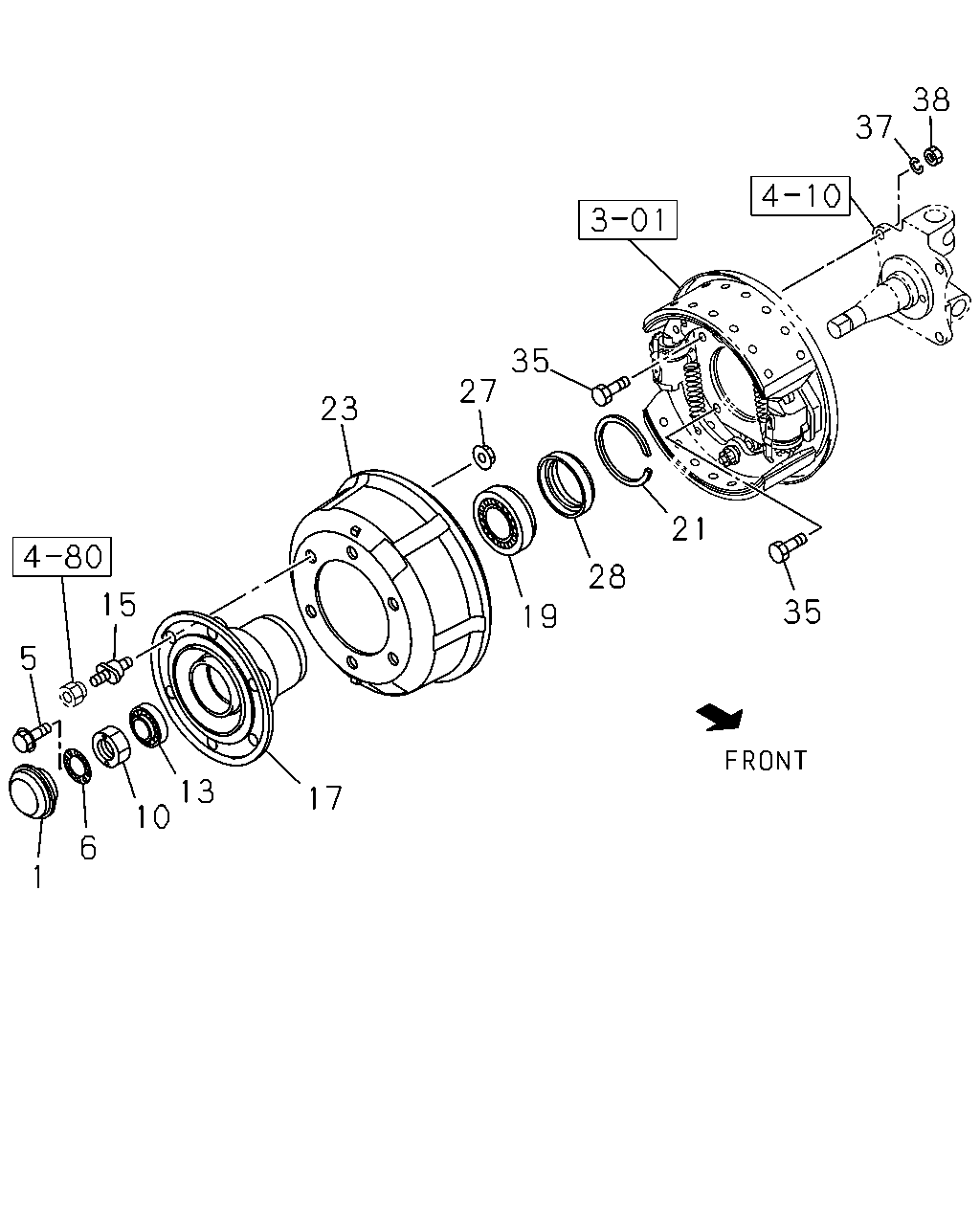

4-11 — FRONT HUB AND DRUM OR ROTOR
(#150120) — 17 parça
5
23
15
27
35
37
38
35
21
28
19
17
13
10
6
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAP; HUB,FRT AXLE
THA
1-42313-032-0
02
1
1410-
5
BOLT; LK WASHER
M6X16 FLANGE THA
0-28650-616-0
04
1
1410-
6
WASHER; LK,FRT HUB
ID=39 THA
1-09841-003-0
02
1
1410-
10
NUT; FRT HUB BRG
M39 THA
1-09840-019-1
02
1
1410-
13
BEARING; HUB OUTER,FRT AXLE
KOYO THA
1-09812-207-0
02
1
1410-
15
PIN; WHEEL,FRT AXLE
M24X37.5,M22X51.5 RH THREAD THA
1-42331-112-1
06
1
1410-
15
PIN; WHEEL,FRT AXLE
M24X37.5 LH THREAD,M22X51.5 RH THREAD THA
1-42332-112-1
06
1
1410-
17
HUB; FRT AXLE
THA
8-97520-620-0
02
1
1410-
19
BEARING; HUB INNER,FRT AXLE
KOYO THA
1-09812-206-0
02
1
1410-
21
RING; SNAP,HUB
OD=117 THA
1-09587-001-0
02
1
1410-
23
DRUM; BRK,FRT
THA
1-42315-359-1
02
1
1410-1410
23
DRUM; BRK,FRT
THA
8-98293-383-0
02
1
1411-
27
NUT; WHEEL PIN,FRT AXLE
M22 FLANGE THA
1-09440-065-0
12
1
1410-
28
SEAL; OIL,FRT HUB
THA
1-09625-568-0
02
1
1410-
35
BOLT; DRUM COVER
M14X45 THA
0-20951-445-0
08
1
1410-
37
WASHER; LK,BACK PLATE
ID=14.2 THA
0-91510-814-0
08
1
1410-
38
NUT; BACK PLATE
M14 THA
0-91110-514-0
08
1
1410-
