4-10 — FRONT AXLE (#150119) — 73 parça

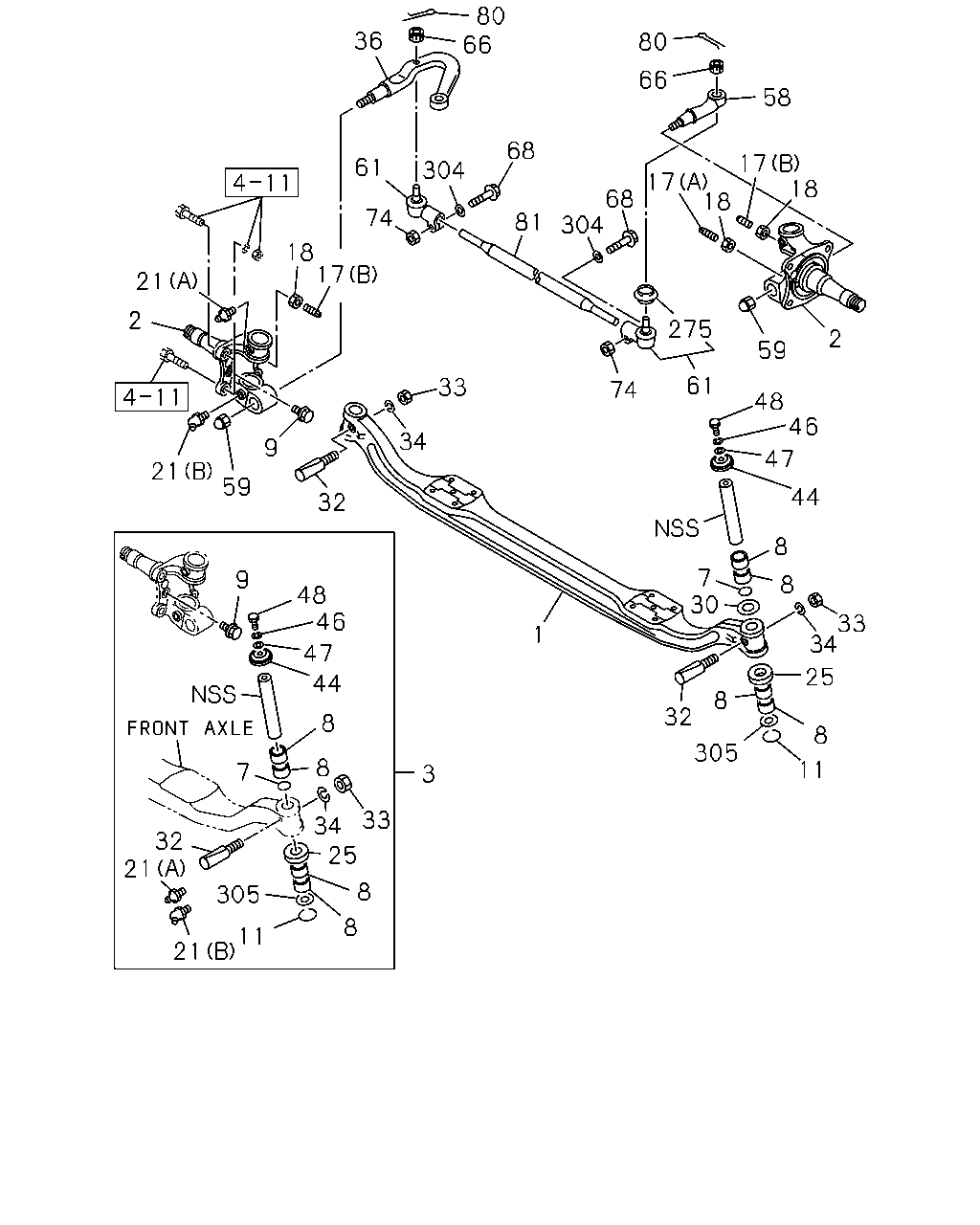

çizim 449299
9 48 46 47 44 8 8 7 34 33 3 25 8 8 21 11 305 21 32 18 17 33 34 32 9 59 21 2 21 8 8 7 30 33 34 25 8 11 8 32 305 36 61 74 304 68 81 66 80 80 66 304 68 74 275 17 18 58 17 18 59 2 61 48 46 47 44
BalonParca AdiParca NoAdetTipApplied Date
1 AXLE; FRT
THA 		8-98057-479-2 01 1 1410-
2 KNUCKLE; FRT AXLE
THA 		8-98172-431-1 01 1 1410-
2 KNUCKLE; FRT AXLE
THA 		8-98172-432-1 01 1 1410-
3 KING PIN SET
THA 		1-87831-386-2 01 1 1410-
3 KING PIN SET
THA 		1-87831-387-2 01 1 1410-
7 SEAL; OIL,KING PIN
THA 		1-09625-005-1 02 1 1410-
8 BEARING; NEEDLE,KING PIN
NSK THA 		1-09811-339-0 08 1 1410-
9 PLUG; KNUCKLE
M14X14 THA 		8-97329-621-0 01 1 1410-
11 RING; SNAP,KNUCKLE PLUG
THA 		1-09589-017-1 02 1 1410-
17 BOLT; STOPPER KNUCKLE
(A) M14X47 THA 		1-09009-191-0 01 1 1410-
17 BOLT; STOPPER KNUCKLE
(B) M14X53 THA 		8-98065-261-0 02 1 1410-
18 NUT; STOPPER BOLT,KNUCKLE
M14 THA 		0-91112-814-0 03 1 1410-
21 NIPPLE; GREASE,KING PIN
(A) PT1/8 STRAIGHT THA 		0-90301-410-0 02 1 1410-
21 NIPPLE; GREASE,KING PIN
(B) PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 1410-
25 BEARING; THRUST,KING PIN
NSK THA 		1-09829-031-0 01 1 1410-
25 BEARING; THRUST,KING PIN
NSK THA 		1-09829-033-1 01 1 1410-
30 WASHER; THRUST,KING PIN
T=3.937 THA 		1-43171-264-1 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=3.950 THA 		1-43171-265-1 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=3.962 THA 		1-43171-266-1 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=3.975 THA 		1-43171-267-1 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=3.987 THA 		1-43171-268-1 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=4.000 THA 		1-43171-269-1 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=4.012 THA 		1-43171-270-1 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=4.025 THA 		1-43171-271-1 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=3.900 THA 		1-43171-261-1 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=3.912 THA 		1-43171-262-1 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=3.925 THA 		1-43171-263-1 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=4.037 THA 		1-43171-272-1 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=4.050 THA 		1-43171-273-1 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=4.062 THA 		1-43171-274-1 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=4.075 THA 		1-43171-275-1 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=4.087 THA 		1-43171-276-1 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=4.100 THA 		1-43171-277-1 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=4.112 THA 		1-43171-278-1 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=4.125 THA 		1-43171-279-1 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=4.137 THA 		1-43171-280-1 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=4.150 THA 		1-43171-281-1 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=4.162 THA 		1-43171-311-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=4.175 THA 		1-43171-312-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=4.187 THA 		1-43171-313-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=4.200 THA 		1-43171-314-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=4.212 THA 		1-43171-315-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=4.225 THA 		1-43171-316-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=4.237 THA 		1-43171-317-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=4.250 THA 		1-43171-318-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=4.262 THA 		1-43171-319-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=4.275 THA 		1-43171-320-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=4.287 THA 		1-43171-321-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=4.300 THA 		1-43171-322-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=4.312 THA 		1-43171-323-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=4.325 THA 		1-43171-324-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=4.337 THA 		1-43171-325-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=4.350 THA 		1-43171-326-0 AR 1 1410-
32 BOLT; KEY,KING PIN
THA 		1-43116-013-0 02 1 1410-
33 NUT; KEY BOLT
M10 THA 		0-91110-510-0 02 1 1410-
34 WASHER; LK,KEY BOLT
ID=10.2 THA 		0-91510-510-0 02 1 1410-
36 ARM; KNUCKLE
THA 		8-98037-304-1 01 1 1410-
44 COVER; KING PIN
THA 		1-43175-031-0 02 1 1410-
46 WASHER; LK,COVER
ID=12.2 THA 		0-91510-812-0 02 1 1410-
47 WASHER; PL,COVER,KING PIN
ID=12.5 OD=32 THA 		0-91614-712-0 02 1 1410-
48 BOLT; COVER
M12X25 THA 		1-09009-081-0 02 1 1410-
58 ARM; TIE ROD
THA 		8-98037-296-2 01 1 1410-
59 NUT; TIE ROD ARM
M27 FLANGE THA 		1-09449-082-0 02 1 1410-
61 ROD END; TIE ROD
THA 		1-43150-748-1 01 1 1410-
61 ROD END; TIE ROD
THA 		1-43150-749-1 01 1 1410-
66 NUT; TIE ROD END
M16 SLOTTED THA 		1-09442-031-0 02 1 1410-
68 BOLT; TIE ROD END
M12X45 FLANGE THA 		0-28061-245-0 02 1 1410-
74 NUT; TIE ROD END
M12 THA 		0-91110-512-0 02 1 1410-
80 PIN; SPLIT,ROD END
OD=3.7 L=22 THA 		0-81124-022-0 02 1 1410-
81 ROD; TIE
THA 		8-98038-703-1 01 1 1410-
275 BOOT; ROD END,TIE
THA 		1-85574-046-0 02 1 1410-
304 WASHER; PL
ID=12.5 THA 		0-91614-512-0 02 1 1410-
305 COVER; KNUCKLE
THA 		1-43175-030-0 02 1 1410-
