3-70 — BRAKE PIPING; AIR,AIR MASTER (#150113) — 12 parça

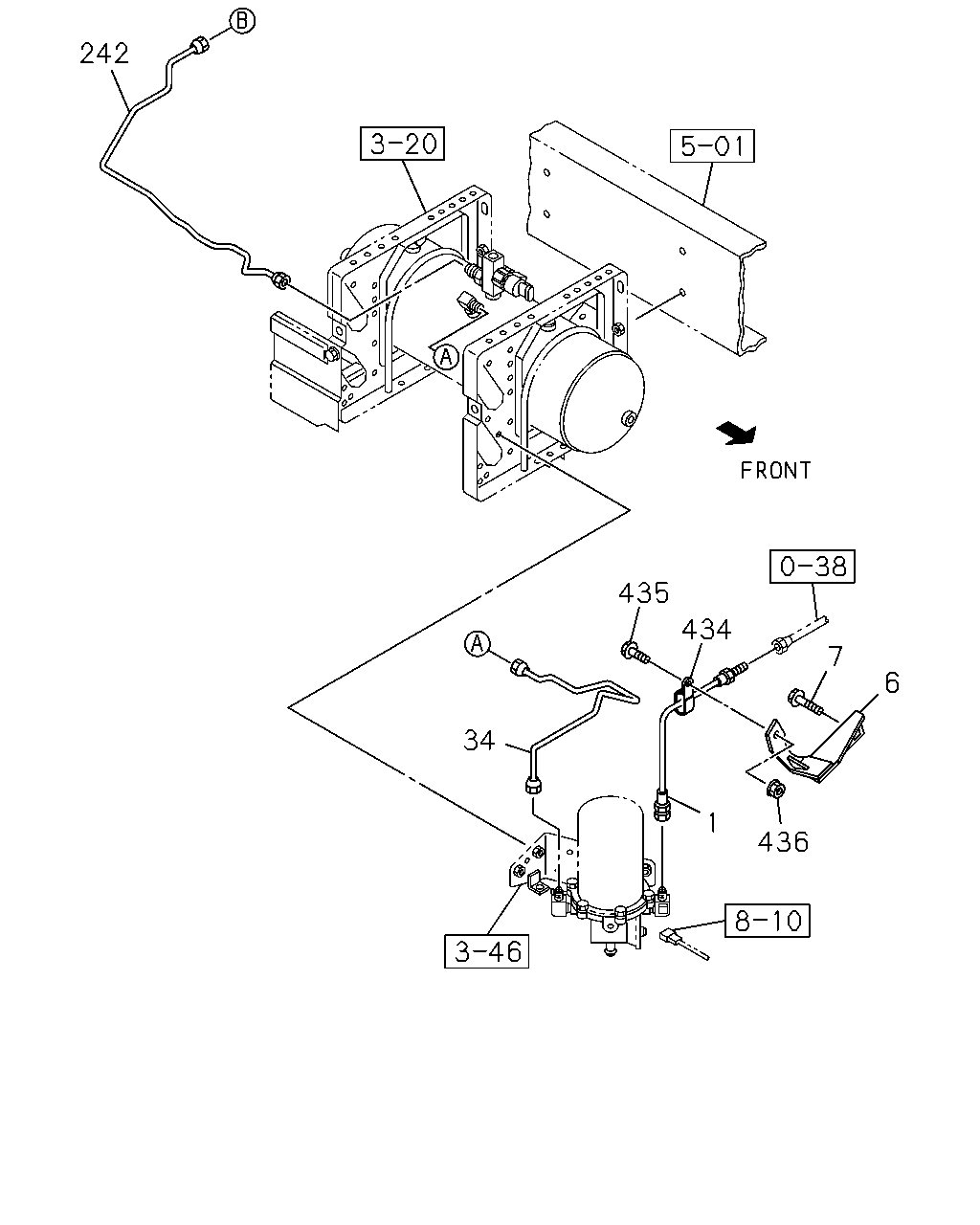

çizim 448892
242 435 434 34 7 6 1 436
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
THA 		8-98066-976-1 01 1 1410-
6 BRACKET; FLEX HOSE,AIR TANK
THA 		8-98214-081-1 01 1 1410-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE THA 		0-28650-825-0 02 1 1410-
34 PIPE; AIR
L=615 SERVICED BY L=660 THA 		1-49115-480-0 01 1 1410-
242 PIPE; AIR,AIR TANK TO UNION
L=564 SERVICED BY L=600 THA 		1-47428-809-0 01 1 1410-
434 CLIP
ID=35 L=33 THA 		1-09700-945-0 01 1 1410-
435 BOLT; CLIP
M8X20 FLANGE THA 		0-28650-820-0 01 1 1410-
436 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1410-

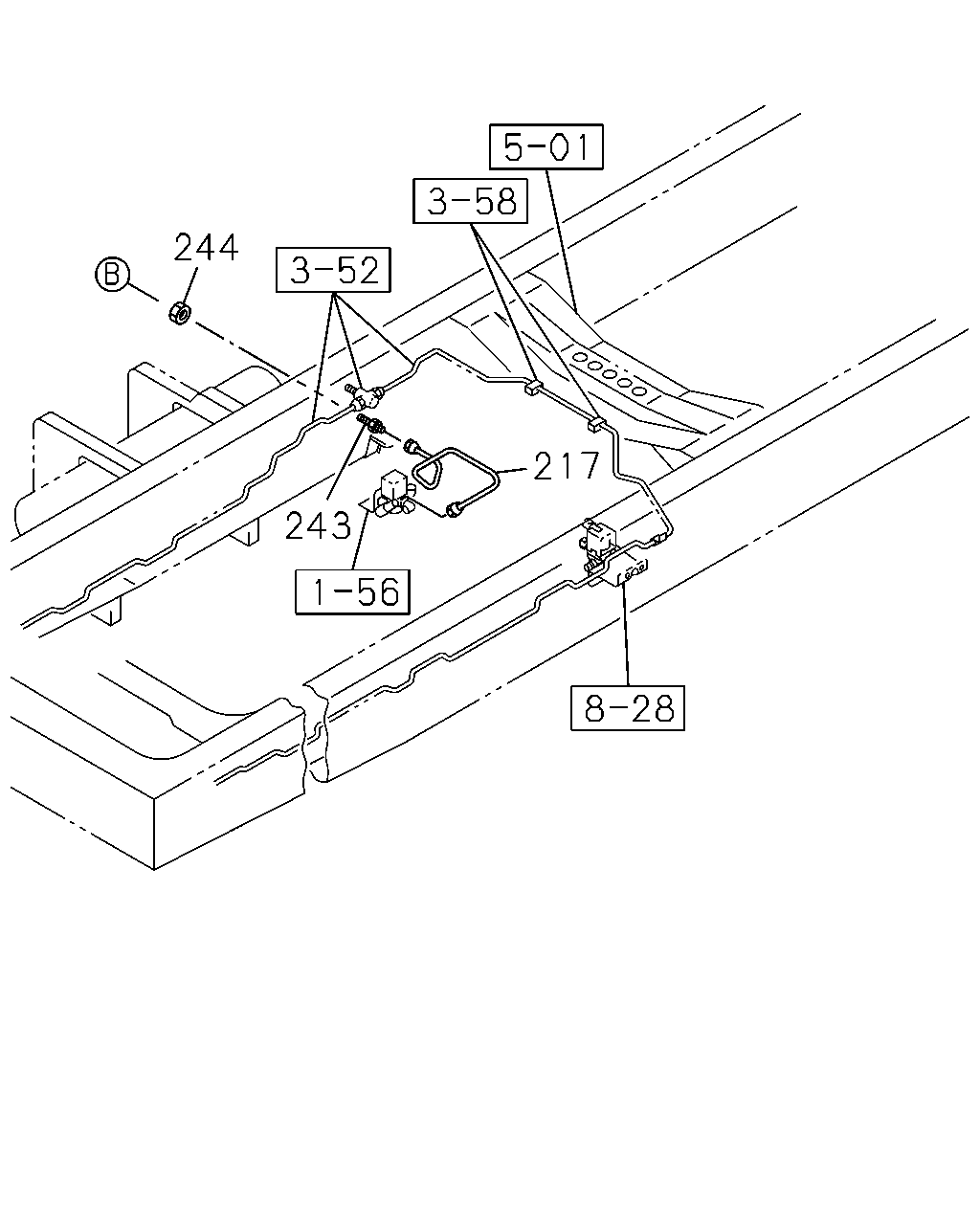

çizim 449151
244 243 217
BalonParca AdiParca NoAdetTipApplied Date
217 PIPE; VAC,UNION TO MAG VLV
WHEEL BASE 3400MM<34W> L=280 THA 		8-98090-912-0 01 1 1410-
217 PIPE; VAC,UNION TO MAG VLV
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> L=284 THA 		8-98086-311-0 01 1 1410-
243 UNION; AIR PIPE
M12 L=66.5 THA 		0-92113-306-0 01 1 1410-
244 NUT; UNION,AIR PIPE
M12 THA 		9-09840-280-0 01 1 1410-
