3-46 — AIR DRYER
(#150109) — 36 parça
◀

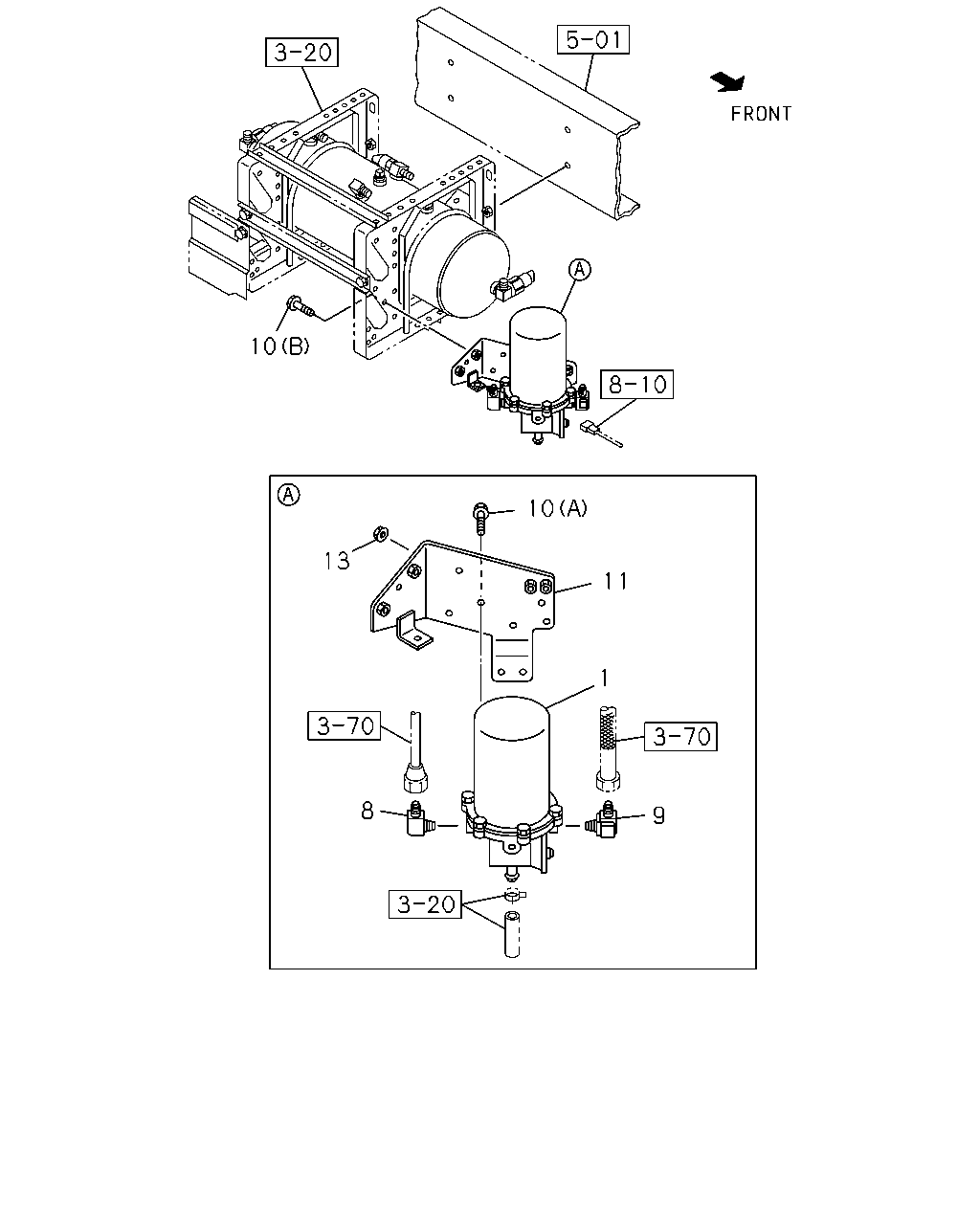

[346A] FIXING (7 parça)

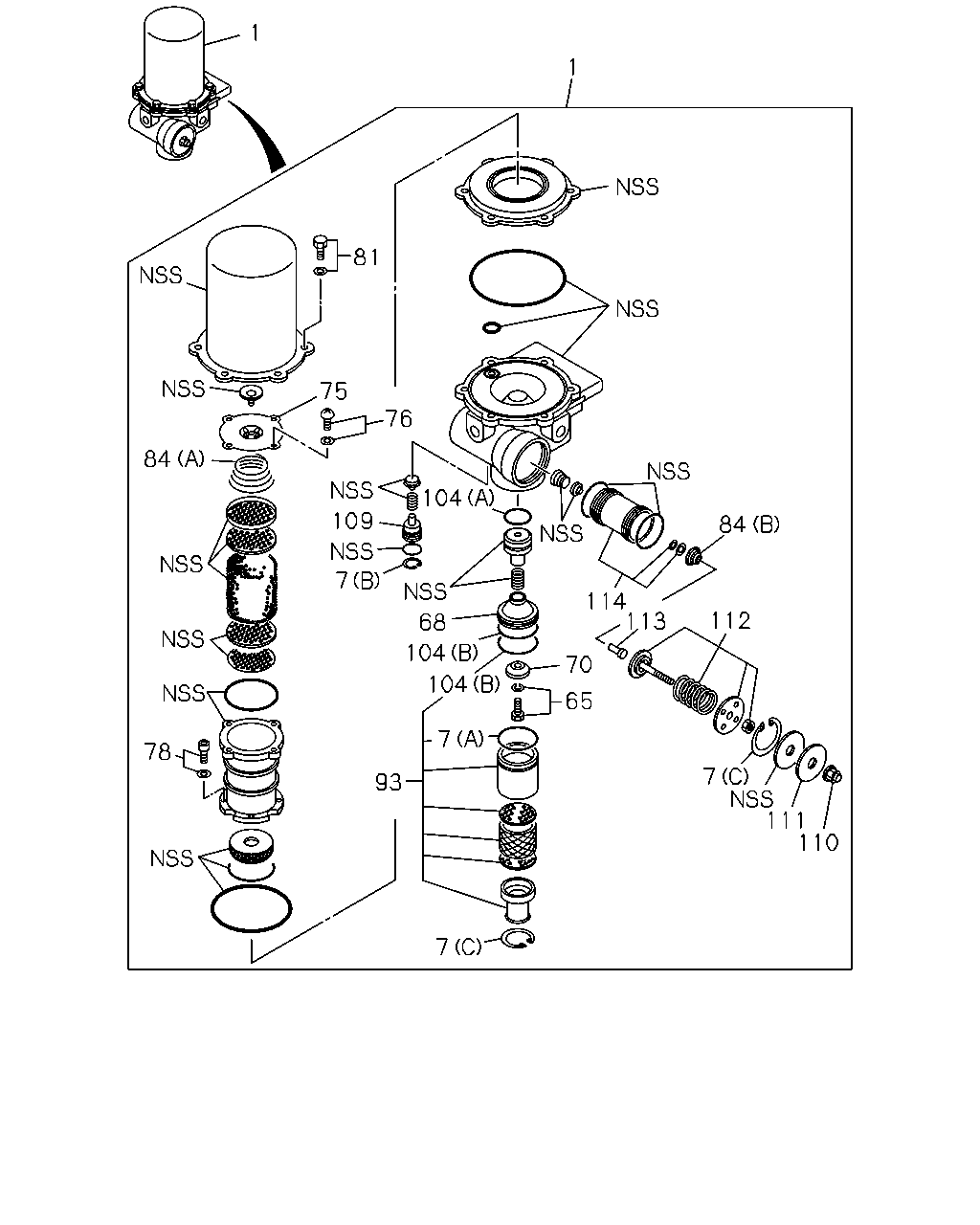

[346A] COMPONENT (22 parça)

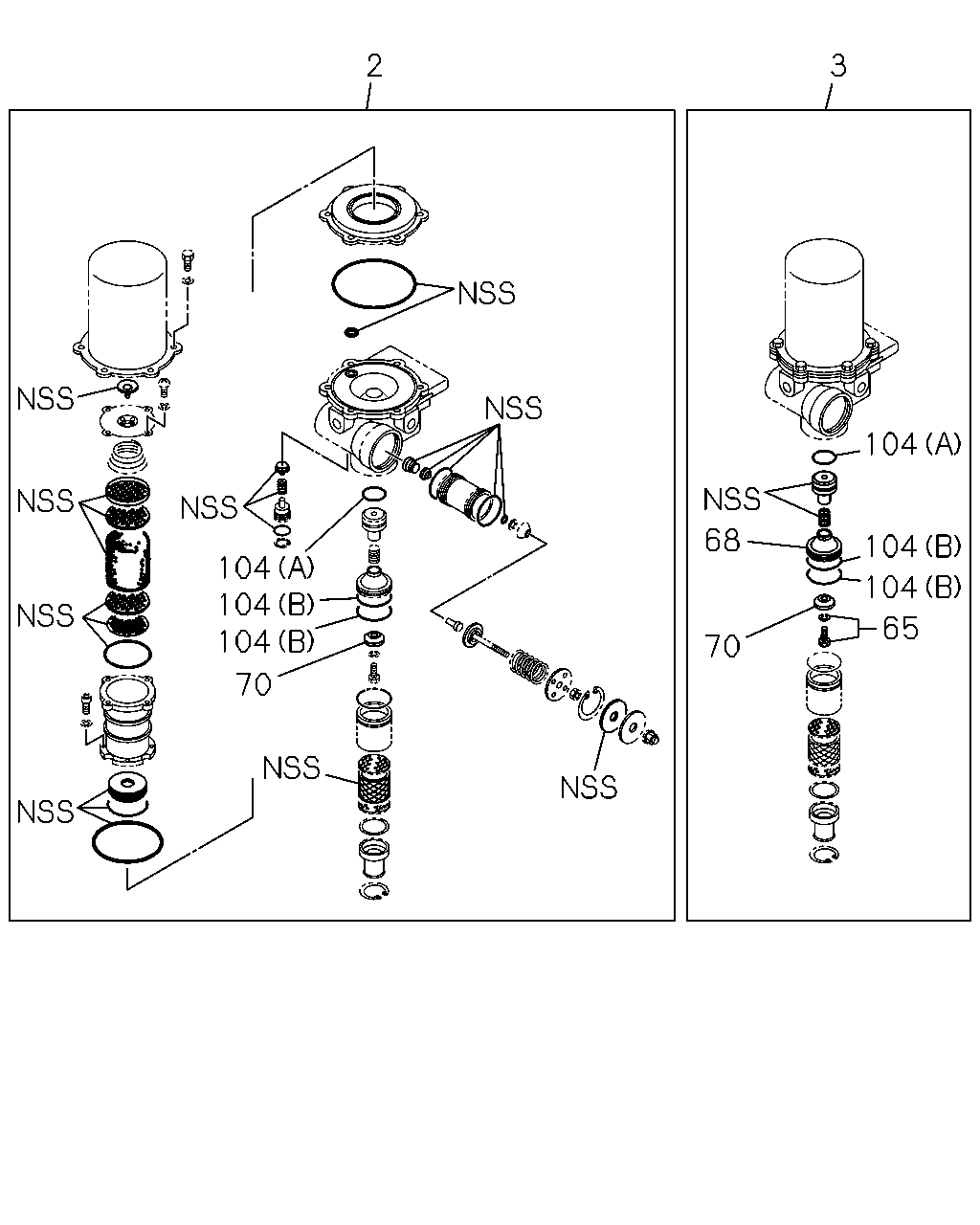

[346A] PISTON AND REPAIR KIT (7 parça)
▶
10
13
10
11
1
9
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
THA
8-98225-291-0
01
1
1410-
8
CONNECTOR; OUT,AIR DRYER
M20 & PT1/2 ELBOW THA
1-09650-443-0
01
1
1410-
9
CONNECTOR; PIPE,AIR DRYER
M22 & PT1/2 ELBOW THA
0-92134-315-0
01
1
1410-
10
BOLT; AIR DRYER
(B) M8X20 FLANGE THA
0-28050-820-0
02
1
1410-
10
BOLT; AIR DRYER
(A) M10X25 FLANGE THA
0-28051-025-0
03
1
1410-
11
BRACKET; AIR DRYER
THA
8-98044-548-4
01
1
1410-
13
NUT; AIR DRYER
M8 FLANGE THA
0-91180-108-0
02
1
1410-
1
81
75
84
78
93
7
7
104
104
7
109
76
104
65
84
112
113
114
70
7
111
110
68
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
THA
8-98225-291-0
01
1
1410-
7
RING; SNAP,AIR DRYER
(C) THA
1-48199-520-0
02
1
1410-
7
RING; SNAP,AIR DRYER
(B) THA
1-48199-529-0
01
1
1410-
7
RING; SNAP,AIR DRYER
(A) THA
1-48199-579-0
01
1
1410-
65
BOLT; PURGE VLV
THA
1-48199-517-0
01
1
1410-
68
BODY; VALVE
THA
1-48199-515-0
01
1
1410-
70
VALVE; AIR DRYER
THA
1-48199-504-0
01
1
1410-
75
COVER; CASE,AIR DRYER
THA
1-48199-395-0
01
1
1410-
76
BOLT; COVER,AIR DRYER
THA
1-48199-412-0
04
1
1410-
78
BOLT; OIL FILTER,AIR DRYER
THA
1-48199-417-0
04
1
1410-
81
BOLT; CASE,AIR DRYER
THA
1-48199-436-0
06
1
1410-
84
SPRING; AIR DRYER
(A) THA
1-48199-396-0
01
1
1410-
84
SPRING; AIR DRYER
(B) THA
1-48199-523-0
01
1
1410-
93
SILENCER; AIR DRYER
THA
1-48199-619-0
01
1
1410-
104
GASKET
(B) THA
1-48199-496-0
02
1
1410-
104
GASKET
(A) THA
8-98226-321-0
01
1
1410-
109
STOPPER; CHECK VALVE
THA
1-48199-539-0
01
1
1410-
110
NUT; CAP
THA
1-48199-527-0
01
1
1410-
111
PLATE; GOVERNOR
THA
1-48199-526-0
01
1
1410-
112
SCREW & SPRING ASM; AIR DRYER
THA
1-48199-524-0
01
1
1410-
113
STEM; EXHAUST
THA
1-48199-522-0
01
1
1410-
114
PISTON ASM; GOVERNOR
THA
1-48199-521-0
01
1
1410-
2
104
104
104
70
68
70
104
104
65
104
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
THA
8-98226-326-0
01
1
1410-
3
PISTON KIT; AIR DRYER
THA
8-98226-322-0
01
1
1410-
65
BOLT; PURGE VLV
THA
1-48199-517-0
01
1
1410-
68
BODY; VALVE
THA
1-48199-515-0
01
1
1410-
70
VALVE; AIR DRYER
THA
1-48199-504-0
01
1
1410-
104
GASKET
(B) THA
1-48199-496-0
02
1
1410-
104
GASKET
(A) THA
8-98226-321-0
01
1
1410-
