Isuzu WW
▶
TRUCKS
▶
FRR
▶
11646 - FRR THAILAND EURO3
▶
3 - Brakes, Brake System
▶
3-05 - REAR WHEEL BRAKE
▶

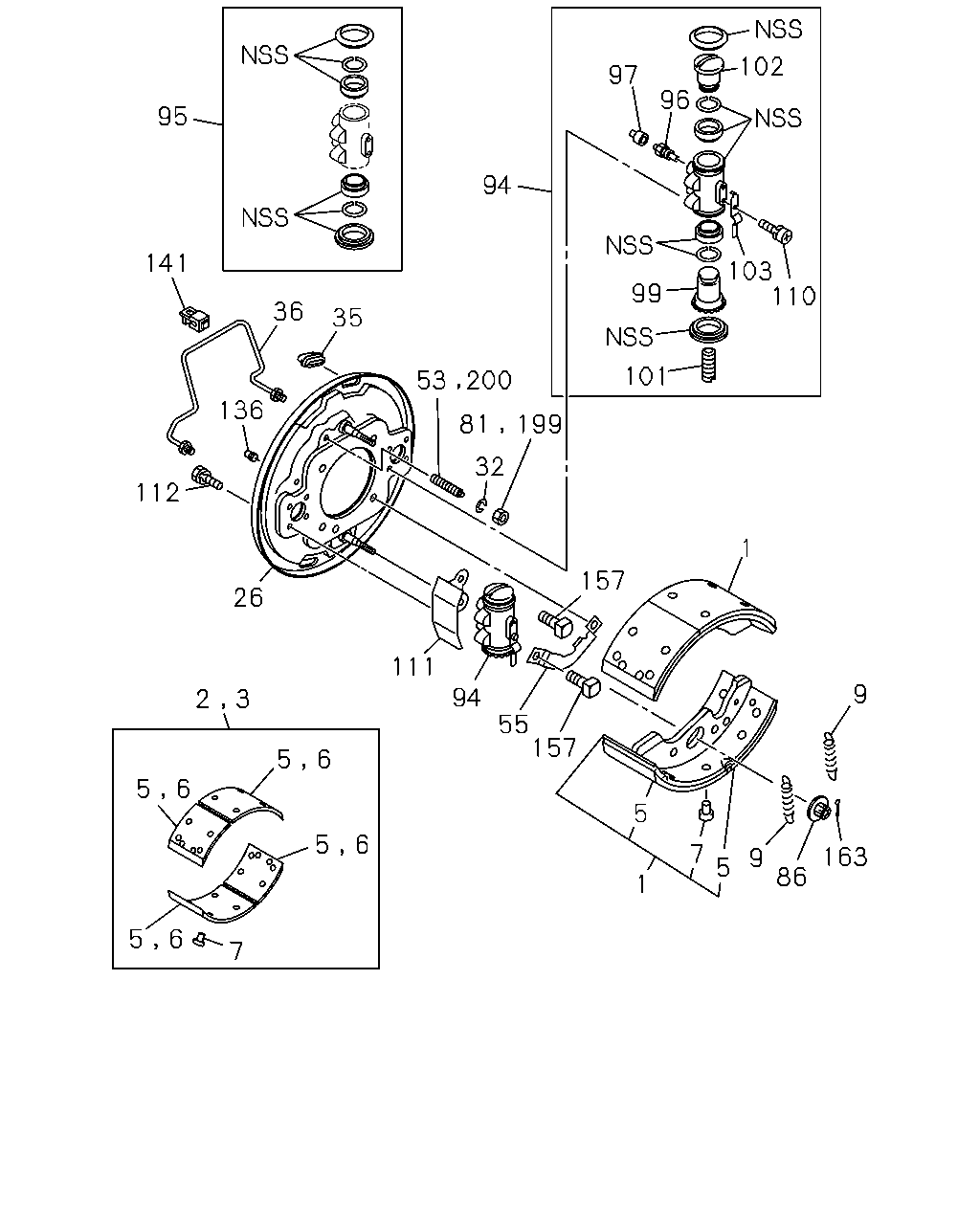

3-05 — REAR WHEEL BRAKE
(#150101) — 38 parça
95
141
36
35
136
112
26
2
3
5
6
6
5
5
6
7
5
6
111
94
55
157
157
1
9
163
86
9
5
7
1
5
32
81
199
200
53
94
97
96
102
103
110
101
99
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHOE; BRK,RR
THA
1-47120-626-0
04
1
1410-
2
LINING SET; RR BRK,STANDARD
THA
1-88310-551-1
02
1
1410-
3
LINING SET; RR BRK,OVER SIZE
THA
1-88310-552-1
02
1
1410-
5
LINING; RR BRK SHOE,STANDARD
THA
1-47125-803-0
08
1
1410-
6
LINING; RR BRK SHOE,OVER SIZE
THA
1-47125-804-0
08
1
1410-
7
RIVET; LINING,RR BRK
THA
1-09732-029-0
96
1
1410-
9
SPRING; RETURN,BRK SHOE
THA
1-09583-271-0
04
1
1410-
26
PLATE; BACK,RR BRK
THA
1-47150-467-0
01
1
1410-
26
PLATE; BACK,RR BRK
THA
1-47150-468-0
01
1
1410-
32
WASHER; LK
ID=12.2 THA
0-91510-512-0
04
1
1410-
35
GROMMET; CHECK HOLE
THA
1-09333-033-0
04
1
1410-
36
PIPE; OIL,RR BRK
THA
1-47421-815-0
02
1
1410-
53
BOLT; LOCK PLATE
THA
1-47162-050-0
02
1
1410-
55
PLATE; LK,RR WHEEL CYL
THA
1-47139-064-0
04
1
1410-
81
NUT
THA
1-09400-100-0
02
1
1410-
86
NUT; FLANGE
THA
1-09440-003-0
04
1
1410-
94
CYLINDER; WHEEL,RR BRK
FORWARD THA
1-47600-956-0
01
1
1410-
94
CYLINDER; WHEEL,RR BRK
BACKWARD THA
1-47600-957-0
01
1
1410-
94
CYLINDER; WHEEL,RR BRK
FORWARD THA
1-47600-958-0
01
1
1410-
94
CYLINDER; WHEEL,RR BRK
BACKWARD THA
1-47600-959-0
01
1
1410-
95
CUP SET; RR WHEEL CYL
THA
1-87830-770-0
04
1
1410-
96
SCREW; BLEEDER,RR BRK
THA
1-47615-020-0
02
1
1410-
97
CAP; BLEEDER,RR WHEEL CYL
THA
1-47619-009-0
02
1
1410-
99
PISTON; RR WHEEL CYL
THA
1-47624-309-0
02
1
1410-
99
PISTON; RR WHEEL CYL
THA
1-47624-310-0
02
1
1410-
101
SCREW; ADJ,RR WHEEL CYL
M22 LH THREAD THA
1-47622-033-0
02
1
1410-
101
SCREW; ADJ,RR WHEEL CYL
M22 RH THREAD THA
1-47622-034-0
02
1
1410-
102
PISTON; REAR WHEEL CYL
THA
1-47624-311-0
04
1
1410-
103
SPRING; LK,RR WHEEL CYL,ADJ
THA
1-47629-072-0
04
1
1410-
110
SCREW; LOCK SPRING,RR WHEEL CYL
THA
8-94128-727-0
04
1
1410-
111
COVER; WHEEL CYL
THA
1-47159-103-0
04
1
1410-
112
BOLT; WHEEL CYL SETTING
M12 THA
1-47159-184-0
16
1
1410-
136
GROMMET
THA
9-09956-640-0
04
1
1410-
141
PROTECTOR; RR BRK PIPE
THA
9-47461-158-0
02
1
1410-
157
BOLT; RR BRK SET
M14X45 SQUARE HEAD THA
1-09060-015-0
12
1
1410-
163
PIN; SPLIT,SHOE HOLD
THA
9-09874-040-0
04
1
1410-
199
NUT
THA
1-09400-100-0
02
1
1410-
200
BOLT
THA
1-47162-050-0
02
1
1410-
