◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11646 - FRR THAILAND EURO3 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#150095) — 133 parça

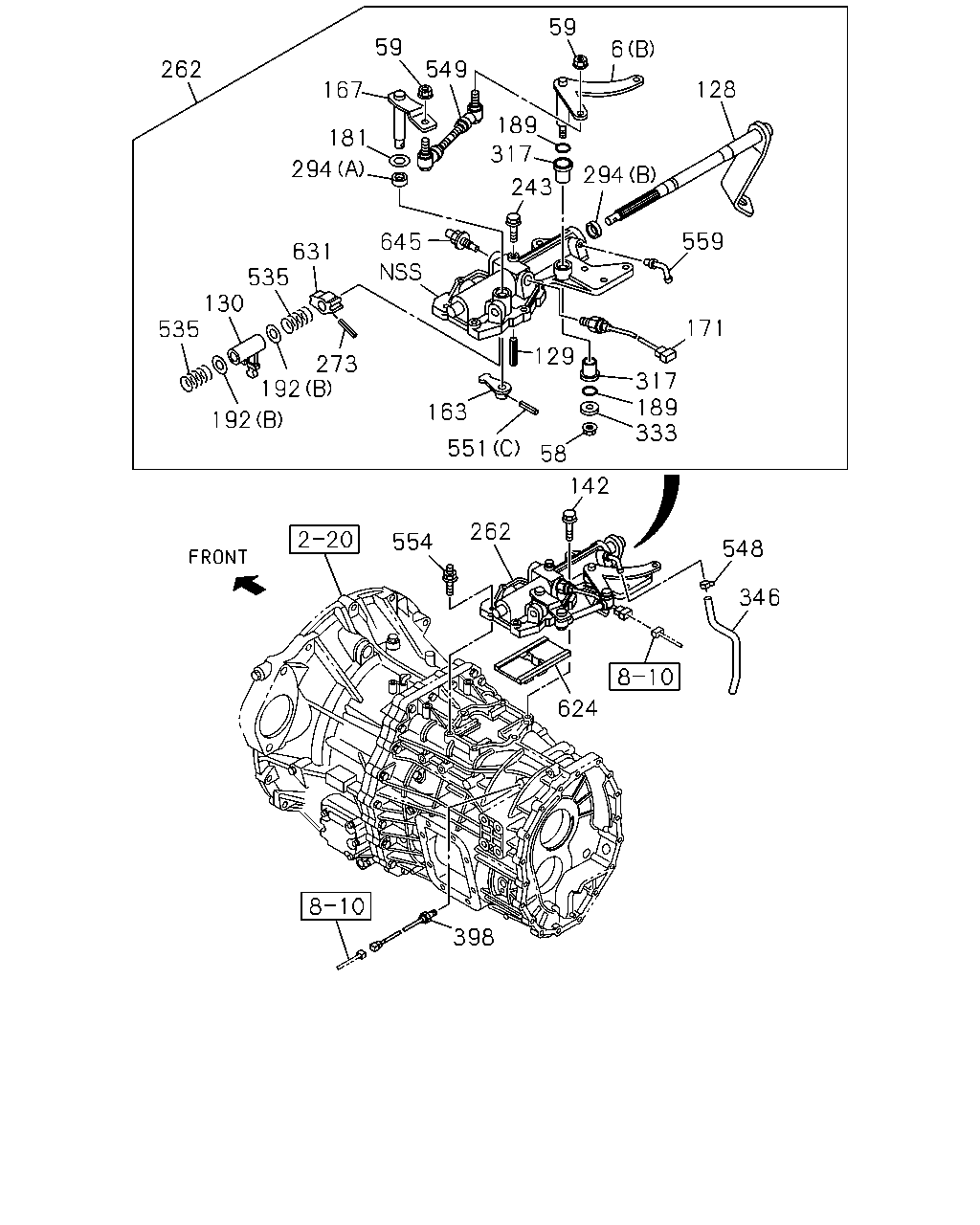

çizim 448822
262 59 167 549 181 294 189 317 6 128 294 243 559 171 645 631 535 130 535 192 192 273 163 129 551 58 317 333 189 142 548 346 262 554 624 398 59
BalonParca AdiParca NoAdetTipApplied Date A B
6 LEVER; RELAY
(B) THA 		8-98014-157-1 01 1 1410- ● ●
6 LEVER; RELAY
(A) THA 		8-97241-342-0 03 1 1410- ●
58 NUT
M10 FLANGE THA 		0-91180-110-0 01 1 1410- ● ●
59 NUT
M8 FLANGE THA 		0-91180-108-0 02 1 1410- ● ●
128 LEVER; SHIFT,EXTERNAL
THA 		8-98170-720-0 01 1 1410- ●
128 LEVER; SHIFT,EXTERNAL
THA 		8-98212-106-0 01 1 1410- ●
129 PIN; SPR,SHIFT
L=30 OD=4 THA 		1-09748-031-0 01 1 1410- ● ●
130 LEVER; SHIFT,INTERNAL
THA 		8-97306-647-0 01 1 1410- ● ●
142 BOLT; QUAD BOX
M8X22 FLANGE THA 		8-97365-376-0 04 1 1410- ● ●
163 LEVER; SELECT,INTERNAL
THA 		8-97305-663-0 01 1 1410- ● ●
167 LEVER; SELECT,EXTERNAL
THA 		8-98021-489-0 01 1 1410- ● ●
171 SWITCH; NEUTRAL
THA 		8-98242-172-1 01 1 1410- ● ●
181 WASHER; PL,SELECT LEVER
THA 		8-97367-327-0 01 1 1410- ● ●
189 GASKET; SELECT LEVER,CONT BOX
THA 		1-09623-594-0 02 1 1410- ● ●
192 WASHER; PL
(B) THA 		8-97305-661-0 02 1 1410- ● ●
192 WASHER; PL
(A) ID=18.2 OD=29 THA 		1-09503-032-0 04 1 1410- ●
243 BOLT; COVER
M6X12 FLANGE THA 		1-33739-842-0 01 1 1410- ● ●
262 BOX ASM; SHIFT CONT
THA 		8-98240-990-1 01 1 1410- ●
262 BOX ASM; SHIFT CONT
THA 		8-98276-157-1 01 1 1410- ●
273 PIN; SPR,STOPPER
D=4.2 L=25 THA 		8-97103-142-0 01 1 1410- ● ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) THA 		8-97305-662-0 01 1 1410- ● ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B) THA 		8-97363-225-0 01 1 1410- ● ●
317 BUSHING; LEVER
THA 		1-09330-119-0 02 1 1410- ● ●
333 WASHER; PL,LEVER
ID=10.5 THA 		0-91610-710-0 01 1 1410- ● ●
346 HOSE; AIR
THA 		8-98132-721-0 01 1 1410- ●
346 HOSE; AIR
THA 		8-97309-855-0 01 1 1410- ●
398 SWITCH; REV LAMP
THA 		8-98242-173-1 01 1 1410- ● ●
535 SPRING; LEVER
THA 		8-97385-713-0 02 1 1410- ● ●
548 CLIP; HOSE
ID=8 THA 		8-94107-762-0 02 1 1410- ●
548 CLIP; HOSE
THA 		8-97031-674-0 01 1 1410- ●
549 ROD; LINK
THA 		8-98023-095-0 01 1 1410- ● ●
551 PIN; SPRING
(C) L=25 OD=5 THA 		1-09748-032-0 01 1 1410- ● ●
551 PIN; SPRING
(A) L=32 THA 		8-97011-596-2 05 1 1410- ● ●
551 PIN; SPRING
(B) L=20 THA 		8-97241-340-0 01 1 1410- ● ●
554 STUD; CONT BOX
M8X15,M8X25 L=49 THA 		8-97365-378-0 02 1 1410- ● ●
559 PIPE; BREATHER
THA 		8-97358-318-0 01 1 1410- ● ●
624 PLATE; INTER LOCK
THA 		8-97241-317-3 01 1 1410- ● ●
631 STOPPER; SPRING
THA 		8-98014-158-0 01 1 1410- ● ●
645 DETENT ASM
THA 		8-98019-536-0 01 1 1410- ● ●

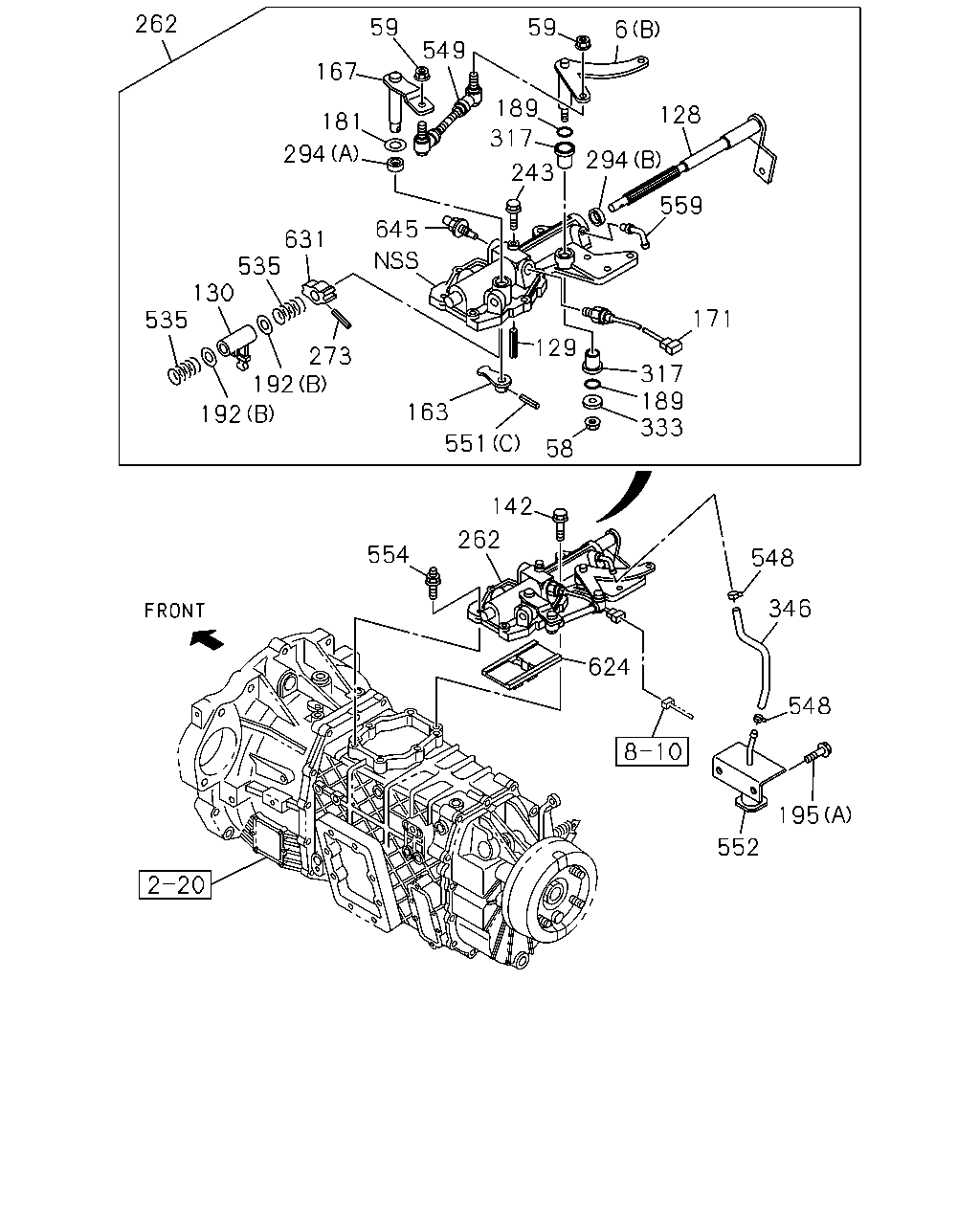

çizim 449557
262 59 59 6 549 167 181 189 128 317 294 294 559 243 645 631 535 130 535 273 192 192 171 129 163 551 58 317 189 333 142 262 554 548 346 548 195 552 624
BalonParca AdiParca NoAdetTipApplied Date A B
6 LEVER; RELAY
(B) THA 		8-98014-157-1 01 1 1410- ● ●
6 LEVER; RELAY
(A) THA 		8-97241-342-0 03 1 1410- ●
58 NUT
M10 FLANGE THA 		0-91180-110-0 01 1 1410- ● ●
59 NUT
M8 FLANGE THA 		0-91180-108-0 02 1 1410- ● ●
128 LEVER; SHIFT,EXTERNAL
THA 		8-98170-720-0 01 1 1410- ●
128 LEVER; SHIFT,EXTERNAL
THA 		8-98212-106-0 01 1 1410- ●
129 PIN; SPR,SHIFT
L=30 OD=4 THA 		1-09748-031-0 01 1 1410- ● ●
130 LEVER; SHIFT,INTERNAL
THA 		8-97306-647-0 01 1 1410- ● ●
142 BOLT; QUAD BOX
M8X22 FLANGE THA 		8-97365-376-0 04 1 1410- ● ●
163 LEVER; SELECT,INTERNAL
THA 		8-97305-663-0 01 1 1410- ● ●
167 LEVER; SELECT,EXTERNAL
THA 		8-98021-489-0 01 1 1410- ● ●
171 SWITCH; NEUTRAL
THA 		8-98242-172-1 01 1 1410- ● ●
181 WASHER; PL,SELECT LEVER
THA 		8-97367-327-0 01 1 1410- ● ●
189 GASKET; SELECT LEVER,CONT BOX
THA 		1-09623-594-0 02 1 1410- ● ●
192 WASHER; PL
(B) THA 		8-97305-661-0 02 1 1410- ● ●
192 WASHER; PL
(A) ID=18.2 OD=29 THA 		1-09503-032-0 04 1 1410- ●
195 BOLT
(A) M10X20 FLANGE THA 		0-28751-020-0 02 1 1410- ●
195 BOLT
(B) M10X28 FLANGE REAMER THA 		8-97365-375-0 02 1 1410- ●
243 BOLT; COVER
M6X12 FLANGE THA 		1-33739-842-0 01 1 1410- ● ●
262 BOX ASM; SHIFT CONT
THA 		8-98240-990-1 01 1 1410- ●
262 BOX ASM; SHIFT CONT
THA 		8-98276-157-1 01 1 1410- ●
273 PIN; SPR,STOPPER
D=4.2 L=25 THA 		8-97103-142-0 01 1 1410- ● ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) THA 		8-97305-662-0 01 1 1410- ● ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B) THA 		8-97363-225-0 01 1 1410- ● ●
317 BUSHING; LEVER
THA 		1-09330-119-0 02 1 1410- ● ●
333 WASHER; PL,LEVER
ID=10.5 THA 		0-91610-710-0 01 1 1410- ● ●
346 HOSE; AIR
THA 		8-98132-721-0 01 1 1410- ●
346 HOSE; AIR
THA 		8-97309-855-0 01 1 1410- ●
535 SPRING; LEVER
THA 		8-97385-713-0 02 1 1410- ● ●
548 CLIP; HOSE
ID=8 THA 		8-94107-762-0 02 1 1410- ●
548 CLIP; HOSE
THA 		8-97031-674-0 01 1 1410- ●
549 ROD; LINK
THA 		8-98023-095-0 01 1 1410- ● ●
551 PIN; SPRING
(C) L=25 OD=5 THA 		1-09748-032-0 01 1 1410- ● ●
551 PIN; SPRING
(A) L=32 THA 		8-97011-596-2 05 1 1410- ● ●
551 PIN; SPRING
(B) L=20 THA 		8-97241-340-0 01 1 1410- ● ●
552 BRACKET
THA 		8-98132-718-0 01 1 1410- ●
554 STUD; CONT BOX
M8X15,M8X25 L=49 THA 		8-97365-378-0 02 1 1410- ● ●
559 PIPE; BREATHER
THA 		8-97358-318-0 01 1 1410- ● ●
624 PLATE; INTER LOCK
THA 		8-97241-317-3 01 1 1410- ● ●
631 STOPPER; SPRING
THA 		8-98014-158-0 01 1 1410- ● ●
645 DETENT ASM
THA 		8-98019-536-0 01 1 1410- ● ●

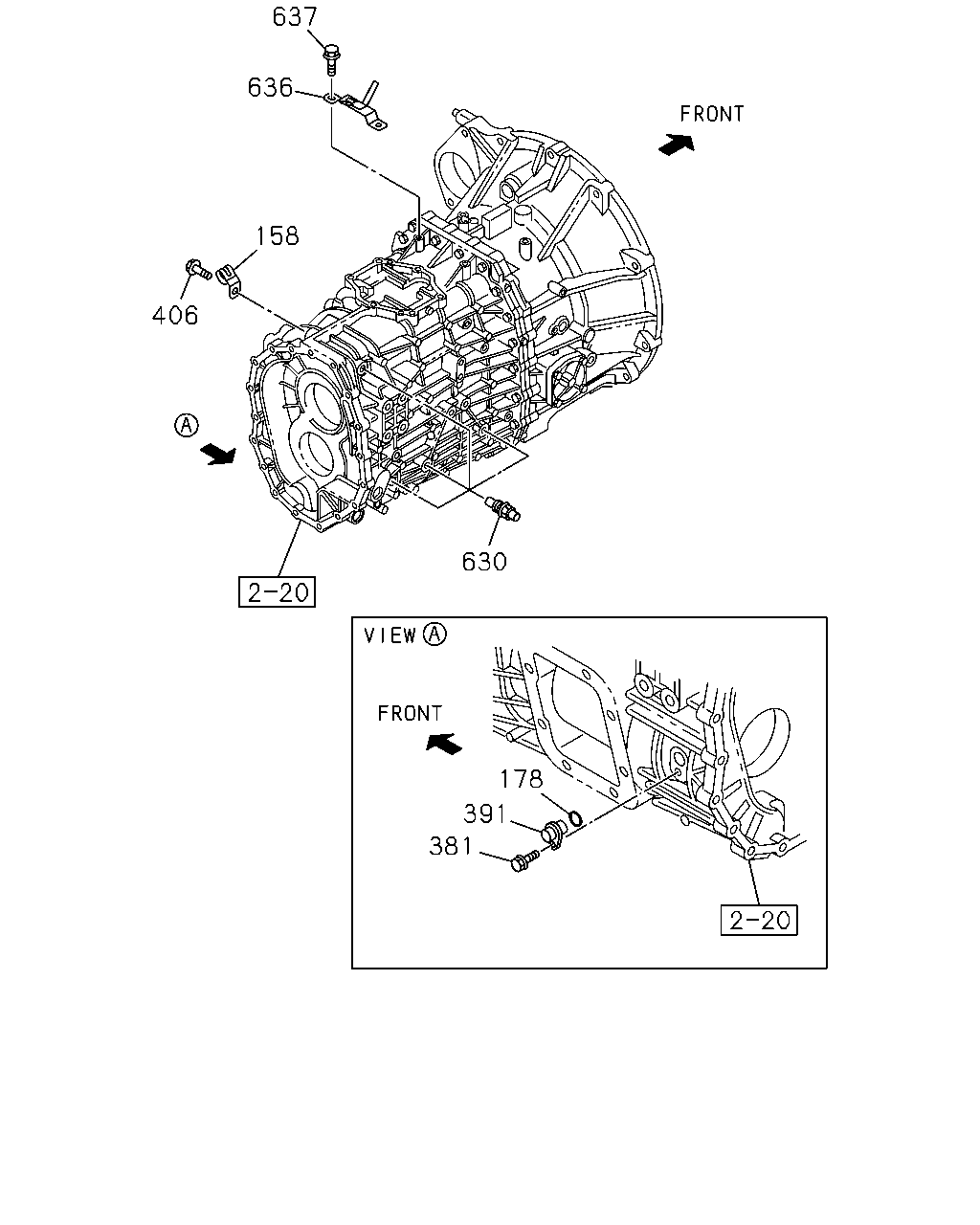

çizim 449930
637 636 158 406 630 178 391 381
BalonParca AdiParca NoAdetTipApplied Date A B
158 CLIP; HARNESS
ID=12 VINYL CHLORIDE THA 		8-97367-984-1 02 1 1410- ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). THA 		9-09567-113-0 01 1 1410- ● ●
381 BOLT
M6X16 FLANGE THA 		0-28650-616-0 01 1 1410- ● ●
391 PLUG; SW HOLE
THA 		8-97300-273-1 01 1 1410- ● ●
406 BOLT; HARNESS CLIP
M8X16 FLANGE THA 		0-28050-816-0 02 1 1410- ●
630 DETENT ASM
THA 		8-98019-536-0 04 1 1410- ● ●
636 BRACKET; CLIP
THA 		8-97610-092-1 01 1 1410- ●
637 BOLT; BRACKET
M8X16 FLANGE THA 		0-28050-816-0 02 1 1410- ●

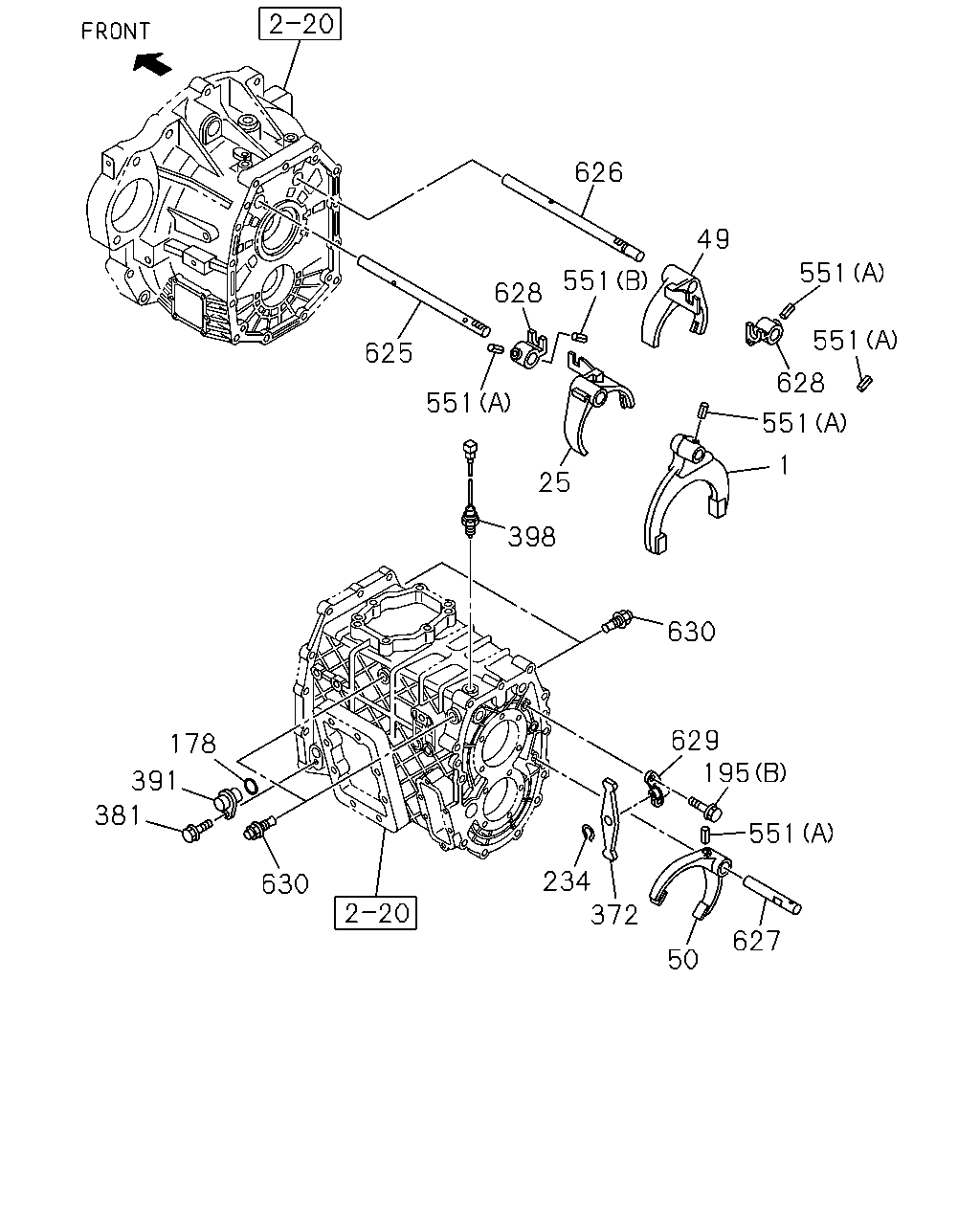

çizim 450039
626 551 49 51 551 628 551 1 25 551 625 628 398 630 629 195 551 627 50 372 234 630 381 391 178
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; SHIFT,1ST & REV
THA 		8-97255-351-1 01 1 1410- ●
25 ARM; SHIFT,2ND & 3RD
THA 		8-97362-737-1 01 1 1410- ●
49 ARM; SHIFT,4TH & 5TH
THA 		8-97362-738-1 01 1 1410- ●
50 ARM; SHIFT,6TH
THA 		8-97241-324-1 01 1 1410- ●
51 BLOCK; SHIFT,1ST & 2ND
THA 		8-98074-457-1 01 1 1410- ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). THA 		9-09567-113-0 01 1 1410- ● ●
195 BOLT
(A) M10X20 FLANGE THA 		0-28751-020-0 02 1 1410- ●
195 BOLT
(B) M10X28 FLANGE REAMER THA 		8-97365-375-0 02 1 1410- ●
234 RING; SNAP
ID=16.5 THA 		0-91800-618-0 01 1 1410- ● ●
372 LEVER; RELAY,6TH
THA 		8-97241-342-0 01 1 1410- ●
381 BOLT
M6X16 FLANGE THA 		0-28650-616-0 01 1 1410- ● ●
391 PLUG; SW HOLE
THA 		8-97300-273-1 01 1 1410- ● ●
398 SWITCH; REV LAMP
THA 		8-98242-173-1 01 1 1410- ● ●
551 PIN; SPRING
(C) L=25 OD=5 THA 		1-09748-032-0 01 1 1410- ● ●
551 PIN; SPRING
(A) L=32 THA 		8-97011-596-2 05 1 1410- ● ●
551 PIN; SPRING
(B) L=20 THA 		8-97241-340-0 01 1 1410- ● ●
625 ROD; GEAR SHIFT,LOW,REV,2ND & 3RD
THA 		8-97362-735-0 01 1 1410- ●
626 ROD; GEAR SHIFT,4TH,5TH & 6TH
THA 		8-98107-548-0 01 1 1410- ●
627 ROD; GEAR SHIFT,6TH SUB
THA 		8-98119-293-0 01 1 1410- ●
628 BLOCK; SHIFT,LOW,REV & 6TH
THA 		8-97241-327-1 02 1 1410- ●
629 BRIDGE; LEVER
THA 		8-97241-345-1 01 1 1410- ●
630 DETENT ASM
THA 		8-98019-536-0 04 1 1410- ● ●

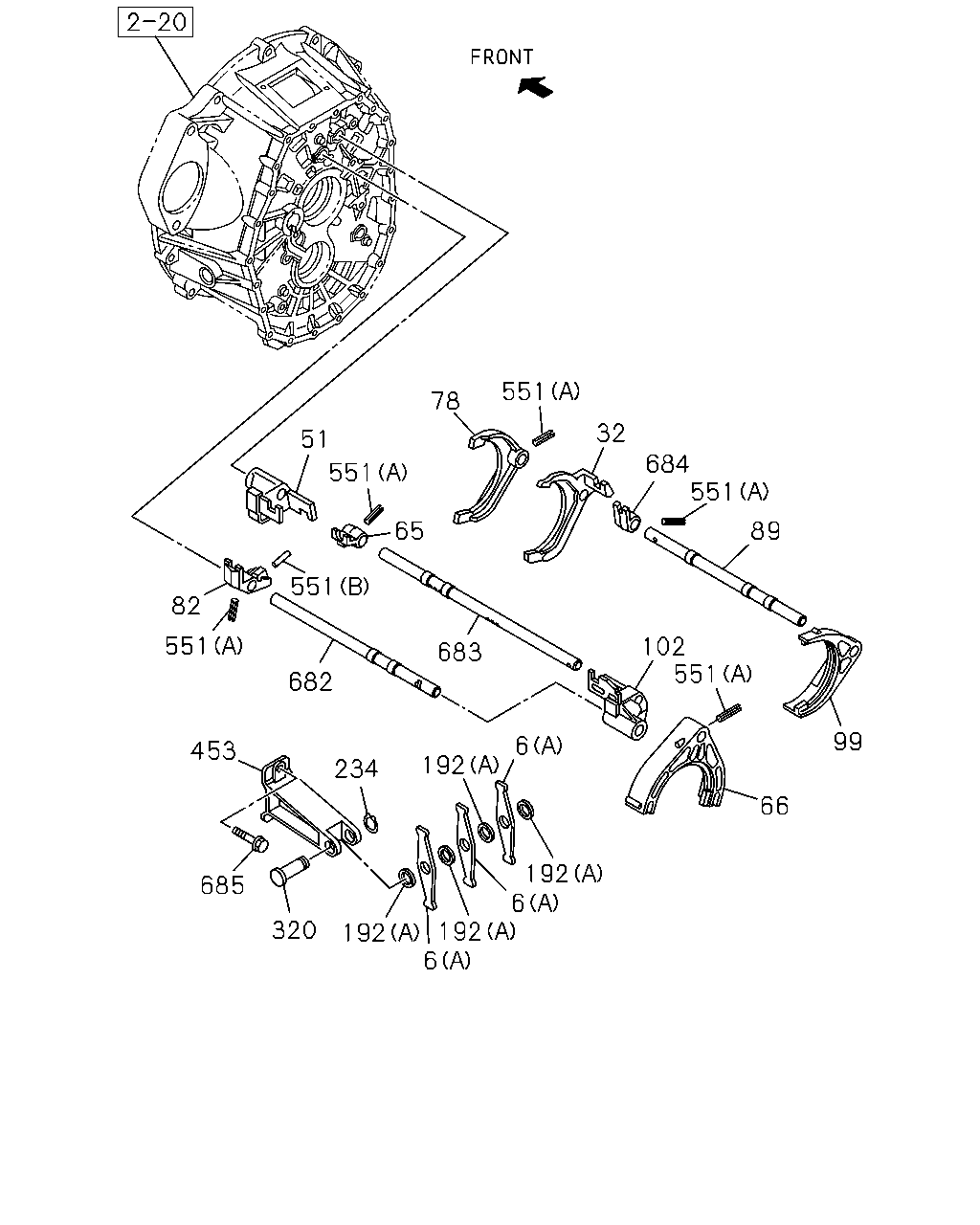

çizim 450136
192 6 99 66 551 102 192 6 192 192 320 685 234 6 453 682 551 551 82 65 683 551 51 78 551 551 684 32 89
BalonParca AdiParca NoAdetTipApplied Date A B
6 LEVER; RELAY
(B) THA 		8-98014-157-1 01 1 1410- ● ●
6 LEVER; RELAY
(A) THA 		8-97241-342-0 03 1 1410- ●
32 ARM; SHIFT,1ST & 2ND
THA 		8-98236-424-1 01 1 1410- ●
51 BLOCK; SHIFT,1ST & 2ND
THA 		8-98074-457-1 01 1 1410- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
THA 		8-97388-980-1 01 1 1410- ●
66 ARM; SHIFT,5TH & 6TH
THA 		8-97388-981-0 01 1 1410- ●
78 ARM; SHIFT,REV
THA 		8-97388-975-1 01 1 1410- ●
82 BLOCK; SHIFT,REV
THA 		8-97388-969-0 01 1 1410- ●
89 ROD; SHIFT,REV
THA 		8-98062-172-0 01 1 1410- ●
99 ARM; SHIFT,4TH & 3RD
THA 		8-98062-170-0 01 1 1410- ●
102 BLOCK; SHIFT,3RD & 4TH
THA 		8-97388-978-2 01 1 1410- ●
192 WASHER; PL
(B) THA 		8-97305-661-0 02 1 1410- ● ●
192 WASHER; PL
(A) ID=18.2 OD=29 THA 		1-09503-032-0 04 1 1410- ●
234 RING; SNAP
ID=16.5 THA 		0-91800-618-0 01 1 1410- ● ●
320 SHAFT; LEVER
THA 		8-97377-928-0 01 1 1410- ●
453 BLOCK; RELAY LEVER
THA 		8-97377-927-1 01 1 1410- ●
551 PIN; SPRING
(C) L=25 OD=5 THA 		1-09748-032-0 01 1 1410- ● ●
551 PIN; SPRING
(A) L=32 THA 		8-97011-596-2 05 1 1410- ● ●
551 PIN; SPRING
(B) L=20 THA 		8-97241-340-0 01 1 1410- ● ●
682 ROD; SHIFT,REV,SUB
THA 		8-97388-974-0 01 1 1410- ●
683 ROD; SHIFT,5TH & 6TH
THA 		8-98062-173-1 01 1 1410- ●
684 BLOCK; SHIFT,REV,SUB
THA 		8-97388-970-0 01 1 1410- ●
685 BOLT; BLOCK
M8X30 FLANGE THA 		8-98034-764-0 02 1 1410- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
