Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#150094) — 240 parça

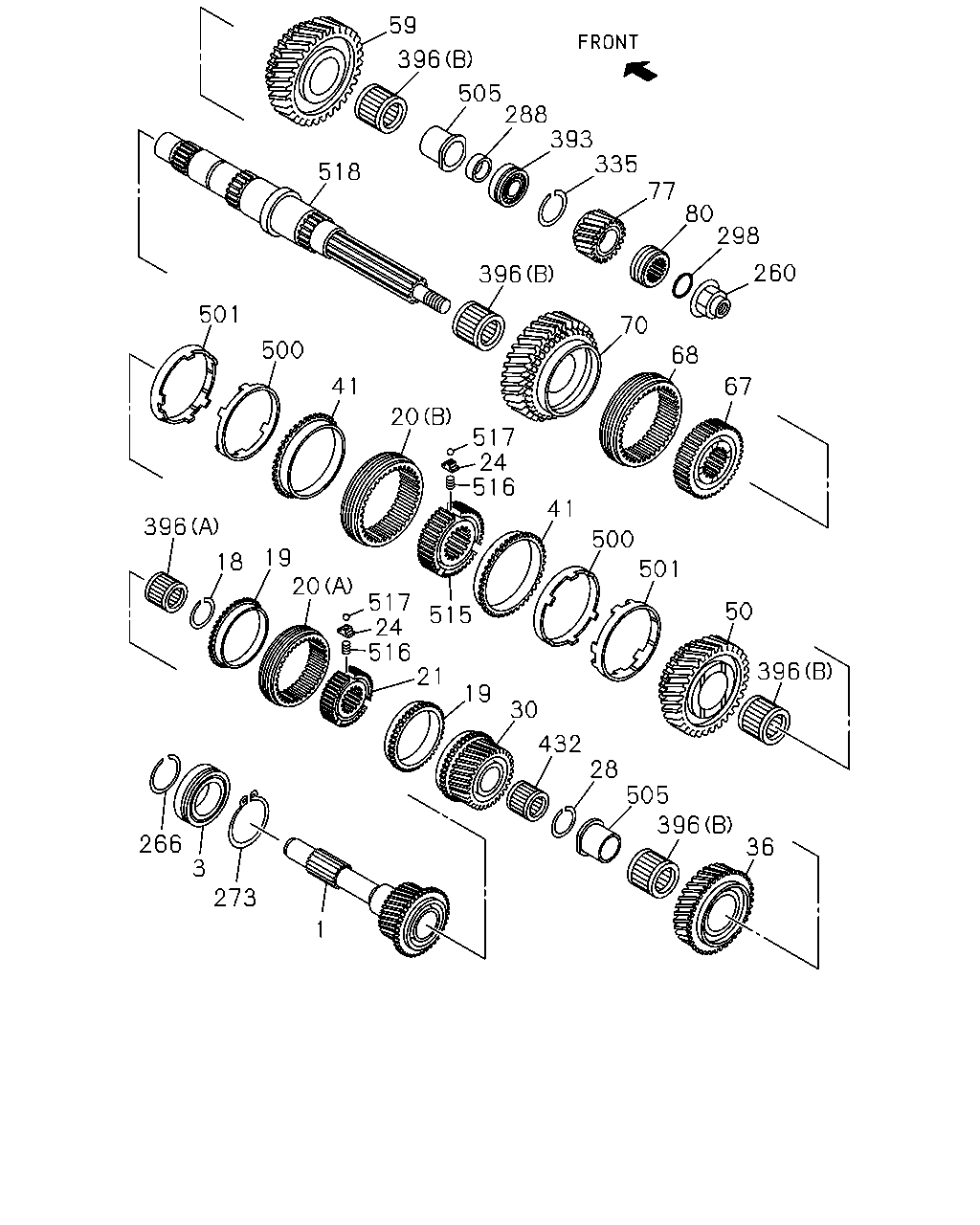

59 396 505 288 393 335 77 80 298 260 518 396 70 68 67 501 500 41 20 517 24 516 41 500 501 50 396 396 18 19 20 517 24 516 515 21 19 30 432 28 505 396 36 266 3 273 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=25 THA	8-97371-089-0	01	1	1410-	●
3	BEARING; TOP GEAR SHAFT NSK THA	8-97253-097-1	01	1	1410-	●
18	RING; SNAP,CLU HUB ID=35.7 T=1.8 THA	8-97256-855-0	01	1	1410-	●	●
19	RING; BLOCK,4TH & 5TH Z=45 THA	8-97241-306-1	02	1	1410-	●
20	SLEEVE (B) Z=54 THA	8-97241-295-2	01	1	1410-	●
20	SLEEVE (A) Z=45 THA	8-98258-279-0	02	1	1410-	●	●
20	SLEEVE (B) Z=45 THA	8-98034-769-0	01	1	1410-		●
21	HUB; CLU,4TH & 5TH THA	8-97241-299-3	01	1	1410-	●
24	BLOCK; INDEX,SYN THA	8-97241-313-1	09	1	1410-	●	●
28	RING; SNAP,3RD GEAR ID=46.5 T=1.8 THA	8-97254-743-0	01	1	1410-	●
30	GEAR; 4TH,MAINSHAFT Z=29 THA	8-97241-228-0	01	1	1410-	●
36	GEAR; 3RD,MAINSHAFT Z=35 THA	8-98168-524-0	01	1	1410-	●
36	GEAR; 3RD,MAINSHAFT Z=29 THA	8-98168-499-0	01	1	1410-		●
41	RING; BLOCK,2ND & 3RD Z=54 THA	8-97241-305-2	02	1	1410-	●
50	GEAR; 2ND,MAINSHAFT Z=43 THA	8-97241-236-1	01	1	1410-	●
59	GEAR; REV MAINSHAFT Z=45 THA	8-97254-182-0	01	1	1410-	●
67	HUB; CLU,1ST TO REV THA	8-97255-184-1	01	1	1410-	●
68	SLEEVE; 1ST TO REV THA	1-33262-175-1	01	1	1410-	●
70	GEAR; 1ST,MAINSHAFT Z=45 THA	8-97254-889-0	01	1	1410-	●
77	GEAR; 6TH,MAINSHAFT Z=18 THA	8-97241-264-0	01	1	1410-	●
77	GEAR; 6TH,MAINSHAFT Z=46 THA	8-98137-256-0	01	1	1410-		●
80	GEAR; SPD DRIVE Z=4 THA	8-97253-555-0	01	1	1410-	●
80	GEAR; SPD DRIVE Z=5 THA	8-97377-978-0	01	1	1410-		●
260	NUT; MAINSHAFT END M27 H=25 THA	8-97360-410-0	01	1	1410-	●
260	NUT; MAINSHAFT END M36 FLANGE THA	8-98014-140-0	01	1	1410-		●
266	RING; SNAP,BRG INNER THA	8-97286-915-0	01	1	1410-	●
273	RING; SNAP,BRG OUTER THA	8-97254-609-0	01	1	1410-	●
288	SPACER; BRG,MAINSHAFT THA	8-97252-941-0	01	1	1410-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5 THA	1-09623-379-0	01	1	1410-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5 THA	1-09623-380-0	01	1	1410-		●
335	RING; SNAP,BEARING THA	8-97254-720-0	01	1	1410-	●
393	BEARING; MAINSHAFT END THA	8-97253-104-0	01	1	1410-	●
396	BEARING; NEEDLE,MAINSHAFT (A) THA	8-97253-099-1	01	1	1410-	●
396	BEARING; NEEDLE,MAINSHAFT (B) THA	8-97253-110-0	04	1	1410-	●
432	BEARING; NEEDLE,4TH NSK THA	8-97253-111-0	01	1	1410-	●
500	RING; OUTSIDE,3RD & 2ND THA	8-97241-307-1	02	1	1410-	●
501	RING; INSIDE,3RD & 2ND THA	8-97241-311-1	02	1	1410-	●
505	COLLAR; 3RD & REV THA	8-97253-119-2	02	1	1410-	●
515	HUB; CLU,1ST & REV,2ND & 3RD THA	8-97239-155-2	01	1	1410-	●
516	SPRING; SYNCHRO,INDEX THA	8-97305-803-1	09	1	1410-	●
516	SPRING; SYNCHRO,INDEX THA	8-98032-197-0	09	1	1410-		●
517	BALL; SYNCHRO,INDEX THA	8-97252-935-0	09	1	1410-	●	●
518	SHAFT; MAIN,5TH & 6TH SPEED Z=26-42-23 THA	8-97253-115-3	01	1	1410-	●

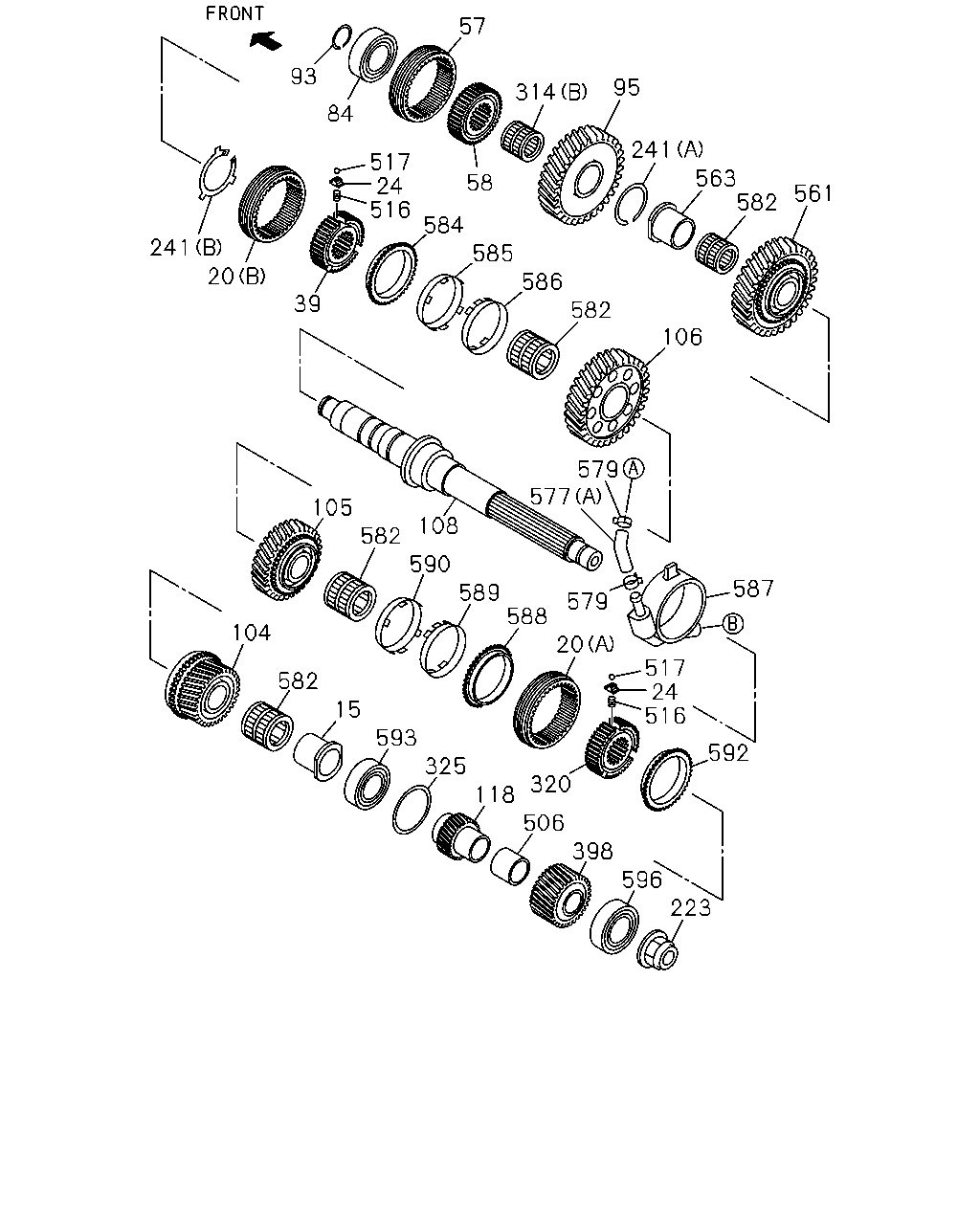

93 84 57 314 95 241 563 582 561 241 20 517 24 516 58 39 584 585 586 582 106 579 577 108 582 105 590 589 588 579 20 587 517 24 516 104 582 15 593 325 118 320 592 506 398 596 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	COLLAR; 4TH GEAR THA	8-98146-345-0	01	1	1410-		●
20	SLEEVE (B) Z=54 THA	8-97241-295-2	01	1	1410-	●
20	SLEEVE (A) Z=45 THA	8-98258-279-0	02	1	1410-	●	●
20	SLEEVE (B) Z=45 THA	8-98034-769-0	01	1	1410-		●
24	BLOCK; INDEX,SYN THA	8-97241-313-1	09	1	1410-	●	●
39	HUB; CLU,LOW & 2ND Z=45 THA	8-98075-732-0	01	1	1410-		●
57	SLEEVE; REV Z=45 THA	8-94421-871-1	01	1	1410-		●
58	HUB; CLU,REV Z=45-27 THA	8-98005-296-0	01	1	1410-		●
84	BEARING; COUNTER SHAFT,FRT THA	8-97377-957-0	01	1	1410-		●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=1.9 THA	8-97254-735-0	01	1	1410-	●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.1 THA	8-97254-738-0	01	1	1410-	●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.3 THA	8-97254-741-0	01	1	1410-	●
93	RING; SNAP,COUNTER FRT BRG THA	8-97377-958-0	01	1	1410-		●
95	GEAR; REV,COUNTER Z=44 THA	8-98005-229-0	01	1	1410-		●
104	GEAR; 4TH,COUNTER Z=29 THA	8-98198-297-0	01	1	1410-		●
105	GEAR; 3RD,COUNTER Z=35 THA	8-98168-501-0	01	1	1410-		●
106	GEAR; 2ND,COUNTER Z=44 THA	8-98140-884-0	01	1	1410-		●
108	SHAFT; COUNTER Z=46-37-27-21 THA	8-98249-483-0	01	1	1410-	●
108	SHAFT; COUNTER Z=27-42-26 THA	8-98223-607-0	01	1	1410-		●
118	GEAR; 6TH,COUNTER Z=46 THA	8-97241-245-0	01	1	1410-	●
118	GEAR; 6TH,COUNTER Z=17 THA	8-98005-292-1	01	1	1410-		●
223	NUT; COUNTER SHAFT END M34 FLANGE THA	8-98005-894-0	01	1	1410-		●
241	RING; SNAP (A) ID=46.5 T=1.8 THA	8-97254-743-0	01	1	1410-		●
241	RING; SNAP (B) ID=96 T=2.5 THA	8-98009-391-0	01	1	1410-		●
314	BEARING; NEEDLE,REV GEAR (C) NSK THA	8-97253-114-0	01	1	1410-	●
314	BEARING; NEEDLE,REV GEAR (A) KOYO THA	1-09811-017-0	02	1	1410-		●
314	BEARING; NEEDLE,REV GEAR (B) NSK THA	8-97253-111-0	01	1	1410-		●
320	HUB; CLU,4TH & 3RD THA	8-98075-733-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.38 THA	8-97252-656-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.44 THA	8-97252-657-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.50 THA	8-97252-658-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.56 THA	8-97252-659-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.62 THA	8-97252-660-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.68 THA	8-97252-661-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.74 THA	8-97252-662-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.80 THA	8-97252-663-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.86 THA	8-97252-664-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.92 THA	8-97252-665-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.98 THA	8-97257-621-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.20 THA	8-97306-185-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.26 THA	8-97306-186-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.32 THA	8-97306-187-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG T=1.56 THA	8-97377-994-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG T=1.62 THA	8-97377-995-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG T=1.68 THA	8-97377-996-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG T=1.74 THA	8-97377-997-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG T=1.80 THA	8-97377-998-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG T=1.26 THA	8-98009-373-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG T=1.32 THA	8-98009-374-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG T=1.38 THA	8-98009-375-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG T=1.44 THA	8-98009-376-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG T=1.50 THA	8-98009-377-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG T=1.14 THA	8-98022-218-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG T=1.20 THA	8-98022-219-0	01	1	1410-		●
398	GEAR; COUNTER Z=22 THA	8-97380-568-0	01	1	1410-		●
506	COLLAR; 6TH,COUNTER THA	8-97253-120-1	01	1	1410-	●
506	COLLAR; 6TH,COUNTER THA	8-97377-965-0	01	1	1410-		●
516	SPRING; SYNCHRO,INDEX THA	8-97305-803-1	09	1	1410-	●
516	SPRING; SYNCHRO,INDEX THA	8-98032-197-0	09	1	1410-		●
517	BALL; SYNCHRO,INDEX THA	8-97252-935-0	09	1	1410-	●	●
561	GEAR; LOW,COUNTER Z=44 THA	8-98000-330-0	01	1	1410-		●
563	COLLAR; 1ST GEAR THA	8-98146-345-0	01	1	1410-		●
577	HOSE; OIL PUMP (A) THA	8-98033-981-0	02	1	1410-		●
577	HOSE; OIL PUMP (B) THA	8-98033-982-0	02	1	1410-		●
579	CLAMP; HOSE ID=16 THA	8-97329-628-0	07	1	1410-		●
582	BEARING; NEEDLE,COUNTER GEAR THA	8-97253-110-0	04	1	1410-		●
584	RING; BLOCK,2ND Z=45 THA	8-98034-770-0	01	1	1410-		●
585	RING; OUTSIDE,2ND THA	8-97241-309-1	01	1	1410-		●
586	RING; INSIDE,2ND THA	8-97241-312-1	01	1	1410-		●
587	CASE; PUMP,COUNTER THA	8-98212-196-0	01	1	1410-		●
588	RING; BLOCK,3RD Z=45 THA	8-97241-306-1	01	1	1410-		●
589	RING; OUTSIDE,3RD THA	8-97241-309-1	01	1	1410-		●
590	RING; INSIDE,3RD THA	8-97241-312-1	01	1	1410-		●
592	RING; BLOCK,4TH Z=45 THA	8-97241-306-1	01	1	1410-		●
593	BEARING; COUNTER MIDDLE THA	8-97377-976-0	01	1	1410-		●
596	BEARING; ROOLER,COUNTER END THA	8-97377-968-0	01	1	1410-		●

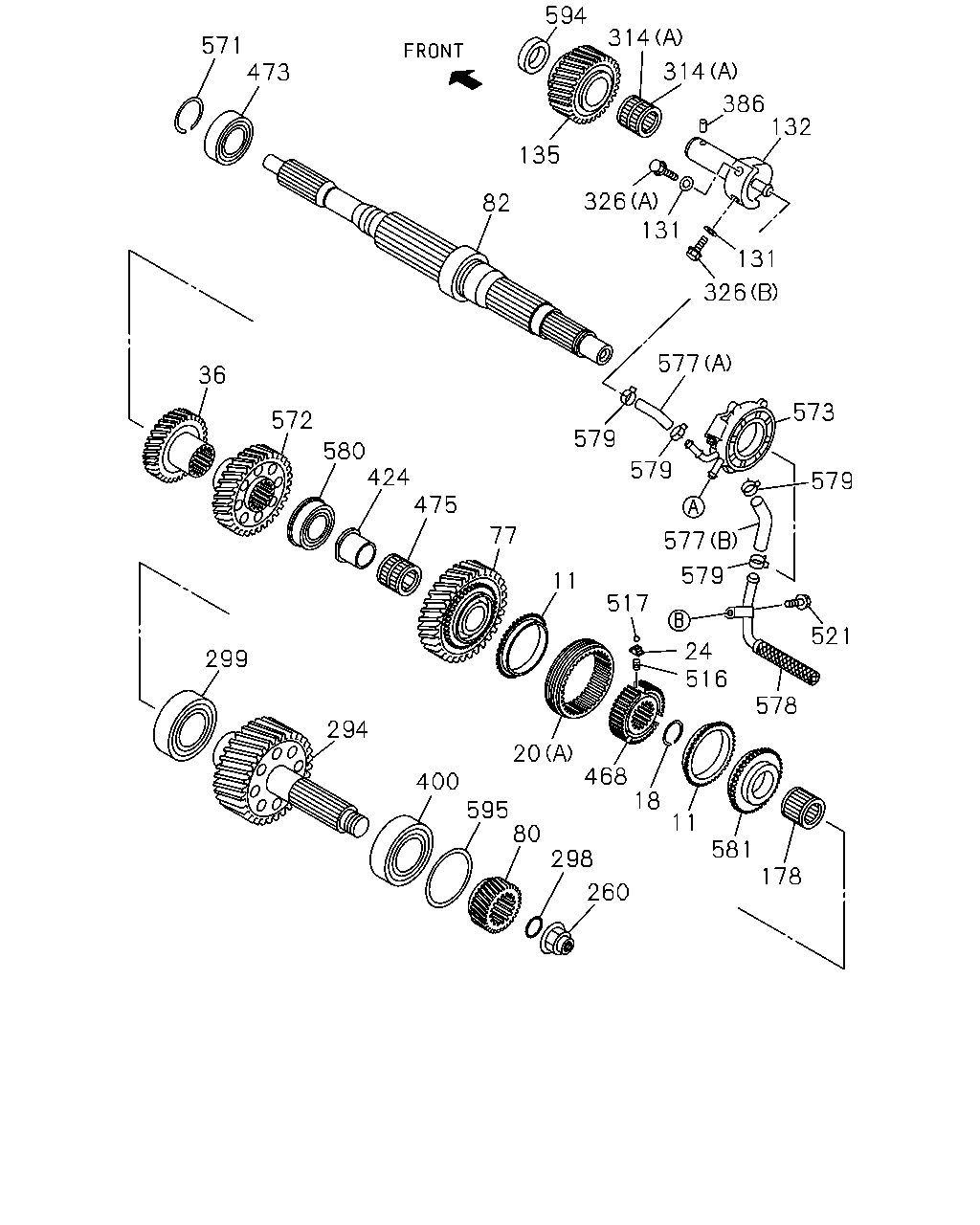

594 314 326 135 132 386 473 571 36 572 424 580 475 11 517 24 516 578 579 577 579 579 577 573 579 326 131 131 314 82 77 521 178 581 11 18 468 20 595 400 294 299 80 298 260

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	RING; BLOCK,5TH & 6TH Z=45 THA	8-97241-306-1	02	1	1410-		●
18	RING; SNAP,CLU HUB ID=35.7 T=1.8 THA	8-97256-855-0	01	1	1410-	●	●
20	SLEEVE (B) Z=54 THA	8-97241-295-2	01	1	1410-	●
20	SLEEVE (A) Z=45 THA	8-98258-279-0	02	1	1410-	●	●
20	SLEEVE (B) Z=45 THA	8-98034-769-0	01	1	1410-		●
24	BLOCK; INDEX,SYN THA	8-97241-313-1	09	1	1410-	●	●
36	GEAR; 3RD,MAINSHAFT Z=35 THA	8-98168-524-0	01	1	1410-	●
36	GEAR; 3RD,MAINSHAFT Z=29 THA	8-98168-499-0	01	1	1410-		●
77	GEAR; 6TH,MAINSHAFT Z=18 THA	8-97241-264-0	01	1	1410-	●
77	GEAR; 6TH,MAINSHAFT Z=46 THA	8-98137-256-0	01	1	1410-		●
80	GEAR; SPD DRIVE Z=4 THA	8-97253-555-0	01	1	1410-	●
80	GEAR; SPD DRIVE Z=5 THA	8-97377-978-0	01	1	1410-		●
82	SHAFT; MAIN,TRANS Z=13-21-19-26 THA	8-98245-057-0	01	1	1410-		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	1410-		●
132	SHAFT; REV THA	8-97252-655-0	01	1	1410-	●
132	SHAFT; REV THA	8-98009-372-0	01	1	1410-		●
135	GEAR; REV IDLER Z=26 THA	8-97241-292-2	01	1	1410-	●
135	GEAR; REV IDLER Z=27 THA	8-98005-601-1	01	1	1410-		●
178	BEARING; NEEDLE,MAINSHAFT THA	8-97253-099-1	01	1	1410-		●
260	NUT; MAINSHAFT END M27 H=25 THA	8-97360-410-0	01	1	1410-	●
260	NUT; MAINSHAFT END M36 FLANGE THA	8-98014-140-0	01	1	1410-		●
294	SHAFT; OUTPUT Z=43 THA	8-97380-571-0	01	1	1410-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5 THA	1-09623-379-0	01	1	1410-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5 THA	1-09623-380-0	01	1	1410-		●
299	BEARING; OUTPUT SHAFT FRT THA	8-97377-970-0	01	1	1410-		●
314	BEARING; NEEDLE,REV GEAR (C) NSK THA	8-97253-114-0	01	1	1410-	●
314	BEARING; NEEDLE,REV GEAR (A) KOYO THA	1-09811-017-0	02	1	1410-		●
314	BEARING; NEEDLE,REV GEAR (B) NSK THA	8-97253-111-0	01	1	1410-		●
326	BOLT; REV SHAFT (A) M10X50 FLANGE THA	0-29261-050-0	01	1	1410-		●
326	BOLT; REV SHAFT (B) M10X50 THA	8-98014-738-0	01	1	1410-		●
386	PIN; REV SHAFT THA	9-08150-408-0	01	1	1410-		●
400	BEARING; OUTPUT SHAFT RR THA	8-97377-977-0	01	1	1410-		●
424	COLLAR; 6TH GEAR THA	8-98125-318-0	01	1	1410-		●
468	HUB; CLU,5TH & 6TH THA	8-98075-734-0	01	1	1410-		●
473	BEARING; INPUT SHAFT THA	8-97377-950-0	01	1	1410-		●
475	BEARING; 6TH COLLAR OD=-49.999 THA	8-98101-505-0	01	1	1410-		●
475	BEARING; 6TH COLLAR OD=50.000- THA	8-98142-265-0	01	1	1410-		●
516	SPRING; SYNCHRO,INDEX THA	8-97305-803-1	09	1	1410-	●
516	SPRING; SYNCHRO,INDEX THA	8-98032-197-0	09	1	1410-		●
517	BALL; SYNCHRO,INDEX THA	8-97252-935-0	09	1	1410-	●	●
521	BOLT M8X12 FLANGE THA	0-28050-812-0	01	1	1410-		●
571	RING; SNAP,BRG THA	8-97377-951-0	01	1	1410-		●
572	GEAR; 4TH,INPUT Z=37 THA	8-98168-500-0	01	1	1410-		●
573	PUMP ASM; OIL THA	8-98212-241-0	01	1	1410-		●
577	HOSE; OIL PUMP (A) THA	8-98033-981-0	02	1	1410-		●
577	HOSE; OIL PUMP (B) THA	8-98033-982-0	02	1	1410-		●
578	SCREEN; OIL PUMP THA	8-98009-345-0	02	1	1410-		●
579	CLAMP; HOSE ID=16 THA	8-97329-628-0	07	1	1410-		●
580	BEARING; MAINSHAFT RR THA	8-97377-953-0	01	1	1410-		●
581	CLUTCH; DOG,5TH GEAR THA	8-97377-956-0	01	1	1410-		●
594	WASHER; THRUST,REV IDLE THA	8-98005-633-0	01	1	1410-		●
595	SHIM; OUTPUT SHAFT T=1.44 THA	8-97377-984-0	01	1	1410-		●
595	SHIM; OUTPUT SHAFT T=1.50 THA	8-97377-985-0	01	1	1410-		●
595	SHIM; OUTPUT SHAFT T=1.56 THA	8-97377-986-0	01	1	1410-		●
595	SHIM; OUTPUT SHAFT T=1.62 THA	8-97377-987-0	01	1	1410-		●
595	SHIM; OUTPUT SHAFT T=1.68 THA	8-97377-988-0	01	1	1410-		●
595	SHIM; OUTPUT SHAFT T=1.74 THA	8-97377-989-0	01	1	1410-		●
595	SHIM; OUTPUT SHAFT T=1.80 THA	8-97377-990-0	01	1	1410-		●
595	SHIM; OUTPUT SHAFT T=1.86 THA	8-97377-991-0	01	1	1410-		●
595	SHIM; OUTPUT SHAFT T=1.38 THA	8-98009-379-0	01	1	1410-		●
595	SHIM; OUTPUT SHAFT T=1.26 THA	8-98022-221-0	01	1	1410-		●
595	SHIM; OUTPUT SHAFT T=1.32 THA	8-98022-222-0	01	1	1410-		●

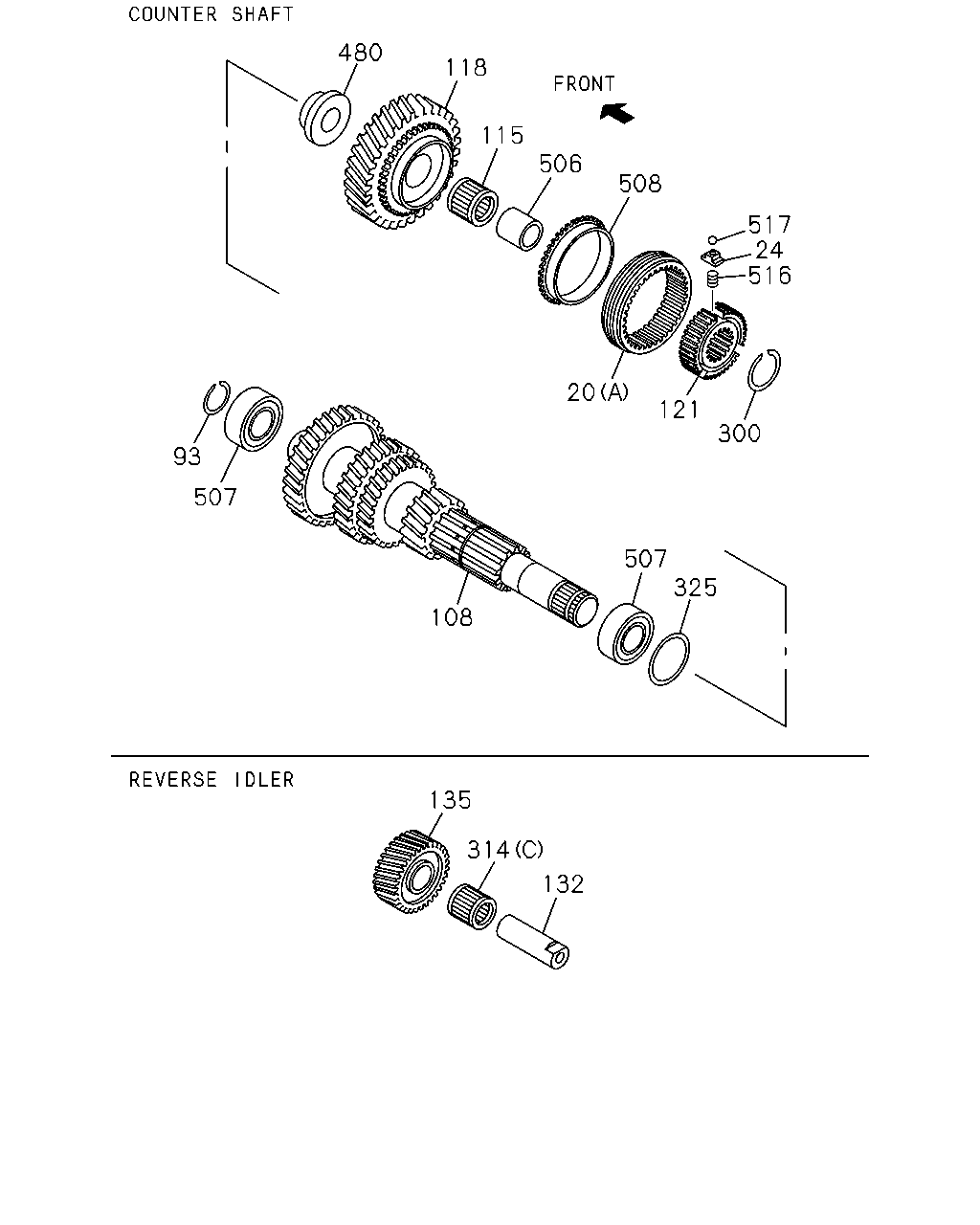

132 314 135 108 325 507 300 121 20 507 93 516 517 24 508 506 115 118 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	SLEEVE (B) Z=54 THA	8-97241-295-2	01	1	1410-	●
20	SLEEVE (A) Z=45 THA	8-98258-279-0	02	1	1410-	●	●
20	SLEEVE (B) Z=45 THA	8-98034-769-0	01	1	1410-		●
24	BLOCK; INDEX,SYN THA	8-97241-313-1	09	1	1410-	●	●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=1.9 THA	8-97254-735-0	01	1	1410-	●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.1 THA	8-97254-738-0	01	1	1410-	●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.3 THA	8-97254-741-0	01	1	1410-	●
93	RING; SNAP,COUNTER FRT BRG THA	8-97377-958-0	01	1	1410-		●
108	SHAFT; COUNTER Z=46-37-27-21 THA	8-98249-483-0	01	1	1410-	●
108	SHAFT; COUNTER Z=27-42-26 THA	8-98223-607-0	01	1	1410-		●
115	BEARING; NEEDLE,6TH,COUNTER THA	8-97253-113-0	01	1	1410-	●
118	GEAR; 6TH,COUNTER Z=46 THA	8-97241-245-0	01	1	1410-	●
118	GEAR; 6TH,COUNTER Z=17 THA	8-98005-292-1	01	1	1410-		●
121	HUB; CLU,6TH THA	8-97241-301-2	01	1	1410-	●
132	SHAFT; REV THA	8-97252-655-0	01	1	1410-	●
132	SHAFT; REV THA	8-98009-372-0	01	1	1410-		●
135	GEAR; REV IDLER Z=26 THA	8-97241-292-2	01	1	1410-	●
135	GEAR; REV IDLER Z=27 THA	8-98005-601-1	01	1	1410-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.7 THA	8-97288-618-0	01	1	1410-	●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.8 THA	8-97288-619-0	01	1	1410-	●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.9 THA	8-97288-620-0	01	1	1410-	●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.6 THA	8-97365-616-0	01	1	1410-	●
314	BEARING; NEEDLE,REV GEAR (C) NSK THA	8-97253-114-0	01	1	1410-	●
314	BEARING; NEEDLE,REV GEAR (A) KOYO THA	1-09811-017-0	02	1	1410-		●
314	BEARING; NEEDLE,REV GEAR (B) NSK THA	8-97253-111-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.38 THA	8-97252-656-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.44 THA	8-97252-657-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.50 THA	8-97252-658-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.56 THA	8-97252-659-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.62 THA	8-97252-660-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.68 THA	8-97252-661-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.74 THA	8-97252-662-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.80 THA	8-97252-663-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.86 THA	8-97252-664-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.92 THA	8-97252-665-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.98 THA	8-97257-621-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.20 THA	8-97306-185-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.26 THA	8-97306-186-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.32 THA	8-97306-187-0	01	1	1410-	●
325	SHIM; COUNTER SHAFT BRG T=1.56 THA	8-97377-994-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG T=1.62 THA	8-97377-995-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG T=1.68 THA	8-97377-996-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG T=1.74 THA	8-97377-997-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG T=1.80 THA	8-97377-998-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG T=1.26 THA	8-98009-373-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG T=1.32 THA	8-98009-374-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG T=1.38 THA	8-98009-375-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG T=1.44 THA	8-98009-376-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG T=1.50 THA	8-98009-377-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG T=1.14 THA	8-98022-218-0	01	1	1410-		●
325	SHIM; COUNTER SHAFT BRG T=1.20 THA	8-98022-219-0	01	1	1410-		●
480	WASHER; THRUST,6TH THA	8-97253-122-1	01	1	1410-	●
506	COLLAR; 6TH,COUNTER THA	8-97253-120-1	01	1	1410-	●
506	COLLAR; 6TH,COUNTER THA	8-97377-965-0	01	1	1410-		●
507	BEARING; COUNTER SHAFT,FRT & RR THA	8-97253-106-0	02	1	1410-	●
508	RING; BLOCK,6TH Z=45 THA	8-97241-306-1	01	1	1410-	●
516	SPRING; SYNCHRO,INDEX THA	8-97305-803-1	09	1	1410-	●
516	SPRING; SYNCHRO,INDEX THA	8-98032-197-0	09	1	1410-		●
517	BALL; SYNCHRO,INDEX THA	8-97252-935-0	09	1	1410-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
