2-25 — SPEEDOMETER DRIVEN GEAR (#150093) — 28 parça

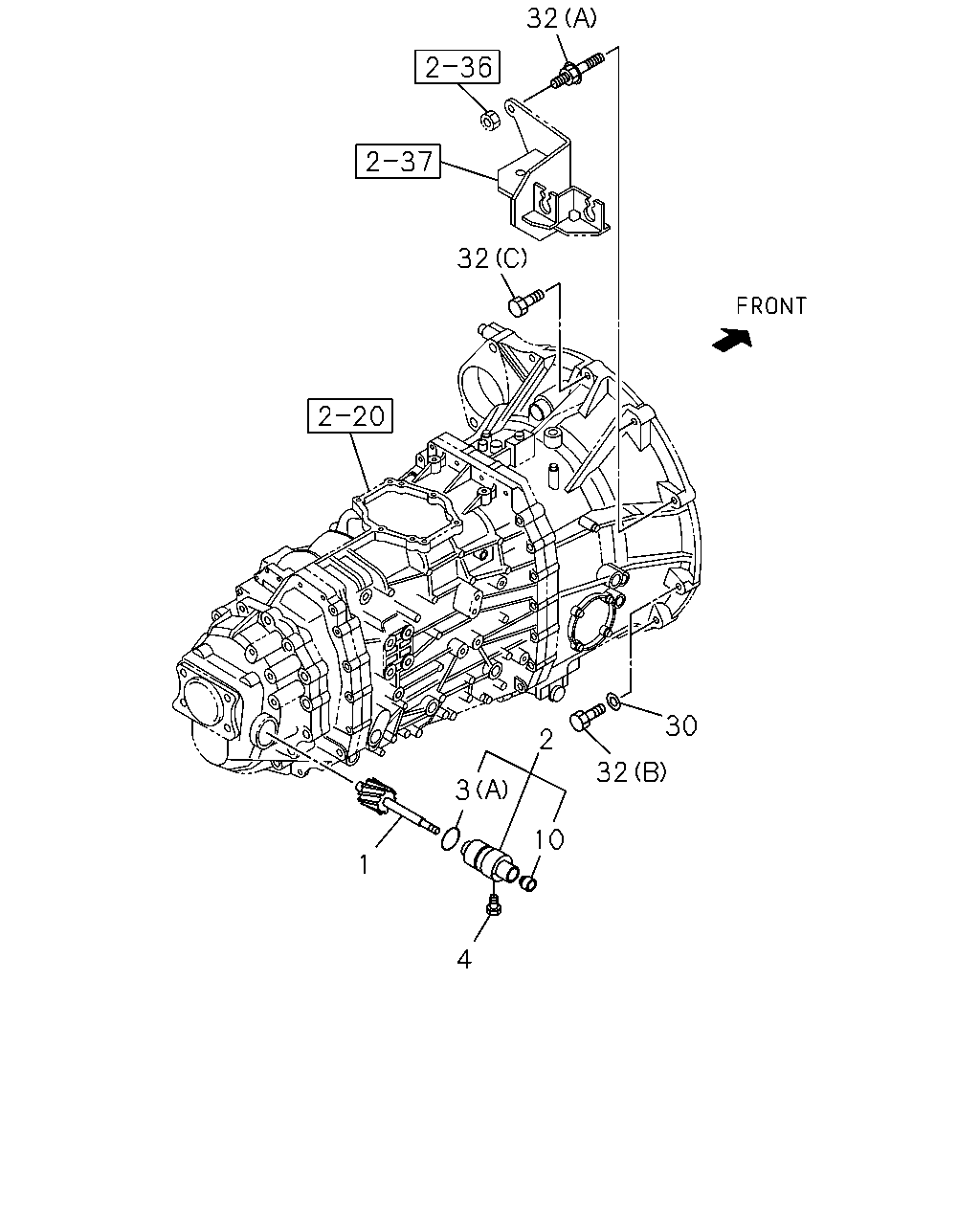

32 32 2 32 30 3 10 4 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GEAR; DRIVEN,SPD Z=12 THA	8-97253-563-1	01	1	1410-	●
1	GEAR; DRIVEN,SPD Z=15 THA	1-33372-133-5	01	1	1410-		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER MARK "12,13,14,15" THA	8-97253-125-0	01	1	1410-	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER THA	8-98000-271-0	01	1	1410-		●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). (B) NOK THA	8-97131-328-1	01	1	1410-	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). (C) THA	9-09561-324-0	01	1	1410-	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). (A) THA	1-09623-246-0	01	1	1410-		●
4	BOLT; RET,DRIVEN GEAR M8X20 FLANGE THA	0-28650-820-0	01	1	1410-	●
4	BOLT; RET,DRIVEN GEAR M6X12.5 FLANGE THA	8-98014-141-0	01	1	1410-		●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK THA	1-09625-510-0	01	1	1410-		●
30	WASHER; PL,TRANS ID=11 OD=24 THA	8-94152-902-0	02	1	1410-	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X20,M10X45 L=75 THA	8-98010-335-0	02	1	1410-	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X45 FLANGE THA	0-28151-045-0	06	1	1410-	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X55 FLANGE THA	8-97948-217-0	02	1	1410-	●	●

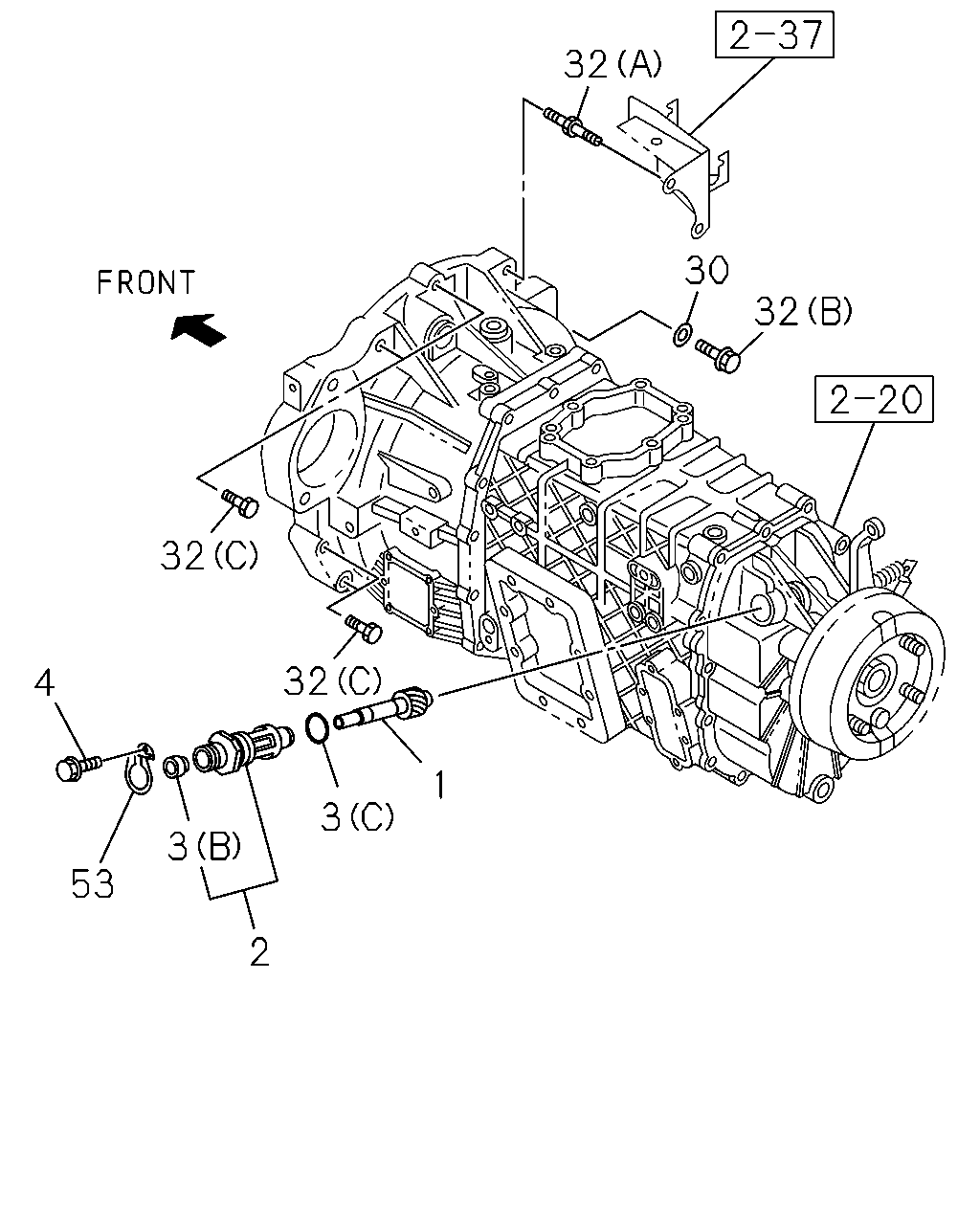

32 30 32 32 4 32 3 1 2 3 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GEAR; DRIVEN,SPD Z=12 THA	8-97253-563-1	01	1	1410-	●
1	GEAR; DRIVEN,SPD Z=15 THA	1-33372-133-5	01	1	1410-		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER MARK "12,13,14,15" THA	8-97253-125-0	01	1	1410-	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER THA	8-98000-271-0	01	1	1410-		●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). (B) NOK THA	8-97131-328-1	01	1	1410-	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). (C) THA	9-09561-324-0	01	1	1410-	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). (A) THA	1-09623-246-0	01	1	1410-		●
4	BOLT; RET,DRIVEN GEAR M8X20 FLANGE THA	0-28650-820-0	01	1	1410-	●
4	BOLT; RET,DRIVEN GEAR M6X12.5 FLANGE THA	8-98014-141-0	01	1	1410-		●
30	WASHER; PL,TRANS ID=11 OD=24 THA	8-94152-902-0	02	1	1410-	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X20,M10X45 L=75 THA	8-98010-335-0	02	1	1410-	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X45 FLANGE THA	0-28151-045-0	06	1	1410-	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X55 FLANGE THA	8-97948-217-0	02	1	1410-	●	●
53	PLATE; LOCK,DRIVEN GEAR THA	8-98046-217-0	01	1	1410-	●
