2-20 — MANUAL TRANSMISSION ASM AND CASE (#150092) — 87 parça

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

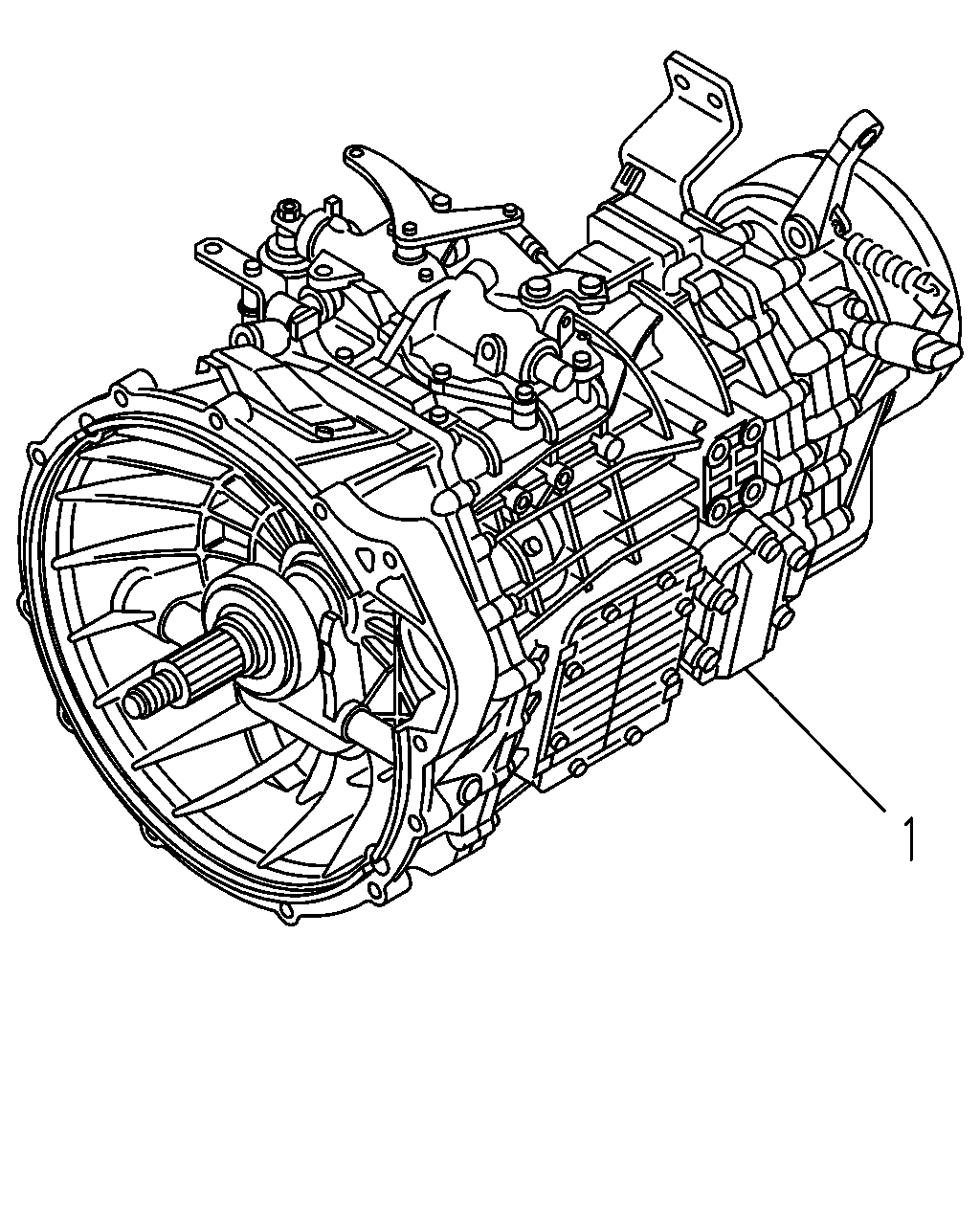

	1	TRANSMISSION ASM; MANUAL THA	8-98171-396-0	01	1	1410-	●

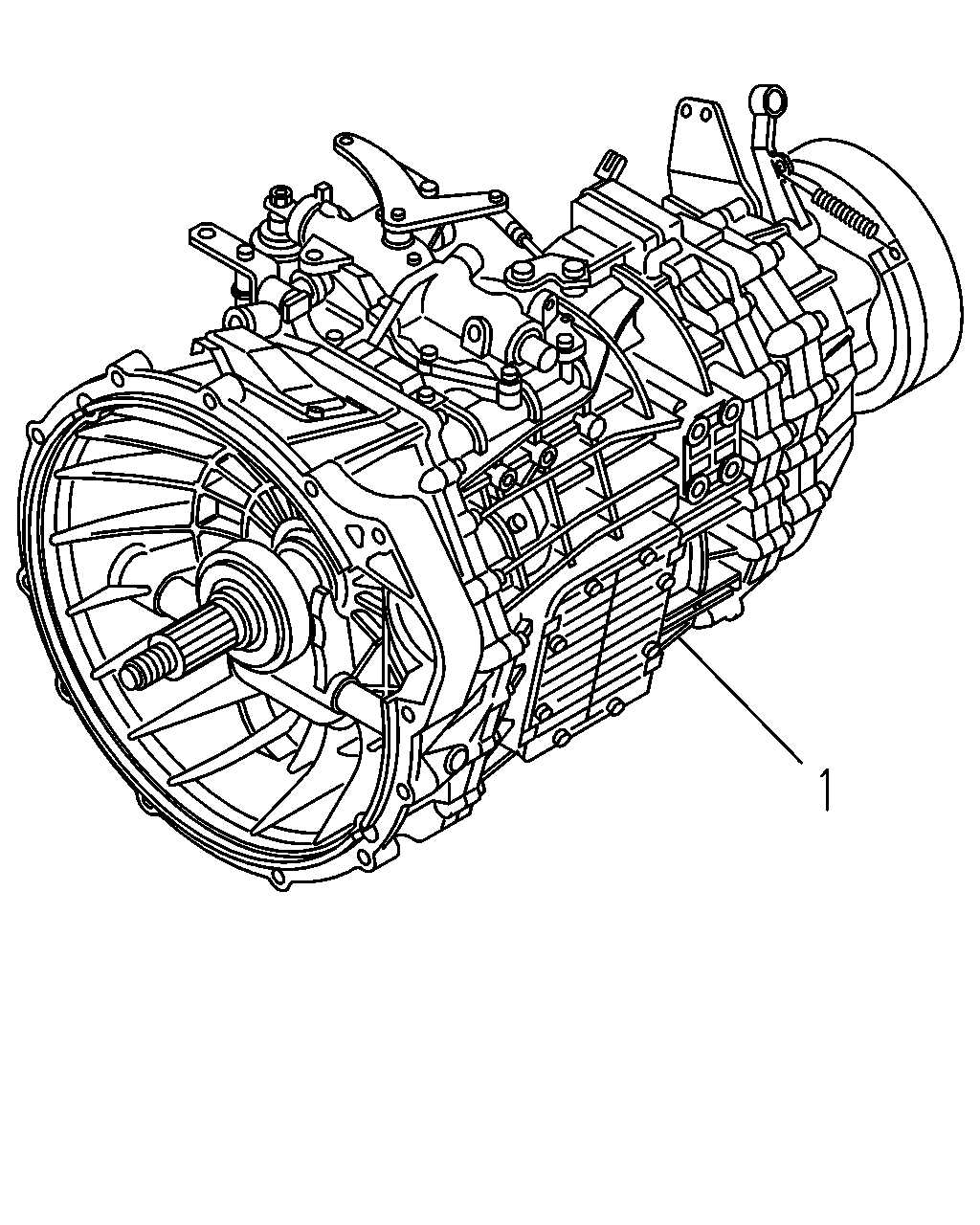

	1	TRANSMISSION ASM; MANUAL THA	8-98228-564-0	01	1	1410-		●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	1	TRANSMISSION ASM; MANUAL THA	8-98171-396-0	01	1	1410-	●
	1	TRANSMISSION ASM; MANUAL THA	8-98228-564-0	01	1	1410-		●

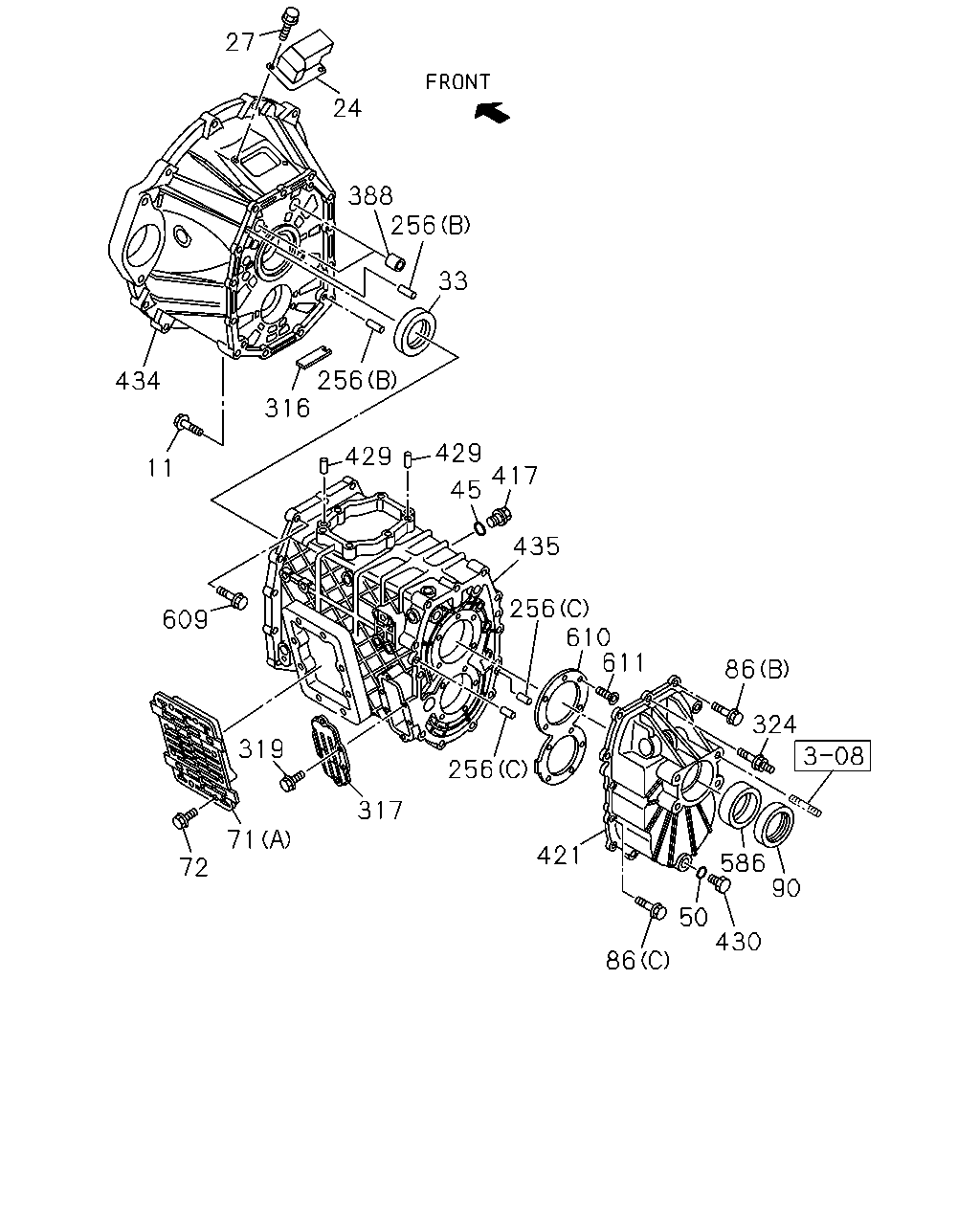

27 24 388 256 33 256 316 11 434 609 319 71 72 317 256 256 610 611 86 324 586 90 430 429 429 45 417 435 421 86 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BOLT; BRKT M12X25 FLANGE THA	0-28151-225-0	01	1	1410-	●	●
24	COVER; CHECK HOLE,DUST THA	1-31131-041-0	01	1	1410-	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE THA	0-28050-812-0	02	1	1410-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). THA	8-97253-550-0	01	1	1410-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). THA	8-97377-947-0	01	1	1410-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 THA	8-97115-712-0	01	1	1410-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 THA	8-97115-712-0	01	1	1410-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 THA	8-97115-712-0	02	1	1410-		●
71	COVER; SIDE,TRANS CASE (A) THA	8-97252-624-2	01	1	1410-	●
71	COVER; SIDE,TRANS CASE (B) THA	8-98270-265-0	01	1	1410-		●
72	BOLT; SIDE COVER M10X50 FLANGE THA	1-09044-081-0	08	1	1410-		●
72	BOLT; SIDE COVER M10X20 FLANGE THA	8-98014-142-0	08	1	1410-	●
86	BOLT; RR COVER (B) M10X40 FLANGE THA	0-28151-040-0	10	1	1410-	●
86	BOLT; RR COVER (C) M10X40 FLANGE THA	8-97365-377-0	02	1	1410-	●
86	BOLT; RR COVER (A) M10X40 FLANGE THA	8-98045-397-0	14	1	1410-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK THA	8-97253-551-1	01	1	1410-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK THA	8-97377-948-0	01	1	1410-		●
256	PIN; KNOCK (B) OD=10 L=20 THA	8-97135-423-0	02	1	1410-	●
256	PIN; KNOCK (A) ID=6 L=12 THA	9-08160-612-0	02	1	1410-	●
256	PIN; KNOCK (C) OD=6 L=12 THA	9-08150-612-0	02	1	1410-		●
316	MAGNET; TRANS CASE THA	8-94249-524-2	01	1	1410-	●	●
317	COVER; CASE THA	8-97252-626-0	01	1	1410-	●
319	BOLT; COVER M8X20 FLANGE THA	0-28050-820-0	06	1	1410-	●
324	STUD; RR COVER M10X15,M10X40 L=65 THA	8-97365-379-0	01	1	1410-	●
388	BUSHING; CLU HSG THA	8-97241-326-2	02	1	1410-	●
417	PLUG; OIL FILLER,TRANS M20X10.5 THA	8-98009-333-0	01	1	1410-	●	●
421	COVER; RR,TRANS THA	8-97238-934-5	01	1	1410-	●
421	COVER; RR,TRANS THA	8-98051-477-0	01	1	1410-		●
429	PIN; STRAIGHT OD=10 L=20 THA	8-97135-423-0	02	1	1410-	●
430	PLUG; OIL DRAIN THA	8-97365-374-0	01	1	1410-	●
430	PLUG; OIL DRAIN THA	8-97365-374-0	02	1	1410-		●
434	HOUSING; CLU THA	8-97382-931-1	01	1	1410-	●
434	HOUSING; CLU THA	8-98004-507-2	01	1	1410-		●
435	CASE; TRANS THA	8-97382-868-1	01	1	1410-	●
435	CASE; TRANS THA	8-98236-421-1	01	1	1410-		●
586	BEARING; NEEDLE THA	8-97253-108-0	01	1	1410-	●
609	BOLT; HSG TO CASE M10X40 FLANGE THA	0-28151-040-0	13	1	1410-	●
609	BOLT; HSG TO CASE M8X40 FLANGE THA	0-28050-840-0	22	1	1410-		●
610	RETAINER; BRG THA	8-97241-314-2	01	1	1410-	●
611	SCREW M10X27 TORQUES THA	8-97365-354-0	10	1	1410-	●

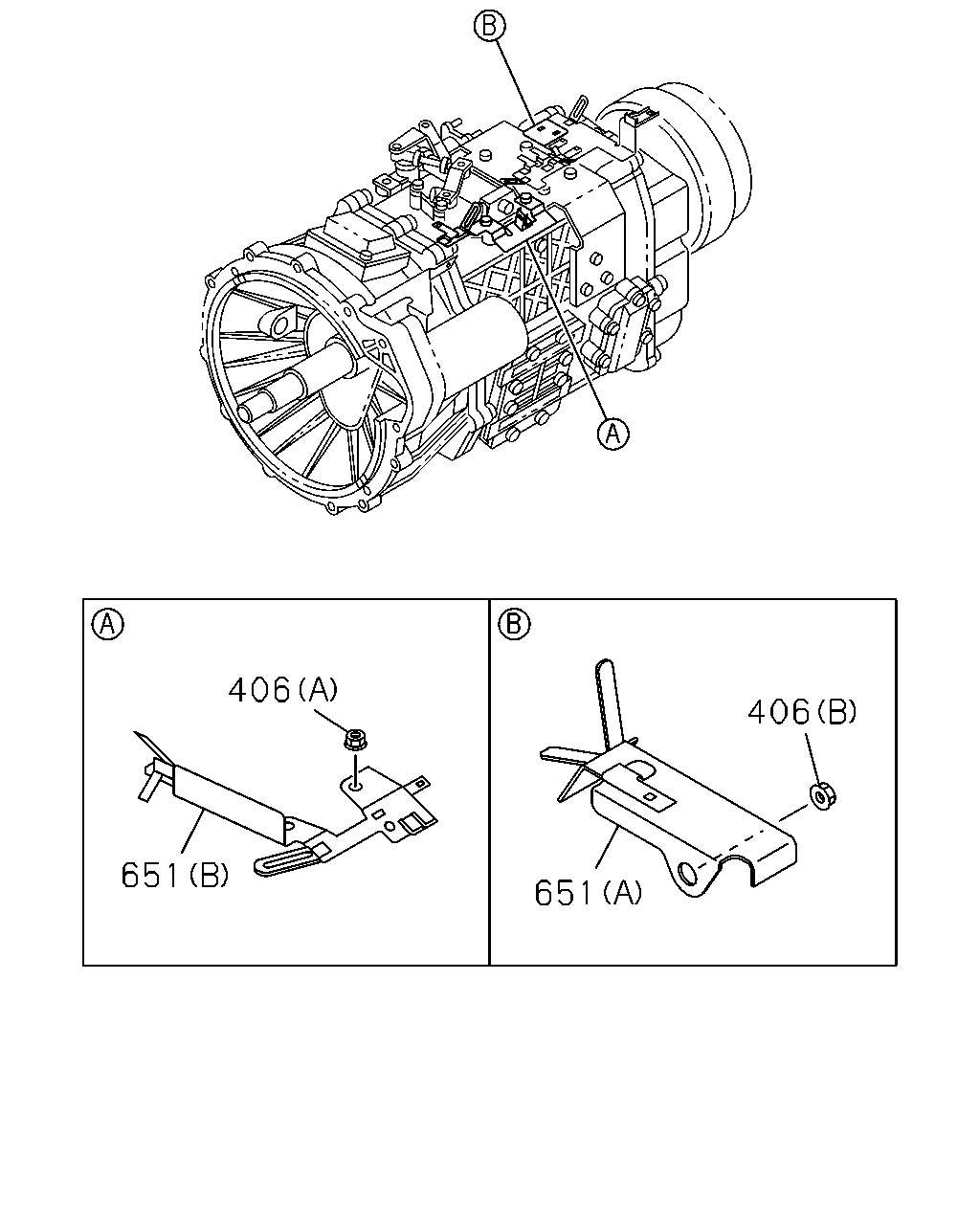

406 406 651 651

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
406	NUT; BRKT (B) M10 FLANGE THA	0-91180-210-0	01	1	1410-	●
406	NUT; BRKT (A) M8 FLANGE THA	0-91180-108-0	02	1	1410-	●	●
651	BRACKET; T/M HARNESS (A) THA	8-98044-568-1	01	1	1410-	●
651	BRACKET; T/M HARNESS (B) THA	8-97609-800-3	01	1	1410-	●	●

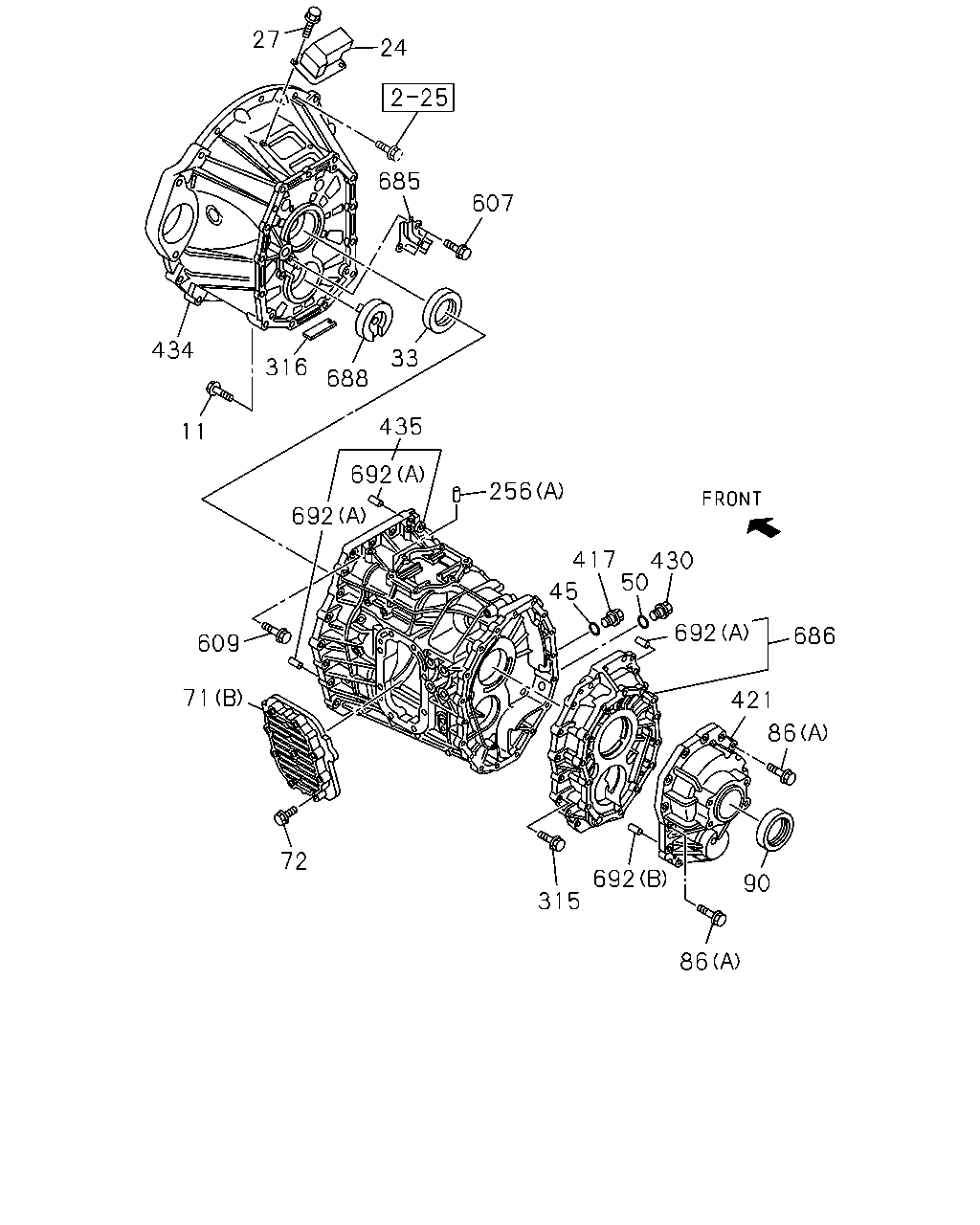

27 24 685 607 33 688 316 11 434 692 435 256 692 609 71 72 315 86 692 90 86 421 686 692 50 430 417 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BOLT; BRKT M12X25 FLANGE THA	0-28151-225-0	01	1	1410-	●	●
24	COVER; CHECK HOLE,DUST THA	1-31131-041-0	01	1	1410-	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE THA	0-28050-812-0	02	1	1410-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). THA	8-97253-550-0	01	1	1410-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). THA	8-97377-947-0	01	1	1410-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 THA	8-97115-712-0	01	1	1410-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 THA	8-97115-712-0	01	1	1410-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 THA	8-97115-712-0	02	1	1410-		●
71	COVER; SIDE,TRANS CASE (A) THA	8-97252-624-2	01	1	1410-	●
71	COVER; SIDE,TRANS CASE (B) THA	8-98270-265-0	01	1	1410-		●
72	BOLT; SIDE COVER M10X50 FLANGE THA	1-09044-081-0	08	1	1410-		●
72	BOLT; SIDE COVER M10X20 FLANGE THA	8-98014-142-0	08	1	1410-	●
86	BOLT; RR COVER (B) M10X40 FLANGE THA	0-28151-040-0	10	1	1410-	●
86	BOLT; RR COVER (C) M10X40 FLANGE THA	8-97365-377-0	02	1	1410-	●
86	BOLT; RR COVER (A) M10X40 FLANGE THA	8-98045-397-0	14	1	1410-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK THA	8-97253-551-1	01	1	1410-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK THA	8-97377-948-0	01	1	1410-		●
256	PIN; KNOCK (B) OD=10 L=20 THA	8-97135-423-0	02	1	1410-	●
256	PIN; KNOCK (A) ID=6 L=12 THA	9-08160-612-0	02	1	1410-	●
256	PIN; KNOCK (C) OD=6 L=12 THA	9-08150-612-0	02	1	1410-		●
315	BOLT; CASE M8X40 FLANGE THA	0-28050-840-0	18	1	1410-		●
316	MAGNET; TRANS CASE THA	8-94249-524-2	01	1	1410-	●	●
417	PLUG; OIL FILLER,TRANS M20X10.5 THA	8-98009-333-0	01	1	1410-	●	●
421	COVER; RR,TRANS THA	8-97238-934-5	01	1	1410-	●
421	COVER; RR,TRANS THA	8-98051-477-0	01	1	1410-		●
430	PLUG; OIL DRAIN THA	8-97365-374-0	01	1	1410-	●
430	PLUG; OIL DRAIN THA	8-97365-374-0	02	1	1410-		●
434	HOUSING; CLU THA	8-97382-931-1	01	1	1410-	●
434	HOUSING; CLU THA	8-98004-507-2	01	1	1410-		●
435	CASE; TRANS THA	8-97382-868-1	01	1	1410-	●
435	CASE; TRANS THA	8-98236-421-1	01	1	1410-		●
607	BOLT; COVER M8X16 FLANGE THA	0-28050-816-0	02	1	1410-		●
609	BOLT; HSG TO CASE M10X40 FLANGE THA	0-28151-040-0	13	1	1410-	●
609	BOLT; HSG TO CASE M8X40 FLANGE THA	0-28050-840-0	22	1	1410-		●
685	COVER; OIL PORT THA	8-98018-864-1	01	1	1410-		●
686	CASE; RR,TRANS THA	8-97388-873-1	01	1	1410-		●
688	NOZZLE; OIL,COUNTER THA	8-98202-402-0	01	1	1410-		●
692	PIN; DOWEL (A) OD=11 L=8 THA	9-11229-058-1	04	1	1410-		●
692	PIN; DOWEL (B) OD=14 L=10 THA	9-11319-065-3	02	1	1410-		●
