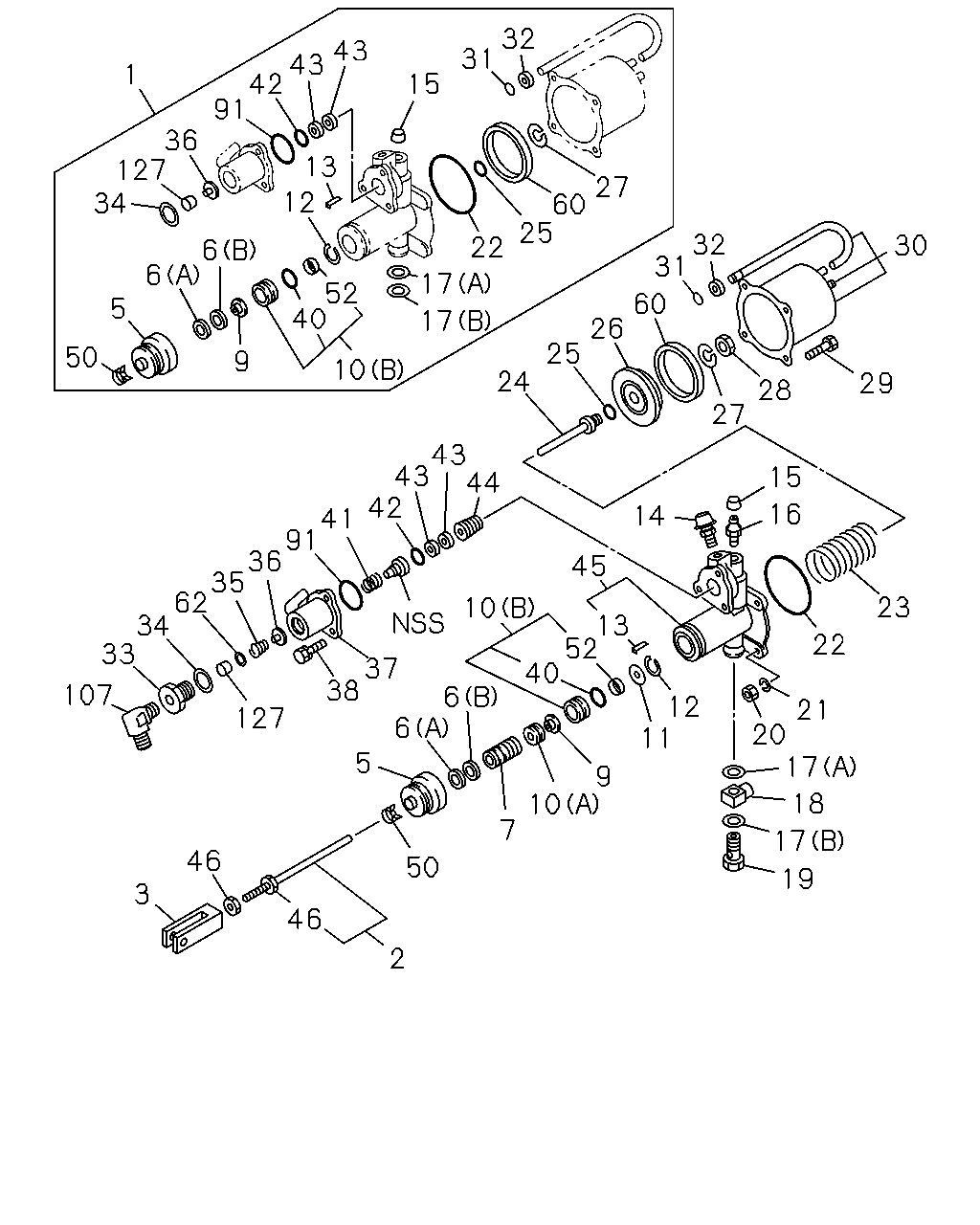

2-07 — CLUTCH BOOSTER; MINIPACK (#150089) — 64 parça

1 34 127 36 91 42 43 43 50 5 6 6 9 12 13 15 31 32 40 52 10 17 17 22 25 60 27 107 33 34 62 35 36 91 41 42 43 43 44 24 25 26 60 31 32 30 29 28 27 14 15 16 23 22 21 20 17 18 17 19 45 13 12 11 9 52 10 40 6 6 7 10 37 38 127 5 50 2 46 46 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	REPAIR KIT; CLU BOOSTER THA	1-31829-605-0	01	1	1410-	●
1	REPAIR KIT; CLU BOOSTER THA	1-31829-602-0	01	1	1410-		●
2	ROD; PUSH,CLU BOOSTER THA	1-31824-251-0	01	1	1410-	●
2	ROD; PUSH,CLU BOOSTER THA	1-31824-240-0	01	1	1410-		●
3	CLEVIS; PUSH ROD,CLU BOOSTER THA	1-31829-186-1	01	1	1410-	●	●
5	GUARD; PISTON,CLU BOOSTER THA	1-31829-503-0	01	1	1410-	●	●
6	GASKET; PISTON CUP,CLU BOOSTER (B) THA	1-31829-032-0	01	1	1410-	●
6	GASKET; PISTON CUP,CLU BOOSTER (A) THA	1-31829-033-0	01	1	1410-	●
6	GASKET; PISTON CUP,CLU BOOSTER (B) THA	1-31829-498-0	01	1	1410-		●
6	GASKET; PISTON CUP,CLU BOOSTER (A) THA	1-31829-499-0	01	1	1410-		●
7	PISTON; CLU BOOSTER THA	1-31821-064-0	01	1	1410-	●
7	PISTON; CLU BOOSTER THA	1-31821-047-0	01	1	1410-		●
9	GASKET; PISTON CUP,CLU BOOSTER THA	1-31829-003-0	01	1	1410-	●	●
10	RETAINER; PISTON,CLU BOOSTER (B) THA	1-31829-107-0	01	1	1410-	●	●
10	RETAINER; PISTON,CLU BOOSTER (A) THA	1-31829-108-0	01	1	1410-	●	●
11	WASHER; PISTON,CLU BOOSTER THA	1-31829-105-0	01	1	1410-	●	●
12	RING; RET,CLU BOOSTER THA	9-83315-315-0	01	1	1410-	●	●
13	PIN; SPR THA	1-31829-109-0	01	1	1410-	●	●
14	COVER; EXH,CLU BOOSTER THA	1-31829-564-0	01	1	1410-	●	●
15	PROTECTOR; END PLATE,CLU BOOSTER THA	9-83335-044-0	01	1	1410-	●	●
16	PLUG; END PLATE,CLU BOOSTER THA	9-83331-704-0	01	1	1410-	●	●
17	GASKET; CONN,CLU BOOSTER (A) THA	9-09920-267-0	01	1	1410-	●	●
17	GASKET; CONN,CLU BOOSTER (B) THA	9-09920-268-0	01	1	1410-	●	●
18	CONNECTOR; END PLATE,CLU BOOSTER THA	1-31829-248-0	01	1	1410-	●	●
19	BOLT; EYE,END PLATE,CLU BOOSTER THA	9-83315-047-0	01	1	1410-	●	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER THA	9-83315-085-0	04	1	1410-	●	●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=8.2 THA	9-09150-508-0	04	1	1410-	●	●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER THA	1-09623-327-0	01	1	1410-	●	●
23	SPRING; SHELL,CLU BOOSTER THA	1-31829-358-0	01	1	1410-	●	●
24	ROD; PUSH,CLU BOOSTER THA	1-31829-112-0	01	1	1410-	●	●
25	GASKET; PUSH ROD,CLU BOOSTER THA	1-09623-321-0	01	1	1410-	●	●
26	PISTON; SHELL,CLU BOOSTER THA	1-31821-083-0	01	1	1410-	●	●
27	SPRING; CLU BOOSTER THA	1-31829-111-0	01	1	1410-	●	●
28	NUT; PUSH ROD,CLU BOOSTER THA	9-88510-365-0	01	1	1410-	●	●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER THA	1-31829-015-0	04	1	1410-	●	●
30	SHELL; CYL,CLU BOOSTER THA	1-31811-123-0	01	1	1410-	●	●
31	GASKET; SHELL,CLU BOOSTER THA	1-31829-113-0	01	1	1410-	●	●
32	BUSHING; SHELL,CLU BOOSTER THA	1-31829-114-0	01	1	1410-	●	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER THA	1-31829-212-0	01	1	1410-	●	●
34	GASKET; CONN,CLU BOOSTER THA	1-31829-053-0	01	1	1410-	●	●
35	SPRING; POPPET VLV,CLU BOOSTER THA	1-31829-537-0	01	1	1410-	●	●
36	VALVE; POPPET,CLU BOOSTER THA	1-31829-536-0	01	1	1410-	●	●
37	BODY; UPR,VLV,CLU BOOSTER THA	1-31811-146-0	01	1	1410-	●	●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE THA	9-83315-113-0	03	1	1410-	●	●
40	GASKET; PISTON,CLU BOOSTER THA	1-31829-037-0	01	1	1409-	●	●
41	SPRING; DIAPH,CLU BOOSTER THA	1-31829-420-0	01	1	1410-	●
41	SPRING; DIAPH,CLU BOOSTER THA	1-31829-545-0	01	1	1410-		●
42	GASKET; FITTING,CLU BOOSTER THA	1-31829-143-0	01	1	1410-	●
42	GASKET; FITTING,CLU BOOSTER THA	1-31829-507-0	01	1	1410-		●
43	GASKET; UPR VLV,CLU BOOSTER THA	1-31829-060-0	02	1	1410-	●	●
44	PISTON; UPR VLV,CLU BOOSTER THA	1-31821-087-0	01	1	1410-	●
44	PISTON; UPR VLV,CLU BOOSTER THA	1-31821-051-0	01	1	1410-		●
45	PLATE; END,CLU BOOSTER THA	1-31811-144-0	01	1	1410-	●
45	PLATE; END,CLU BOOSTER THA	1-31811-142-0	01	1	1410-		●
46	NUT; PUSH ROD,CLU BOOSTER THA	1-31824-126-0	02	1	1410-	●
46	NUT; PUSH ROD,CLU BOOSTER M10 THA	9-09111-410-0	02	1	1410-		●
50	CLAMP; PISTON GUARD,CLU BOOSTER THA	1-31829-599-0	01	1	1410-	●
50	CLAMP; PISTON GUARD,CLU BOOSTER THA	1-31829-504-0	01	1	1410-		●
52	SEAL; OIL,END PLATE,CLU BOOSTER THA	9-83315-118-0	01	1	1410-	●	●
60	GASKET; SHELL,CLU BOOSTER THA	1-31829-535-0	01	1	1410-	●	●
62	RETAINER; POPPET THA	1-31829-489-0	01	1	1410-	●	●
91	GASKET; CLU BOOSTER THA	1-31829-103-0	01	1	1410-	●	●
107	CONNECTOR; ELBOW THA	1-09650-358-1	01	1	1410-	●	●
127	FILTER; POPPET THA	1-31829-495-0	01	1	1410-	●	●
