2-05 — CLUTCH PIPING (#150088) — 31 parça

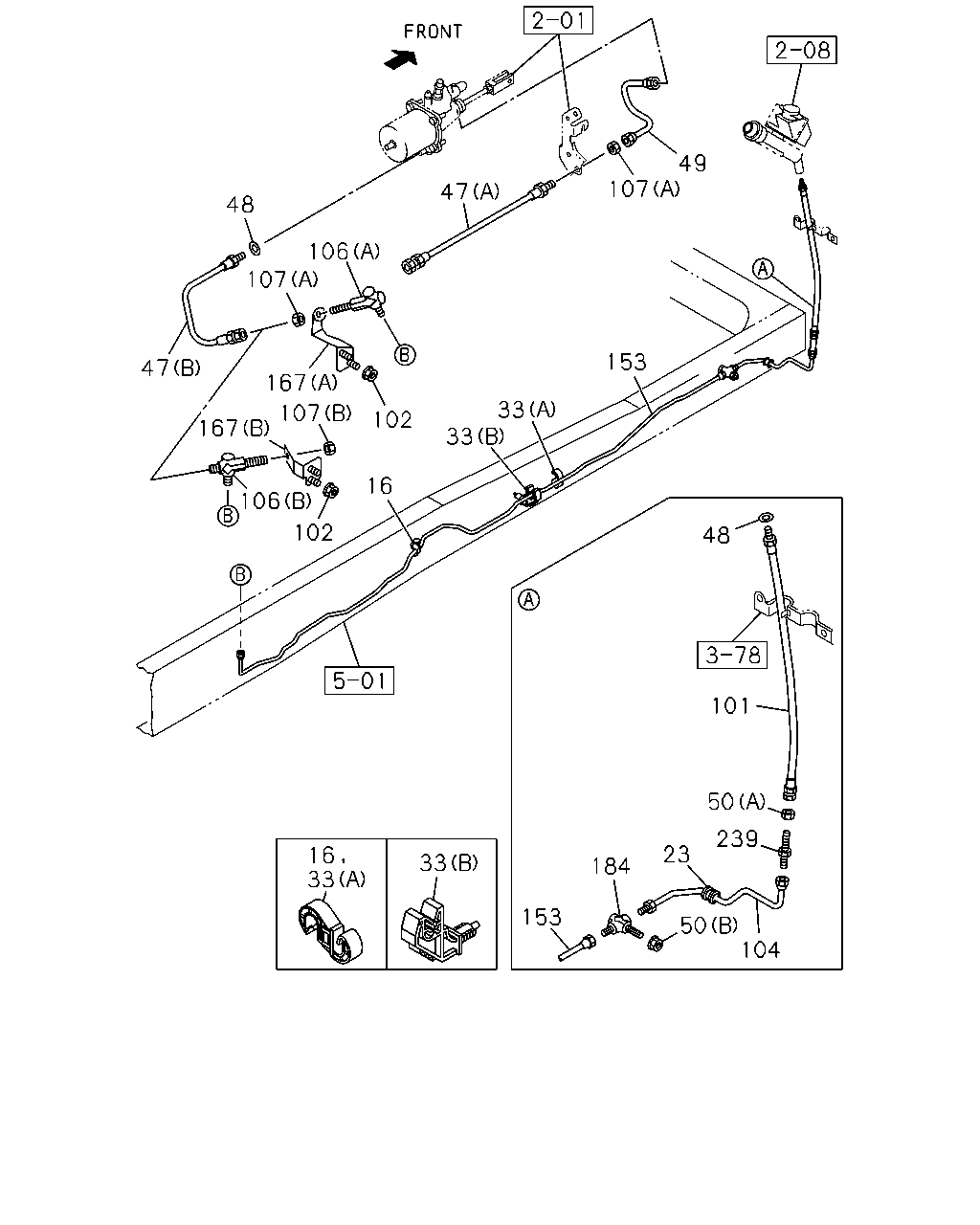

çizim 450130
49 107 47 106 48 107 47 167 167 107 102 33 153 16 106 102 16 33 33 153 184 50 104 239 23 50 101 48 33
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
ID=10 & 12 THA 		1-09709-278-1 01 1 1410-
23 GROMMET; CLU PIPE
ID=15 OD=20 T=17.5 THA 		1-09332-130-0 01 1 1410-
33 CLIP; OIL PIPE
(B) ID=6.35 THA 		1-09701-247-1 01 1 1410-
33 CLIP; OIL PIPE
(A) ID=6.35 & 10.0 THA 		1-09709-274-1 03 1 1410-
47 HOSE; FLEX,CLU CONT
MZZ6W M/T<RSA> (B) L=390 THA 		8-98080-980-0 01 1 1410-
47 HOSE; FLEX,CLU CONT
MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> (A) L=540 THA 		1-09363-736-0 01 1 1410-
47 HOSE; FLEX,CLU CONT
MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (A) L=720 THA 		1-09363-801-0 01 1 1410-
47 HOSE; FLEX,CLU CONT
MZW6P M/T<RSZ> (B) L=430 THA 		8-98072-351-0 01 1 1410-
47 HOSE; FLEX,CLU CONT
MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> (A) L=580 THA 		1-09363-692-0 01 1 1410-
47 HOSE; FLEX,CLU CONT
MZW6P M/T<RSZ> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (A) L=740 THA 		1-09363-674-0 01 1 1410-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 1410-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
MZW6P M/T<RSZ> L=204 THA 		8-97948-220-0 01 1 1410-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
MZZ6W M/T<RSA> L=207 THA 		1-49124-782-0 01 1 1410-
50 NUT; UNION
(B) M12 THA 		0-91111-512-0 01 1 1410-
50 NUT; UNION
(A) M12 THA 		9-09840-280-0 01 1 1410-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=440 THA 		8-98072-346-0 01 1 1410-
102 NUT; FLEX HOSE,CLU CONT
M10 FLANGE THA 		0-91180-210-0 02 1 1410-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=336 THA 		8-97948-218-0 01 1 1410-
106 UNION; OIL PIPE
MZZ6W M/T<RSA> (B) M12 2WAY THA 		1-09654-059-2 01 1 1410-
106 UNION; OIL PIPE
MZW6P M/T<RSZ> (A) M12 ELBOW THA 		0-92125-206-0 01 1 1410-
107 NUT; UNION,OIL PIPE
MZZ6W M/T<RSA> (B) M12 THA 		0-91111-512-0 01 1 1410-
107 NUT; UNION,OIL PIPE
(A) M12 THA 		9-09840-280-0 01 1 1410-
107 NUT; UNION,OIL PIPE
MZW6P M/T<RSZ> (A) M12 THA 		9-09840-280-0 01 1 1410-
153 PIPE ASM; CLU,UNION TO FLEX
MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> L=2340 THA 		8-98174-342-0 01 1 1410-
153 PIPE ASM; CLU,UNION TO FLEX
MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> L=2442 THA 		8-98078-087-1 01 1 1410-
153 PIPE ASM; CLU,UNION TO FLEX
MZW6P M/T<RSZ> L=2042 THA 		8-98123-177-0 01 1 1410-
167 BRACKET; UNION
MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> (B) THA 		8-98086-811-1 01 1 1410-
167 BRACKET; UNION
MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (B) THA 		8-98078-090-1 01 1 1410-
167 BRACKET; UNION
MZW6P M/T<RSZ> (A) THA 		8-98078-147-0 01 1 1410-
184 UNION; FLEX HOSE
THA 		8-98150-865-0 01 1 1410-
239 UNION; CLU HOSE
M12 L=66.5 THA 		0-92113-306-0 01 1 1410-
