Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#150083) — 54 parça

11 128 126 12 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	PIPE; EXH,RR EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> THA	8-97924-043-0	01	1	1410-
12	SILENCER ASM; EXH THA	8-97926-369-0	01	1	1410-
17	BOLT; EXH PIPE (B) M12X35 FLANGE THA	0-28051-235-0	04	1	1410-
17	BOLT; EXH PIPE (A) M10X35 FLANGE THA	0-28651-035-0	02	1	1410-
126	PIPE; EXH,RR TAILPIPE SINGLE SHORT TYPE<8JJ> THA	8-98210-836-0	01	1	1410-
128	PIPE; EXH,RR WHEEL BASE 3400MM<34W> THA	8-97924-096-0	01	1	1410-

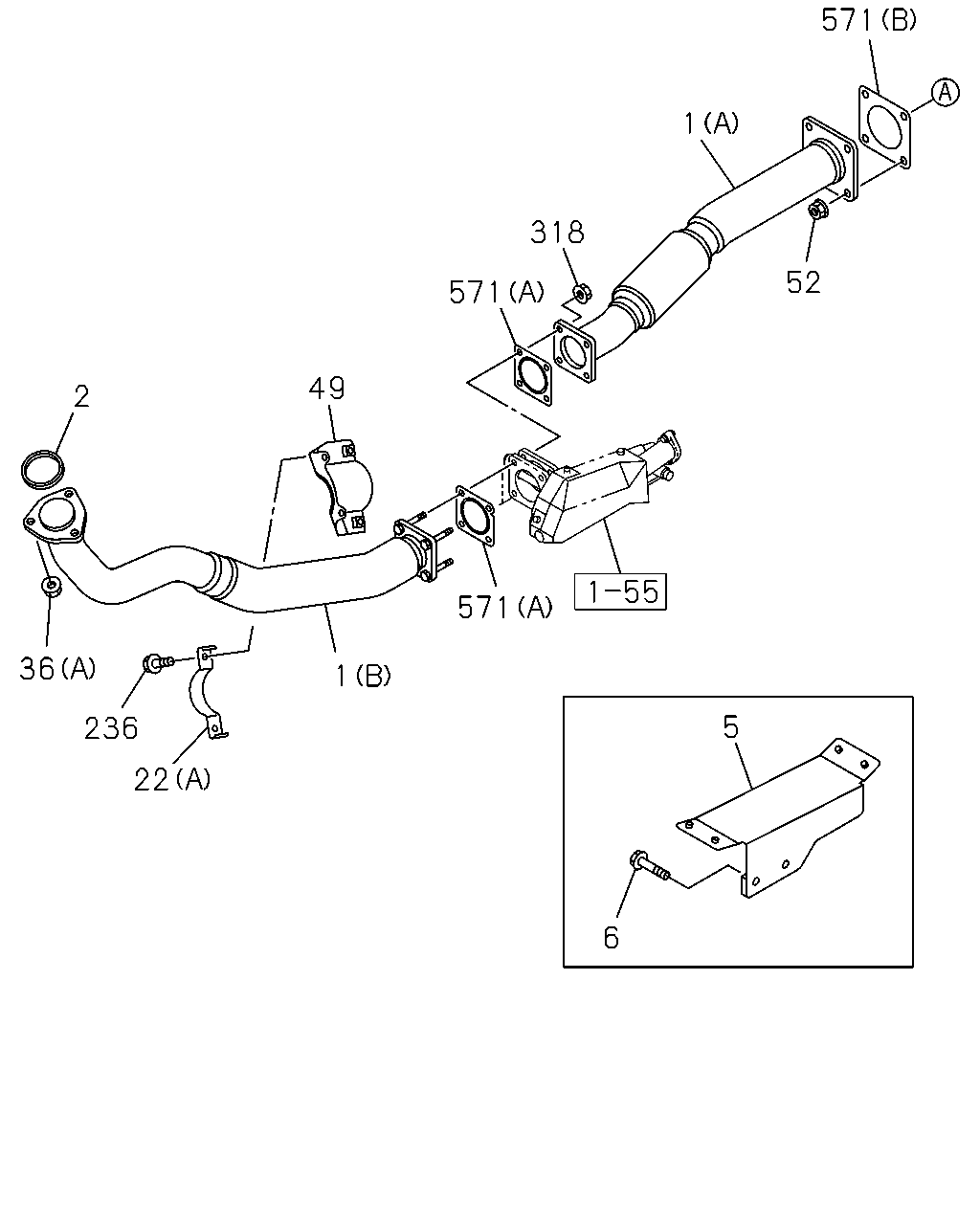

49 571 318 1 571 52 571 1 5 6 22 236 36 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH (A) THA	8-97924-440-1	01	1	1410-
1	PIPE; EXH (B) THA	8-97924-565-0	01	1	1410-
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). THA	8-97381-455-0	01	1	1410-
5	PROTECTOR; HEAT THA	8-98089-287-1	01	1	1410-
6	BOLT; HEAT PROTECTOR M8X25 FLANGE THA	0-28650-825-0	02	1	1410-
22	CLAMP; EXH PIPE (A) THA	8-97646-674-0	01	1	1410-
22	CLAMP; EXH PIPE (B) ID=80-84 THA	1-22133-233-0	02	1	1410-
22	CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=80-84 THA	1-22133-233-0	02	1	1410-
36	NUT; EXH PIPE (A) M10 FLANGE THA	8-97096-192-1	03	1	1410-
36	NUT; EXH PIPE (B) M10 FLANGE THA	0-91180-210-0	02	1	1410-
49	BRACKET; EXH PIPE TO TRANS THA	8-98234-530-0	01	1	1410-
52	NUT; BRKT M12 FLANGE THA	0-91180-212-0	04	1	1410-
236	BOLT; PIPE CLAMP TO BRKT M10X30 FLANGE THA	0-28651-030-0	02	1	1410-
318	NUT; EXH PIPE,FRT M8 W/LK WASHER THA	8-97581-234-0	04	1	1410-
571	GASKET (A) ID=64 THA	8-97373-108-0	02	1	1410-
571	GASKET (B) THA	8-98096-305-0	01	1	1410-

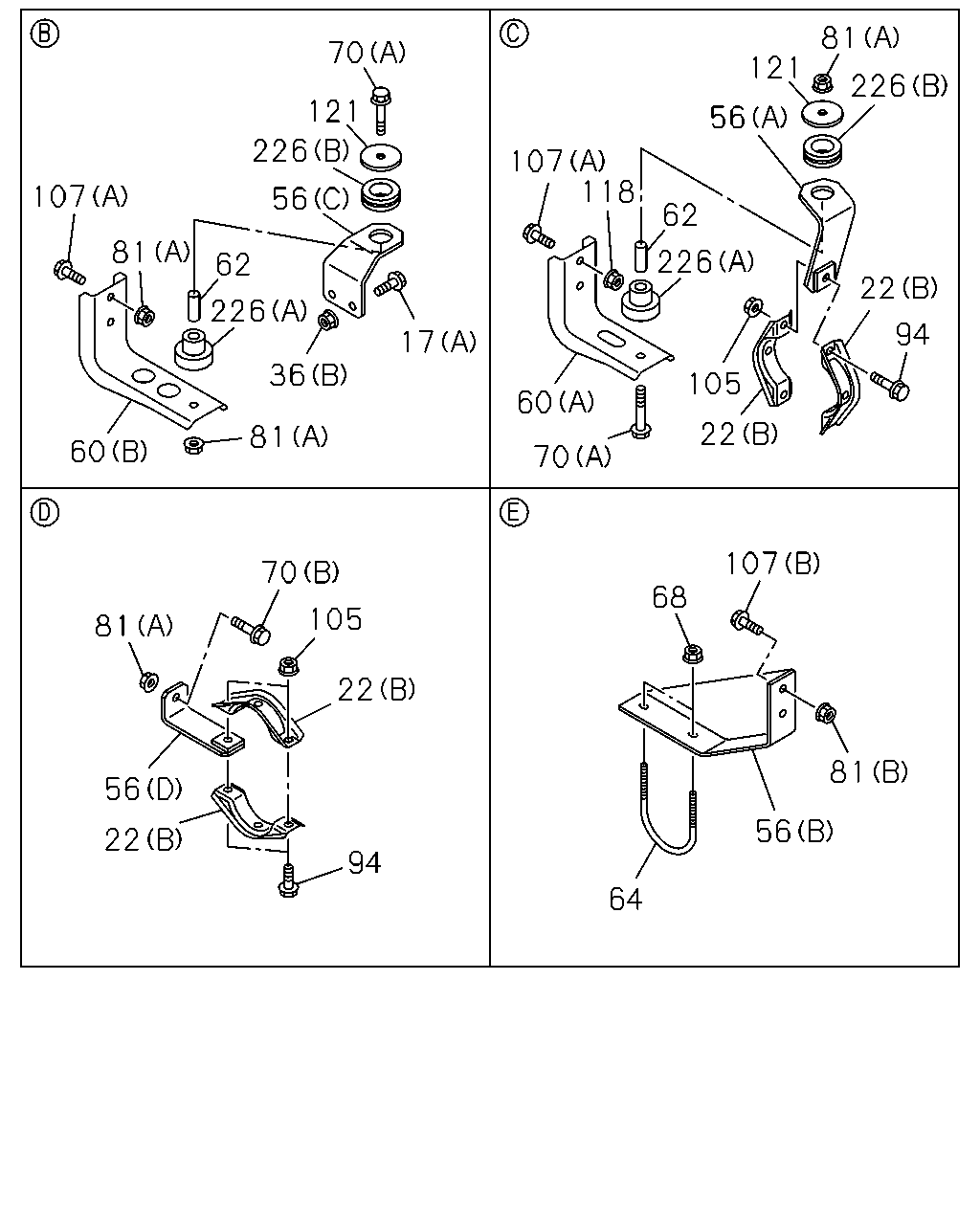

70 121 226 107 62 81 36 226 81 60 17 56 107 62 118 226 60 105 70 22 94 22 226 56 121 81 81 70 22 105 56 22 94 68 64 56 107 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	BOLT; EXH PIPE (B) M12X35 FLANGE THA	0-28051-235-0	04	1	1410-
17	BOLT; EXH PIPE (A) M10X35 FLANGE THA	0-28651-035-0	02	1	1410-
22	CLAMP; EXH PIPE (A) THA	8-97646-674-0	01	1	1410-
22	CLAMP; EXH PIPE (B) ID=80-84 THA	1-22133-233-0	02	1	1410-
22	CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=80-84 THA	1-22133-233-0	02	1	1410-
36	NUT; EXH PIPE (A) M10 FLANGE THA	8-97096-192-1	03	1	1410-
36	NUT; EXH PIPE (B) M10 FLANGE THA	0-91180-210-0	02	1	1410-
56	BRACKET; CLAMP,EXH PIPE (C) THA	8-98074-824-1	01	1	1410-
56	BRACKET; CLAMP,EXH PIPE (A) THA	8-98086-352-0	01	1	1410-
56	BRACKET; CLAMP,EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D) THA	8-98085-168-0	01	1	1410-
56	BRACKET; CLAMP,EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) THA	8-98056-460-0	01	1	1410-
60	BRACKET; FRAME TO BRKT (B) THA	1-22152-274-1	01	1	1410-
60	BRACKET; FRAME TO BRKT (A) THA	8-98245-530-0	01	1	1410-
62	TUBE; DIST,BRKT THA	8-97948-228-0	02	1	1410-
64	U-BOLT; EXH PIPE,RR EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> THA	1-22113-101-0	01	1	1410-
68	NUT; U BOLT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M8 FLANGE THA	0-91180-108-0	02	1	1410-
70	BOLT; BRKT (A) M10X70 FLANGE THA	0-28051-070-0	02	1	1410-
70	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X35 FLANGE THA	0-28651-035-0	01	1	1410-
81	NUT; BRKT (A) M10 FLANGE THA	0-91180-210-0	02	1	1410-
81	NUT; BRKT (A) M10 FLANGE THA	0-91180-210-0	02	1	1410-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE THA	0-91180-210-0	01	1	1410-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M8 FLANGE THA	0-91180-108-0	02	1	1410-
94	BOLT; CLAMP M10X40 FLANGE THA	0-28651-040-0	02	1	1410-
94	BOLT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X40 FLANGE THA	0-28651-040-0	02	1	1410-
105	NUT; CLAMP M10 FLANGE THA	0-91180-210-0	02	1	1410-
105	NUT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 FLANGE THA	0-91180-210-0	02	1	1410-
107	BOLT; BRKT (A) M10X35 FLANGE THA	0-28651-035-0	04	1	1410-
107	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M8X30 FLANGE THA	0-28650-830-0	02	1	1410-
118	NUT; SILENCER MTG BRKT M10 FLANGE THA	0-91180-210-0	02	1	1410-
121	WASHER; PL,BRKT ID=8.4 OD=22 THA	1-09503-154-2	02	1	1410-
226	RUBBER; CUSHION (A) THA	8-97948-226-0	02	1	1410-
226	RUBBER; CUSHION (B) THA	8-97948-227-0	02	1	1410-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
