1-41 — FUEL PIPING; CHASSIS (#150081) — 101 parça

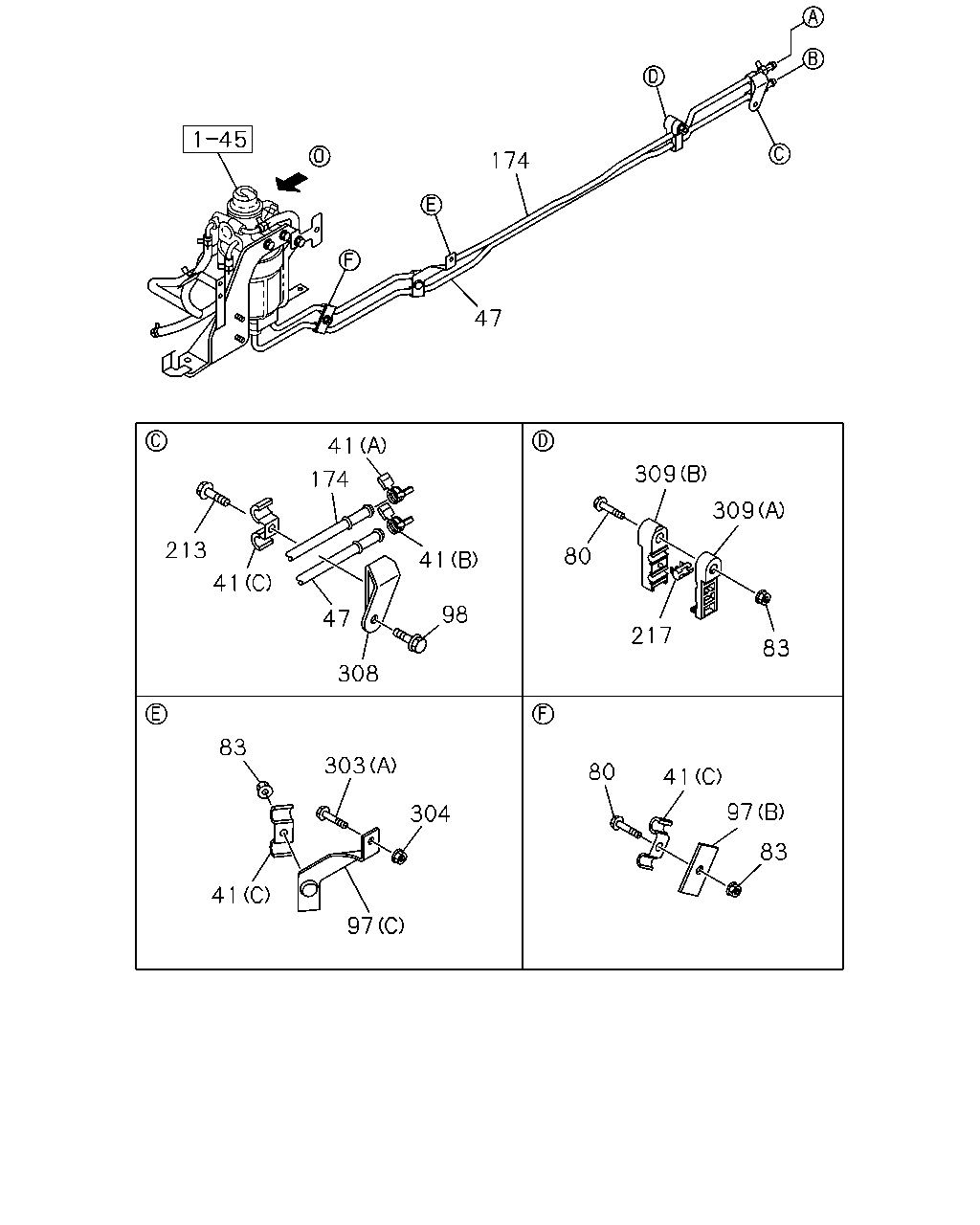

47 174 41 174 213 41 47 41 98 308 83 303 41 97 304 309 309 80 217 83 80 41 97 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	CLIP; FUEL PIPE,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> (E) ID=16X2 L=20 THA	0-95325-535-0	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> EXC. POOR QUALITY DIESEL FUEL<KF0> (F) ID=14.5 & 14.5 THA	1-09701-246-1	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> (F) ID=14.5 & 14.5 THA	1-09701-246-1	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> EXC. POOR QUALITY DIESEL FUEL<KF0> (F) ID=14.5 & 14.5 THA	1-09701-246-1	04	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK MZW6P M/T<RSZ> EXC. POOR QUALITY DIESEL FUEL<KF0> (F) ID=14.5 & 14.5 THA	1-09701-246-1	04	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> (D) L=250 THA	5-09707-030-1	01	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (D) L=250 THA	5-09707-030-1	01	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 9 L=17.5 & 17.5 THA	1-09700-747-0	04	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=16 THA	8-94238-568-0	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13 THA	8-94238-571-0	06	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (A) ID=14 THA	1-09704-102-0	04	1	1410-
47	PIPE; FUEL,RETURN L=1588 THA	8-98208-975-0	01	1	1410-
80	BOLT; CLIP,FUEL TANK M8X50 FLANGE THA	0-28050-850-0	01	1	1409-
80	BOLT; CLIP,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> M8X20 FLANGE THA	0-28650-820-0	02	1	1410-
80	BOLT; CLIP,FUEL TANK M8X50 FLANGE THA	0-28050-850-0	01	1	1410-
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE THA	0-28650-820-0	01	1	1410-
83	NUT; CLIP,FUEL TANK M8 FLANGE THA	0-91180-108-0	03	1	1410-
83	NUT; CLIP,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> M8 FLANGE THA	0-91180-108-0	02	1	1410-
83	NUT; CLIP,FUEL TANK M8 FLANGE THA	0-91180-108-0	01	1	1410-
97	BRACKET; CLIP MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> (A) L=65 THA	1-47477-713-0	02	1	1410-
97	BRACKET; CLIP (B) L=50 THA	1-47475-299-2	01	1	1410-
97	BRACKET; CLIP (C) THA	8-98078-201-0	01	1	1410-
97	BRACKET; CLIP (D) THA	8-98083-537-0	01	1	1410-
98	BOLT; BRKT,FUEL PIPE M10X30 FLANGE THA	0-28651-030-0	01	1	1410-
174	PIPE; FUEL,FEED,FRT L=1414 THA	8-98208-965-0	01	1	1410-
213	BOLT; FUEL PIPE FIX M8X20 FLANGE THA	0-28650-820-0	01	1	1410-
217	COLLAR; FUEL PIPE FIX ID=8 THA	1-47459-011-0	01	1	1410-
303	BOLT; BRKT MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> (B) M8X20 FLANGE THA	0-28650-820-0	02	1	1410-
303	BOLT; BRKT (A) M8X30 FLANGE THA	0-28650-830-0	01	1	1410-
304	NUT; BRKT MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> M8 FLANGE THA	0-91180-108-0	02	1	1410-
304	NUT; BRKT M8 FLANGE THA	0-91180-108-0	03	1	1410-
308	BRACKET; FUEL PIPE THA	8-98117-691-0	01	1	1410-
309	CLIP; PIPE (A) ID=10 & 10 THA	1-09709-241-0	01	1	1410-
309	CLIP; PIPE (B) ID=10 & 10 THA	1-09709-243-0	01	1	1410-

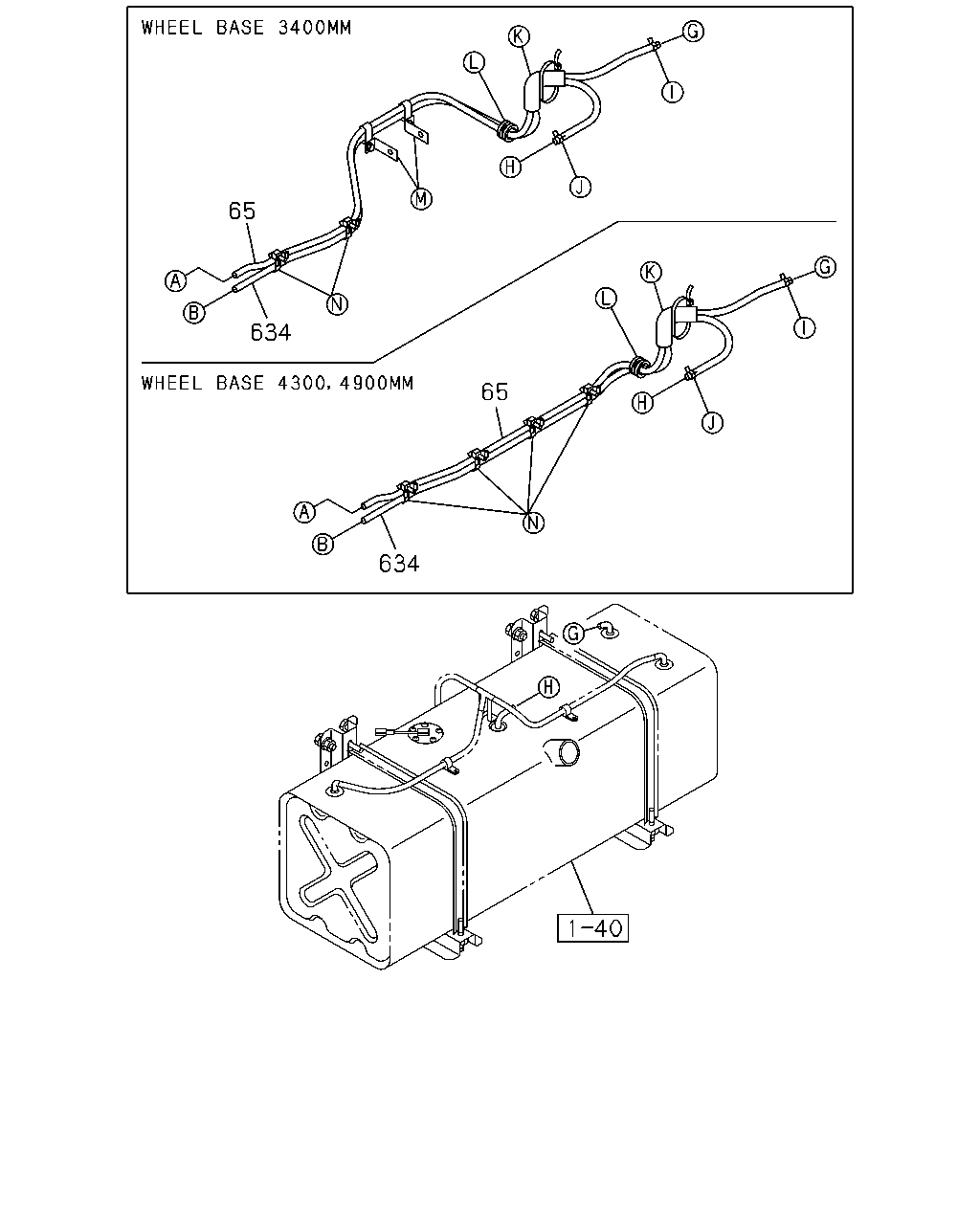

65 634 65 634

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
65	HOSE; FUEL,DELIVERY PIPE MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1450 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1410-
65	HOSE; FUEL,DELIVERY PIPE MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1150 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1410-
65	HOSE; FUEL,DELIVERY PIPE MZW6P M/T<RSZ> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1150 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1410-
634	HOSE; RUBBER RETURN MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> L=1450 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1410-
634	HOSE; RUBBER RETURN MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1250 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1410-
634	HOSE; RUBBER RETURN MZW6P M/T<RSZ> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1250 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1410-

41 41 41 55 41 41 83 80 41 97 83 303 304 80 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	CLIP; FUEL PIPE,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> (E) ID=16X2 L=20 THA	0-95325-535-0	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> EXC. POOR QUALITY DIESEL FUEL<KF0> (F) ID=14.5 & 14.5 THA	1-09701-246-1	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> (F) ID=14.5 & 14.5 THA	1-09701-246-1	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> EXC. POOR QUALITY DIESEL FUEL<KF0> (F) ID=14.5 & 14.5 THA	1-09701-246-1	04	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK MZW6P M/T<RSZ> EXC. POOR QUALITY DIESEL FUEL<KF0> (F) ID=14.5 & 14.5 THA	1-09701-246-1	04	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> (D) L=250 THA	5-09707-030-1	01	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (D) L=250 THA	5-09707-030-1	01	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 9 L=17.5 & 17.5 THA	1-09700-747-0	04	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=16 THA	8-94238-568-0	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13 THA	8-94238-571-0	06	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (A) ID=14 THA	1-09704-102-0	04	1	1410-
55	COVER; PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300 THA	1-09360-677-1	01	1	1410-
80	BOLT; CLIP,FUEL TANK M8X50 FLANGE THA	0-28050-850-0	01	1	1409-
80	BOLT; CLIP,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> M8X20 FLANGE THA	0-28650-820-0	02	1	1410-
80	BOLT; CLIP,FUEL TANK M8X50 FLANGE THA	0-28050-850-0	01	1	1410-
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE THA	0-28650-820-0	01	1	1410-
83	NUT; CLIP,FUEL TANK M8 FLANGE THA	0-91180-108-0	03	1	1410-
83	NUT; CLIP,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> M8 FLANGE THA	0-91180-108-0	02	1	1410-
83	NUT; CLIP,FUEL TANK M8 FLANGE THA	0-91180-108-0	01	1	1410-
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17 THA	9-09956-256-2	01	1	1410-
97	BRACKET; CLIP MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> (A) L=65 THA	1-47477-713-0	02	1	1410-
97	BRACKET; CLIP (B) L=50 THA	1-47475-299-2	01	1	1410-
97	BRACKET; CLIP (C) THA	8-98078-201-0	01	1	1410-
97	BRACKET; CLIP (D) THA	8-98083-537-0	01	1	1410-
303	BOLT; BRKT MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> (B) M8X20 FLANGE THA	0-28650-820-0	02	1	1410-
303	BOLT; BRKT (A) M8X30 FLANGE THA	0-28650-830-0	01	1	1410-
304	NUT; BRKT MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> M8 FLANGE THA	0-91180-108-0	02	1	1410-
304	NUT; BRKT M8 FLANGE THA	0-91180-108-0	03	1	1410-

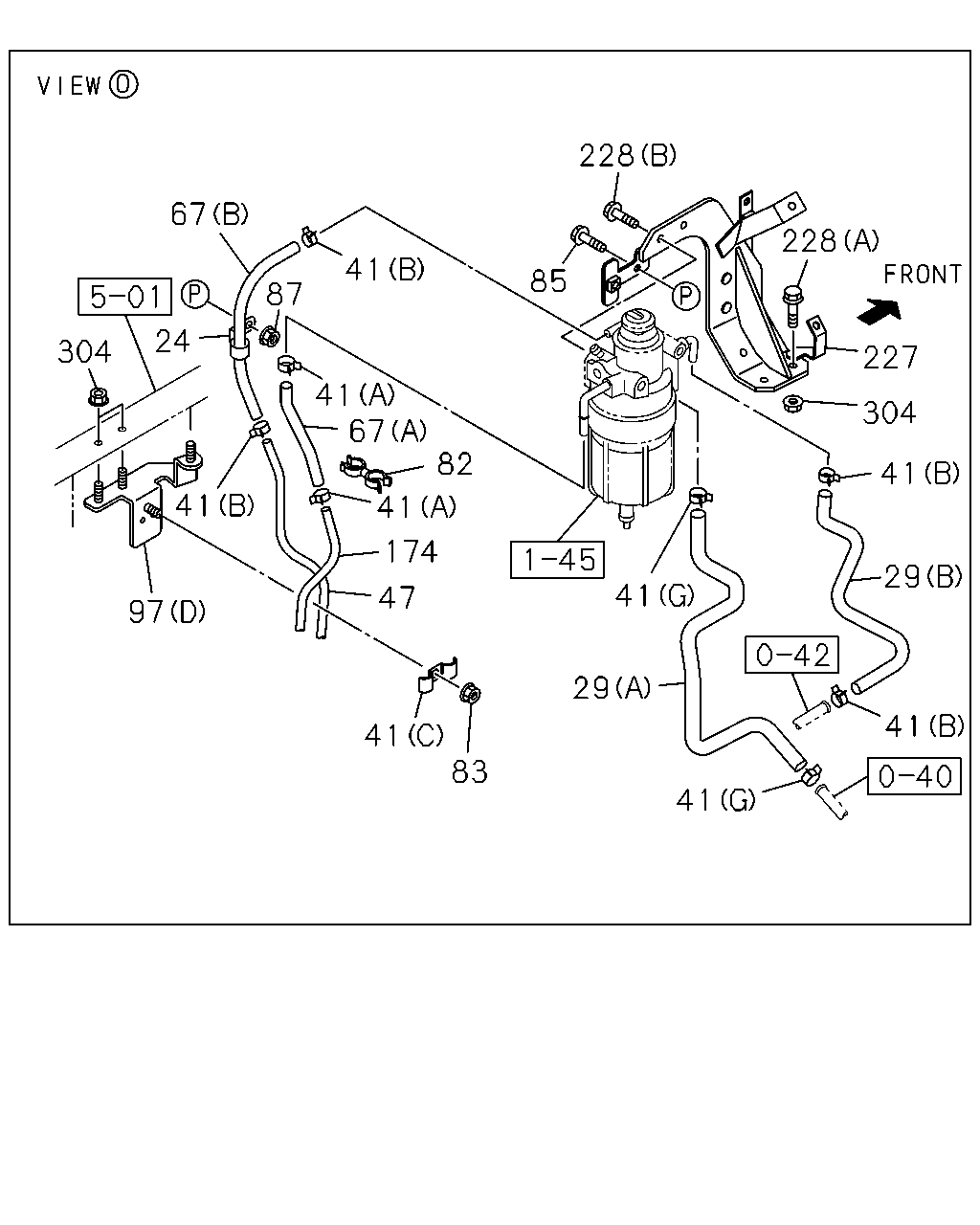

228 228 227 304 29 41 41 29 41 82 41 174 47 41 83 97 41 67 41 41 85 87 67 24 304 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE ID=15 H=24 L=20 THA	1-09700-606-0	01	1	1410-
29	HOSE; FUEL (A) THA	8-98078-194-3	01	1	1410-
29	HOSE; FUEL (B) THA	8-98078-195-1	01	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> (E) ID=16X2 L=20 THA	0-95325-535-0	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> EXC. POOR QUALITY DIESEL FUEL<KF0> (F) ID=14.5 & 14.5 THA	1-09701-246-1	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> (F) ID=14.5 & 14.5 THA	1-09701-246-1	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> EXC. POOR QUALITY DIESEL FUEL<KF0> (F) ID=14.5 & 14.5 THA	1-09701-246-1	04	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK MZW6P M/T<RSZ> EXC. POOR QUALITY DIESEL FUEL<KF0> (F) ID=14.5 & 14.5 THA	1-09701-246-1	04	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> (D) L=250 THA	5-09707-030-1	01	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (D) L=250 THA	5-09707-030-1	01	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 9 L=17.5 & 17.5 THA	1-09700-747-0	04	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=16 THA	8-94238-568-0	02	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13 THA	8-94238-571-0	06	1	1410-
41	CLIP; FUEL PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (A) ID=14 THA	1-09704-102-0	04	1	1410-
47	PIPE; FUEL,RETURN L=1588 THA	8-98208-975-0	01	1	1410-
67	HOSE; FUEL,DELIVERY (A) L=140 SERVICED BY L=3000 THA	0-01260-300-0	01	1	1410-
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000 THA	0-01558-300-0	01	1	1410-
82	CLIP; FUEL HOSE ID=13 & 16.5 THA	8-94169-028-0	01	1	1410-
83	NUT; CLIP,FUEL TANK M8 FLANGE THA	0-91180-108-0	03	1	1410-
83	NUT; CLIP,FUEL TANK MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> M8 FLANGE THA	0-91180-108-0	02	1	1410-
83	NUT; CLIP,FUEL TANK M8 FLANGE THA	0-91180-108-0	01	1	1410-
85	BOLT; CLIP,FUEL HOSE M8X20 FLANGE THA	0-28650-820-0	01	1	1410-
87	NUT; CLIP,FUEL HOSE M8 FLANGE THA	0-91180-108-0	01	1	1410-
97	BRACKET; CLIP MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> (A) L=65 THA	1-47477-713-0	02	1	1410-
97	BRACKET; CLIP (B) L=50 THA	1-47475-299-2	01	1	1410-
97	BRACKET; CLIP (C) THA	8-98078-201-0	01	1	1410-
97	BRACKET; CLIP (D) THA	8-98083-537-0	01	1	1410-
174	PIPE; FUEL,FEED,FRT L=1414 THA	8-98208-965-0	01	1	1410-
227	BRACKET; FUEL SEDIMENTER THA	8-98133-172-0	01	1	1410-
228	BOLT; BRKT,SEDIMENTER (A) M8X30 FLANGE THA	0-28050-830-0	02	1	1410-
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE THA	0-28650-820-0	02	1	1410-
304	NUT; BRKT MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> M8 FLANGE THA	0-91180-108-0	02	1	1410-
304	NUT; BRKT M8 FLANGE THA	0-91180-108-0	03	1	1410-
