◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11646 - FRR THAILAND EURO3 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#150078) — 57 parça

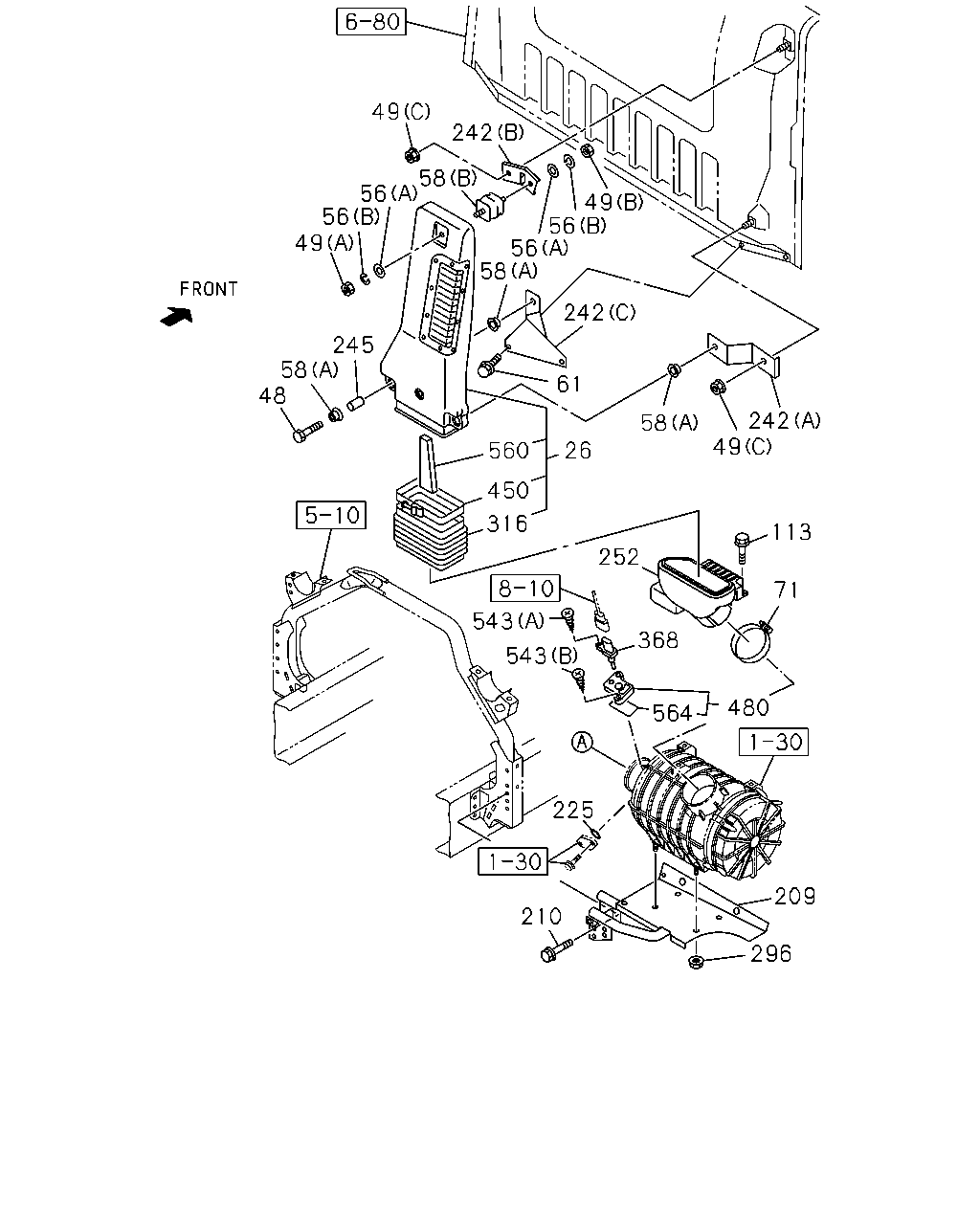

çizim 449496
49 242 58 56 56 49 245 58 48 49 56 56 58 242 61 26 58 49 242 560 450 316 252 113 71 368 564 543 543 225 209 296 210 480
BalonParca AdiParca NoAdetTipApplied Date A B
26 DUCT; AIR INT
THA 		8-98010-361-2 01 1 1410- ● ●
48 BOLT; AIR DUCT
M10X26 THA 		1-09030-044-1 02 1 1410- ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE THA 		1-09984-122-0 01 1 1410- ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE THA 		1-09984-126-0 01 1 1410- ● ●
49 NUT; AIR DUCT
(C) M8 FLANGE THA 		8-94279-517-0 02 1 1410- ● ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 THA 		1-09985-177-0 02 1 1410- ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 THA 		1-09985-188-0 02 1 1410- ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 THA 		1-14119-267-0 04 1 1410- ● ●
58 SUPPORT; AIR INL DUCT
(B) THA 		8-98125-944-1 01 1 1410- ● ●
61 BOLT; BRKT,AIR DUCT
M8X20 FLANGE THA 		8-98061-920-0 02 1 1410- ● ●
71 CLIP; AIR DUCT
ID=120-140 THA 		8-98133-367-0 01 1 1410- ● ●
113 BOLT; RESONATOR
M6X16 W/PL WASHER THA 		8-98094-071-0 03 1 1410- ● ●
209 BRACKET; ACL
THA 		8-97948-478-0 01 1 1410- ● ●
210 BOLT; ACL BRKT
M10X25 FLANGE THA 		0-28651-025-0 04 1 1410- ● ●
225 GASKET; AIR PIPE
ID=24.4 THA 		1-09623-057-0 01 1 1410- ● ●
242 BRACKET; AIR DUCT
(B) THA 		8-98019-301-3 01 1 1410- ● ●
242 BRACKET; AIR DUCT
(C) THA 		8-98019-302-1 01 1 1410- ● ●
242 BRACKET; AIR DUCT
(A) THA 		8-98019-303-1 01 1 1410- ● ●
245 PIECE; DIST,AIR DUCT
THA 		1-79998-228-0 02 1 1410- ● ●
252 DUCT; AIR INT
THA 		8-98095-778-0 01 1 1410- ● ●
296 NUT; ACL
M8 FLANGE THA 		0-91180-108-0 04 1 1410- ● ●
316 RUBBER; CUSHION,DUCT
THA 		8-98152-269-0 01 1 1410- ● ●
368 SENSOR; TEMP
THA 		8-98065-377-0 01 1 1410- ● ●
450 CLAMP; HOSE
THA 		9-09915-504-1 01 1 1410- ● ●
480 ADAPTER
THA 		8-98086-417-0 01 1 1410- ● ●
543 SCREW; SENSOR
(A) M5X14 W/LK WASHER THA 		0-36220-514-0 01 1 1410- ● ●
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 1410- ● ●
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 1410- ● ●
560 FILTER; VERTICAL DUCT
THA 		8-98061-675-0 01 1 1410- ● ●
564 GASKET; ADAPTER
THA 		8-98071-416-0 01 1 1410- ● ●

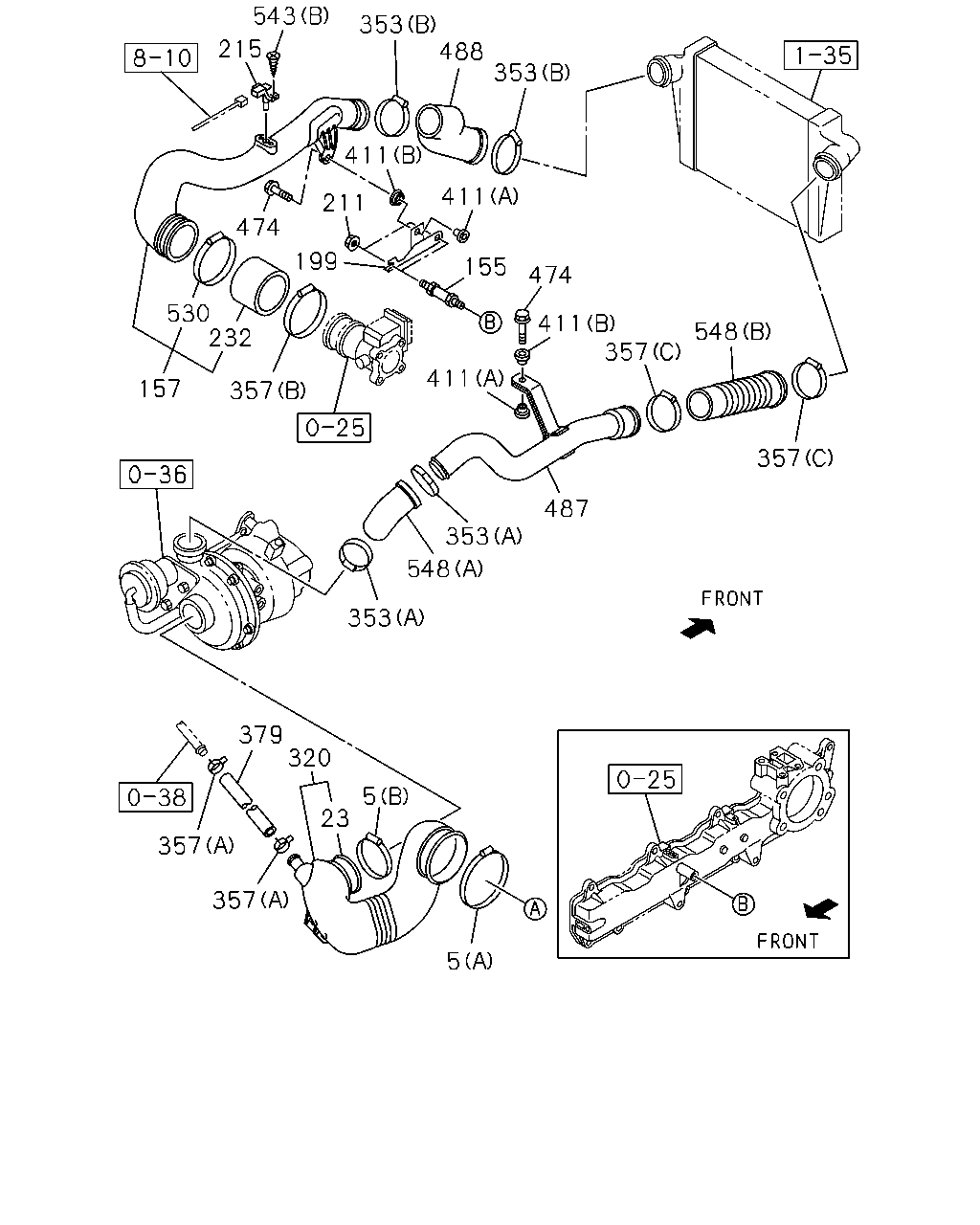

çizim 449890
548 357 411 474 155 411 211 474 199 232 530 157 357 411 411 353 488 353 543 215 548 353 353 487 357 379 320 23 5 5 357 357
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(B) ID=55-75 THA 		8-98133-349-0 01 1 1410- ● ●
5 CLIP; AIR DUCT
(A) ID=110-130 THA 		8-98133-359-0 01 1 1410- ● ●
23 CLIP; HOSE
ID=87-116 THA 		1-09707-144-0 01 1 1410- ● ●
155 BOLT; BRKT
M10X17,M10X30 L=105 THA 		8-97233-428-0 02 1 1410- ● ●
157 PIPE; AIR
THA 		8-98010-719-3 01 1 1410- ● ●
199 BRACKET; PIPE
THA 		8-97385-293-1 01 1 1410- ● ●
211 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 1410- ● ●
215 SENSOR; MAP
THA 		8-98009-418-0 01 1 1410- ● ●
232 HOSE; CONN
THA 		8-98067-929-0 01 1 1410- ● ●
320 HOSE; CONN,ACL
THA 		8-98073-539-3 01 1 1410- ● ●
353 CLIP; RUBBER HOSE
(A) ID=60-65 THA 		8-98096-418-0 02 1 1410- ● ●
353 CLIP; RUBBER HOSE
(B) ID=55-75 THA 		8-98133-349-0 02 1 1410- ● ●
357 CLIP; RUBBER HOSE
(A) ID=24 THA 		8-98025-921-0 02 1 1410- ● ●
357 CLIP; RUBBER HOSE
(C) ID=55-75 THA 		8-98133-349-0 02 1 1410- ● ●
357 CLIP; RUBBER HOSE
(B) ID=75-95 THA 		8-98133-357-0 01 1 1410- ● ●
379 HOSE; RUBBER
THA 		8-98075-713-1 01 1 1410- ● ●
411 RUBBER; CUSHION
(A) THA 		8-94395-766-0 02 1 1410- ● ●
411 RUBBER; CUSHION
(B) OD=23 THA 		8-97105-689-6 02 1 1410- ● ●
474 BOLT; PIPE
M8X40 FLANGE THA 		0-28650-840-0 02 1 1410- ● ●
487 PIPE; TURBO TO CHARGE AIR COOLER
THA 		8-97948-213-0 01 1 1410- ● ●
488 HOSE; RUBBER,PIPE
THA 		8-97950-125-0 01 1 1410- ● ●
530 CLAMP; AIR DUCT
ID=75-95 THA 		8-98133-357-0 01 1 1410- ● ●
543 SCREW; SENSOR
(A) M5X14 W/LK WASHER THA 		0-36220-514-0 01 1 1410- ● ●
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 1410- ● ●
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 1410- ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) THA 		8-97950-135-0 01 1 1410- ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) THA 		8-97950-136-0 01 1 1410- ● ●
