Sayfa 0-52 - Isuzu EPC

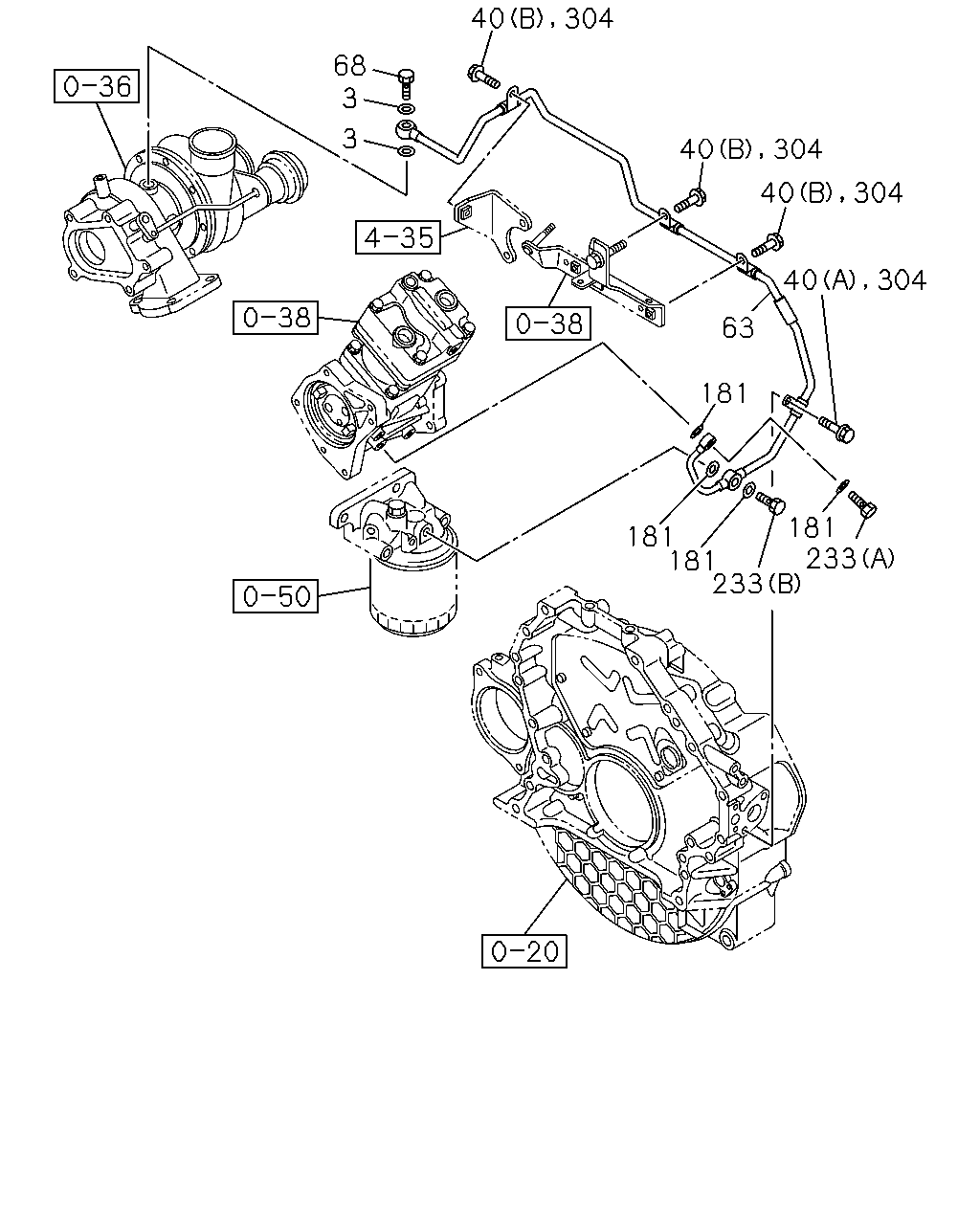

0-52 — OIL AND VACUUM PIPING; ENGINE (#150066) — 9 parça

40 304 40 304 40 304 63 181 181 181 233 233 181 3 3 68 40 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	1410-	●	●
40	BOLT; OIL PIPE (A) M8X12 FLANGE THA	0-28050-812-0	01	1	1410-	●	●
40	BOLT; OIL PIPE (B) M8X20 FLANGE THA	0-28050-820-0	03	1	1410-	●	●
63	PIPE; OIL,TURBOCHARGER FEED THA	8-98069-427-0	01	1	1410-	●	●
68	BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE M10X26 THA	8-98037-825-0	01	1	1410-	●	●
181	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 THA	1-09630-083-0	04	1	1410-	●	●
233	BOLT; EYE (A) M10X22 THA	1-09675-028-0	01	1	1410-	●	●
233	BOLT; EYE (B) M10X28 THA	8-98037-823-0	01	1	1410-	●	●
304	BOLT; BRKT,OIL PIPE M8X20 FLANGE THA	0-28650-820-0	04	1	1410-	●	●
