Isuzu WW
▶
TRUCKS
▶
FRR
▶
11646 - FRR THAILAND EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-50 - OIL COOLER AND OIL FILTER
▶

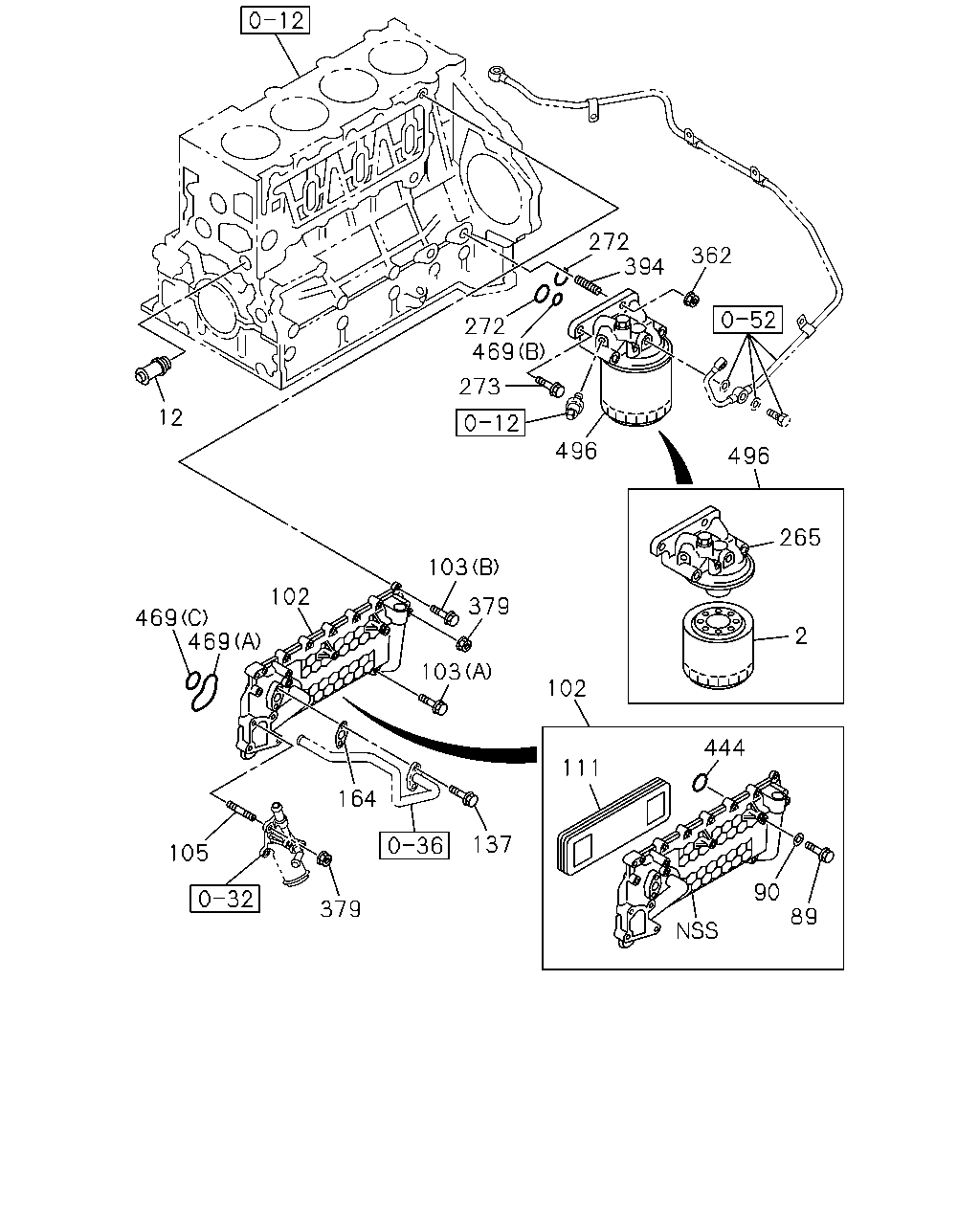

0-50 — OIL COOLER AND OIL FILTER
(#150064) — 23 parça
Tümü
A - 4HK1-TCC ENG
B - 4HK1-TCS ENG
272
362
394
496
265
2
496
273
469
272
12
102
103
379
103
102
111
444
90
89
469
469
164
137
379
105
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
ELEMENT; OIL FILTER
THA
8-97148-270-1
01
1
1410-
●
●
2
ELEMENT; OIL FILTER
BEST VALUE PARTS THA
5-87610-031-0
01
1
1410-
●
●
12
VALVE ASM; BYPASS
THA
8-97013-566-2
01
1
1410-
●
●
89
BOLT; ELEMENT TO CASE
M8X16 FLANGE THA
0-28050-816-0
04
1
1410-
●
●
90
GASKET; BOLT,OIL COOLER
THA
1-21729-043-0
04
1
1410-
●
●
102
COOLER ASM; OIL
THA
8-98085-312-5
01
1
1410-
●
●
103
BOLT; OIL COOLER
(A) M8X20 FLANGE THA
0-28050-820-0
08
1
1410-
●
●
103
BOLT; OIL COOLER
(B) M8X35 FLANGE THA
0-28050-835-0
08
1
1410-
●
●
105
STUD; OIL COOLER
M8X52 L=63 THA
8-97016-314-0
03
1
1410-
●
●
111
CORE; OIL COOLER
THA
8-97334-100-2
01
1
1410-
●
●
137
BOLT
M8X20 FLANGE THA
0-28650-820-0
02
1
1410-
●
●
164
GASKET; HTR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). THA
8-97146-684-0
01
1
1410-
●
●
265
BODY; OIL FILTER
THA
8-97096-677-4
01
1
1410-
●
●
272
GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1 THA
8-94399-399-0
02
1
1410-
●
●
273
BOLT; OIL FILTER
M10X30 THA
0-59331-030-0
03
1
1410-
●
●
362
NUT; OIL FILTER
M10 FLANGE THA
0-91180-110-0
01
1
1410-
●
●
379
NUT; OIL COOLER
M8 FLANGE THA
0-91180-108-0
03
1
1410-
●
●
394
STUD; OIL FILTER
M10X25 L=48.5 THA
0-49241-025-0
01
1
1410-
●
●
444
GASKET; ELEMENT TO BODY
THA
8-97384-130-0
02
1
1410-
●
●
469
GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) THA
8-94338-878-1
01
1
1410-
●
●
469
GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8 THA
8-94399-339-0
01
1
1410-
●
●
469
GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE THA
8-98045-447-0
01
1
1410-
●
●
496
FILTER ASM; OIL
THA
8-97148-268-4
01
1
1410-
●
●
