◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11646 - FRR THAILAND EURO3 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#150062) — 76 parça

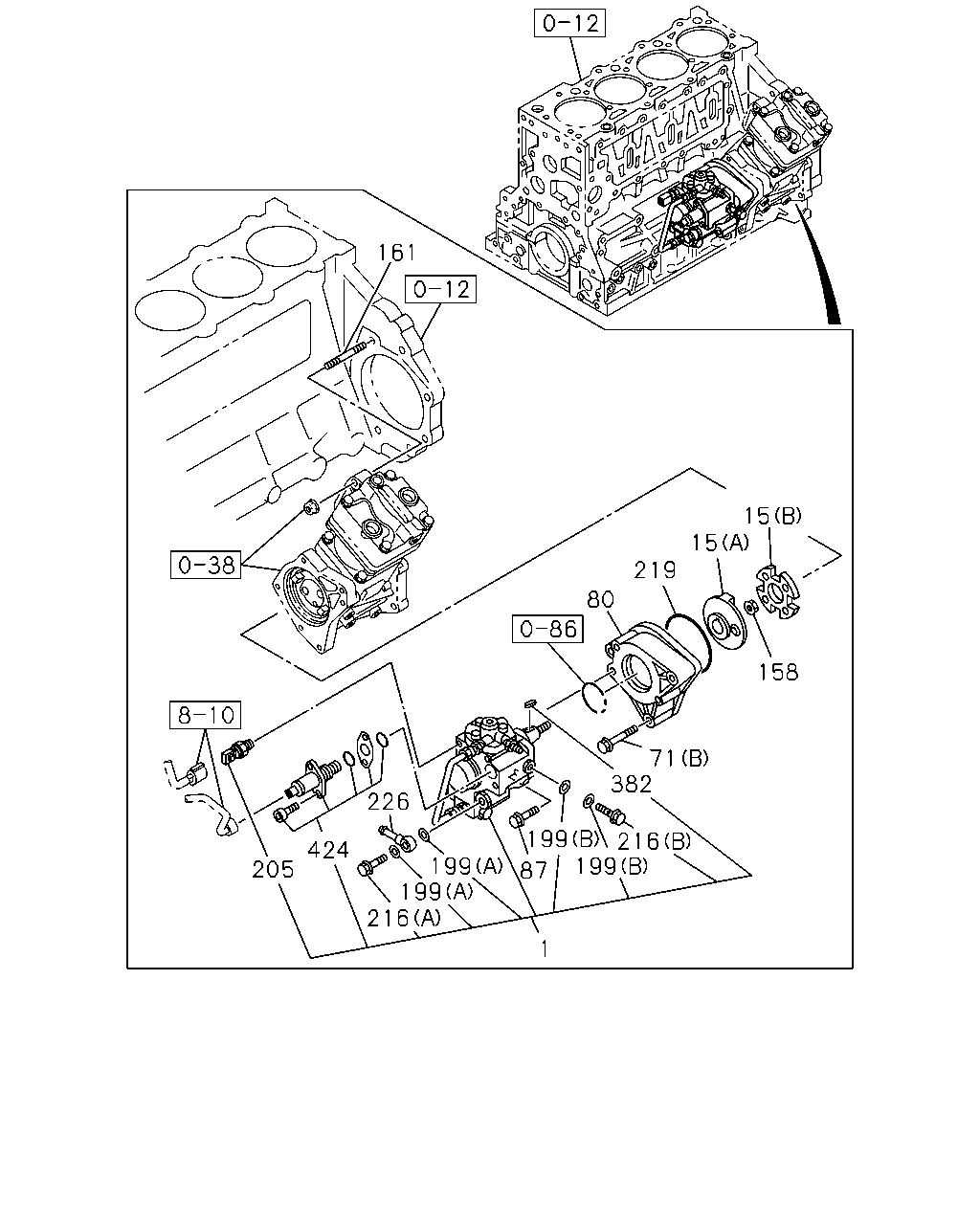

çizim 448331
161 205 424 226 216 199 199 87 1 199 199 216 382 71 80 219 15 158 15
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ
THA 		8-97386-557-5 01 1 1410- ● ●
15 COUPLING ASM; INJ PUMP
(A) THA 		8-97306-054-0 01 1 1410- ● ●
15 COUPLING ASM; INJ PUMP
(B) SEE FIG-NO 0-87 FOR COMPONENT. THA 		8-97306-059-1 01 1 1410- ● ●
71 BOLT; BRKT
(E) M6X10 FLANGE THA 		0-28050-610-0 01 1 1410- ● ●
71 BOLT; BRKT
(A) M8X16 FLANGE THA 		0-28050-816-0 01 1 1410- ● ●
71 BOLT; BRKT
(C) M8X40 FLANGE THA 		0-28050-840-0 01 1 1410- ● ●
71 BOLT; BRKT
(D) M8X50 FLANGE THA 		0-28050-850-0 01 1 1410- ● ●
71 BOLT; BRKT
(B) M10X60 FLANGE THA 		0-28051-060-0 03 1 1410- ● ●
71 BOLT; BRKT
(E) M6X10 FLANGE THA 		0-28080-610-0 01 1 1410- ● ●
80 BRACKET; PUMP
THA 		8-98061-699-0 01 1 1410- ● ●
87 BOLT; PUMP
M8X30 FLANGE THA 		0-28650-830-0 03 1 1410- ● ●
158 NUT; INJ PUMP
M14 FLANGE THA 		0-91180-114-0 01 1 1410- ● ●
161 STUD; INJ PUMP
M10X46.5 L=58.5 THA 		8-97066-386-1 02 1 1410- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) THA 		1-15619-507-0 02 1 1410- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) THA 		8-97602-218-0 04 1 1410- ● ●
205 SENSOR; FUEL TEMP
THA 		8-98023-581-0 01 1 1410- ● ●
216 BOLT; EYE
(A) THA 		5-15759-003-0 01 1 1410- ● ●
216 BOLT; EYE
(B) THA 		8-97351-388-0 01 1 1410- ● ●
216 BOLT; EYE
(C) THA 		8-98043-033-0 01 1 1410- ● ●
219 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=94.6 THA 		1-09623-593-0 01 1 1410- ● ●
226 PIPE; FUEL
THA 		8-98126-332-0 01 1 1410- ● ●
382 KEY; DRIVE SHAFT
THA 		8-98161-995-0 01 1 1410- ● ●
424 OVERHAUL KIT; SUPPLY PUMP
THA 		8-98145-501-1 01 1 1410- ● ●

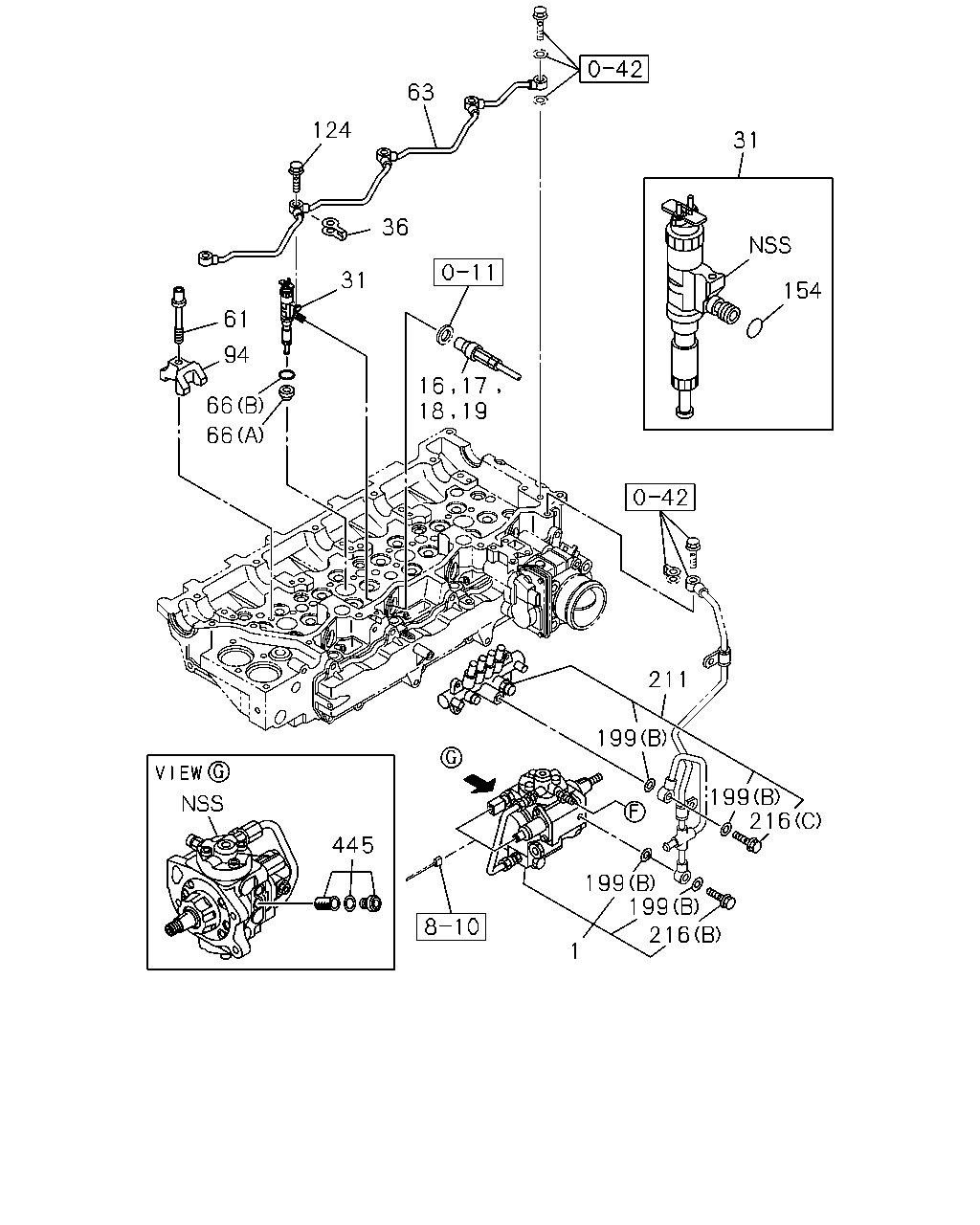

çizim 448411
445 1 199 199 216 216 199 199 211 154 31 18 19 16 17 66 66 94 61 31 36 124 63
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ
THA 		8-97386-557-5 01 1 1410- ● ●
16 PIPE; INJ NO.1
THA 		8-98271-202-0 01 1 1410- ● ●
17 PIPE; INJ NO.2
THA 		8-98271-203-0 01 1 1410- ● ●
18 PIPE; INJ NO.3
THA 		8-98271-204-0 01 1 1410- ● ●
19 PIPE; INJ NO.4
THA 		8-98271-230-0 01 1 1410- ● ●
31 NOZZLE ASM; INJ
THA 		8-97609-788-6 04 1 1410- ● ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 THA 		8-98065-992-0 04 1 1410- ● ●
61 BOLT; CLAMP NOZZLE HOLDER
M8X54 THA 		8-98008-895-0 04 1 1410- ● ●
63 PIPE; FUEL,NOZZLE LEAK OFF
THA 		8-97306-081-0 01 1 1410- ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=23.3 THA 		8-94173-412-0 04 1 1410- ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 THA 		8-98079-248-0 04 1 1410- ● ●
94 BRACKET; INJ NOZZLE
THA 		8-98028-999-1 04 1 1410- ● ●
124 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT THA 		1-09675-037-1 04 1 1410- ● ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 THA 		0-95690-111-0 04 1 1410- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) THA 		1-15619-507-0 02 1 1410- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) THA 		8-97602-218-0 04 1 1410- ● ●
211 RAIL ASM; COMMON
THA 		8-98011-888-2 01 1 1410- ● ●
216 BOLT; EYE
(A) THA 		5-15759-003-0 01 1 1410- ● ●
216 BOLT; EYE
(B) THA 		8-97351-388-0 01 1 1410- ● ●
216 BOLT; EYE
(C) THA 		8-98043-033-0 01 1 1410- ● ●
445 SCREW; FILTER,INLET
THA 		8-98204-986-0 01 1 1410- ● ●

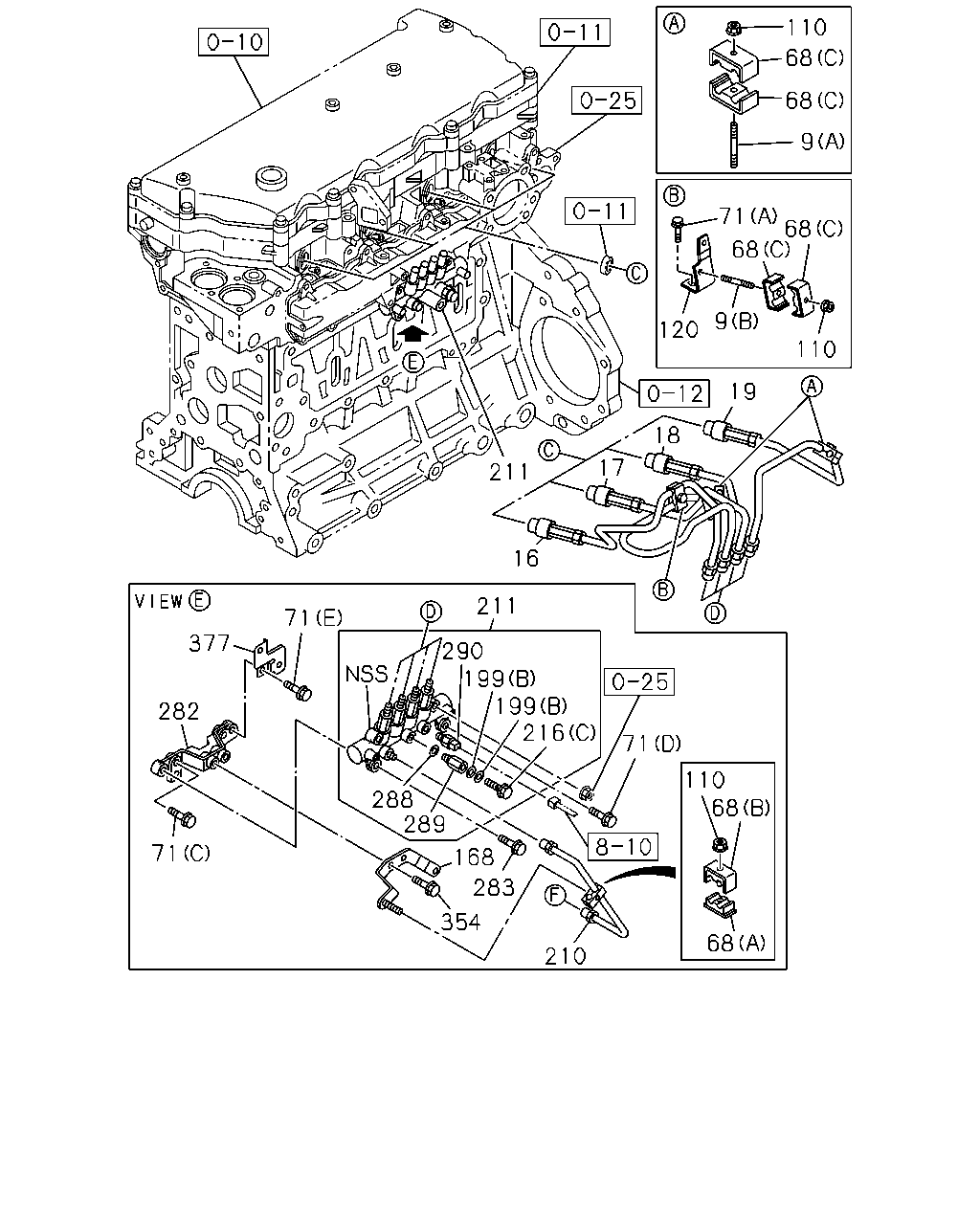

çizim 448527
110 68 68 9 71 68 68 9 110 120 19 18 17 211 16 211 290 199 199 216 71 110 68 68 210 354 283 168 289 288 71 282 377 71
BalonParca AdiParca NoAdetTipApplied Date A B
9 STUD; CLIP
(A) M6X30 L=38 THA 		0-41010-630-0 02 1 1410- ● ●
9 STUD; CLIP
(B) M6X35 L=43 THA 		8-97203-278-0 01 1 1410- ● ●
16 PIPE; INJ NO.1
THA 		8-98271-202-0 01 1 1410- ● ●
17 PIPE; INJ NO.2
THA 		8-98271-203-0 01 1 1410- ● ●
18 PIPE; INJ NO.3
THA 		8-98271-204-0 01 1 1410- ● ●
19 PIPE; INJ NO.4
THA 		8-98271-230-0 01 1 1410- ● ●
68 CLIP; INJ PIPE
(A) THA 		8-97330-118-3 01 1 1410- ● ●
68 CLIP; INJ PIPE
(B) THA 		8-97330-119-3 01 1 1410- ● ●
68 CLIP; INJ PIPE
(C) THA 		8-98148-996-2 06 1 1410- ● ●
71 BOLT; BRKT
(E) M6X10 FLANGE THA 		0-28050-610-0 01 1 1410- ● ●
71 BOLT; BRKT
(A) M8X16 FLANGE THA 		0-28050-816-0 01 1 1410- ● ●
71 BOLT; BRKT
(C) M8X40 FLANGE THA 		0-28050-840-0 01 1 1410- ● ●
71 BOLT; BRKT
(D) M8X50 FLANGE THA 		0-28050-850-0 01 1 1410- ● ●
71 BOLT; BRKT
(B) M10X60 FLANGE THA 		0-28051-060-0 03 1 1410- ● ●
71 BOLT; BRKT
(E) M6X10 FLANGE THA 		0-28080-610-0 01 1 1410- ● ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 04 1 1410- ● ●
120 BRACKET; INJ PIPE
THA 		8-98001-041-0 01 1 1410- ● ●
168 BRACKET; FUEL PIPE
THA 		8-98072-403-0 01 1 1410- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) THA 		1-15619-507-0 02 1 1410- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) THA 		8-97602-218-0 04 1 1410- ● ●
210 PIPE; INJ,C/R
THA 		8-97376-779-0 01 1 1410- ● ●
211 RAIL ASM; COMMON
THA 		8-98011-888-2 01 1 1410- ● ●
216 BOLT; EYE
(A) THA 		5-15759-003-0 01 1 1410- ● ●
216 BOLT; EYE
(B) THA 		8-97351-388-0 01 1 1410- ● ●
216 BOLT; EYE
(C) THA 		8-98043-033-0 01 1 1410- ● ●
282 BRACKET; COMMON RAIL
THA 		8-98157-115-0 01 1 1410- ● ●
283 BOLT; COMMON RAIL
M8X25 FLANGE THA 		0-28050-825-0 01 1 1410- ● ●
288 GASKET
ID=11 OD=16.3 THA 		1-15641-046-0 01 1 1410- ● ●
289 LIMITER; FUEL PRESS
THA 		8-98032-549-0 01 1 1410- ● ●
290 SENSOR; PRESS
THA 		8-98119-790-0 01 1 1410- ● ●
354 BOLT; FUEL PIPE
M8X16 FLANGE THA 		0-28050-816-0 02 1 1410- ● ●
377 BRACKET; HARNESS
THA 		8-97379-783-1 01 1 1410- ● ●
