Isuzu WW
▶
TRUCKS
▶
FRR
▶
11646 - FRR THAILAND EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-39 - AIR COMPRESSOR; BRAKE
▶

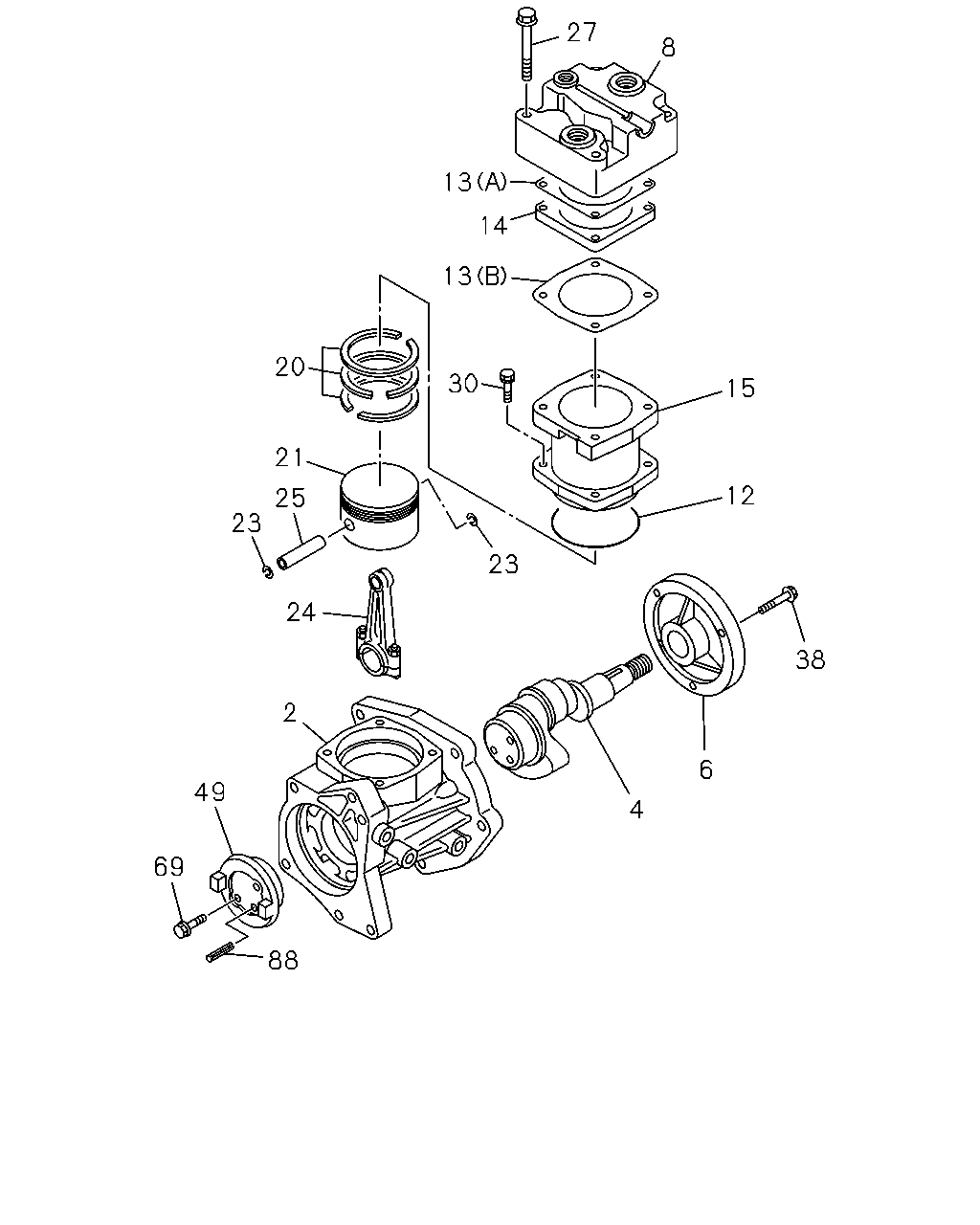

0-39 — AIR COMPRESSOR; BRAKE
(#150061) — 20 parça
Tümü
A - 4HK1-TCC ENG
B - 4HK1-TCS ENG
27
8
13
14
13
20
30
21
25
23
24
2
49
69
88
4
6
38
12
23
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
CRANKCASE; AIR CMPR
THA
1-19151-303-0
01
1
1410-
●
●
4
CRANKSHAFT; AIR CMPR
THA
1-19171-090-1
01
1
1410-
●
●
6
COVER ASM; BRG,AIR CMPR
THA
1-19156-086-1
01
1
1410-
●
●
8
HEAD ASM; CYL,AIR CMPR
THA
1-19110-075-0
01
1
1410-
●
●
12
GASKET; AIR CMPR
THA
8-98185-684-0
01
1
1410-
●
●
13
GASKET; AIR CMPR
(A) THA
1-19115-015-0
01
1
1410-
●
●
13
GASKET; AIR CMPR
(B) THA
1-19115-016-0
01
1
1410-
●
●
14
PLATE; AIR CMPR
THA
8-98271-713-0
01
1
1410-
●
●
15
CYLINDER; AIR CMPR
THA
1-19163-068-1
01
1
1410-
●
●
20
RING KIT; PISTON,AIR CMPR
THA
1-19163-058-0
01
1
1410-
●
●
21
PISTON; AIR CMPR
THA
1-19161-027-0
01
1
1410-
●
●
23
RING; SNAP,PISTON,AIR CMPR
THA
1-19169-004-0
02
1
1410-
●
●
24
ROD ASM; CONN,AIR CMPR
THA
1-19173-023-0
01
1
1410-
●
●
25
PIN; PISTON,AIR CMPR
THA
1-19167-003-0
01
1
1410-
●
●
27
BOLT; HD
THA
8-98188-172-0
04
1
1410-
●
●
30
BOLT; CYL TO CRANKCASE
M10X25 THA
9-01911-025-0
04
1
1410-
●
●
38
BOLT; COVER FIX
THA
1-19159-023-0
03
1
1410-
●
●
49
COUPLING ASM
THA
1-19179-032-0
01
1
1410-
●
●
69
BOLT ASM; AIR COMP
THA
1-19179-033-0
02
1
1410-
●
●
88
PIN; SPRING
THA
1-19179-034-0
01
1
1410-
●
●
