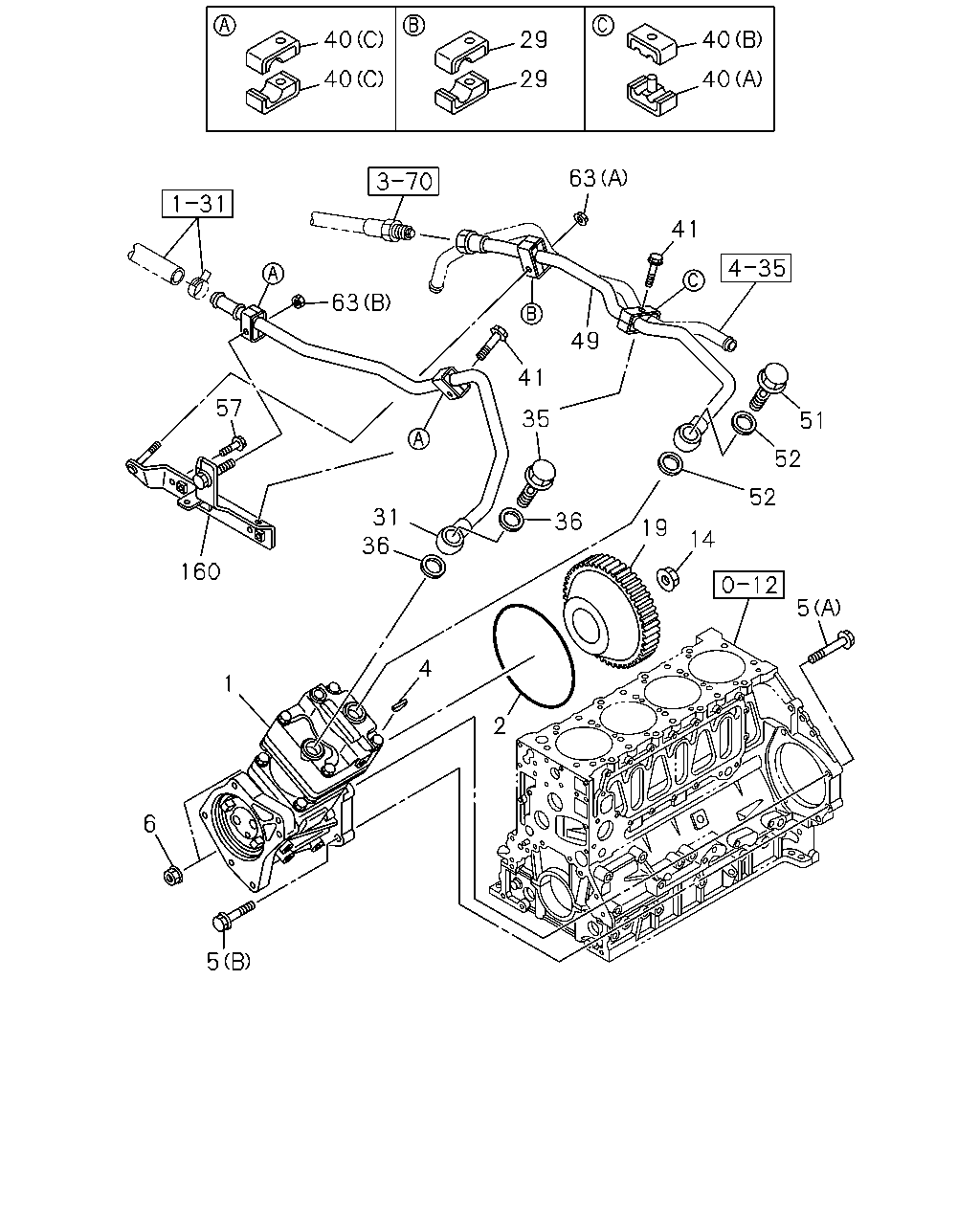

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#150060) — 23 parça
çizim 448401
63 57 160 31 36 1 6 5 4 2 41 35 36 49 63 41 19 14 52 52 51 5 40 40 29 29 40 40
BalonParca AdiParca NoAdetTipApplied Date A B
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. THA 		8-98270-233-0 01 1 1410- ● ●
2 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6 THA 		1-09623-464-0 01 1 1410- ● ●
4 KEY; INJ PUMP GEAR
THA 		9-08055-519-0 01 1 1410- ● ●
5 BOLT; AIR CMPR FIX
(B) M12X70 FLANGE THA 		0-28151-270-0 01 1 1410- ● ●
5 BOLT; AIR CMPR FIX
(A) M12X95 FLANGE THA 		8-94396-485-1 01 1 1410- ● ●
6 NUT; AIR CMPR
M10 FLANGE THA 		0-91180-110-0 02 1 1410- ● ●
14 NUT; GEAR
M18 THA 		8-97141-154-0 01 1 1410- ● ●
19 GEAR; INJ PUMP
Z=35 THA 		8-97600-987-2 01 1 1410- ● ●
29 CLIP; AIR PIPE
THA 		1-09701-282-0 02 1 1410- ● ●
31 PIPE; AIR,AIR CMPR SUCTION
THA 		8-98233-806-1 01 1 1410- ● ●
35 BOLT; EYE,AIR PIPE
M24X39 THA 		1-09675-175-2 01 1 1410- ● ●
36 GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32 THA 		9-09571-424-0 02 1 1410- ● ●
40 CLIP; AIR PIPE
(C) THA 		1-09701-284-0 04 1 1410- ● ●
40 CLIP; AIR PIPE
(A) THA 		8-97619-417-0 01 1 1410- ● ●
40 CLIP; AIR PIPE
(B) THA 		8-97619-418-0 01 1 1410- ● ●
41 BOLT; CLIP
M8X45 FLANGE THA 		0-28050-845-0 02 1 1410- ● ●
49 PIPE; AIR,CHARGE
THA 		8-98069-425-0 01 1 1410- ● ●
51 BOLT; EYE,AIR PIPE TO CMPR
M24X39 THA 		1-09675-175-2 01 1 1410- ● ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32 THA 		9-09571-424-0 02 1 1410- ● ●
57 BOLT; BRKT,AIR PIPE
M8X16 FLANGE THA 		0-28050-816-0 02 1 1410- ● ●
63 NUT; CLIP
(A) M6 FLANGE THA 		0-91180-106-0 01 1 1410- ● ●
63 NUT; CLIP
(B) M8 FLANGE THA 		0-91180-108-0 01 1 1410- ● ●
160 BRACKET; AIR PIPE
THA 		8-98076-098-0 01 1 1410- ● ●
