Sayfa 0-36 - Isuzu EPC

0-36 — TURBOCHARGER SYSTEM (#150058) — 45 parça

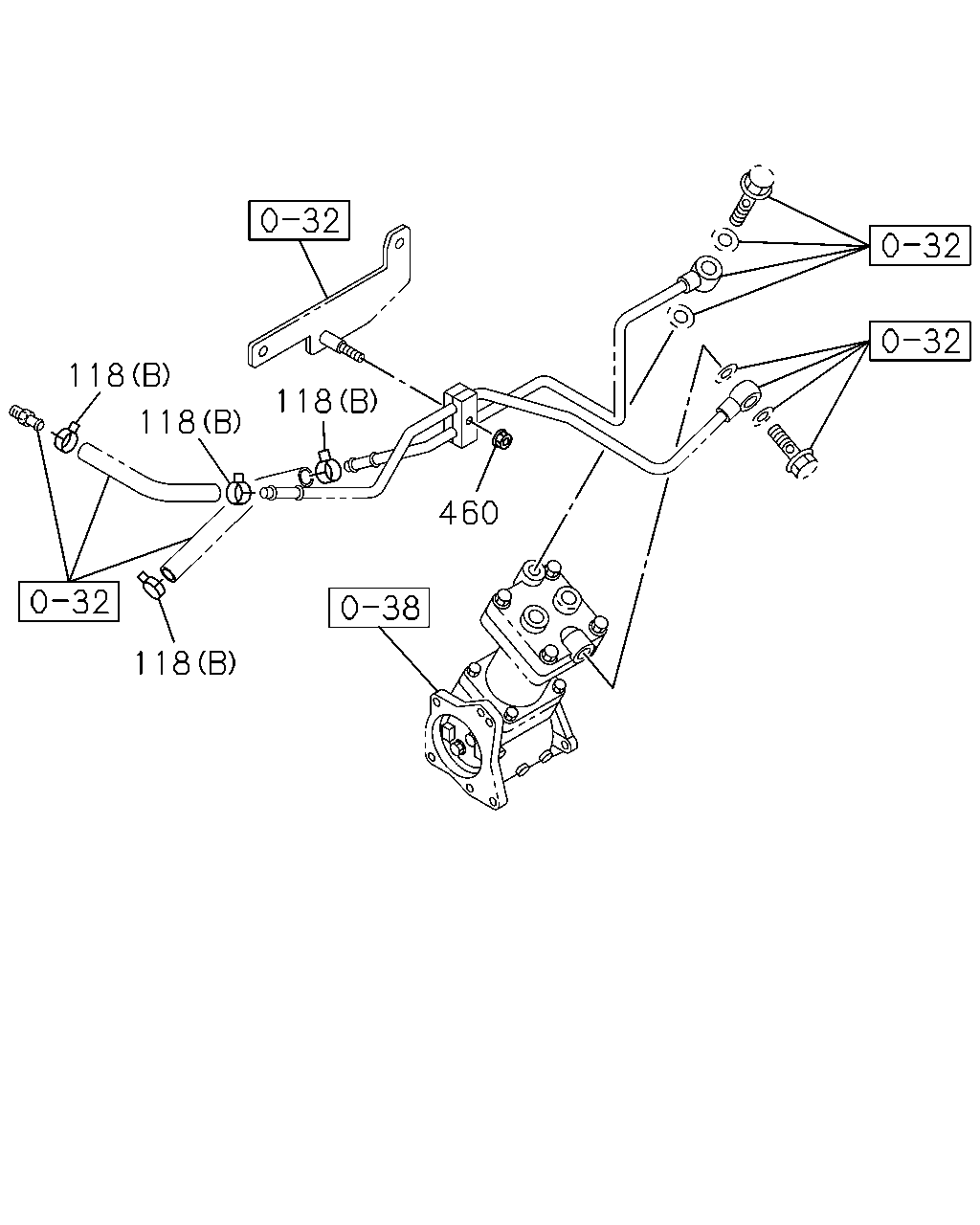

118 118 118 118 460

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
118	CLIP; WATER HOSE (A) ID=20 THA	1-09707-084-1	06	1	1410-	●	●
118	CLIP; WATER HOSE (B) ID=15.5 THA	8-94221-519-0	06	1	1410-	●	●
460	NUT; PIPE M6 FLANGE THA	0-91180-106-0	01	1	1410-	●	●

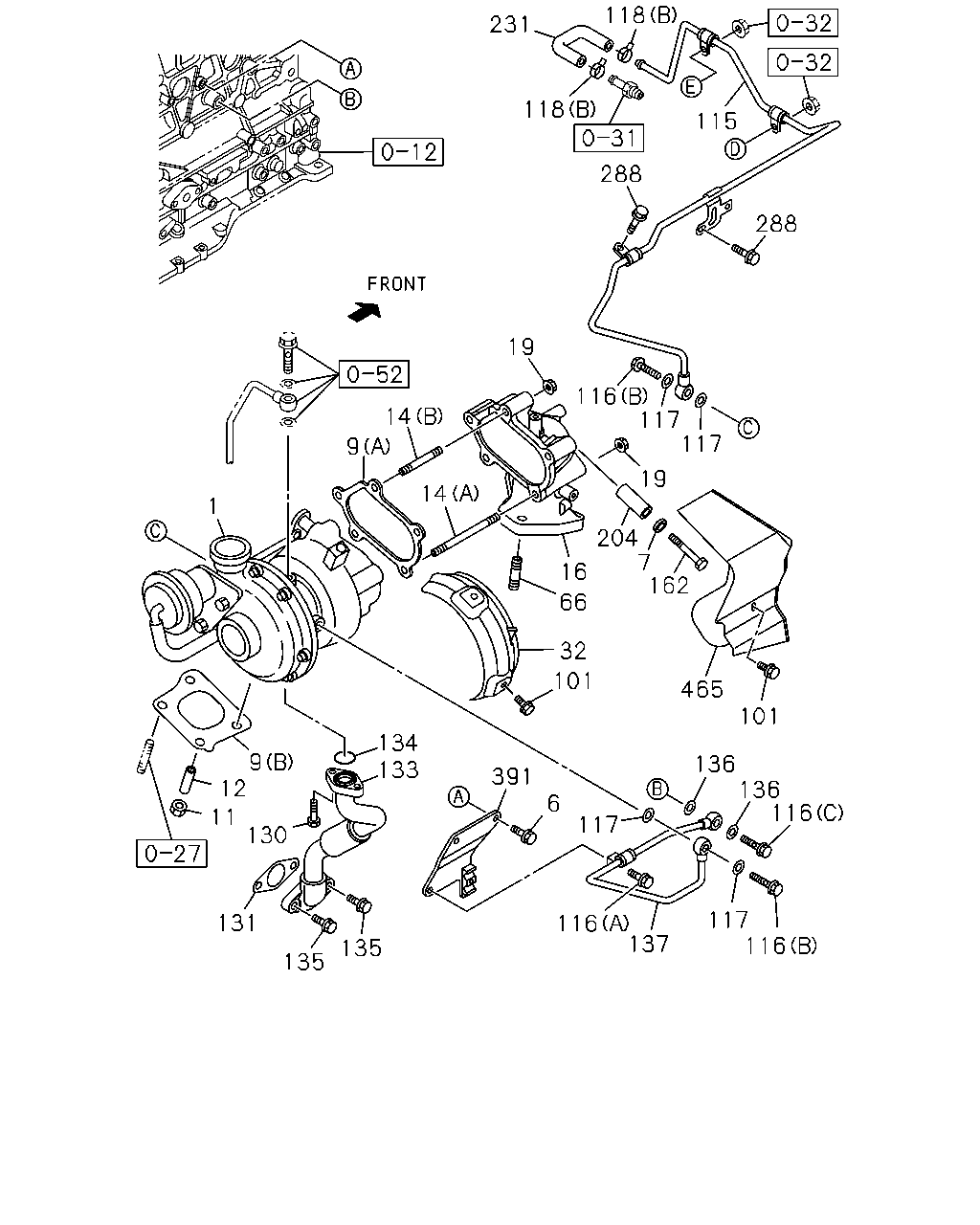

231 118 115 118 288 288 19 116 117 117 19 101 465 162 7 204 116 136 136 116 117 117 101 32 66 16 14 14 9 1 12 9 11 130 131 135 135 134 133 391 6 116 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. THA	8-98070-143-2	01	1	1410-	●	●
6	BOLT; BRKT TO C/BL M8X16 FLANGE THA	0-28050-816-0	02	1	1410-	●	●
7	WASHER; PL,BRKT ID=8 OD=18 T=3 THA	8-94174-537-0	01	1	1410-	●	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) THA	8-97039-777-1	01	1	1410-	●	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) THA	8-97374-412-0	01	1	1410-	●	●
11	NUT; TURBOCHARGER M10 P=1.5 H=8 THA	9-09842-007-0	04	1	1410-	●	●
12	STUD; TURBOCHARGER M10X28 THA	9-04731-028-0	02	1	1410-	●	●
14	STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108 THA	8-97019-477-0	02	1	1410-	●	●
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63 THA	8-97019-478-0	03	1	1410-	●	●
16	ADAPTER; EXH PIPE THA	8-97039-749-2	01	1	1410-	●	●
19	NUT; EXH PIPE,TURBOCHARGER M8 FLANGE THA	8-94170-486-0	05	1	1410-	●	●
32	PROTECTOR; HEAT,TURBOCHARGER THA	8-97351-168-0	01	1	1410-	●	●
66	STUD; EXH PIPE M10X25 L=40 THA	0-44011-025-0	03	1	1410-	●	●
101	BOLT; HEAT PROTECTOR M6X12 W/PL WASHER THA	8-98054-289-0	06	1	1410-	●	●
115	PIPE; WATER,TURBOCHARGER OUT THA	8-98063-841-0	01	1	1410-	●	●
116	BOLT; WATER PIPE (A) M8X20 FLANGE THA	0-28650-820-0	06	1	1410-	●	●
116	BOLT; WATER PIPE (B) M12X24 EYE-BOLT THA	1-09675-081-0	02	1	1410-	●	●
116	BOLT; WATER PIPE (C) M14X30 EYE-BOLT THA	8-94455-144-0	01	1	1410-	●	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 THA	9-09571-412-0	04	1	1410-	●	●
118	CLIP; WATER HOSE (A) ID=20 THA	1-09707-084-1	06	1	1410-	●	●
118	CLIP; WATER HOSE (B) ID=15.5 THA	8-94221-519-0	06	1	1410-	●	●
130	BOLT; OIL PIPE TO TURBOCHARGER DRAIN M6X20 W/LK WASHER THA	0-50540-620-0	02	1	1410-	●	●
131	GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 THA	8-94394-671-0	01	1	1410-	●	●
133	PIPE; OIL DRAIN,TURBOCHARGER THA	8-98172-662-0	01	1	1410-	●	●
134	GASKET; OIL PIPE,TURBOCHARGER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8 THA	1-09623-462-0	01	1	1410-	●	●
135	BOLT; OIL PIPE TO C/BL M8X20 FLANGE THA	0-28050-820-0	02	1	1410-	●	●
136	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 THA	8-98251-345-0	02	1	1410-	●	●
137	PIPE; WATER,TURBOCHARGER IN THA	8-98063-007-0	01	1	1410-	●	●
162	BOLT; ADAPTER M8X57 THA	5-09000-275-0	01	1	1410-	●	●
204	COLLAR; PIPE ADAPTER THA	8-97214-384-1	01	1	1410-	●	●
231	HOSE; RUBBER,TURBOCHARGER OUT THA	8-97209-950-0	01	1	1410-	●	●
288	BOLT; WATER PIPE CLIP M8X16 FLANGE THA	0-28050-816-0	02	1	1410-	●	●
391	BRACKET; WATER PIPE THA	8-98057-168-2	01	1	1410-	●	●
465	PROTECTOR; HEAT,EXH ADAPTER THA	8-98176-248-0	01	1	1410-	●	●

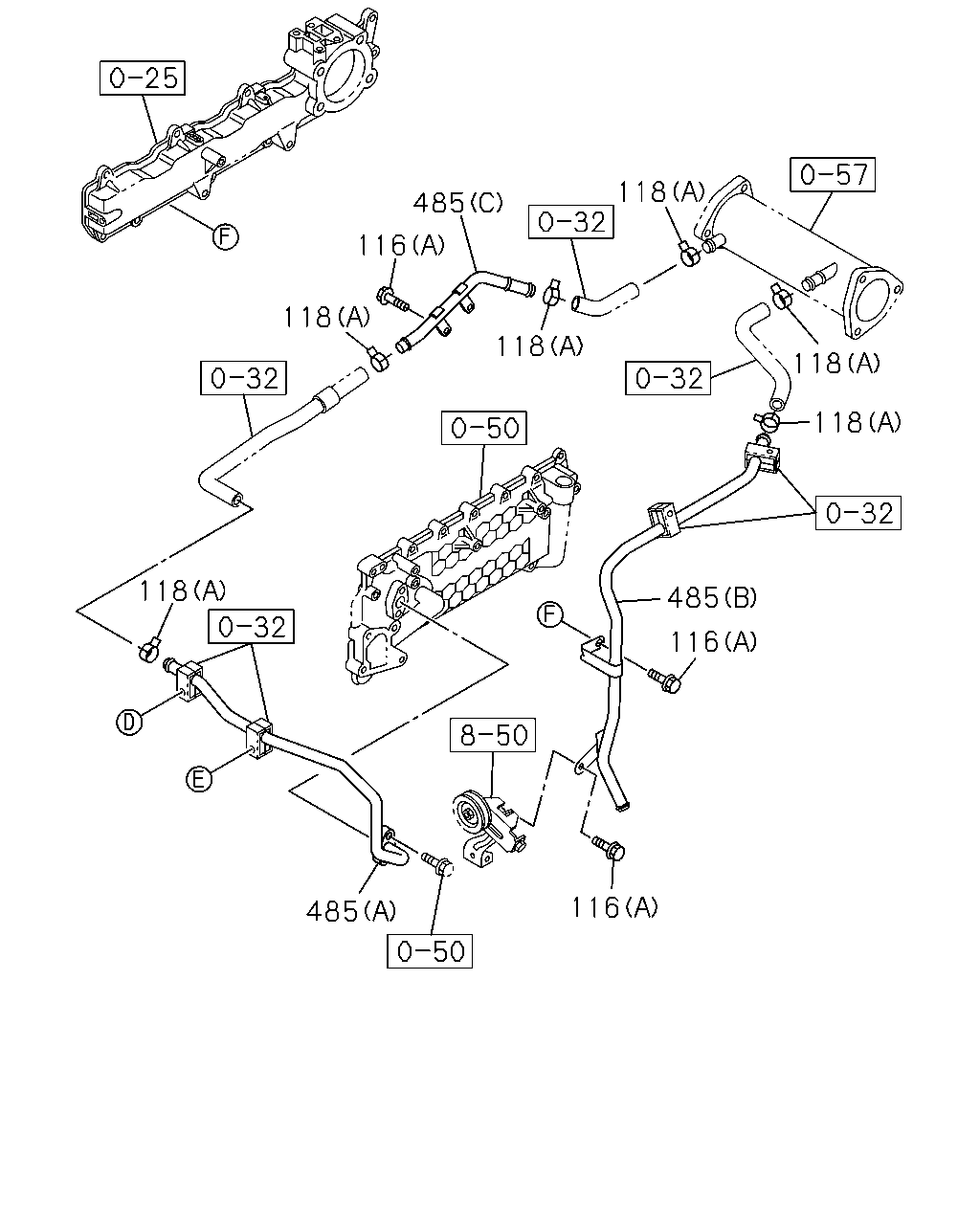

116 485 118 118 118 485 116 116 485 118 118 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
116	BOLT; WATER PIPE (A) M8X20 FLANGE THA	0-28650-820-0	06	1	1410-	●	●
116	BOLT; WATER PIPE (B) M12X24 EYE-BOLT THA	1-09675-081-0	02	1	1410-	●	●
116	BOLT; WATER PIPE (C) M14X30 EYE-BOLT THA	8-94455-144-0	01	1	1410-	●	●
118	CLIP; WATER HOSE (A) ID=20 THA	1-09707-084-1	06	1	1410-	●	●
118	CLIP; WATER HOSE (B) ID=15.5 THA	8-94221-519-0	06	1	1410-	●	●
485	PIPE; WATER EGR (A) THA	8-97376-773-0	01	1	1410-	●	●
485	PIPE; WATER EGR (B) THA	8-97376-775-2	01	1	1410-	●	●
485	PIPE; WATER EGR (C) THA	8-98064-164-0	01	1	1410-	●	●
