0-32 — WATER PIPING; ENGINE (#150055) — 25 parça

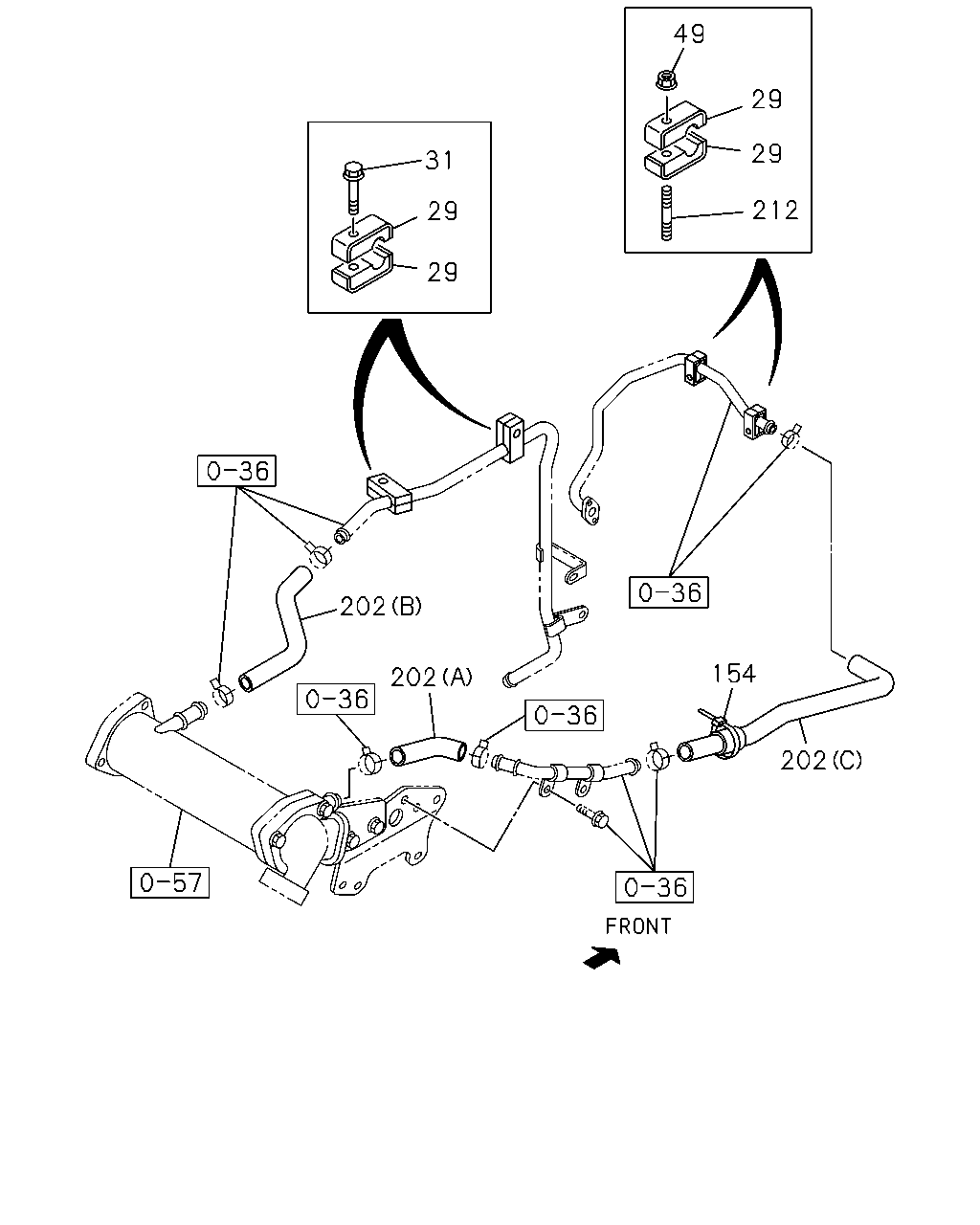

çizim 448249
31 29 29 49 29 29 212 202 202 154 202
BalonParca AdiParca NoAdetTipApplied Date A B
29 CLIP; PIPE
THA 		1-09701-284-0 08 1 1410- ● ●
31 BOLT; CLIP
M8X40 FLANGE THA 		0-28050-840-0 02 1 1410- ● ●
49 NUT; WATER PIPE
M8 FLANGE THA 		0-91180-108-0 02 1 1410- ● ●
154 CLIP; WATER HOSE
L=170.3 THA 		1-09987-182-0 01 1 1410- ● ●
202 HOSE; RUBBER,EGR COOLER
(B) THA 		8-97386-586-1 01 1 1410- ● ●
202 HOSE; RUBBER,EGR COOLER
(A) THA 		8-98092-382-0 01 1 1410- ● ●
202 HOSE; RUBBER,EGR COOLER
(C) THA 		8-98097-605-1 01 1 1410- ● ●
212 STUD; PIPE
M8X45 L=55 THA 		8-94217-227-0 02 1 1410- ● ●

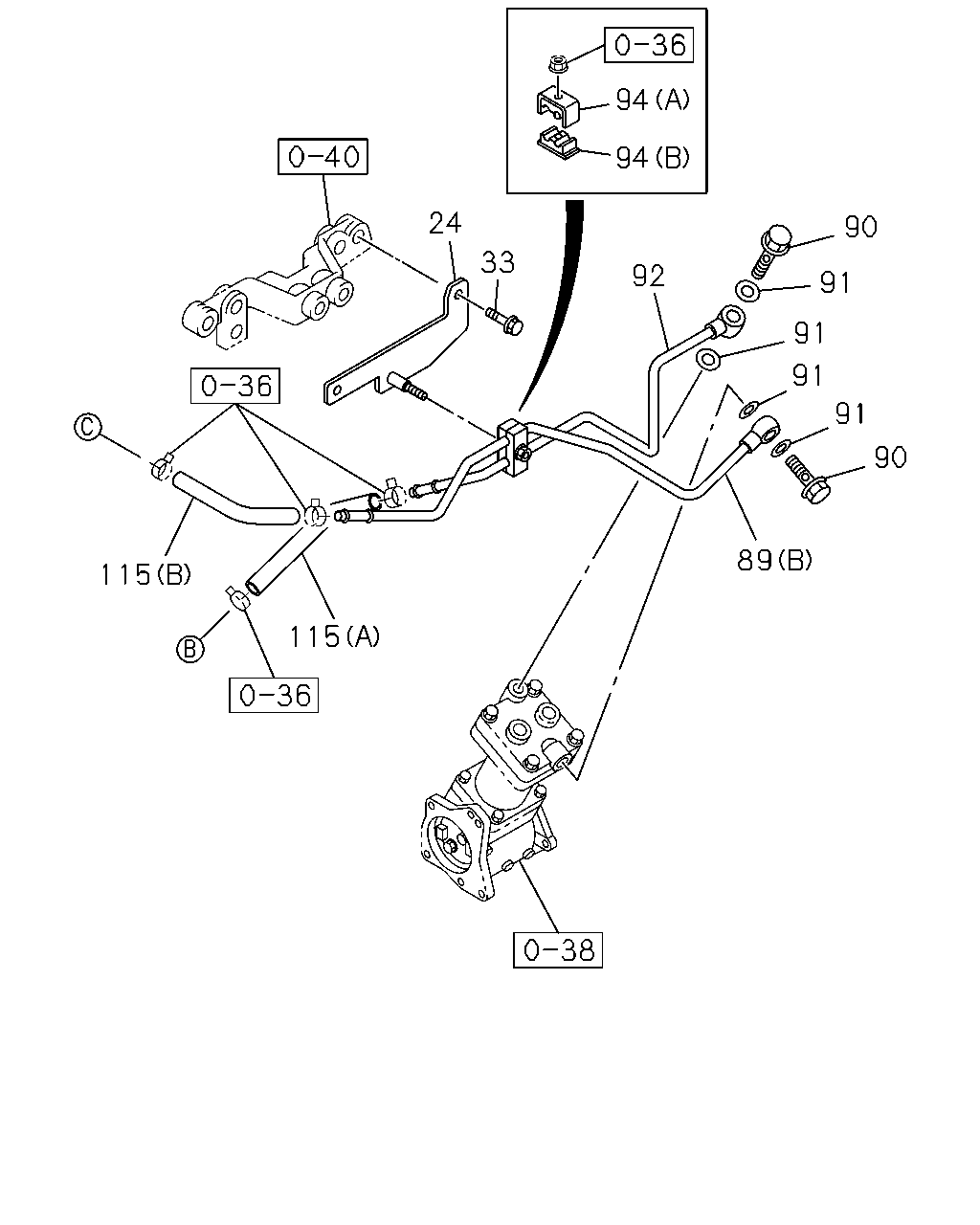

çizim 448255
94 94 90 91 91 91 91 90 89 92 33 24 115 115
BalonParca AdiParca NoAdetTipApplied Date A B
24 BRACKET; WATER PIPE
THA 		8-97379-140-0 01 1 1410- ● ●
33 BOLT; BRKT
M6X10 FLANGE THA 		0-28050-610-0 02 1 1410- ● ●
89 PIPE; WATER,AIR CMPR,IN
(A) THA 		8-97358-699-0 01 1 1410- ● ●
89 PIPE; WATER,AIR CMPR,IN
(B) THA 		8-97376-783-1 01 1 1410- ● ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT THA 		1-09675-193-0 02 1 1410- ● ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 THA 		8-98251-345-0 04 1 1410- ● ●
92 PIPE; WATER,AIR CMPR,OUT
THA 		8-97376-784-0 01 1 1410- ● ●
94 CLIP; WATER PIPE
(B) THA 		1-09701-180-0 01 1 1410- ● ●
94 CLIP; WATER PIPE
(A) ID=10 & 10 L=25 THA 		8-94393-280-3 01 1 1410- ● ●
115 HOSE; RUBBER
(A) L=130 SERVICED BY L=3000 THA 		0-03559-300-0 01 1 1410- ● ●
115 HOSE; RUBBER
(B) THA 		8-98009-361-0 01 1 1410- ● ●

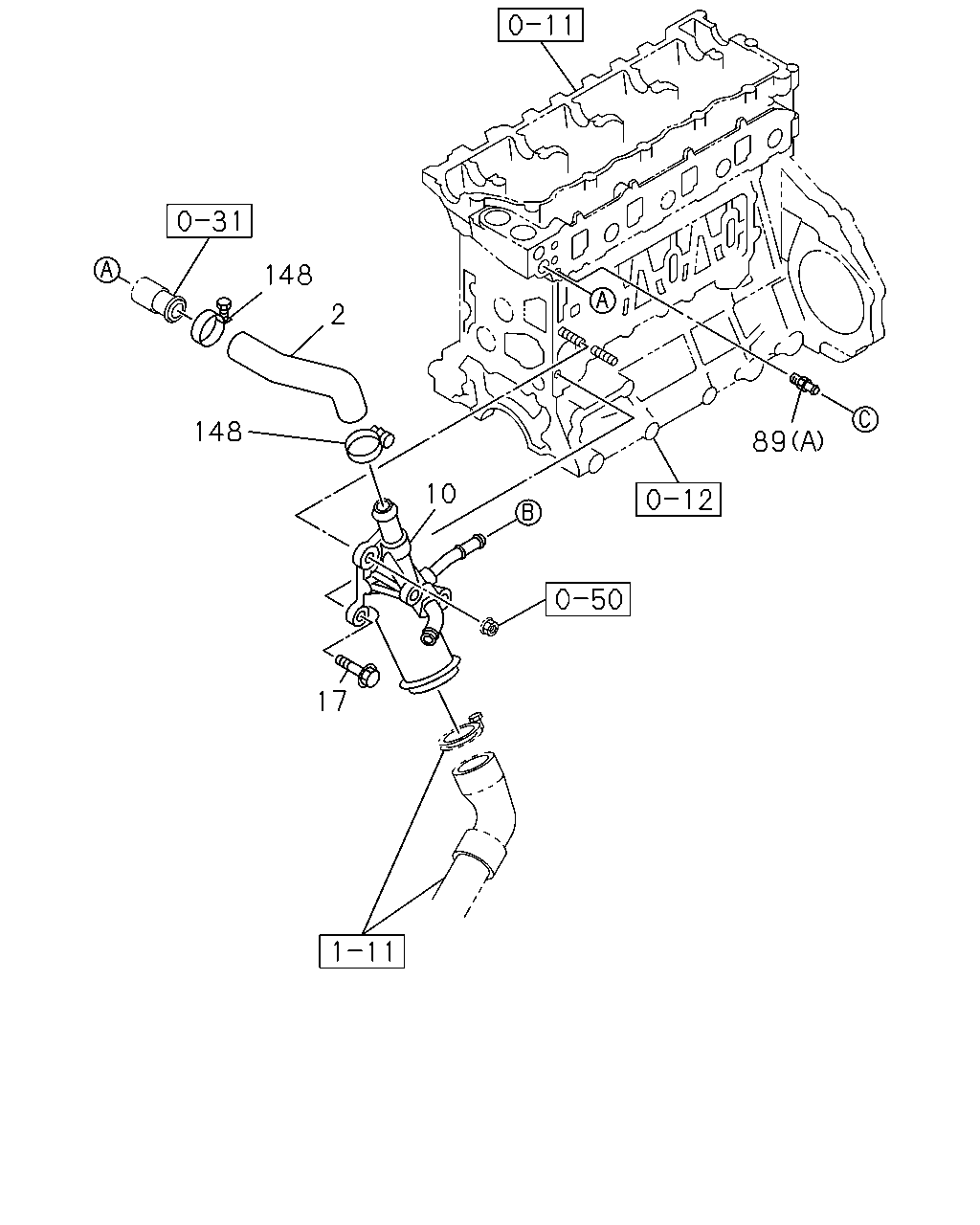

çizim 449281
148 2 148 10 17 89
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOSE; WATER,BY-PASS
THA 		8-97379-228-1 01 1 1410- ● ●
10 PIPE; SUCTION
THA 		8-98166-995-0 01 1 1410- ● ●
17 BOLT; SUCTION PIPE
M8X48 FLANGE THA 		8-94458-473-1 01 1 1410- ● ●
89 PIPE; WATER,AIR CMPR,IN
(A) THA 		8-97358-699-0 01 1 1410- ● ●
89 PIPE; WATER,AIR CMPR,IN
(B) THA 		8-97376-783-1 01 1 1410- ● ●
148 CLIP; BYPASS HOSE
ID=30 THA 		9-09915-315-1 02 1 1410- ● ●
