0-31 — THERMOSTAT AND HOUSING (#150054) — 11 parça

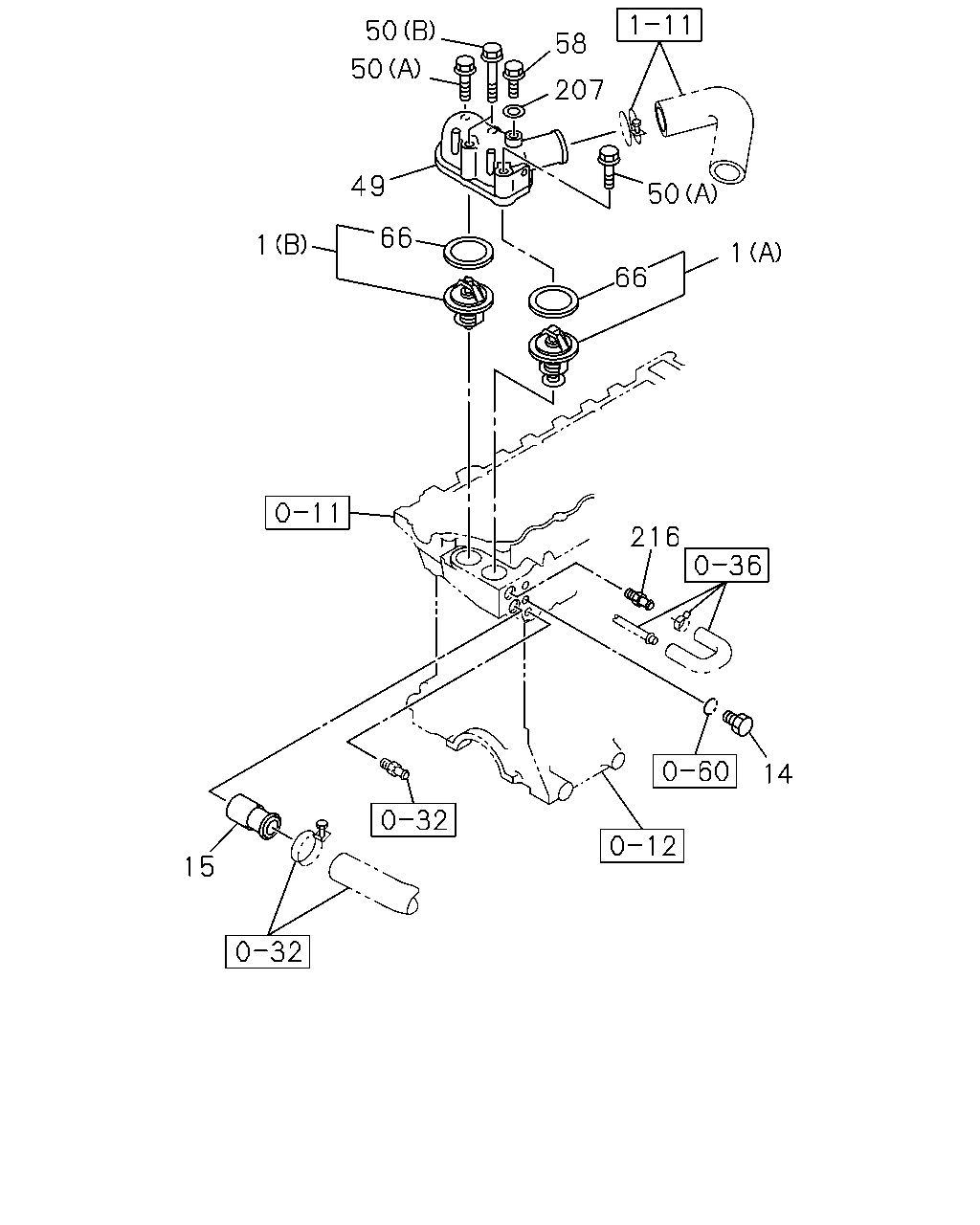

çizim 448219
58 207 50 66 1 216 14 15 1 66 49 50 50
BalonParca AdiParca NoAdetTipApplied Date A B
1 THERMOSTAT
(B) 85 CELSIUS THA 		8-97300-787-2 01 1 1410- ● ●
1 THERMOSTAT
(A) 82 CELSIUS THA 		8-97300-790-2 01 1 1410- ● ●
14 PLUG; SW
M16X8 PLUG THA 		9-09661-005-0 01 1 1410- ● ●
15 PIPE; BYPASS
THA 		8-94342-574-0 01 1 1410- ● ●
49 PIPE; WATER OUTLET
THA 		8-97329-914-0 01 1 1410- ● ●
50 BOLT; OUTLET PIPE
(A) M8X25 FLANGE THA 		0-28650-825-0 02 1 1410- ● ●
50 BOLT; OUTLET PIPE
(B) M8X65 FLANGE THA 		1-09044-072-1 02 1 1410- ● ●
58 PLUG; WATER OUTLET PIPE
M8X16 THA 		8-97021-211-1 01 1 1410- ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA 		8-97300-793-0 02 1 1410- ● ●
207 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=8.2 OD=13.2 THA 		1-09630-082-0 01 1 1410- ● ●
216 PIPE ASM; WATER,TURBOCHARGER RETURN
THA 		8-97358-699-0 01 1 1410- ● ●
