0-28 — VENTILATION SYSTEM (#150052) — 15 parça

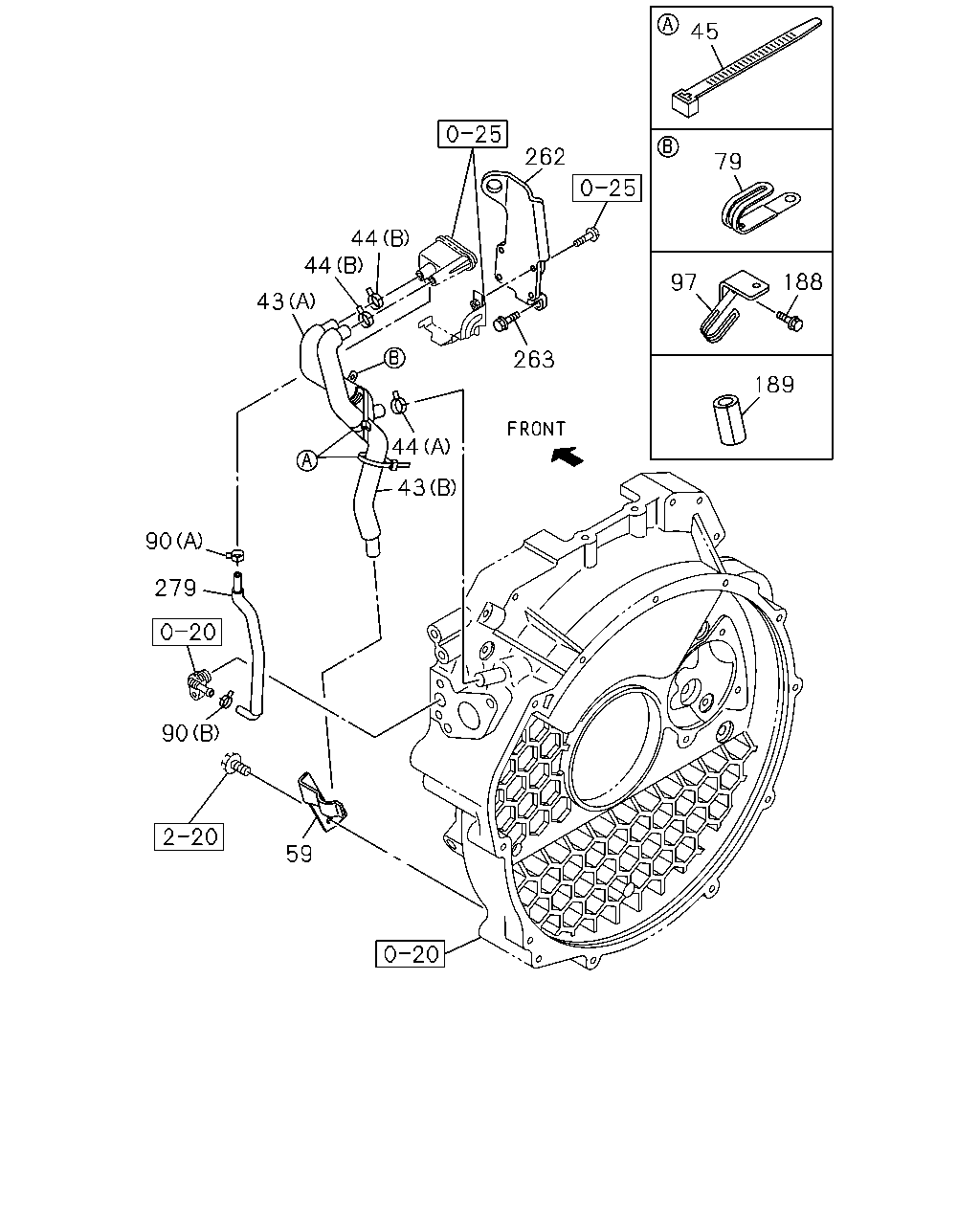

çizim 448202
262 44 44 43 263 44 43 90 279 90 59 45 79 188 97 189
BalonParca AdiParca NoAdetTipApplied Date A B
43 HOSE; PCV
(A) THA 		8-98215-656-1 01 1 1410- ● ●
43 HOSE; PCV
(B) THA 		8-98249-510-0 01 1 1410- ● ●
44 CLIP; HOSE,PCV
(A) ID=21 THA 		8-94242-034-0 01 1 1410- ● ●
44 CLIP; HOSE,PCV
(B) ID=22.7 THA 		8-94466-382-0 02 1 1410- ● ●
45 CLIP; PCV HOSE
L=202 THA 		8-98143-872-0 02 1 1410- ● ●
59 CLIP; HOSE
THA 		8-98249-517-0 01 1 1410- ● ●
79 CLIP; PCV HOSE
L=36 THA 		8-94224-891-1 01 1 1410- ● ●
90 CLIP; RUBBER HOSE
(A) ID=11 THA 		8-94238-570-0 01 1 1410- ● ●
90 CLIP; RUBBER HOSE
(B) ID=11.5 THA 		8-97138-011-0 01 1 1410- ● ●
97 BRACKET; HOSE
THA 		8-98093-946-3 01 1 1410- ● ●
188 BOLT; BRKT
M8X12 FLANGE THA 		0-28050-812-0 01 1 1410- ● ●
189 SLEEVE; RUBBER
ID=10 OD=14 L=30 THA 		9-09956-682-0 01 1 1410- ● ●
262 BRACKET; OIL SEPARETOR
THA 		8-98036-498-0 01 1 1410- ● ●
263 BOLT; BRKT,OIL SEPARETOR
M12X30 FLANGE THA 		0-28151-230-0 03 1 1410- ● ●
279 HOSE; RUBBER,OIL DRAIN
THA 		8-98215-655-0 01 1 1410- ● ●
