Isuzu WW
▶
TRUCKS
▶
FRR
▶
11646 - FRR THAILAND EURO3
▶
0 - Engine, Emission, Engine Electrical
▶

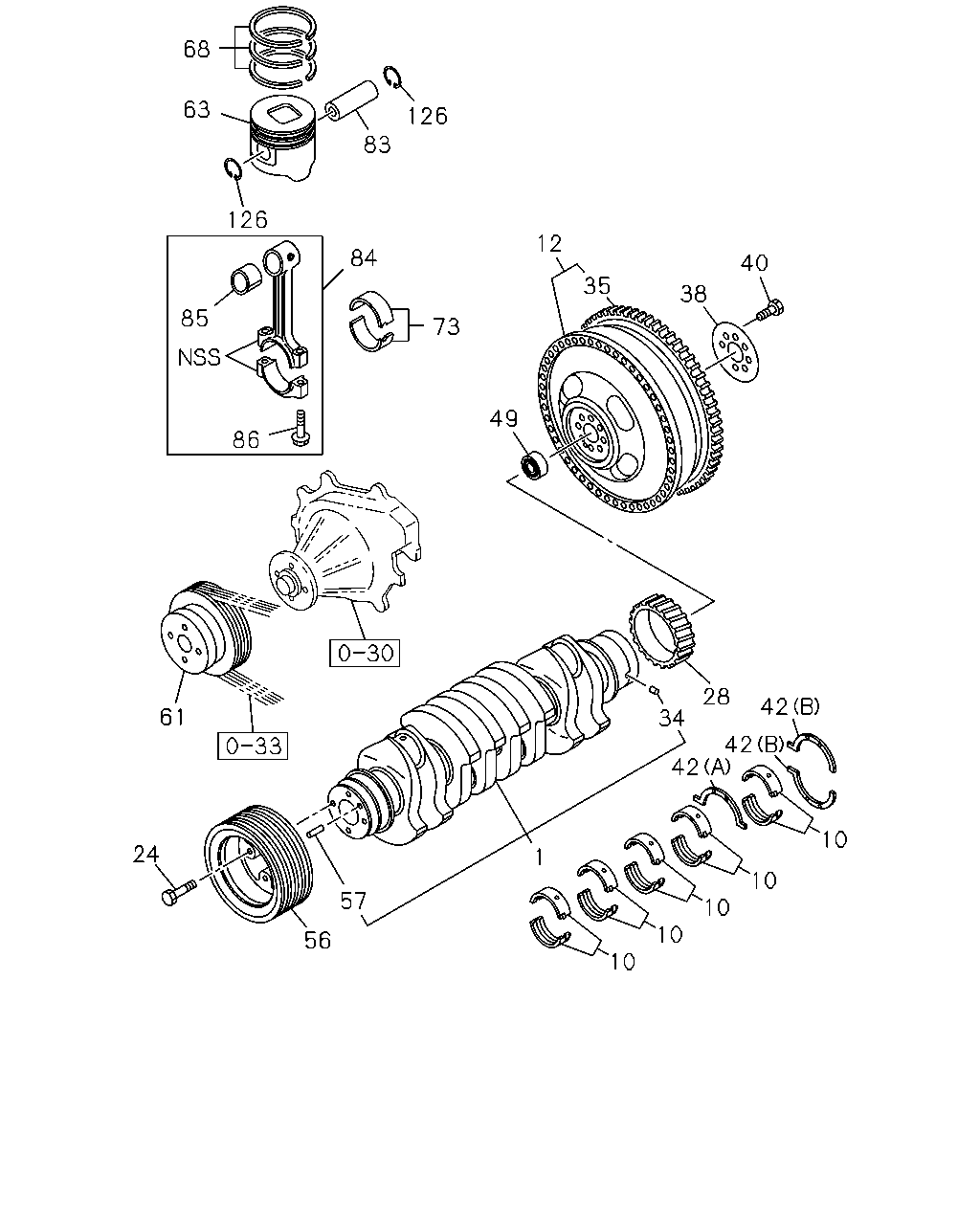

0-15 - CRANKSHAFT,PISTON AND FLYWHEEL
▶
0-15 — CRANKSHAFT,PISTON AND FLYWHEEL
(#150047) — 26 parça
Tümü
A - 4HK1-TCC ENG
B - 4HK1-TCS ENG
68
63
126
83
126
84
85
86
73
12
40
38
35
49
61
24
56
57
1
28
34
42
42
42
10
10
10
10
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CRANKSHAFT
THA
8-98029-270-0
01
1
1410-
●
●
10
METAL SET; CRANKSHAFT,STANDARD
BLUE THA
8-97372-076-1
05
1
1410-
●
●
10
METAL SET; CRANKSHAFT,STANDARD
BLACK THA
8-97372-077-1
05
1
1410-
●
●
10
METAL SET; CRANKSHAFT,STANDARD
BROWN THA
8-97372-078-1
05
1
1410-
●
●
12
FLYWHEEL
THA
8-98056-355-2
01
1
1410-
●
●
24
BOLT; DAMPER
M16X42 THA
8-97028-733-0
04
1
1410-
●
●
28
GEAR; CR/SHF
Z=42 THA
8-94394-342-4
01
1
1410-
●
●
34
PIN; GEAR SETTING
OD=5 L=6 THA
9-09878-626-0
01
1
1410-
●
●
35
GEAR; RING
Z=143 THA
8-97375-675-1
01
1
1410-
●
●
38
WASHER; FLYWHEEL
ID=55 OD=110 THA
8-94397-496-1
01
1
1410-
●
●
40
BOLT; FLYWHEEL
M16X51 THA
8-94334-870-1
08
1
1410-
●
●
42
WASHER; THRUST,CR/SHF
(A) THA
8-97386-548-0
01
1
1410-
●
●
42
WASHER; THRUST,CR/SHF
(B) THA
8-97386-549-0
02
1
1410-
●
●
49
BEARING; PILOT
THA
8-97258-239-0
01
1
1410-
●
●
56
PULLEY; CR/SHF DAMPER
3-GROOVE THA
8-98004-024-3
01
1
1410-
●
●
57
PIN; PULLEY
OD=8 L=20 THA
9-08150-820-0
02
1
1410-
●
●
61
PULLEY; FAN DRIVE
1-GROOVE THA
8-98003-384-1
01
1
1410-
●
●
63
PISTON
ALSO INCLUDED IN LINER SET. NON GRADE THA
8-98041-141-2
04
1
1410-
●
●
68
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. THA
8-98040-125-0
04
1
1410-
●
●
73
METAL SET; CONN ROD,STANDARD
YELLOW THA
8-98055-479-0
04
1
1410-
●
●
73
METAL SET; CONN ROD,STANDARD
GREEN THA
8-98055-480-0
04
1
1410-
●
●
83
PIN; PISTON
ALSO INCLUDED IN LINER SET. THA
8-98018-863-1
04
1
1410-
●
●
84
ROD ASM; CONN
THA
8-98018-425-2
04
1
1410-
●
●
85
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. THA
8-94391-794-1
04
1
1410-
●
●
86
BOLT; CONNROD
M13X57 FLANGE THA
8-98091-141-0
08
1
1410-
●
●
126
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=43.7 THA
8-98006-828-0
08
1
1410-
●
●
