◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11646 - FRR THAILAND EURO3 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-13 - OIL PAN AND LEVEL GAUGE ▶
0-13 — OIL PAN AND LEVEL GAUGE (#150045) — 15 parça

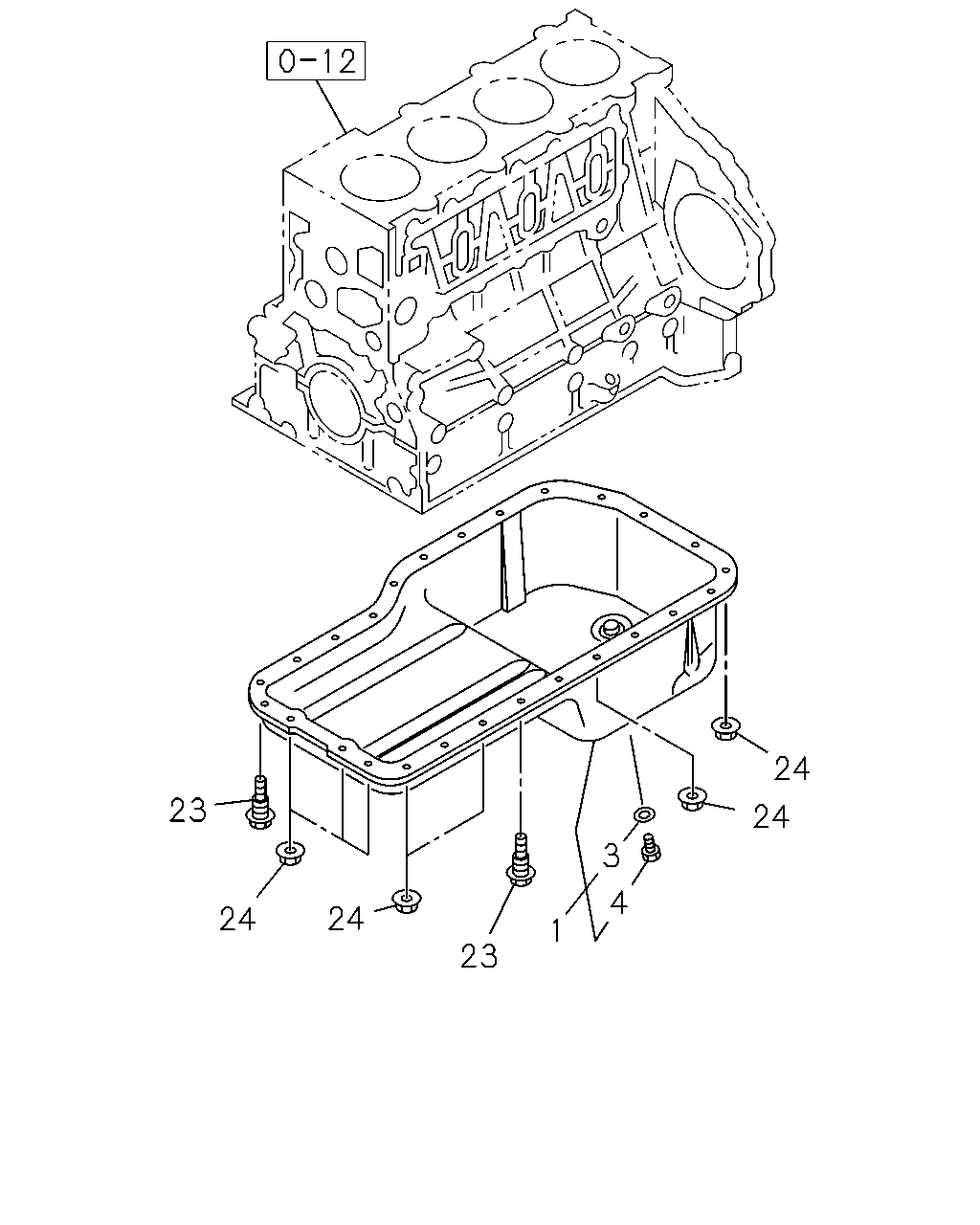

çizim 448062
23 24 24 23 3 4 1 24 24
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAN ASM; OIL
THA 		8-98191-050-0 01 1 1410- ● ●
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 THA 		8-94158-328-0 01 1 1410- ● ●
4 PLUG; DRAIN,OIL
M14X14 THA 		8-94152-613-0 01 1 1410- ● ●
23 BOLT; OIL PAN
M8X14 W/SCOTCH GRIP THA 		8-97047-004-1 01 1 1410- ● ●
23 BOLT; OIL PAN
M8X14 THA 		8-97047-005-0 18 1 1410- ● ●
24 NUT; OIL PAN
M8 W/LK WASHER THA 		8-97581-234-0 07 1 1410- ● ●

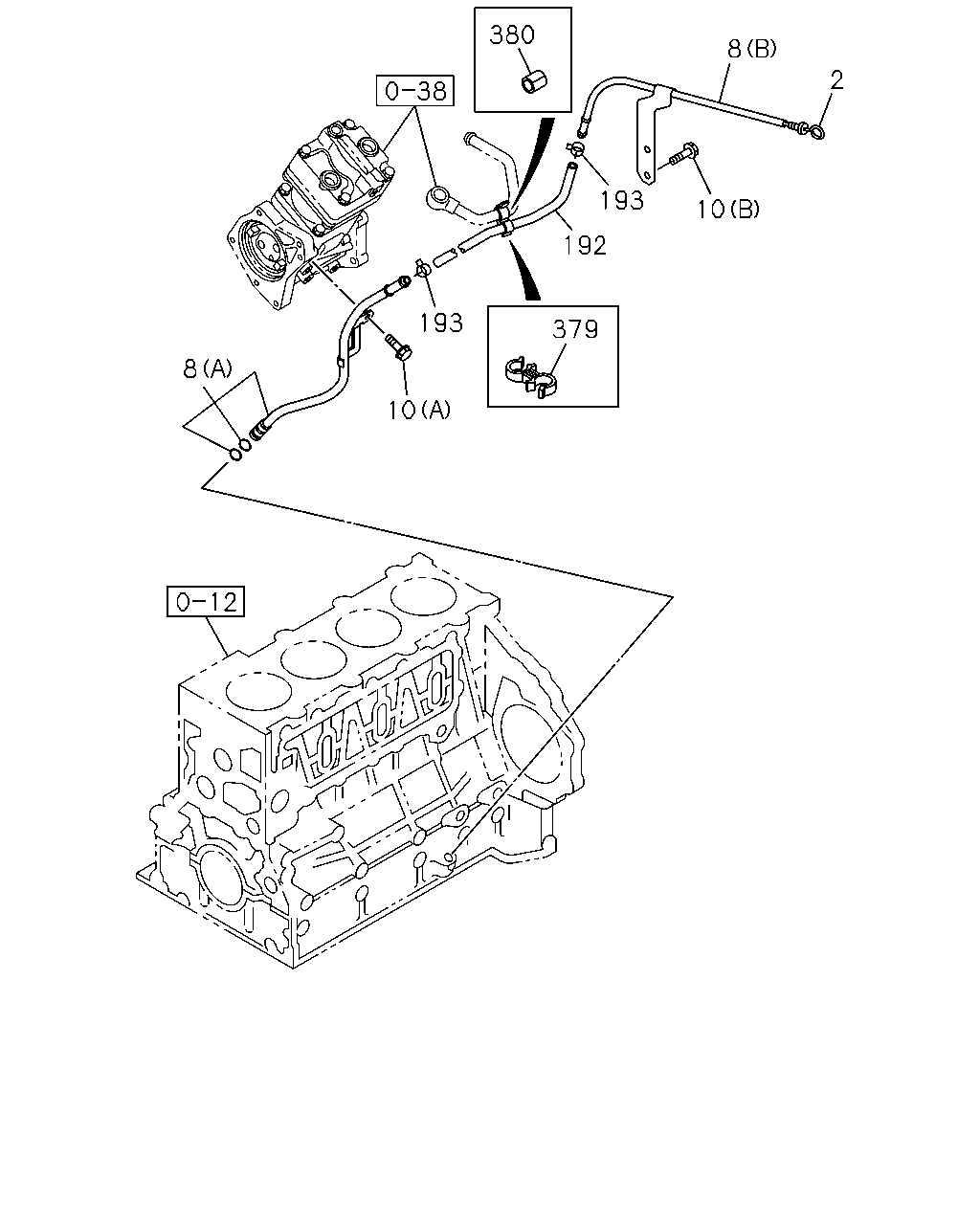

çizim 448078
380 8 2 10 193 192 193 379 10 8
BalonParca AdiParca NoAdetTipApplied Date A B
2 GAUGE; OIL LEVEL
THA 		8-98245-514-0 01 1 1410- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) THA 		8-98010-328-1 01 1 1410- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) THA 		8-98009-115-1 01 1 1410- ● ●
10 BOLT; GUIDE TUBE
(A) M6X12 FLANGE THA 		0-28050-612-0 01 1 1410- ● ●
10 BOLT; GUIDE TUBE
(B) M8X20 FLANGE THA 		0-28650-820-0 02 1 1410- ● ●
192 HOSE; GUIDE TUBE
L=300 THA 		1-09360-978-0 01 1 1410- ● ●
193 CLIP; HOSE,GUIDE TUBE
ID=17 THA 		1-09707-158-0 02 1 1410- ● ●
379 CLIP; PIPE TO HOSE
ID=18 & 18 THA 		8-94323-068-0 01 1 1410- ● ●
380 PROTECTOR; PIPE
ID=18 L=40 THA 		8-98070-445-0 01 1 1410- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
