0-11 — CYLINDER HEAD (#150043) — 37 parça

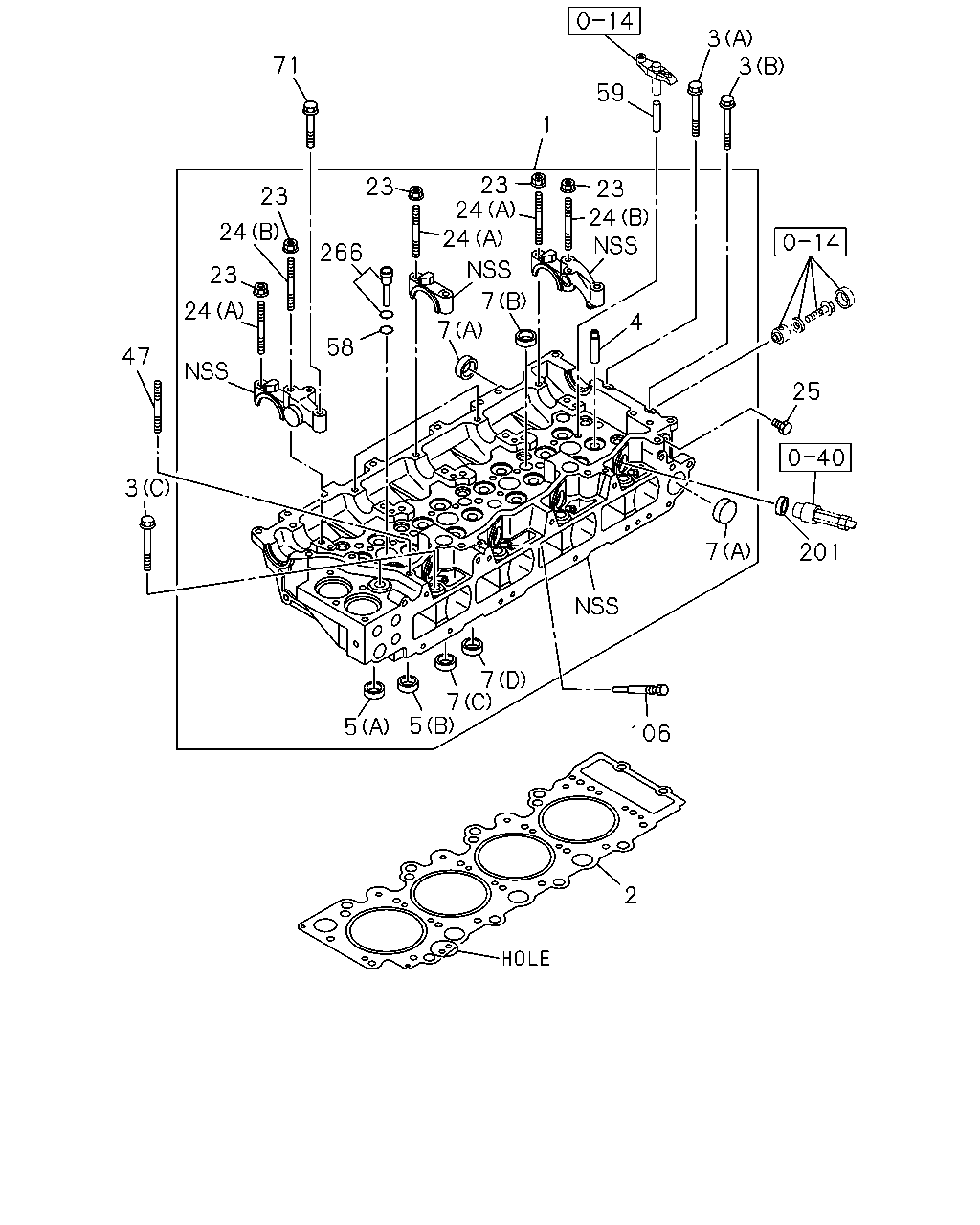

çizim 448020
201 7 25 4 24 23 59 3 3 23 24 24 7 7 106 7 7 266 23 1 71 24 23 23 24 58 5 5 2 3 47
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL
THA 		8-98170-619-0 01 1 1410- ●
1 HEAD ASM; CYL
THA 		8-98170-620-0 01 1 1410- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE THA 		8-98055-540-0 01 1 1410- ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE THA 		8-98055-541-0 01 1 1410- ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE THA 		8-98055-542-0 01 1 1410- ● ●
3 BOLT; CYL HD TO BLOCK
(A) M10X73 THA 		8-94399-554-0 01 1 1410- ● ●
3 BOLT; CYL HD TO BLOCK
(B) M10X43 THA 		8-94399-555-0 01 1 1410- ● ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE THA 		8-97077-638-0 18 1 1410- ● ●
4 GUIDE; VLV
L=57 THA 		8-97376-719-2 16 1 1410- ● ●
5 SEAT; VLV INSERT
(A) INLET ID=32 OD=38 THA 		8-98028-874-0 08 1 1410- ● ●
5 SEAT; VLV INSERT
(B) EXHAUST ID=31 OD=38 THA 		8-98028-875-0 08 1 1410- ● ●
7 CUP; SEALING,CYL HEAD
(B) OD=25 THA 		1-09600-016-0 04 1 1410- ● ●
7 CUP; SEALING,CYL HEAD
(C) OD=16 THA 		5-11129-006-0 05 1 1410- ● ●
7 CUP; SEALING,CYL HEAD
(A) OD=32 THA 		8-97096-821-0 05 1 1410- ● ●
7 CUP; SEALING,CYL HEAD
(D) OD=20 THA 		9-11129-128-0 07 1 1410- ● ●
23 NUT; CAM BRKT
M8 FLANGE THA 		0-91180-208-0 10 1 1410- ● ●
24 STUD; CM/SHF BRKT
(B) M8X54 L=79 THA 		8-94322-512-2 02 1 1410- ● ●
24 STUD; CM/SHF BRKT
(A) M8X41 L=66 THA 		8-94322-513-2 08 1 1410- ● ●
25 PLUG; CYL HD
M8X10 THA 		8-98003-416-0 01 1 1410- ● ●
47 STUD; CYL HD
M8X60 L=72 THA 		0-49140-860-0 02 1 1410- ● ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=26.4 THA 		8-97604-916-0 04 1 1410- ● ●
59 GUIDE; BRIDGE
THA 		8-97381-603-1 08 1 1410- ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE THA 		0-28050-835-0 02 1 1410- ● ●
106 PLUG; GLOW PLUG HOLE
THA 		8-94392-236-0 04 1 1410- ● ●
201 GASKET; SLEEVE,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA 		1-09639-034-0 04 1 1410- ● ●
266 SLEEVE ASM; NOZZLE HOLDER
THA 		8-98018-462-0 04 1 1410- ● ●

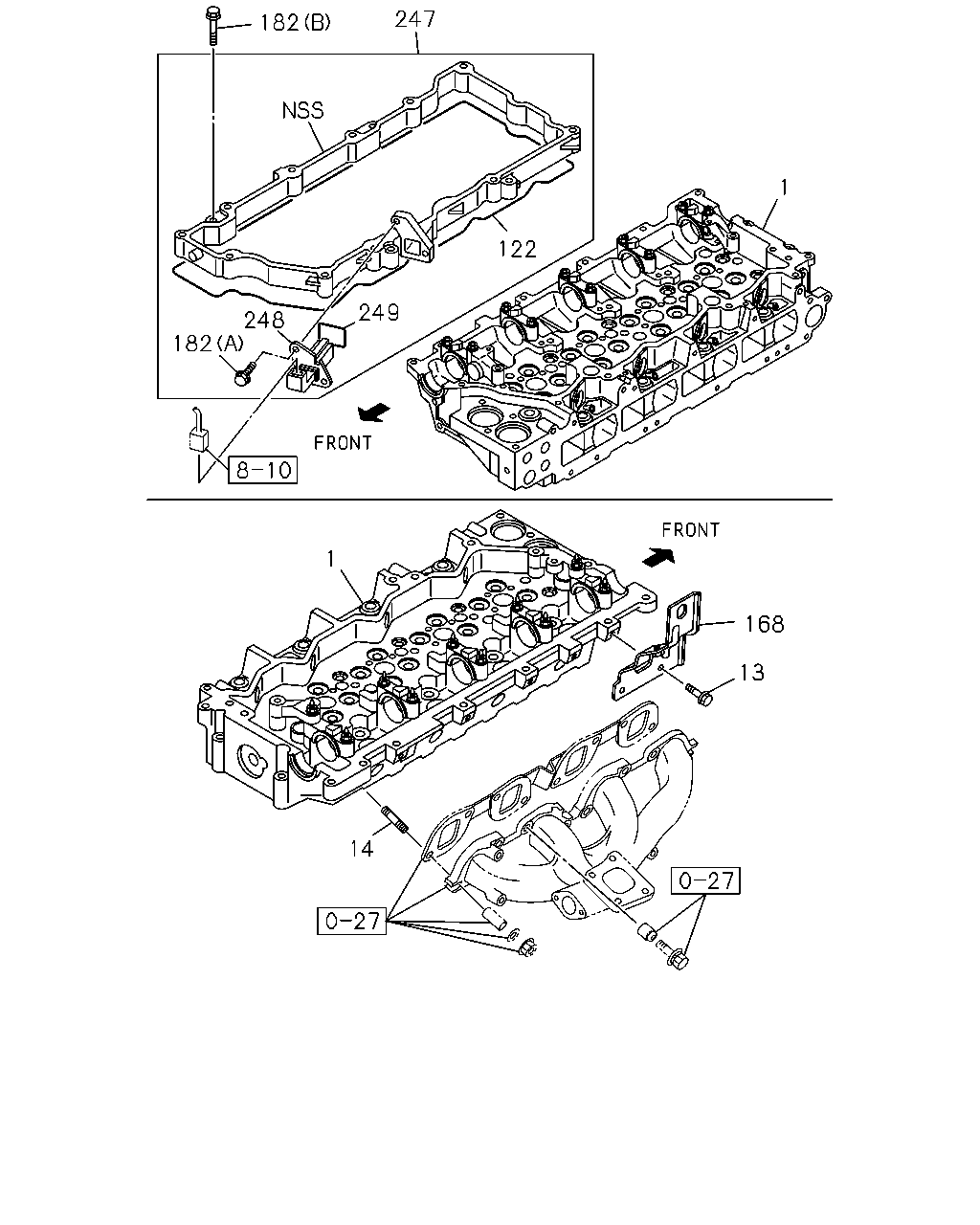

çizim 448029
247 182 248 249 122 1 182 1 168 13 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL
THA 		8-98170-619-0 01 1 1410- ●
1 HEAD ASM; CYL
THA 		8-98170-620-0 01 1 1410- ●
13 BOLT; HANGER
M10X20 FLANGE THA 		0-28151-020-0 02 1 1410- ● ●
14 STUD; EXH MANIF
M10X60 L=75 THA 		8-94397-286-0 02 1 1410- ● ●
122 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA 		8-97331-360-1 01 1 1410- ● ●
168 HANGER; ENG,FRT
THA 		8-97383-001-1 01 1 1410- ● ●
182 BOLT; CASE
(A) M8X12 FLANGE THA 		0-28050-812-0 02 1 1410- ● ●
182 BOLT; CASE
(B) M8X45 FLANGE THA 		0-28050-845-0 04 1 1410- ● ●
247 CASE; CYL HEAD,C/H COVER
THA 		8-97331-362-1 01 1 1410- ● ●
248 CONNECTOR
THA 		8-94390-858-1 01 1 1410- ● ●
249 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENGINE). THA 		8-94391-310-0 01 1 1410- ● ●
