8-60 — HEATER UNIT; FRONT (#150031) — 29 parça

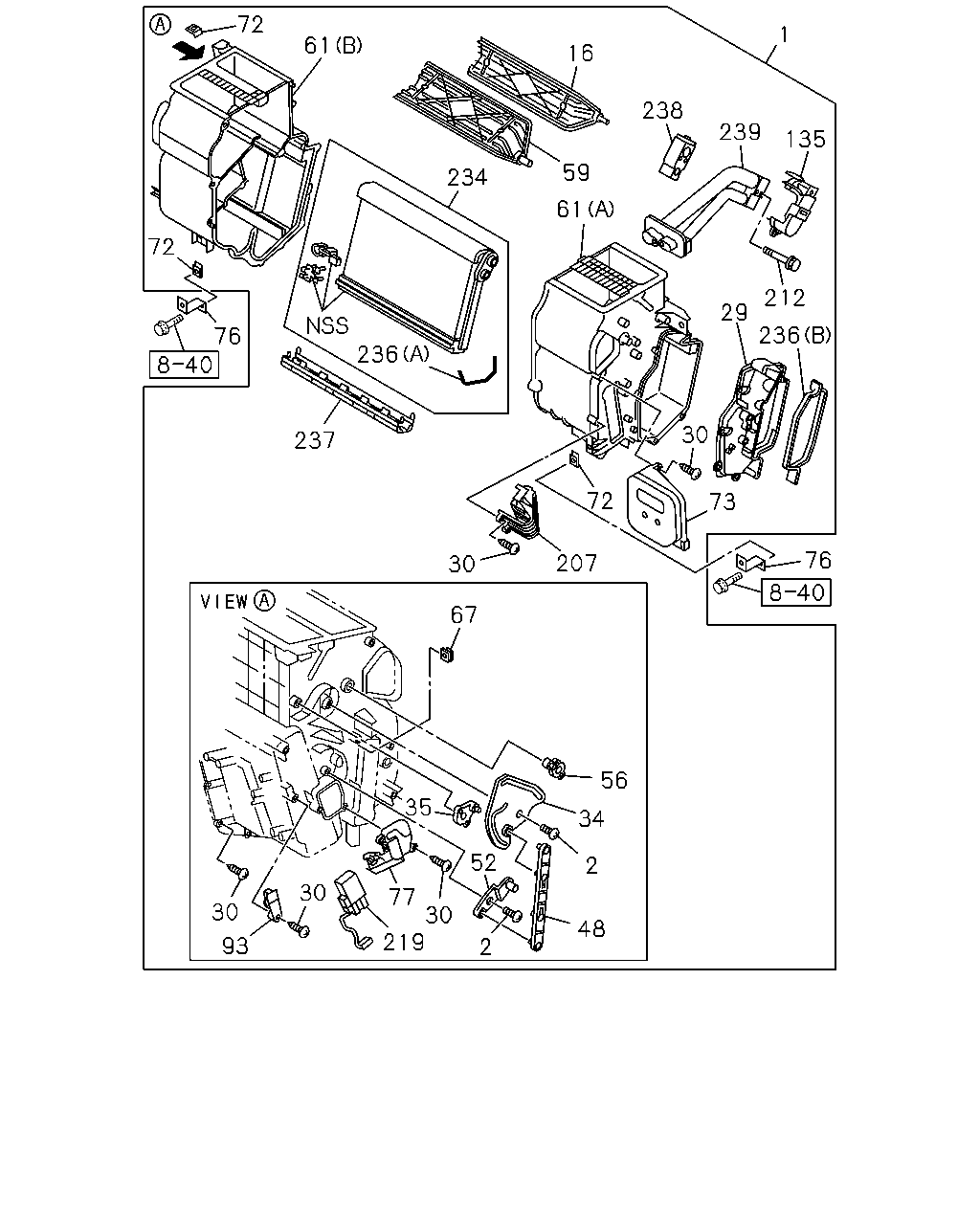

çizim 449551
72 61 234 59 61 238 16 56 1 73 239 135 212 29 236 30 72 207 30 237 236 76 72 76 67 34 2 48 2 52 30 35 77 219 30 30 93
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT
THA 		8-98057-980-2 01 1 1410-
2 SCREW; LEVER
M4X16 THA 		8-98047-416-0 02 1 1410-
16 SHUTTER; HTR UNIT,CENTER UPR
THA 		8-98047-387-0 01 1 1410-
29 COVER; HTR UNIT
THA 		8-98074-119-0 01 1 1410-
30 SCREW; HTR UNIT
M4X16 TAPPING THA 		8-97957-708-0 27 1 1410-
34 LEVER; SHUTTER,HTR UNIT
THA 		8-98047-389-0 01 1 1410-
35 LEVER; SHUTTER,HTR UNIT
THA 		8-98047-392-0 01 1 1410-
48 LEVER; HTR UNIT
THA 		8-98047-391-0 01 1 1410-
52 LEVER; SHUTTER,HTR UNIT
THA 		8-98047-390-0 01 1 1410-
56 LEVER; SHUTTER,HTR UNIT
THA 		8-98047-393-0 01 1 1410-
59 SHUTTER; HTR UNIT,SIDE
THA 		8-98047-386-0 01 1 1410-
61 CASE; HTR UNIT
(A) THA 		8-98077-422-0 01 1 1410-
61 CASE; HTR UNIT
(B) THA 		8-98077-423-0 01 1 1410-
67 CLIP; HTR UNIT
THA 		8-98047-417-0 01 1 1410-
72 NUT; CASE,HTR UNIT
M6 THA 		8-98047-428-0 03 1 1410-
73 PLATE; HTR UNIT
THA 		8-98077-420-0 01 1 1410-
76 BRACKET; HTR UNIT
THA 		8-98009-742-1 02 1 1410-
77 COVER; HTR CASE
THA 		8-98047-414-0 01 1 1410-
93 PLATE; HTR UNIT
THA 		8-98047-427-0 01 1 1410-
135 COVER; HTR
THA 		8-98047-384-0 01 1 1410-
207 CLAMP; HTR UNIT
THA 		8-98047-379-0 01 1 1410-
212 BOLT; HTR UNIT
M5X61 THA 		8-98047-415-0 02 1 1410-
219 AMPLIFIER; HEATER UNIT
THA 		8-98064-733-0 01 1 1410-
234 EVAPORATOR ASM; HEATER
THA 		8-98074-116-1 01 1 1410-
236 GASKET; HEATER
(A) THA 		8-98047-420-0 01 1 1410-
236 GASKET; HEATER
(B) THA 		8-98047-421-0 01 1 1410-
237 INSULATOR; EVAPORATOR
THA 		8-98047-382-0 01 1 1410-
238 VALVE; EXPANSION
THA 		8-98047-383-0 01 1 1410-
239 TUBE ASM; HEATER
THA 		8-98074-115-0 01 1 1410-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
