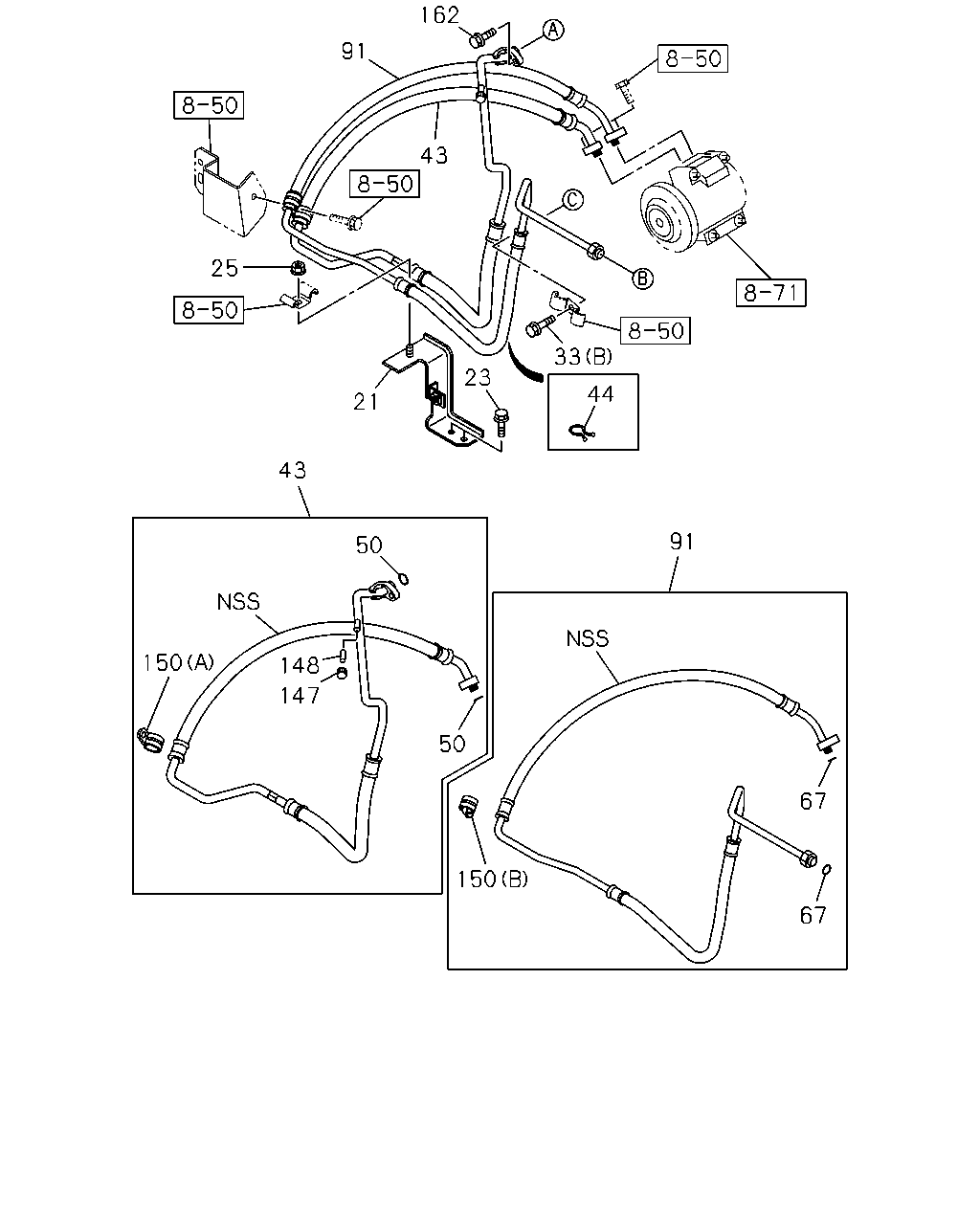

8-52 — PIPING; AIR CONDITIONING (#150030) — 28 parça

91 162 43 33 44 23 21 25 43 50 148 147 150 50 91 150 67 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	BRACKET; COOLER HOSE THA	8-98114-846-0	01	1	1410-
23	BOLT; BRKT M8X20 FLANGE THA	0-28650-820-0	02	1	1410-
25	NUT; BRKT M8 FLANGE THA	0-91180-108-0	01	1	1410-
33	BOLT; CLIP (A) M6X16 FLANGE THA	0-28650-616-0	02	1	1410-
33	BOLT; CLIP (B) M8X20 FLANGE THA	0-28650-820-0	01	1	1410-
43	HOSE; FLEX,A/C,EVAP TO CMPR THA	8-97926-680-0	01	1	1410-
44	CLIP; FLEX HOSE ID=30 THA	8-94315-423-0	01	1	1410-
50	GASKET; FLEX HOSE,A/C ID=14.5 THA	8-97095-908-0	02	1	1410-
67	GASKET; FLEX HOSE ID=11.7 THA	8-97095-907-0	02	1	1410-
91	HOSE; FLEX,CMPR THA	8-97926-681-0	01	1	1410-
147	CAP; FLEX HOSE CAP MARK L THA	1-83539-331-0	01	1	1410-
148	VALVE; FLEX HOSE THA	8-97095-909-0	01	1	1410-
150	CLIP; HOSE (B) THA	1-83574-249-0	01	1	1410-
150	CLIP; HOSE (A) THA	1-83574-264-0	01	1	1410-
162	BOLT; FLEX HOSE M6X25 FLANGE THA	0-28650-625-0	01	1	1410-

116 158 12 33 202 156 171 116 158 27 33 27 27 158 116 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	PIPE; COOLER,EVAP TO TANK THA	8-97926-690-0	01	1	1410-
27	CLIP; COOLER PIPE (A) ID=9 H=20 L=20 THA	0-95207-308-0	01	1	1410-
27	CLIP; COOLER PIPE (B) ID=16 H=24 L=20 THA	0-95207-315-0	01	1	1410-
27	CLIP; COOLER PIPE (C) ID=11.8 & 7.5 THA	1-09709-182-0	01	1	1410-
33	BOLT; CLIP (A) M6X16 FLANGE THA	0-28650-616-0	02	1	1410-
33	BOLT; CLIP (B) M8X20 FLANGE THA	0-28650-820-0	01	1	1410-
116	GASKET; PIPE (B) ID=11.7 THA	8-97095-907-0	01	1	1410-
116	GASKET; PIPE (A) ID=7.4 THA	8-97095-906-0	02	1	1410-
156	VALVE; PIPE THA	8-98151-702-0	01	1	1410-
158	BOLT; PIPE FIX M6X25 FLANGE THA	0-28050-625-0	03	1	1410-
171	CAP; PIPE CAP MARK H THA	8-97095-911-0	01	1	1410-
174	PIPE; COOLER,CONDENSER TO FLEX HOSE THA	8-98041-330-0	01	1	1410-
202	SWITCH; PRESSURE THA	8-98246-370-0	01	1	1410-
