◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11656 - FYH THAILAND EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#150029) — 18 parça
çizim 449604
378 378
BalonParca AdiParca NoAdetTipApplied Date
378 HOSE; DRAIN,EVAPORATOR
(A) THA 		8-98041-428-0 01 1 1410-
378 HOSE; DRAIN,EVAPORATOR
(B) THA 		8-98204-844-0 01 1 1410-

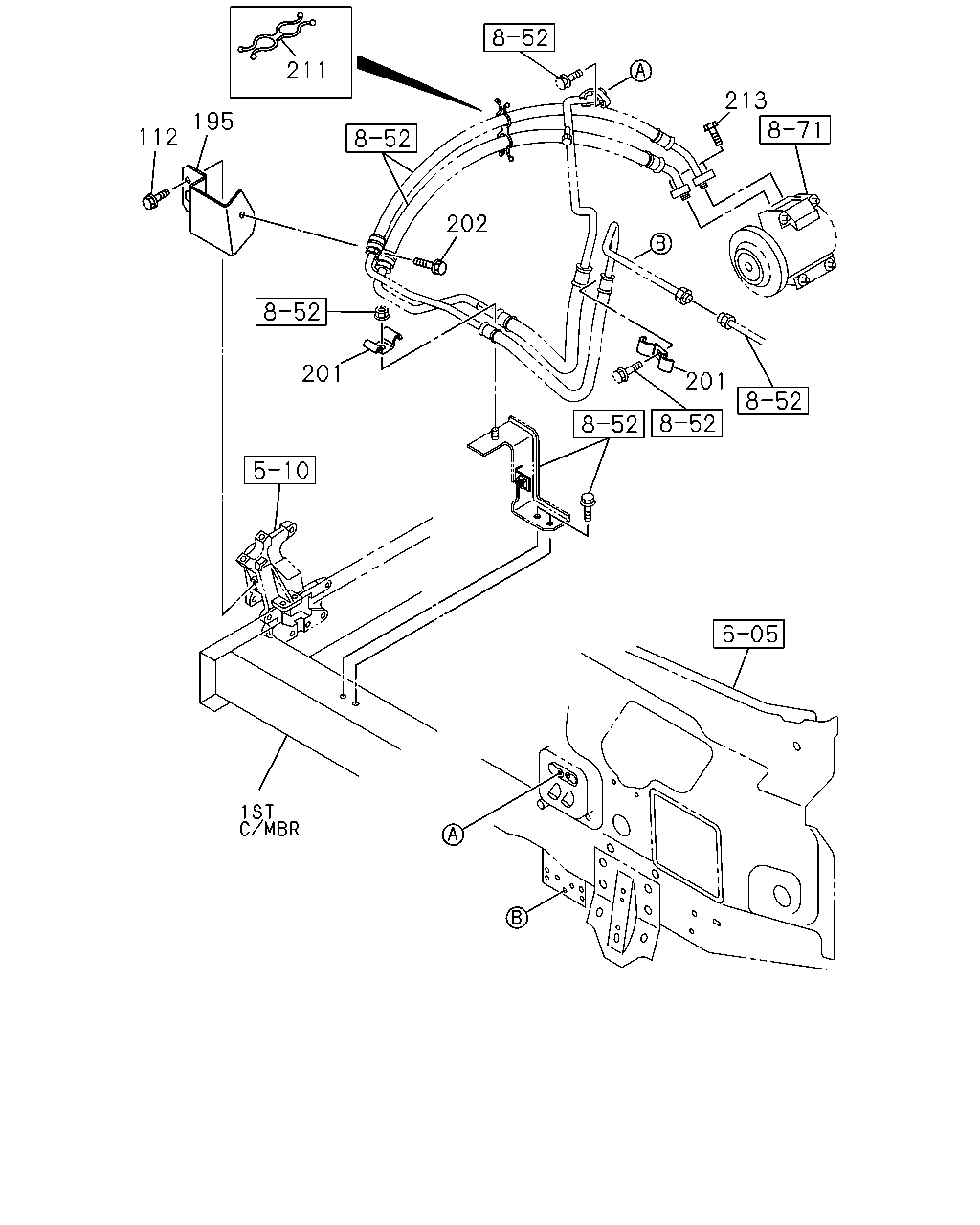

çizim 451594
112 195 211 202 201 201 213
BalonParca AdiParca NoAdetTipApplied Date
112 BOLT; STAY
M8X20 FLANGE THA 		0-28650-820-0 02 1 1410-
195 STAY; CLIP
THA 		8-98055-465-0 01 1 1410-
201 CLIP; HOSE,CMPR TO EVAP
THA 		8-98043-673-0 02 1 1410-
202 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE THA 		0-28650-820-0 01 1 1410-
211 CLIP; HOSE
THA 		8-94423-042-0 02 1 1410-
213 BOLT; FLEX HOSE TO CMPR
M6X25 FLANGE THA 		0-28650-625-0 02 1 1410-

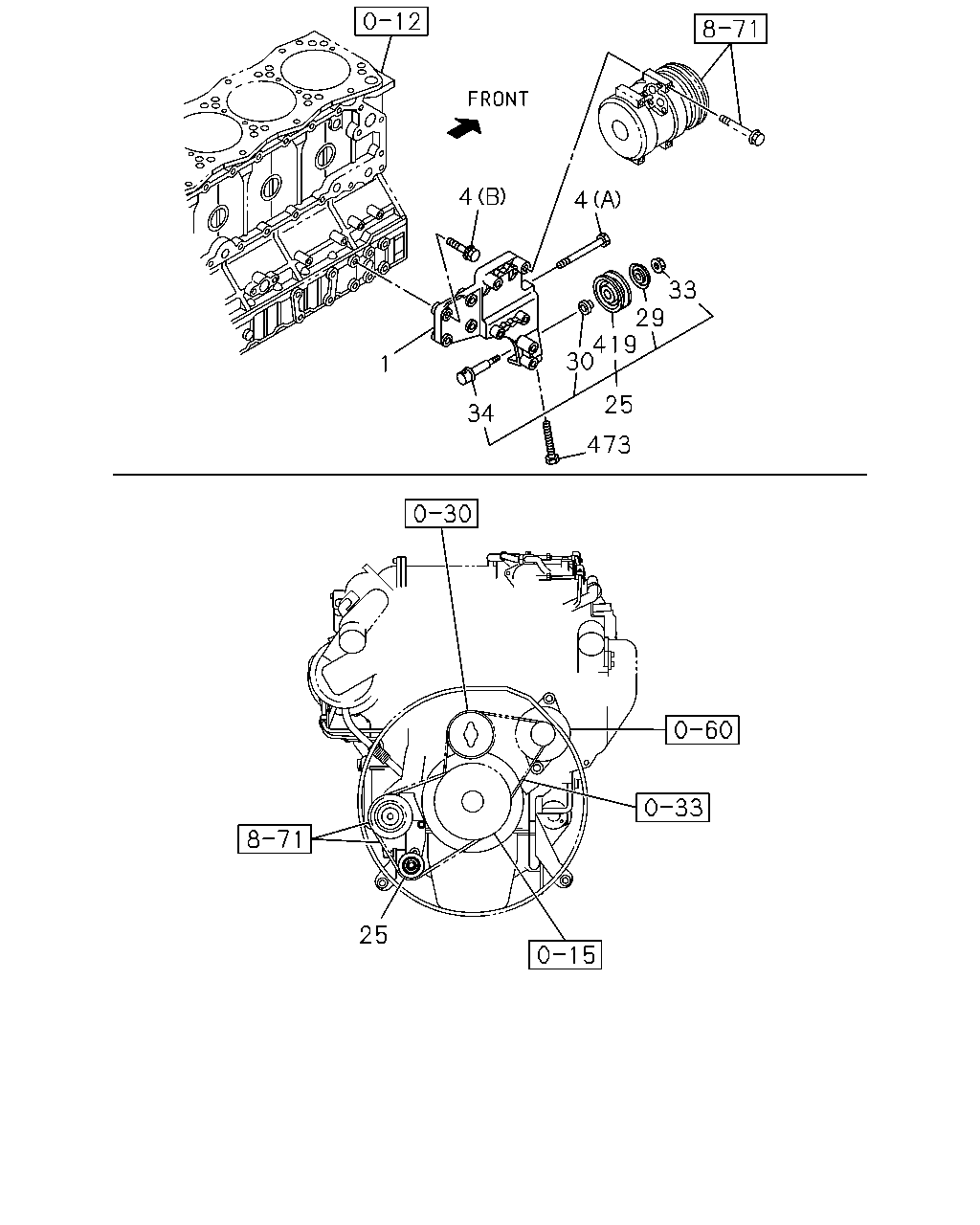

çizim 451697
4 4 34 473 25 30 419 29 33 1 25
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET; A/C
THA 		8-97606-311-1 01 1 1410-
4 BOLT; A/C CMPR BRKT
(B) M10X45 FLANGE THA 		0-28151-045-0 04 1 1410-
4 BOLT; A/C CMPR BRKT
(A) M10X150 FLANGE THA 		0-28156-015-0 01 1 1410-
25 PULLEY ASM; IDLER,CMPR
THA 		8-97603-949-0 01 1 1410-
29 COVER; DUST,IDLE PULLEY
THA 		1-83578-100-0 01 1 1410-
30 COLLAR; IDLE PULLEY
THA 		1-87540-319-0 01 1 1410-
33 NUT; IDLER PULLEY
THA 		1-83579-985-0 01 1 1410-
34 SHAFT; IDLE PULLEY
THA 		1-83579-982-0 01 1 1410-
419 PULLEY; IDLE
THA 		1-87540-322-0 01 1 1410-
473 BOLT; TENSIONER
M8X80 FLANGE THA 		1-09044-091-0 01 1 1410-
