◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11656 - FYH THAILAND EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#150026) — 14 parça

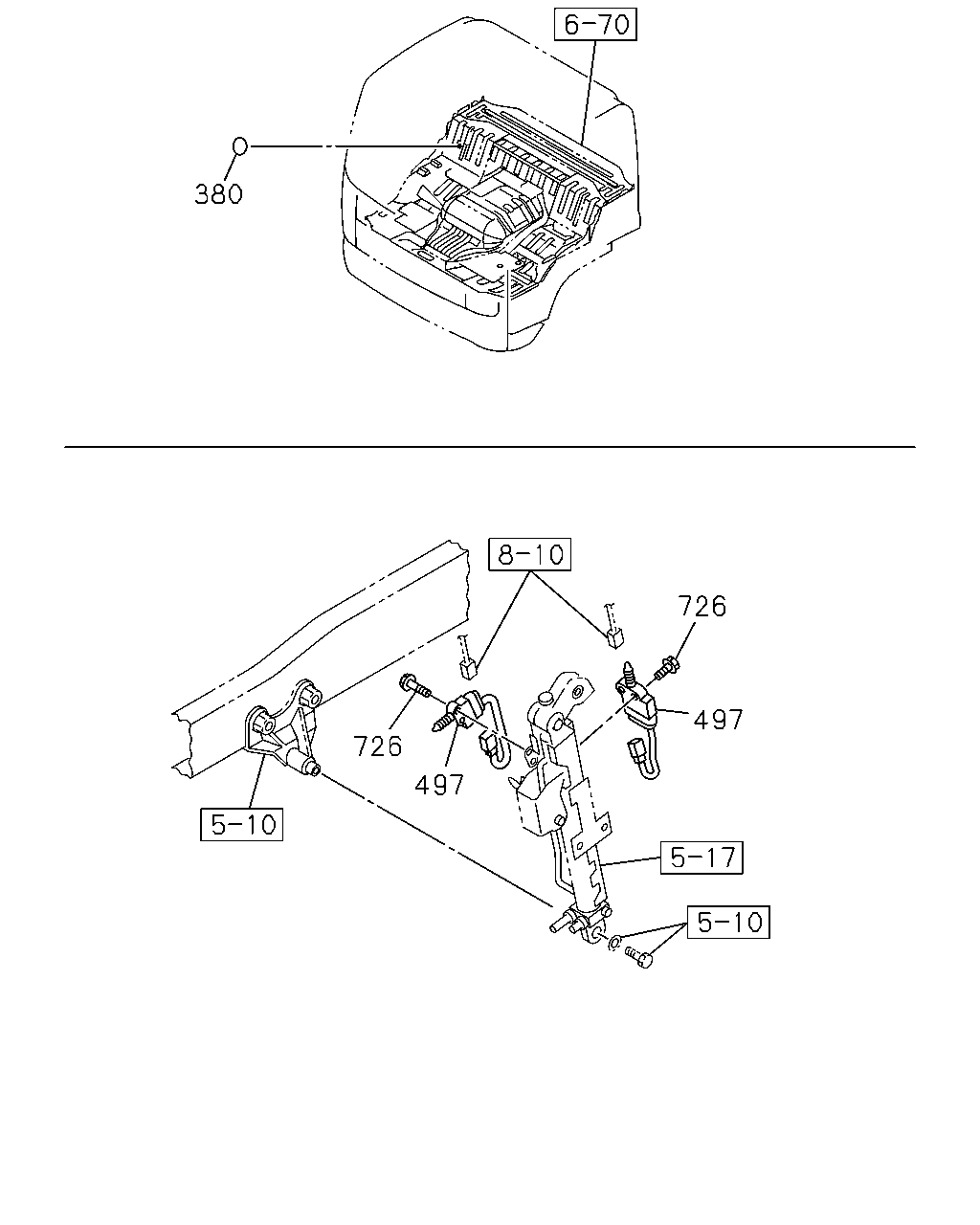

çizim 448700
380 726 497 726 497
BalonParca AdiParca NoAdetTipApplied Date
380 SEAL
OD=25 BLACK THA 		1-76798-019-0 01 1 1410-
497 SWITCH; CAB TILT
AUTO CAB TILT<WV2> STAMP NO THA 		1-82380-172-1 02 1 1410-
726 BOLT; SW,CAB TILT
AUTO CAB TILT<WV2> M6X25 FLANGE THA 		0-28050-625-0 04 1 1410-

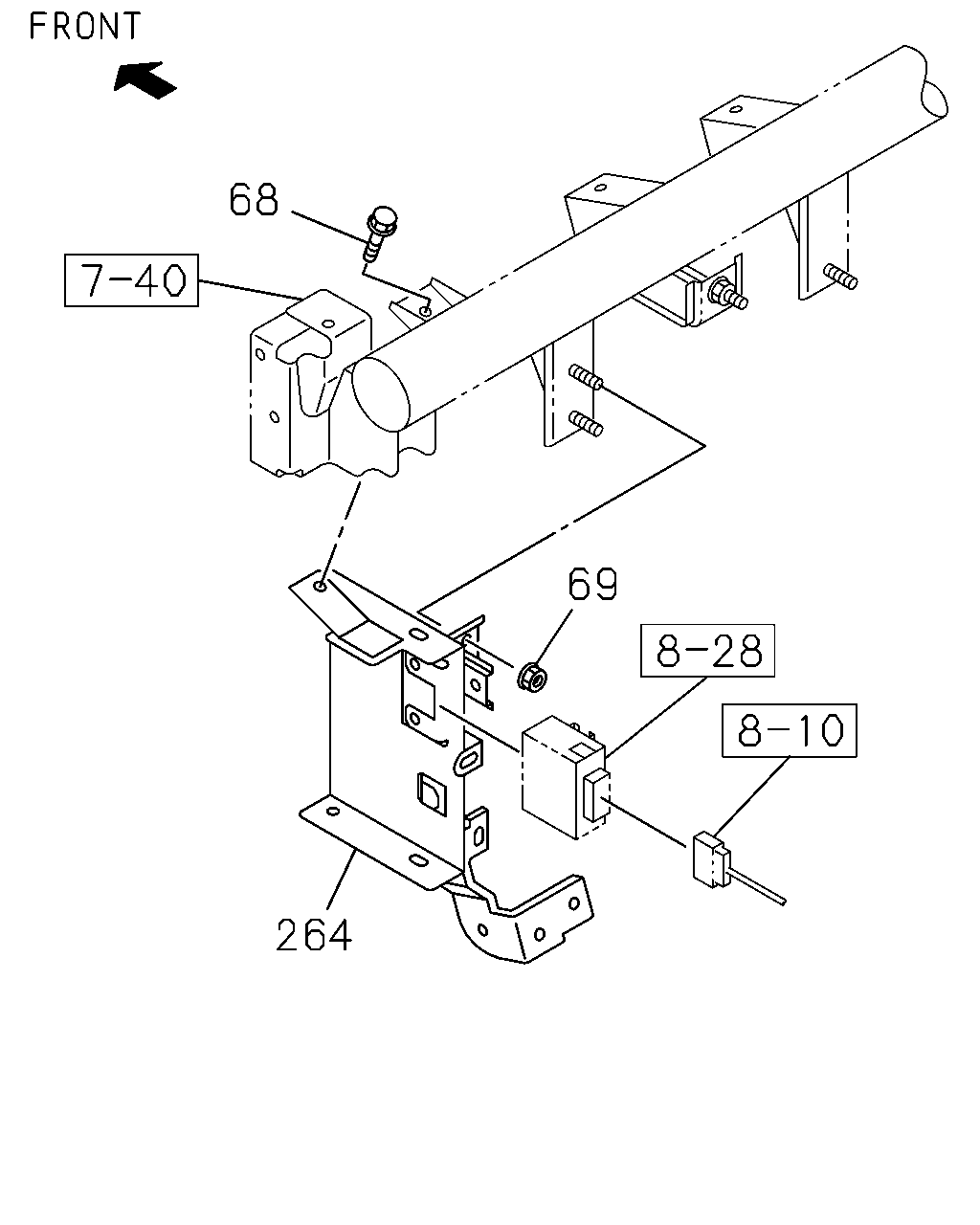

çizim 448996
68 69 264
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; BRKT
M6X16 FLANGE THA 		0-28650-616-0 01 1 1410-
69 NUT; BRKT
M6 FLANGE THA 		0-91180-106-0 01 1 1410-
264 BRACKET; CONT UNIT
THA 		8-97609-985-9 01 1 1410-

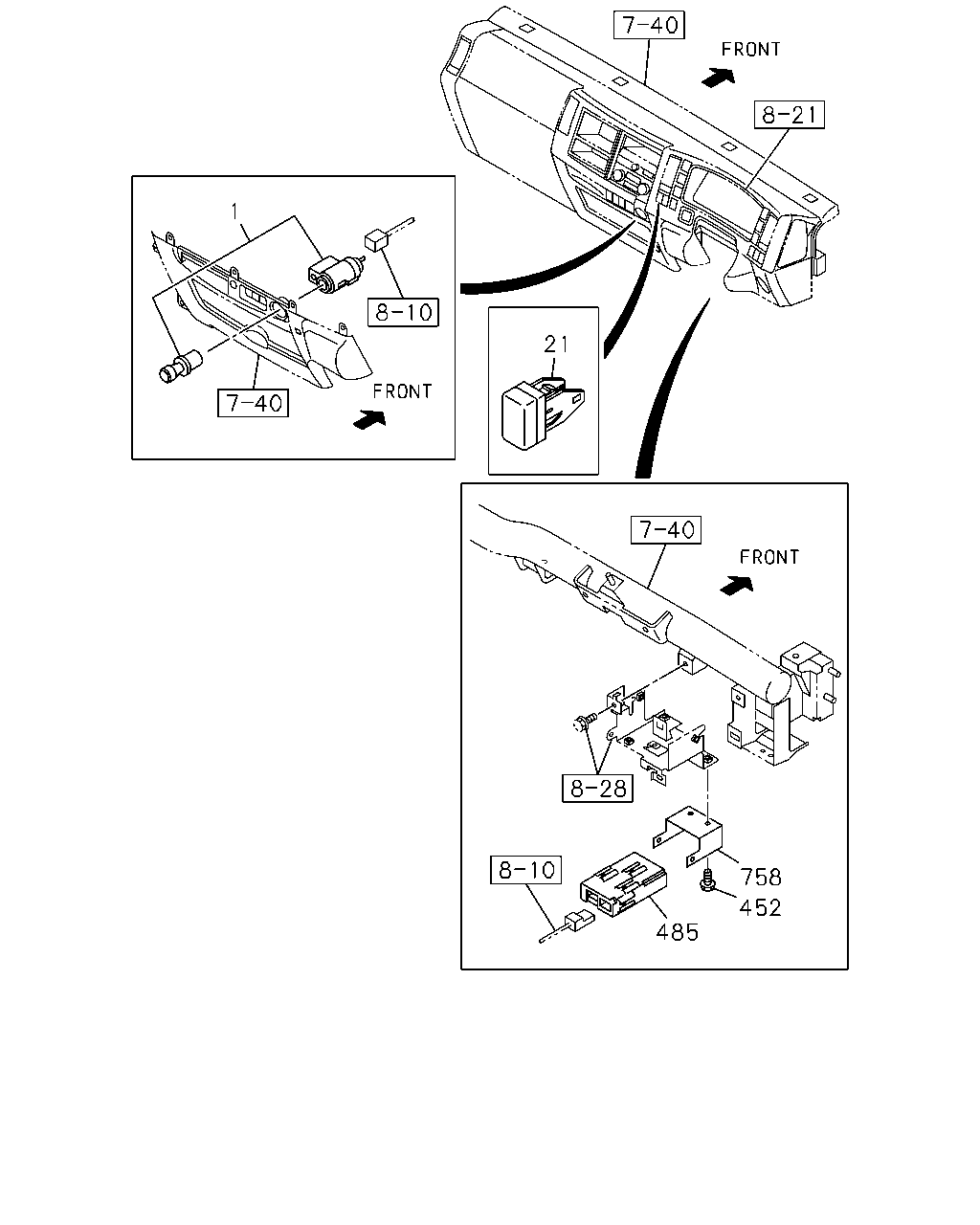

çizim 451588
1 21 758 452 485
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR
THA 		8-98142-962-0 01 1 1410-
21 COVER; HOLE
THA 		8-98025-954-1 01 1 1410-
452 BOLT; BRKT
M6X16 FLANGE THA 		0-28650-616-0 02 1 1410-
485 CONTROL UNIT; SPEED SENSOR 8-98232-695-0 01 1 1409-
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
THA 		8-98048-743-1 01 1 1410-

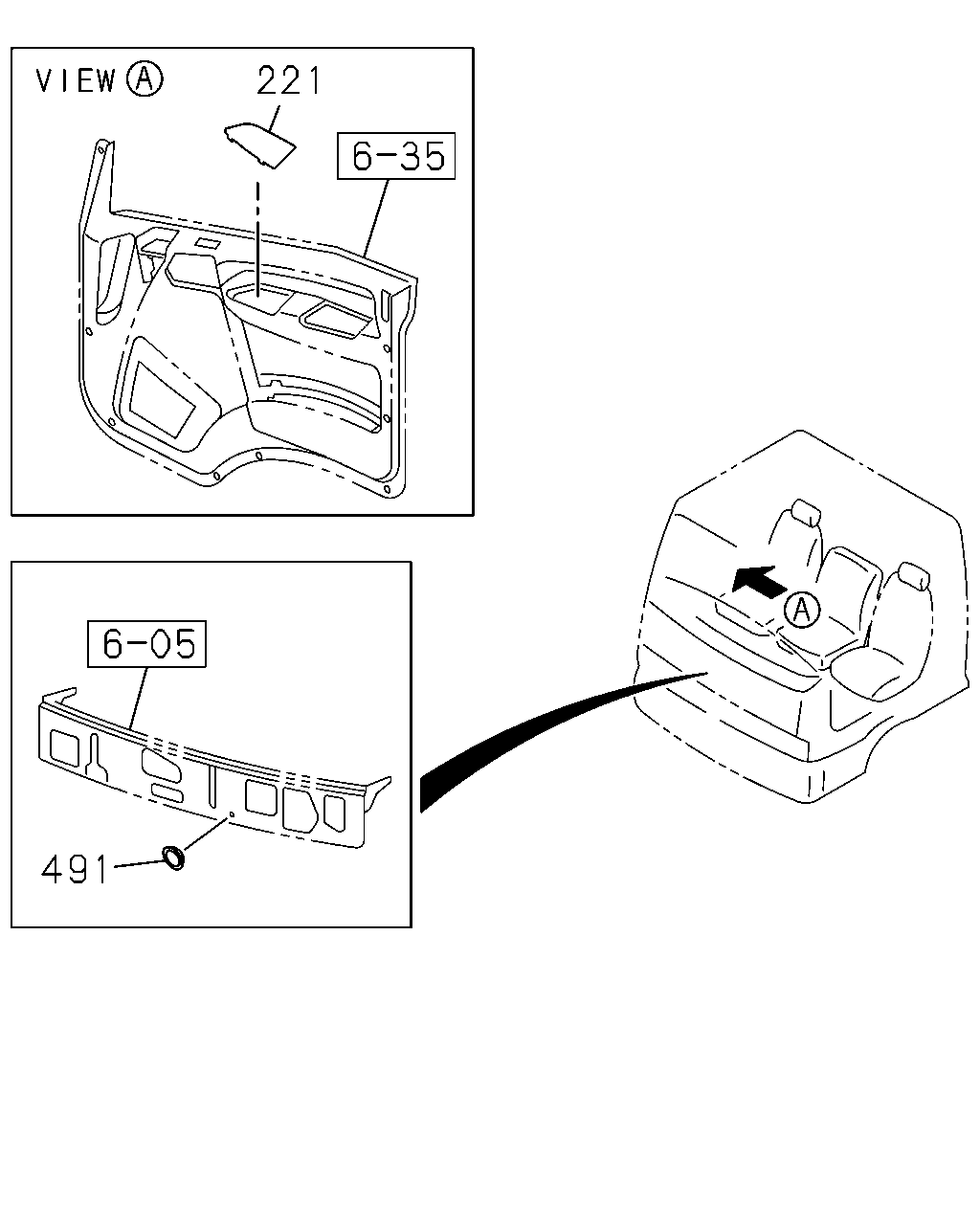

çizim 451759
221 491
BalonParca AdiParca NoAdetTipApplied Date
221 COVER; HOLE,DOOR LOCK SW
THA 		8-98029-915-2 01 1 1410-
221 COVER; HOLE,DOOR LOCK SW
THA 		8-98029-916-2 01 1 1410-
491 PLUG; HOLE,CONT UNIT
THA 		8-98054-651-0 01 1 1410-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
