7-20 — MIRROR AND MIRROR STAY (#150010) — 99 parça

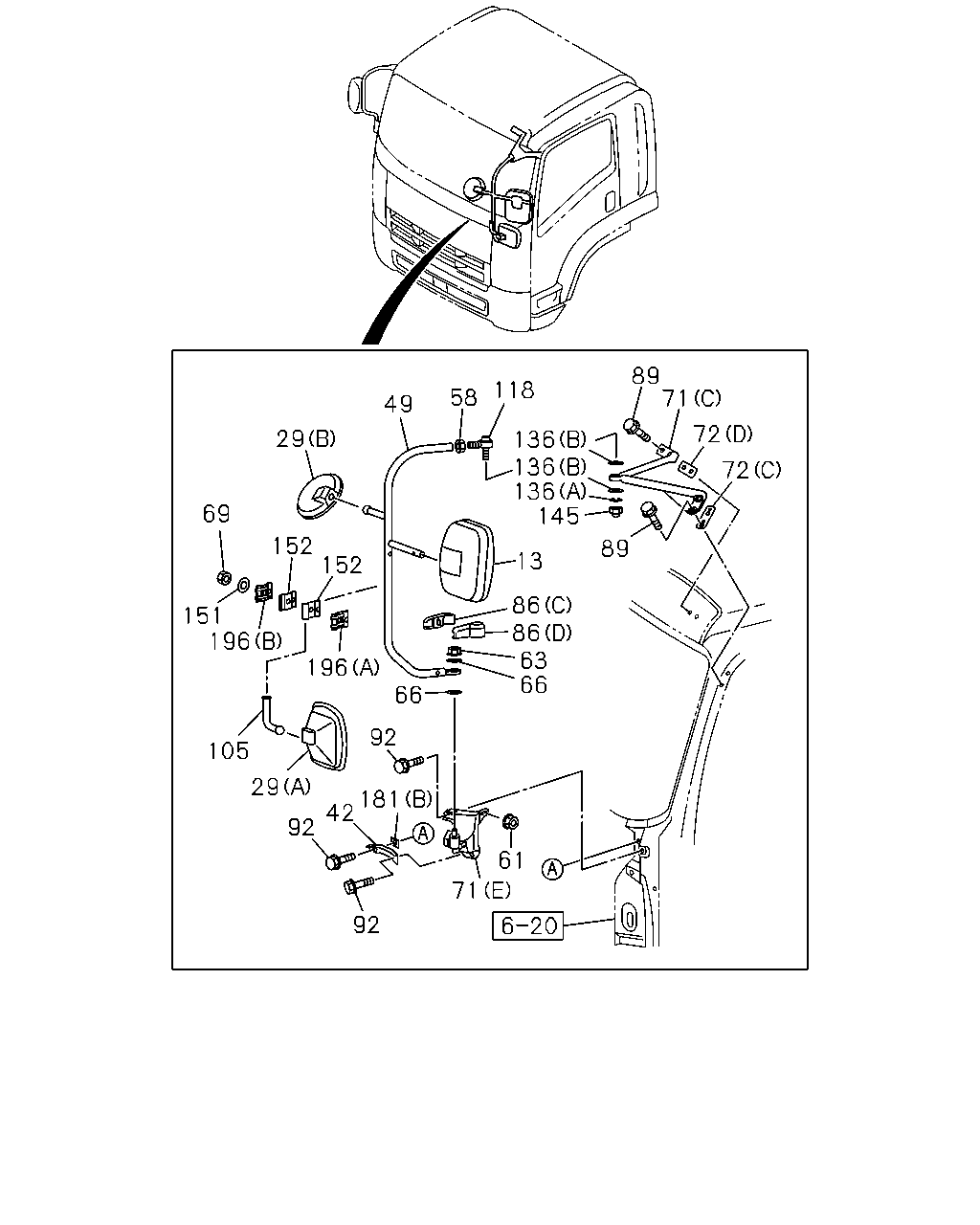

49 29 69 152 151 196 196 152 58 118 89 72 136 136 89 86 145 136 13 86 105 29 181 92 92 61 66 92 71 63 66 72 71 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA	8-98028-332-0	01	1	1410-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA	8-98104-068-0	01	1	1410-
29	MIRROR ASM; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) THA	1-71798-421-1	01	1	1410-
29	MIRROR ASM; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) THA	1-71798-422-0	01	1	1410-
42	ATTACHMENT; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA	8-98070-643-0	01	1	1410-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA	8-98085-113-1	01	1	1410-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA	8-98091-477-0	01	1	1410-
58	NUT; MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA	8-98061-883-0	01	1	1410-
61	NUT; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8 FLANGE THA	0-91180-108-0	01	1	1410-
63	NUT; STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M14 TOUGH LOCK NUT W/FLANGE THA	8-98174-339-0	01	1	1410-
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> LOWER THA	0-91610-614-0	01	1	1410-
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> UPPER THA	8-98201-756-0	01	1	1410-
69	NUT; CAP M10 CAP NUT THA	1-09984-134-0	01	1	1410-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) THA	1-71707-224-0	04	1	1410-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) THA	8-98040-021-0	01	1	1410-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) THA	8-98040-022-1	01	1	1410-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) THA	8-98040-543-1	01	1	1410-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) THA	8-98201-957-0	01	1	1410-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) THA	8-98040-351-0	01	1	1410-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) THA	8-98040-353-1	01	1	1410-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) THA	8-98040-535-0	01	1	1410-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) THA	8-98040-537-1	01	1	1410-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK THA	1-71737-649-1	01	1	1410-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLACK THA	1-71737-652-1	01	1	1410-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) THA	8-98040-541-1	01	1	1410-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) THA	8-98040-545-1	01	1	1410-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) THA	8-98040-546-1	01	1	1410-
89	SCREW; BRKT,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER THA	8-98067-249-2	10	1	1410-
92	BOLT; STAY BRKT,MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE THA	8-97948-261-0	04	1	1410-
105	STAY; SUB UNDER MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA	8-98041-571-2	01	1	1410-
118	JOINT ASM; BALL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA	1-71798-356-2	01	1	1410-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) ID=10 THA	1-09985-180-0	01	1	1410-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6 THA	1-09985-184-0	02	1	1410-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) ID=10.5 OD=26 T=2.6 THA	1-09985-204-0	04	1	1410-
145	NUT; CAP,SUB STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT THA	1-09984-134-0	03	1	1410-
151	WASHER; PL,MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=10.5 T=2.0 THA	1-09985-183-0	01	1	1410-
152	SHEET; MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA	1-71798-445-1	02	1	1410-
181	SEAL; BRKT (A) OD=25 BLACK THA	1-76798-019-0	01	1	1410-
181	SEAL; BRKT (B) 25X25 THA	8-94272-533-0	01	1	1410-
196	HOLDER; STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) THA	1-71798-442-2	01	1	1410-
196	HOLDER; STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) THA	1-71798-444-2	01	1	1410-

13 53 53 71 14 25 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA	8-98028-332-0	01	1	1410-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA	8-98104-068-0	01	1	1410-
14	MIRROR ASM; OUTSIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA	8-98045-690-0	01	1	1410-
14	MIRROR ASM; OUTSIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA	8-98108-511-0	01	1	1410-
25	SCREW; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M6X40 THA	1-71707-223-0	04	1	1410-
26	COVER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA	1-71707-221-0	01	1	1410-
26	COVER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA	1-71707-222-0	01	1	1410-
53	PIVOT; SIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=22.2 THA	1-71736-489-2	04	1	1410-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) THA	1-71707-224-0	04	1	1410-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) THA	8-98040-021-0	01	1	1410-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) THA	8-98040-022-1	01	1	1410-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) THA	8-98040-543-1	01	1	1410-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) THA	8-98201-957-0	01	1	1410-

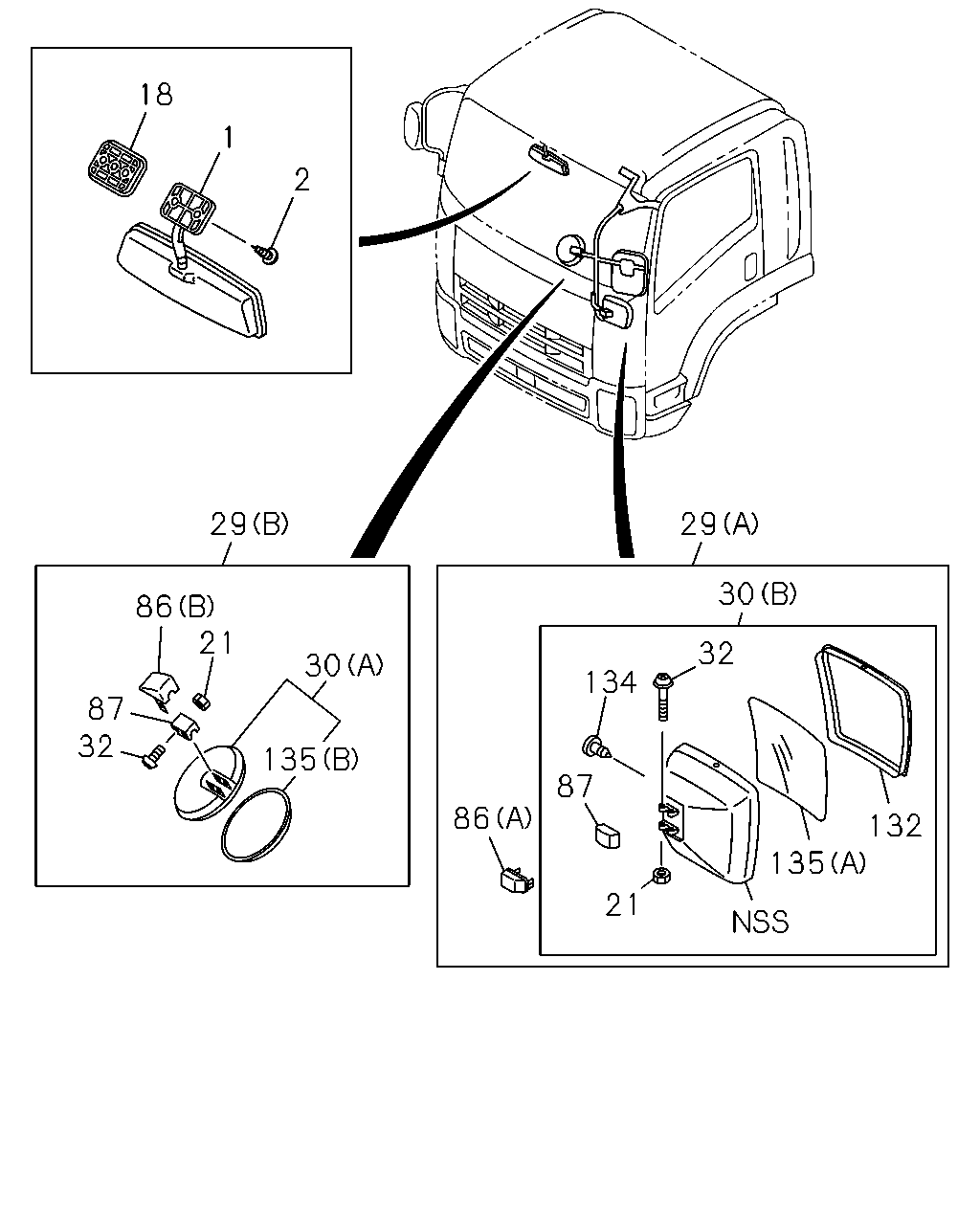

18 2 1 29 30 32 134 87 86 21 135 132 135 30 21 29 86 87 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MIRROR; ROOM THA	8-97924-058-2	01	1	1410-
2	SCREW; MIRROR TO BODY M6X26 THA	8-98033-674-0	02	1	1410-
18	CLIP; MIRROR DARK GRAY THA	8-97408-241-0	01	1	1410-
21	NUT; MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M5 THA	1-09984-124-0	04	1	1410-
29	MIRROR ASM; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) THA	1-71798-421-1	01	1	1410-
29	MIRROR ASM; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) THA	1-71798-422-0	01	1	1410-
30	MIRROR; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) THA	1-71798-591-1	01	1	1410-
30	MIRROR; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) THA	1-71798-592-1	01	1	1410-
32	SCREW; UNDER MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M5X40 W/PL WASHER THA	1-71737-797-0	04	1	1410-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK THA	1-71737-649-1	01	1	1410-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLACK THA	1-71737-652-1	01	1	1410-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) THA	8-98040-541-1	01	1	1410-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) THA	8-98040-545-1	01	1	1410-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) THA	8-98040-546-1	01	1	1410-
87	SPACER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA	1-71737-646-2	02	1	1410-
132	RING; MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA	1-71737-935-0	01	1	1410-
134	CLIP; MIRROR LENS MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA	1-71737-936-0	01	1	1410-
135	LENS; MIRROR,SIDE UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) THA	1-71737-929-0	01	1	1410-
135	LENS; MIRROR,SIDE UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) THA	1-71798-838-0	01	1	1410-

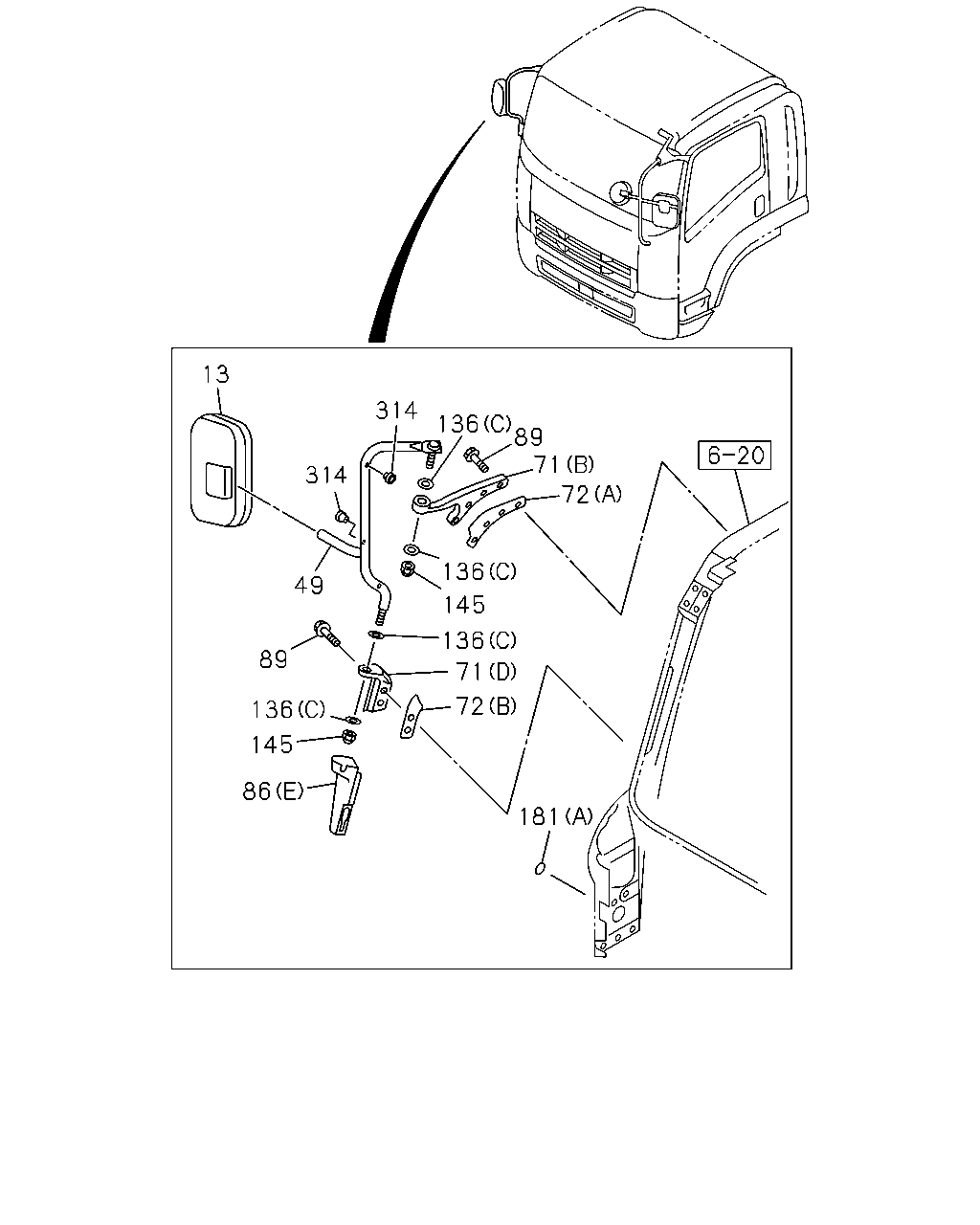

13 314 314 49 89 136 145 86 136 136 145 136 71 72 181 71 72 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA	8-98028-332-0	01	1	1410-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA	8-98104-068-0	01	1	1410-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA	8-98085-113-1	01	1	1410-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA	8-98091-477-0	01	1	1410-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) THA	1-71707-224-0	04	1	1410-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) THA	8-98040-021-0	01	1	1410-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) THA	8-98040-022-1	01	1	1410-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) THA	8-98040-543-1	01	1	1410-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) THA	8-98201-957-0	01	1	1410-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) THA	8-98040-351-0	01	1	1410-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) THA	8-98040-353-1	01	1	1410-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) THA	8-98040-535-0	01	1	1410-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) THA	8-98040-537-1	01	1	1410-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK THA	1-71737-649-1	01	1	1410-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLACK THA	1-71737-652-1	01	1	1410-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E) THA	8-98040-541-1	01	1	1410-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) THA	8-98040-545-1	01	1	1410-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) THA	8-98040-546-1	01	1	1410-
89	SCREW; BRKT,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER THA	8-98067-249-2	10	1	1410-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) ID=10 THA	1-09985-180-0	01	1	1410-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6 THA	1-09985-184-0	02	1	1410-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) ID=10.5 OD=26 T=2.6 THA	1-09985-204-0	04	1	1410-
145	NUT; CAP,SUB STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT THA	1-09984-134-0	03	1	1410-
181	SEAL; BRKT (A) OD=25 BLACK THA	1-76798-019-0	01	1	1410-
181	SEAL; BRKT (B) 25X25 THA	8-94272-533-0	01	1	1410-
314	BUFFER; STOPPER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA	8-94314-317-0	02	1	1410-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
