Isuzu WW
▶
TRUCKS
▶
NPS
▶
51291 - NPS(SOUTH AFRICA)
▶
3 - Brakes, Brake System
▶
3-15 - ANTILOCK BRAKE SYSTEM(A.B.S.)
▶

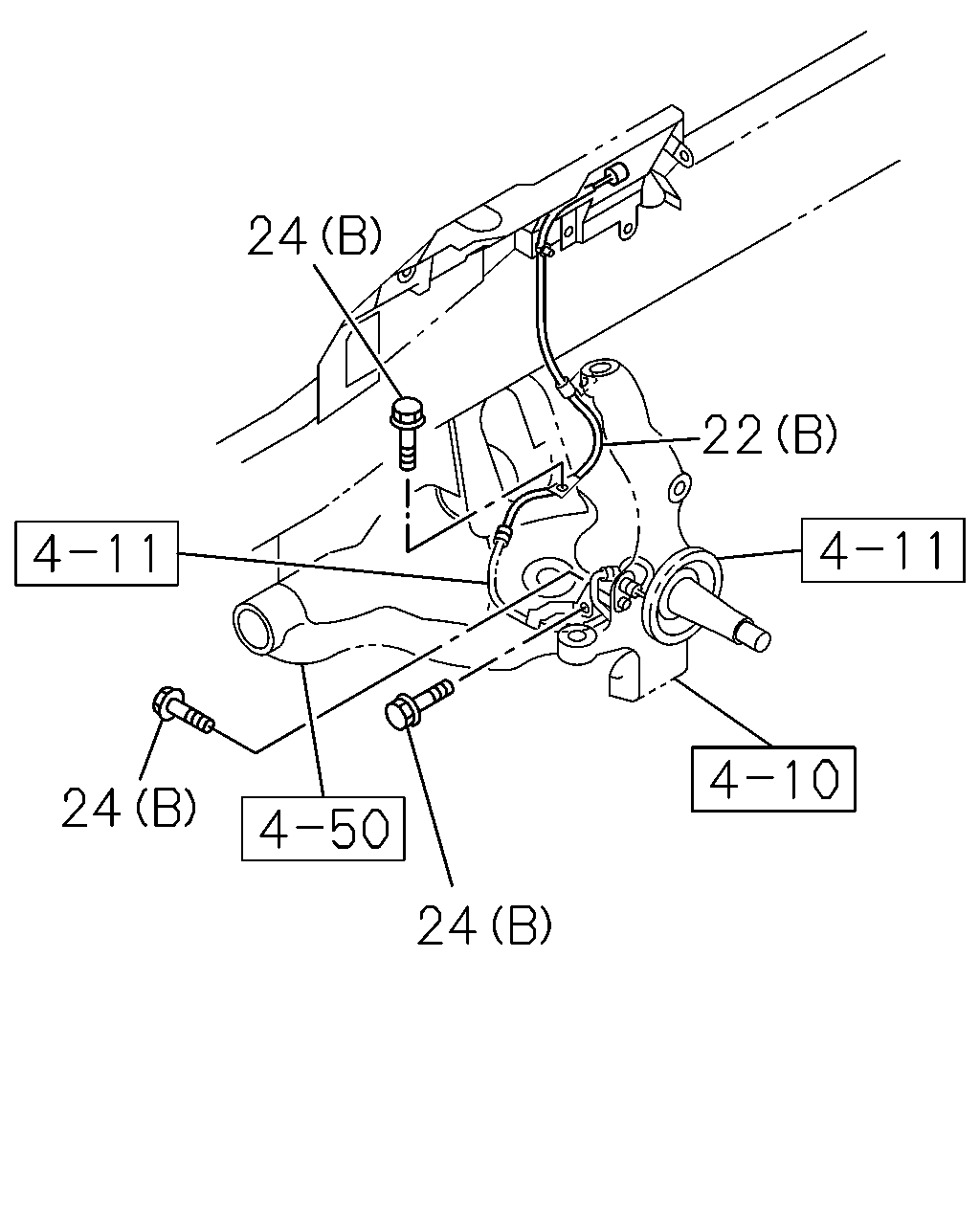

3-15 — ANTILOCK BRAKE SYSTEM(A.B.S.)
(#150005) — 16 parça
Tümü
A - NPS5SN
B - NPS5WN
◀
[315A] FRONT (7 parça)
[315A] REAR (9 parça)
▶
22
24
24
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
22
SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> (A)
8-98219-354-0
02
1
1407-
●
●
22
SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> (B)
8-98282-403-1
01
1
1407-
●
●
22
SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> (B)
8-98282-404-1
01
1
1407-1602
●
●
22
SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> (B)
8-98328-490-0
01
1
1603-
●
●
24
BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> (A) M6X16 FLANGE SOU
0-28050-616-0
02
1
1407-
●
●
24
BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> (B) M8X16 FLANGE SOU
0-28050-816-0
06
1
1407-1411
●
●
24
BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> (B) M8X16 FLANGE SOU
0-28050-816-0
07
1
1412-
●
●
24
22
2
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
BRACKET; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5>
8-98000-019-2
02
1
1407-
●
●
20
ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5>
8-97206-774-4
02
1
1407-
●
●
22
SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> (A)
8-98219-354-0
02
1
1407-
●
●
22
SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> (B)
8-98282-403-1
01
1
1407-
●
●
22
SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> (B)
8-98282-404-1
01
1
1407-1602
●
●
22
SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> (B)
8-98328-490-0
01
1
1603-
●
●
24
BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> (A) M6X16 FLANGE SOU
0-28050-616-0
02
1
1407-
●
●
24
BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> (B) M8X16 FLANGE SOU
0-28050-816-0
06
1
1407-1411
●
●
24
BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> (B) M8X16 FLANGE SOU
0-28050-816-0
07
1
1412-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
