0-40 — FUEL INJECTION SYSTEM (#150) — 129 parça

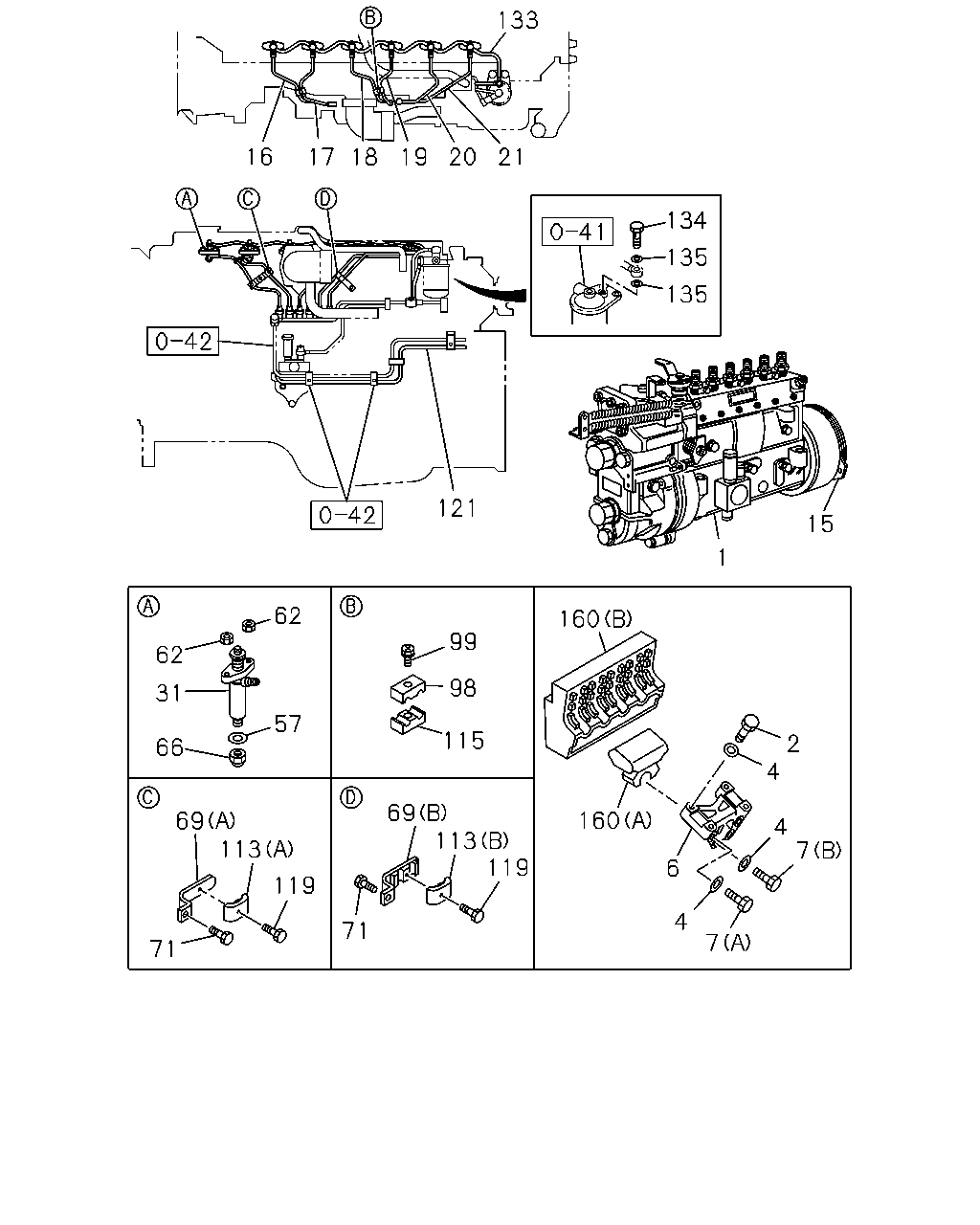

133 18 19 20 21 16 17 134 135 135 121 15 1 62 160 99 62 98 31 57 115 2 4 66 69 113 119 160 69 113 4 7 6 119 4 71 7 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. ANTI NOISE EQUIPMENT VAR2<TAK> EXC. RLD GOV ADR,VAR14(Q2D)	8-94394-735-0	01	1	9212-9305	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. ANTI NOISE EQUIPMENT VAR2<TAK> EXC. RLD GOV ADR,VAR14(Q2D)	8-94395-050-0	01	1	9306-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. RLD GOV ADR,VAR14(Q2D),ANTI NOISE EQUIPMENT VAR2<TAK>	8-94393-462-3	01	1	9308-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. RLD GOV ADR,VAR14(Q2D) EXC. ANTI NOISE EQUIPMENT VAR2<TAK>	8-94394-314-1	01	1	9212-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. RLD GOV ADR,VAR14(Q2D),ANTI NOISE EQUIPMENT VAR2<TAK>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	8-94393-459-2	01	1	9212-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> TAMPER PROOF INJ PUMP SET<W44>	8-94393-714-1	01	1	9212-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. TAMPER PROOF INJ PUMP SET<W44>	8-94393-474-1	01	1	9304-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	8-94393-465-0	01	1	9212-		●
2	BOLT; INJ PUMP M8X75	0-10810-875-0	04	1	9212-	●	●
4	WASHER; INJ PUMP ID=8.5 KAWASAKI	9-09851-983-0	04	1	9212-	●	●
6	BRACKET; INJ PUMP TO C/BL	8-94394-086-0	01	1	9212-	●	●
7	BOLT; INJ PUMP BRKT (A) M10X75 FLANGE	8-94399-669-1	02	1	9212-	●	●
7	BOLT; INJ PUMP BRKT (B) M10X55 FLANGE	8-94399-863-1	02	1	9212-	●	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94393-155-0	01	1	9212-	●	●
16	PIPE; INJ NO.1	8-94396-001-5	01	1	9212-	●
16	PIPE; INJ NO.1	8-94396-007-2	01	1	9212-		●
17	PIPE; INJ NO.2	8-94396-002-6	01	1	9212-	●
17	PIPE; INJ NO.2	8-94396-008-3	01	1	9212-		●
18	PIPE; INJ NO.3	8-94396-003-4	01	1	9212-	●
18	PIPE; INJ NO.3	8-94396-009-3	01	1	9212-		●
19	PIPE; INJ NO.4	8-94396-004-5	01	1	9212-	●
19	PIPE; INJ NO.4	8-94396-010-4	01	1	9212-		●
20	PIPE; INJ NO.5	8-94396-005-2	01	1	9212-	●
20	PIPE; INJ NO.5	8-94396-011-2	01	1	9212-		●
21	PIPE; INJ NO.6	8-94396-364-3	01	1	9212-	●
21	PIPE; INJ NO.6	8-94396-494-3	01	1	9212-		●
31	NOZZLE ASM; INJ	8-94396-564-2	06	1	9212-9303	●	●
31	NOZZLE ASM; INJ	8-94394-787-1	06	1	9304-	●	●
57	GASKET; DUST COVER ALSO INCLUDED IN GASKET SET(ENGINE).	9-09563-215-0	06	1	9504-	●	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	12	1	9212-	●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94377-623-0	06	1	9212-	●	●
69	BRACKET; INJ PIPE CLIP (A)	8-94396-086-0	01	1	9212-	●	●
69	BRACKET; INJ PIPE CLIP (B)	8-94396-087-0	01	1	9212-	●	●
71	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	9212-	●	●
98	CLIP; "A",INJ PIPE	8-94397-445-0	03	1	9212-	●	●
99	BOLT; CLIP,INJ,PIPE	8-94365-129-0	03	1	9212-	●	●
113	CLIP; INJ PIPE (A)	1-09701-091-0	02	1	9212-	●	●
113	CLIP; INJ PIPE (B)	8-94397-444-0	01	1	9212-	●	●
115	CLIP; "B",INJ PIPE	8-94397-444-0	03	1	9212-	●	●
119	BOLT; CLIP,INJ PIPE M6X22 FLANGE	0-28280-622-0	03	1	9212-9305	●	●
119	BOLT; CLIP,INJ PIPE M6X22 FLANGE	0-28080-622-0	03	1	9306-	●	●
121	PIPE; FUEL,FEED PUMP,SUCTION MBG5 M/T<X9W>,MBG6 M/T<X9X>	8-94397-335-1	01	1	9212-	●	●
121	PIPE; FUEL,FEED PUMP,SUCTION MLD6 M/T<X9Y>	8-94393-021-1	01	1	9212-	●	●
133	PIPE; INJ NOZZLE LEAK OFF	8-94396-587-0	01	1	9212-9404	●	●
133	PIPE; INJ NOZZLE LEAK OFF	8-94395-144-0	01	1	9405-	●	●
134	BOLT; JOINT,LEAK OFF PIPE M8X18 EYE BOLT	1-09675-037-1	01	1	9212-	●	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	9212-9305	●	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 T=0.8	1-09630-082-0	02	1	9306-	●	●
160	SPACER; INJ PUMP ANTI NOISE EQUIPMENT VAR2<TAK> (A)	8-94394-508-1	01	1	9212-9307	●
160	SPACER; INJ PUMP ANTI NOISE EQUIPMENT VAR2<TAK> (A)	8-94394-402-1	01	1	9308-	●
160	SPACER; INJ PUMP ANTI NOISE EQUIPMENT VAR2<TAK> (B)	8-94396-565-2	01	1	9212-	●

31 32 34 36 58 145 140 44 43 146 46 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	NOZZLE ASM; INJ	8-94396-564-2	06	1	9212-9303	●	●
31	NOZZLE ASM; INJ	8-94394-787-1	06	1	9304-	●	●
32	HOLDER ASM; NOZZLE	8-94396-576-0	06	1	9212-9303	●	●
32	HOLDER ASM; NOZZLE	8-94394-788-0	06	1	9304-	●	●
33	NOZZLE; INJ	8-94396-575-1	06	1	9212-	●	●
34	BOLT; EYE,NOZZLE HOLDER M8X18 EYE BOLT	1-09675-037-1	06	1	9212-	●	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	06	1	9212-	●	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	9-09571-408-0	12	1	9212-9303	●	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	12	1	9304-	●	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-94329-555-0	06	1	9212-	●	●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	06	1	9212-	●	●
46	PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	12	1	9212-	●	●
58	FLANGE; INJ,NOZZLE HOLDER	8-94319-320-0	06	1	9212-9303	●	●
58	FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	06	1	9304-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-97027-432-0	AR	1	9212-9303	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-97027-433-0	AR	1	9212-9303	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-97027-434-0	AR	1	9212-9303	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-97027-435-0	AR	1	9212-9303	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	8-97027-436-0	AR	1	9212-9303	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	8-97027-437-0	AR	1	9212-9303	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	8-97027-438-0	AR	1	9212-9303	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	8-97027-439-0	AR	1	9212-9303	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	8-97027-440-0	AR	1	9212-9303	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-97116-029-0	AR	1	9304-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-97116-032-0	AR	1	9304-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-97116-033-0	AR	1	9304-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-97116-034-0	AR	1	9304-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	8-97116-035-0	AR	1	9304-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.51	8-97116-036-0	AR	1	9304-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	8-97116-037-0	AR	1	9304-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.53	8-97116-038-0	AR	1	9304-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	8-97116-039-0	AR	1	9304-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.55	8-97116-040-0	AR	1	9304-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	8-97116-041-0	AR	1	9304-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.57	8-97116-042-0	AR	1	9304-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	8-97116-043-0	AR	1	9304-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.59	8-97116-044-0	AR	1	9304-	●	●
145	GASKET; RET NUT	8-94128-915-0	06	1	9212-	●	●
146	SPACER; NOZZLE	1-15339-095-0	06	1	9304-	●	●

31 32 34 36 58 145 140 44 43 146 46 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	NOZZLE ASM; INJ	8-94396-564-2	06	1	9212-9303	●	●
31	NOZZLE ASM; INJ	8-94394-787-1	06	1	9304-	●	●
32	HOLDER ASM; NOZZLE	8-94396-576-0	06	1	9212-9303	●	●
32	HOLDER ASM; NOZZLE	8-94394-788-0	06	1	9304-	●	●
33	NOZZLE; INJ	8-94396-575-1	06	1	9212-	●	●
34	BOLT; EYE,NOZZLE HOLDER M8X18 EYE BOLT	1-09675-037-1	06	1	9212-	●	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	06	1	9212-	●	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	9-09571-408-0	12	1	9212-9303	●	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	12	1	9304-	●	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-94329-555-0	06	1	9212-	●	●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	06	1	9212-	●	●
46	PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	12	1	9212-	●	●
58	FLANGE; INJ,NOZZLE HOLDER	8-94319-320-0	06	1	9212-9303	●	●
58	FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	06	1	9304-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-97027-432-0	AR	1	9212-9303	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-97027-433-0	AR	1	9212-9303	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-97027-434-0	AR	1	9212-9303	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-97027-435-0	AR	1	9212-9303	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	8-97027-436-0	AR	1	9212-9303	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	8-97027-437-0	AR	1	9212-9303	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	8-97027-438-0	AR	1	9212-9303	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	8-97027-439-0	AR	1	9212-9303	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	8-97027-440-0	AR	1	9212-9303	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-97116-029-0	AR	1	9304-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-97116-032-0	AR	1	9304-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-97116-033-0	AR	1	9304-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-97116-034-0	AR	1	9304-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	8-97116-035-0	AR	1	9304-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.51	8-97116-036-0	AR	1	9304-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	8-97116-037-0	AR	1	9304-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.53	8-97116-038-0	AR	1	9304-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	8-97116-039-0	AR	1	9304-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.55	8-97116-040-0	AR	1	9304-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	8-97116-041-0	AR	1	9304-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.57	8-97116-042-0	AR	1	9304-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	8-97116-043-0	AR	1	9304-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.59	8-97116-044-0	AR	1	9304-	●	●
145	GASKET; RET NUT	8-94128-915-0	06	1	9212-	●	●
146	SPACER; NOZZLE	1-15339-095-0	06	1	9304-	●	●
